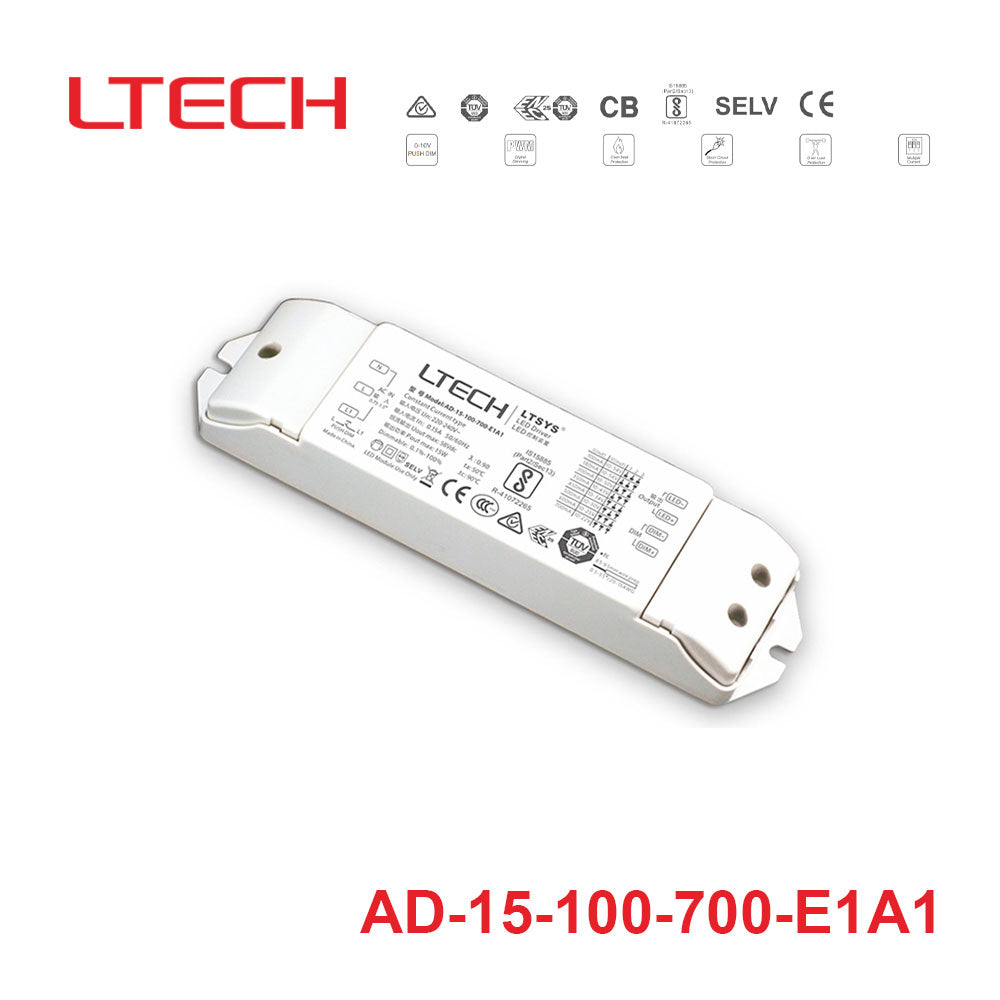

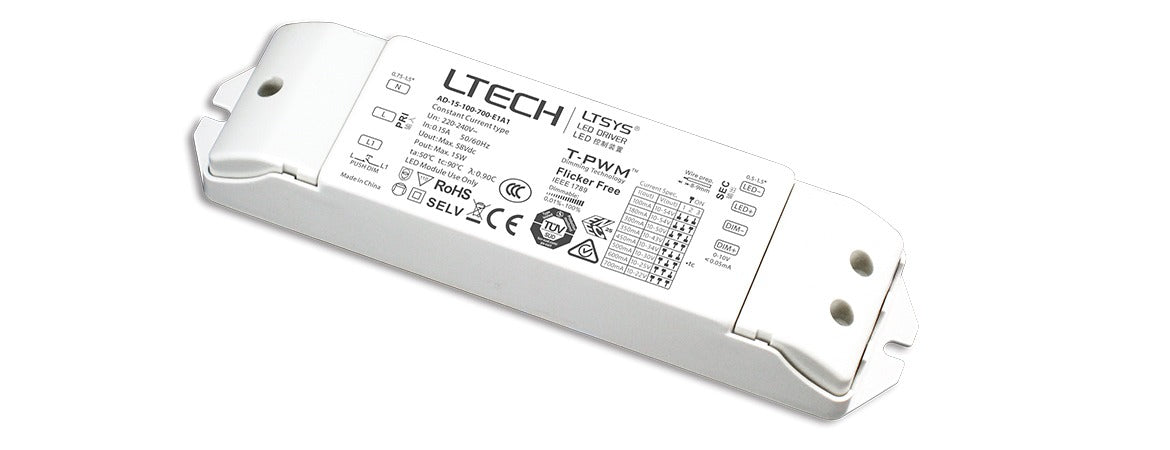

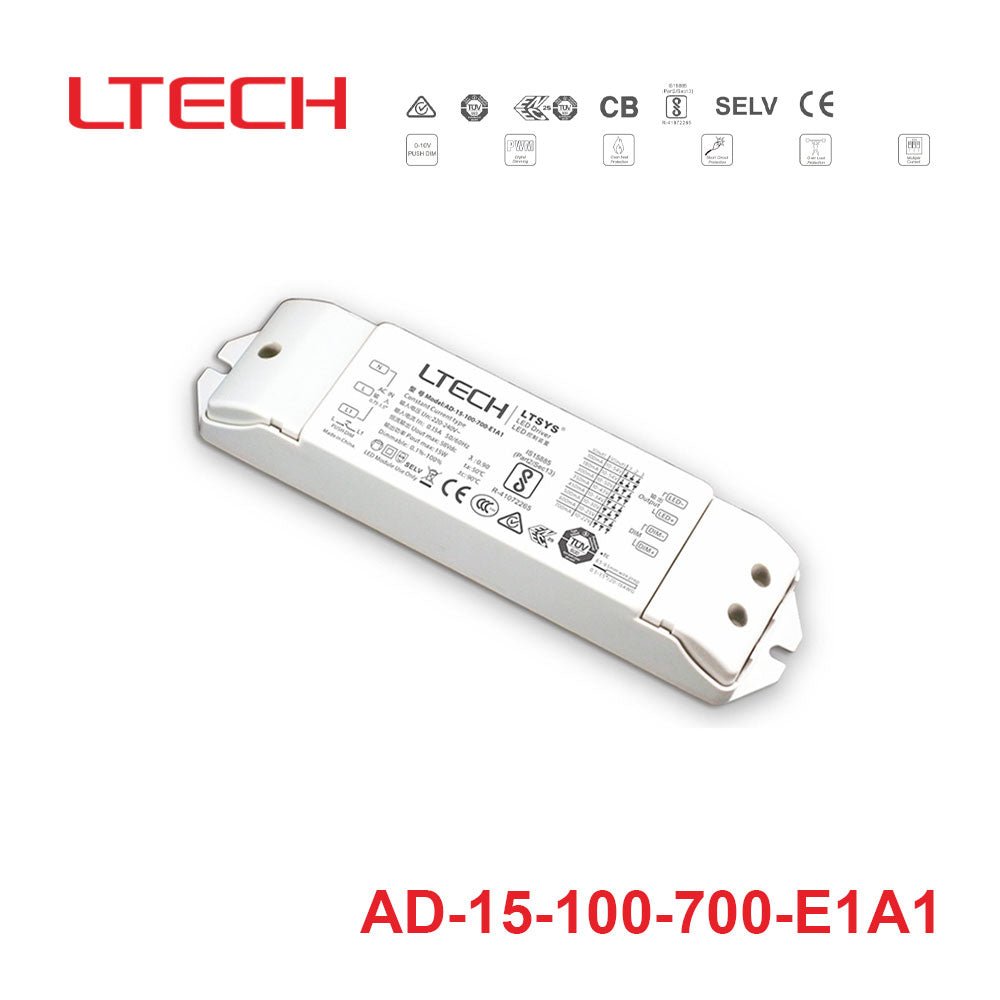

LTECH AD-15-100-700-E1A1 15W 100 ~ 700mA CC 0/1-10V LED Driver - Selectable Output

$35.79 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: 0-10V (1-10V/10V PWM/RX)
  • Push DIM
  • With soft-on and fade in function
  • visual more comfortable.
  • T-PWM digital dimming.
  • Automatic recognition of 0-10V
  • 1-10V input signal.
  • 0-100% flicker-free
  • High Frequency Exemption
  • Innovative thermal management technology
  • intelligent power life protection.
  • Dimming range:0~100%
  • LED start at 0.01% possible.
  • Multiple current& wide voltage
  • suitable for different power LED.
  • Non-load output voltage 0V to prevent damages to LED caused by poor contact.
  • Short circuit / Over-heat / Over load / Non-load protection
  • recover automatically
  • Suitablefor internal lights application for I/II/III
  • 5 years warranty (Rubycon capacitor)

Specifications

  • Brand
    Ltech
  • Series
    Ltech 0/1-10V Series
  • Power Rating
    15 Watt
  • Output Voltage
    58 Volt
  • Rated Current
    0.1 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    0-10V,1-10V
  • Standards Met
    CB,CCC,CE,EMEC,RCM,ROHS,TUV
  • Operation Mode
    Constant Current
  • Warranty
    5 Year
  • Length
    6.57 in
  • Width
    1.61 in
  • Height
    1.26 in
  • Weight
    0.37 lb
