Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

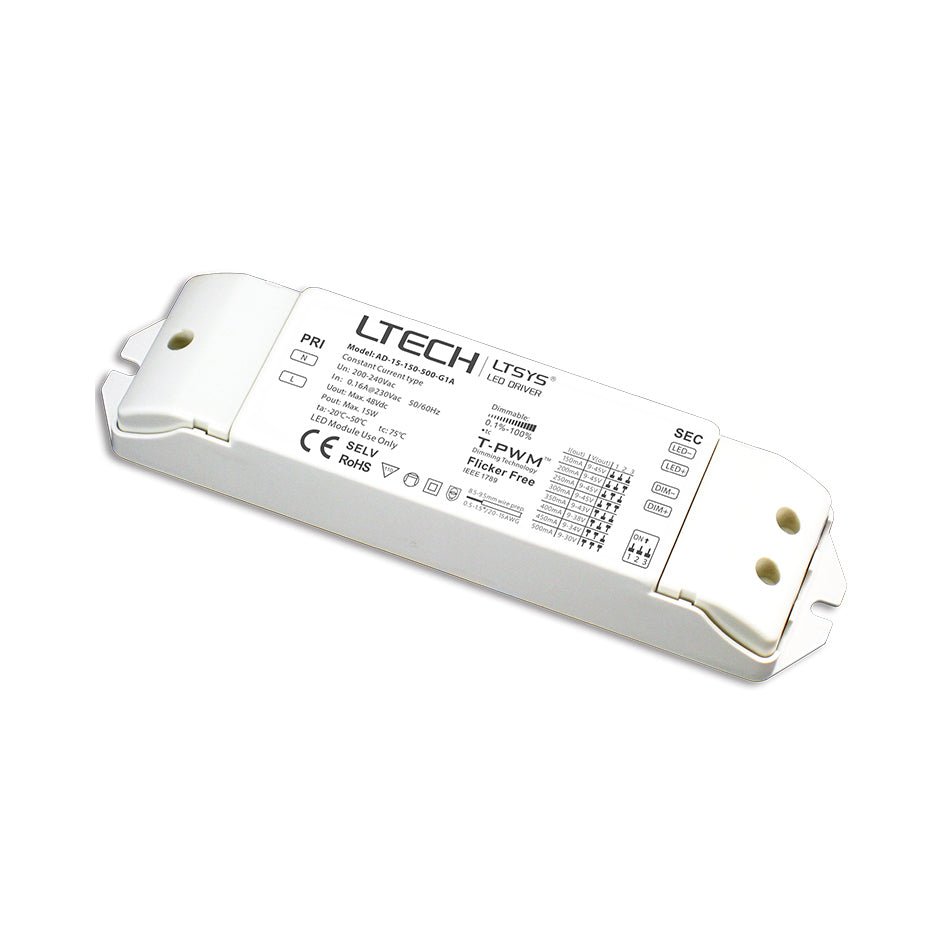

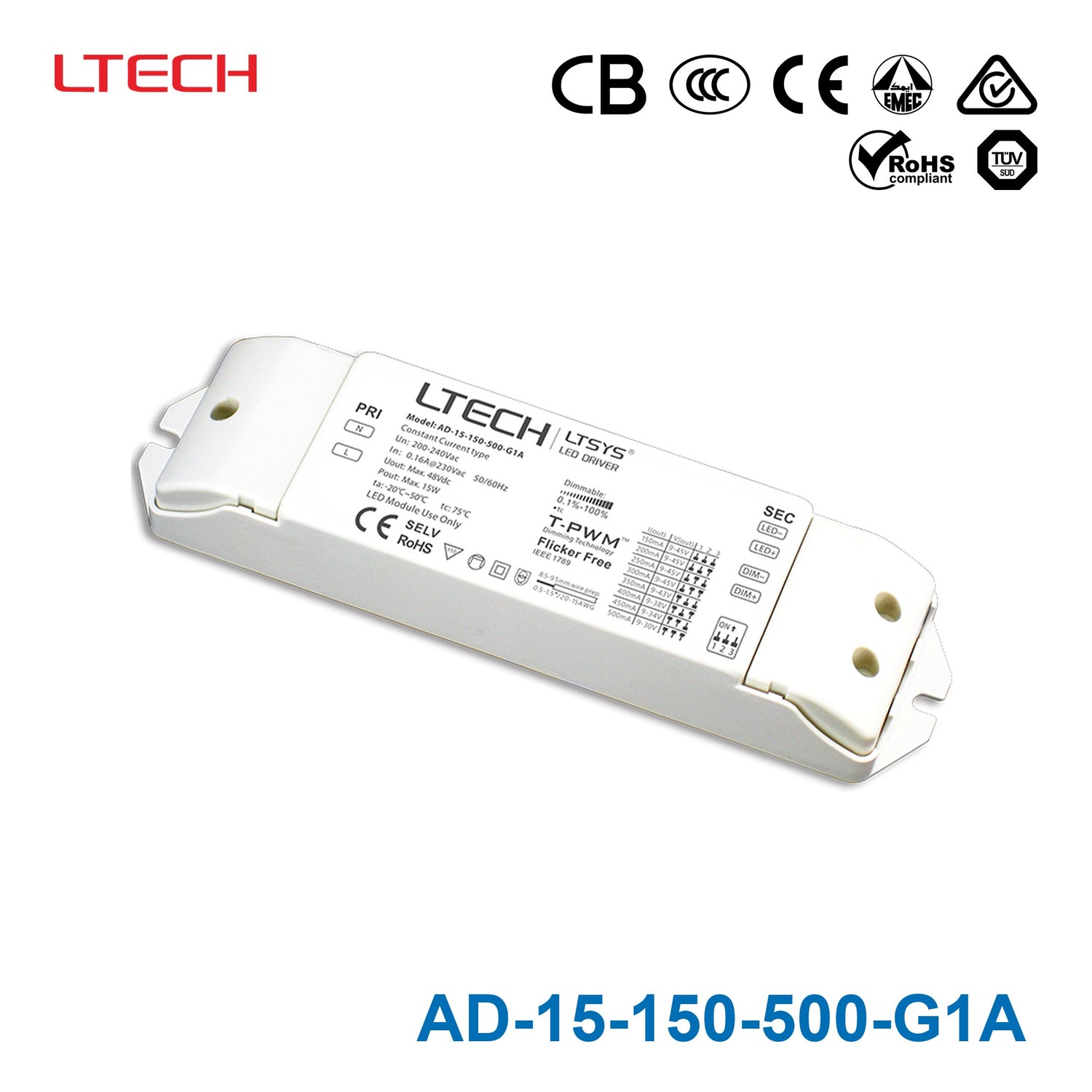

LTECH AD-15-150-500-G1A 13W 24VDC CC 0/1-10V LED Driver - Selecta...
$36.98 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Built-in single chipautomatic recognition of 0-10V
- 1-10V input signal
- T-PWM digital dimming
- present a perfect visual experience.
- Flicker-free (IEEE-PAR 1789)
- achieve the level of exemption assessment
- Innovative thermal management technology
- intelligent power life protection.
- Dimming range:0~100%
- LED start at 0.1% possible.
- Multiple current& wide voltage
- suitable for different power LED.
- Non-load output voltage 0V to prevent damages to LED caused by poor contact.
- Over load / Over-heat / Short circuit / Over voltage protection
- recover automatically
- Class 2 power supply. Full protective plastic housing
- Compliant with Safety Extra Low Voltage standard.
- Suitablefor internal lights application for I/II/III
Specifications
Specifications
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating13 Watt
-
Output Voltage48 Volt
-
Rated Current0.15 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming Control0-10V,1-10V
-
Standards MetCB,CCC,CE,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.57 in
-
Width1.61 in
-
Height1.26 in
-
Weight0.31 lb
