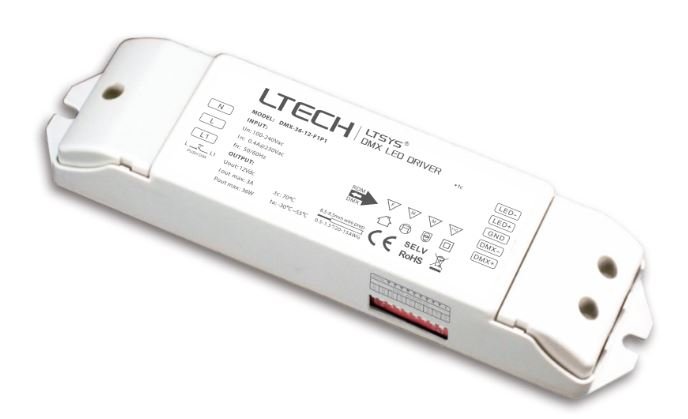

Ltech DMX-36-12-F1P1 36W 12VDC CV DMX LED Driver - DMX dimmable
- Dimming interface: DMX512/RDM
- Push DIM.
- With the RDM remote device management protocol.
- PWM digital dimming
- no alter LED colorrendering index.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Short circuit / Over-heat / Over load protection
- recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/IIItype lamps application.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current3 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What is the main use case for the Ltech DMX-36-12-F1P1?
This model is a constant-voltage DMX LED driver intended for dimmable LED lighting applications that use DMX512 or RDM control. It is suited to indoor lamp applications and is positioned for commercial and professional lighting projects where DMX dimming is required.
Does this LED driver support DMX dimming?
Yes. The product description lists DMX512/RDM as the dimming interface and also notes support for the RDM remote device management protocol. It also supports Push DIM and uses PWM digital dimming with a 0 to 100% dimming range.
What are the power and electrical ratings for this model?
The provided product data lists this driver at 36W with a rated current of 3.0A and an output voltage field of 24VDC. Buyers should match those ratings to the LED load requirements before ordering.
Is there any voltage information I should double-check before buying?
Yes. The product title includes "12VDC," but the structured specification field lists the output voltage as 24VDC. Because of that mismatch, the required output voltage should be confirmed against your project requirements before purchase.
Can this driver dim smoothly at very low light levels?
Yes. The description states a 0 to 100% dimming range and notes that LED start at 0.1% is possible. It also specifies flicker-free dimming and says PWM dimming does not alter LED color rendering index.
What protection features does the Ltech DMX-36-12-F1P1 include?
This model includes short-circuit, over-heat, and over-load protection, with automatic recovery noted in the description. It is also described as a Class 2 power supply with full protective plastic housing and compliance with Safety Extra Low Voltage standards.
What environments is this LED driver designed for?
The listed operating temperature range is -30°C to 55°C, which supports use across a wide range of indoor conditions. The description specifically says it is suitable for indoor I/II/III type lamps application.
What warranty comes with this model?
The provided warranty period for this model is 5 years. That makes it a stronger fit for buyers who need longer-term coverage for commercial or project-based lighting purchases.
