Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

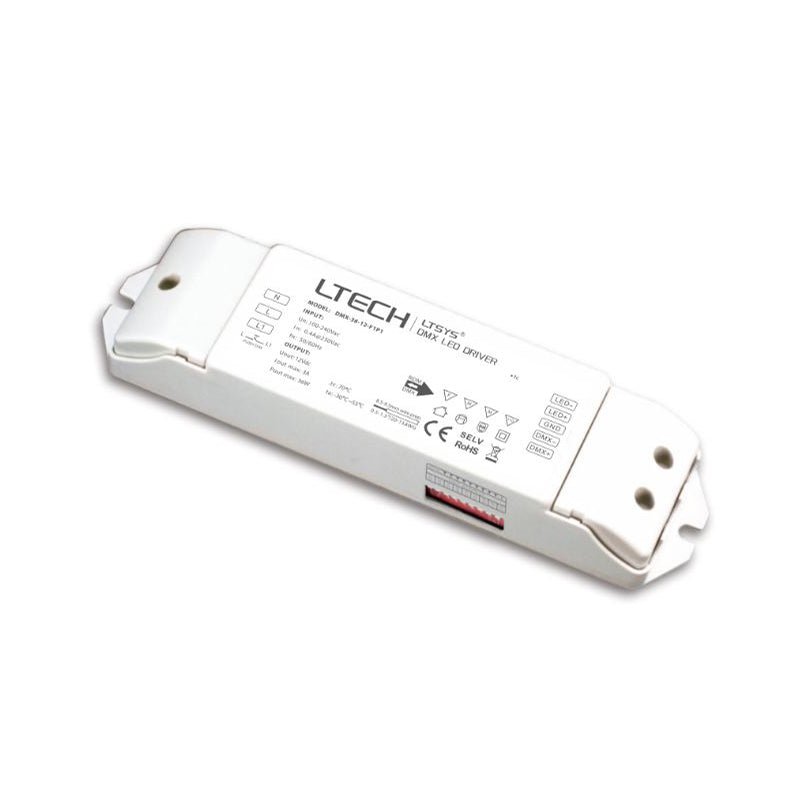

Ltech DMX-36-24-F1P1 36W 24VDC CV DMX LED Driver - DMX dimmable
- Dimming interface: DMX512/RDM
- Push DIM.
- With the RDM remote device management protocol.
- PWM digital dimming
- no alter LED colorrendering index.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Short circuit / Over-heat / Over load protection
- recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/IIItype lamps application.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
What type of LED lighting is the Ltech DMX-36-24-F1P1 designed for?
The Ltech DMX-36-24-F1P1 is a 24VDC constant voltage LED driver for compatible low-voltage LED lighting applications. It is intended for indoor lamp applications and is suited to projects that need DMX-based dimming control.
Does this LED driver support DMX control?
Yes. This model supports DMX512/RDM dimming control, which makes it suitable for lighting systems that use DMX-based dimming and remote device management. It also supports Push DIM for compatible dimming setups.
What are the electrical ratings for the DMX-36-24-F1P1?
This model is rated for 36W output at 24VDC with a rated current of 1.5A. Those specifications make it a constant voltage driver for 24V LED loads within its rated capacity.
How smooth is the dimming performance on this driver?
The DMX-36-24-F1P1 uses PWM digital dimming with a 0 to 100 percent dimming range. The product description also states flicker-free dimming and notes that LED startup at 0.1 percent is possible.
What protection features are included in this LED driver?
This model includes short circuit, over-heat, and overload protection. According to the product details, it recovers automatically after the fault condition is cleared.
Is the Ltech DMX-36-24-F1P1 suitable for demanding temperature environments?
It is rated for operation from -30°C to 55°C. That gives it a fairly broad working temperature range for indoor commercial and architectural lighting applications.
What makes this model a good choice compared with a non-DMX 24V LED driver?
A key differentiator is its support for DMX512/RDM control, which is useful when a project requires centralized dimming and device management features. It also combines that control capability with 24V constant voltage output, Class 2 construction, and a 5-year warranty.
