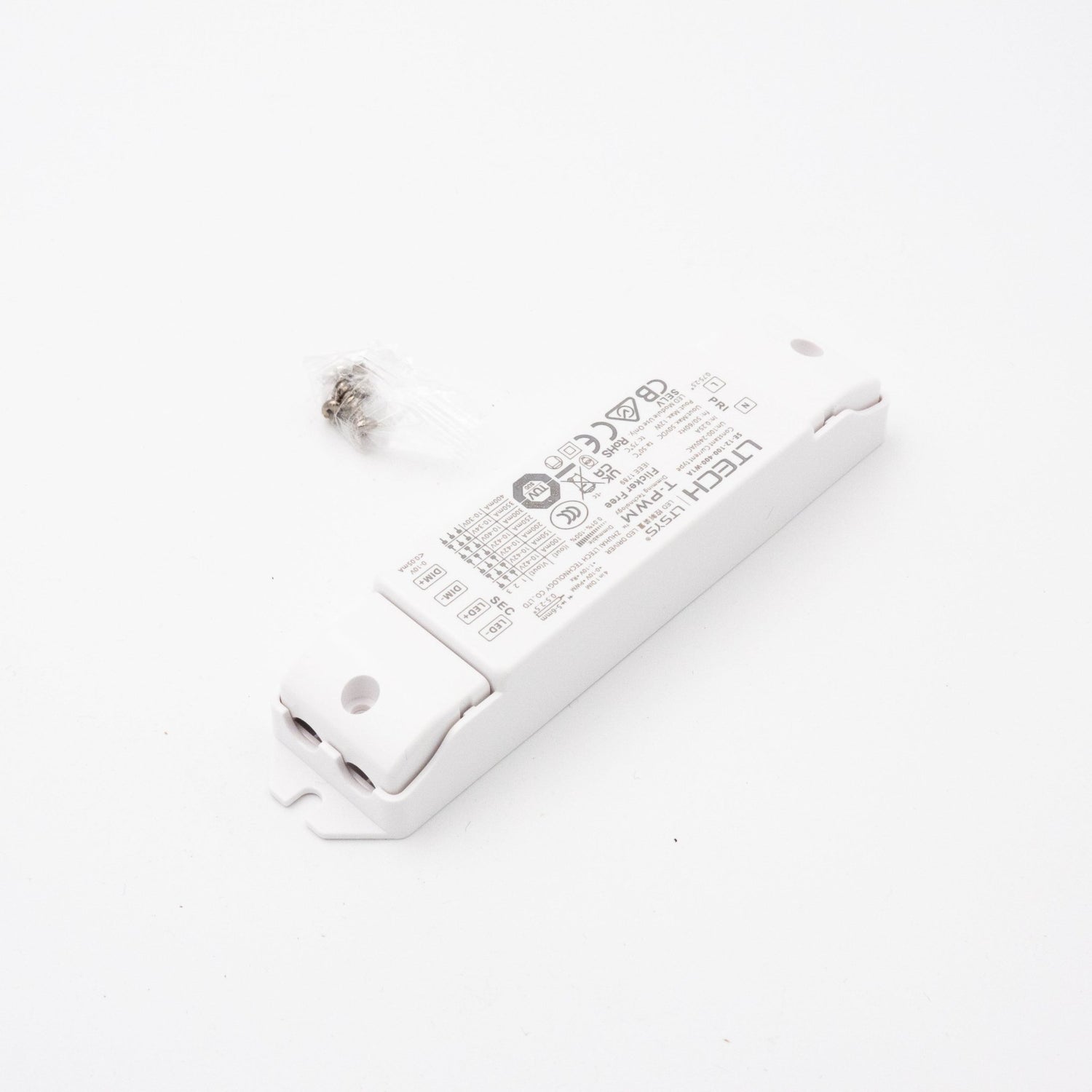

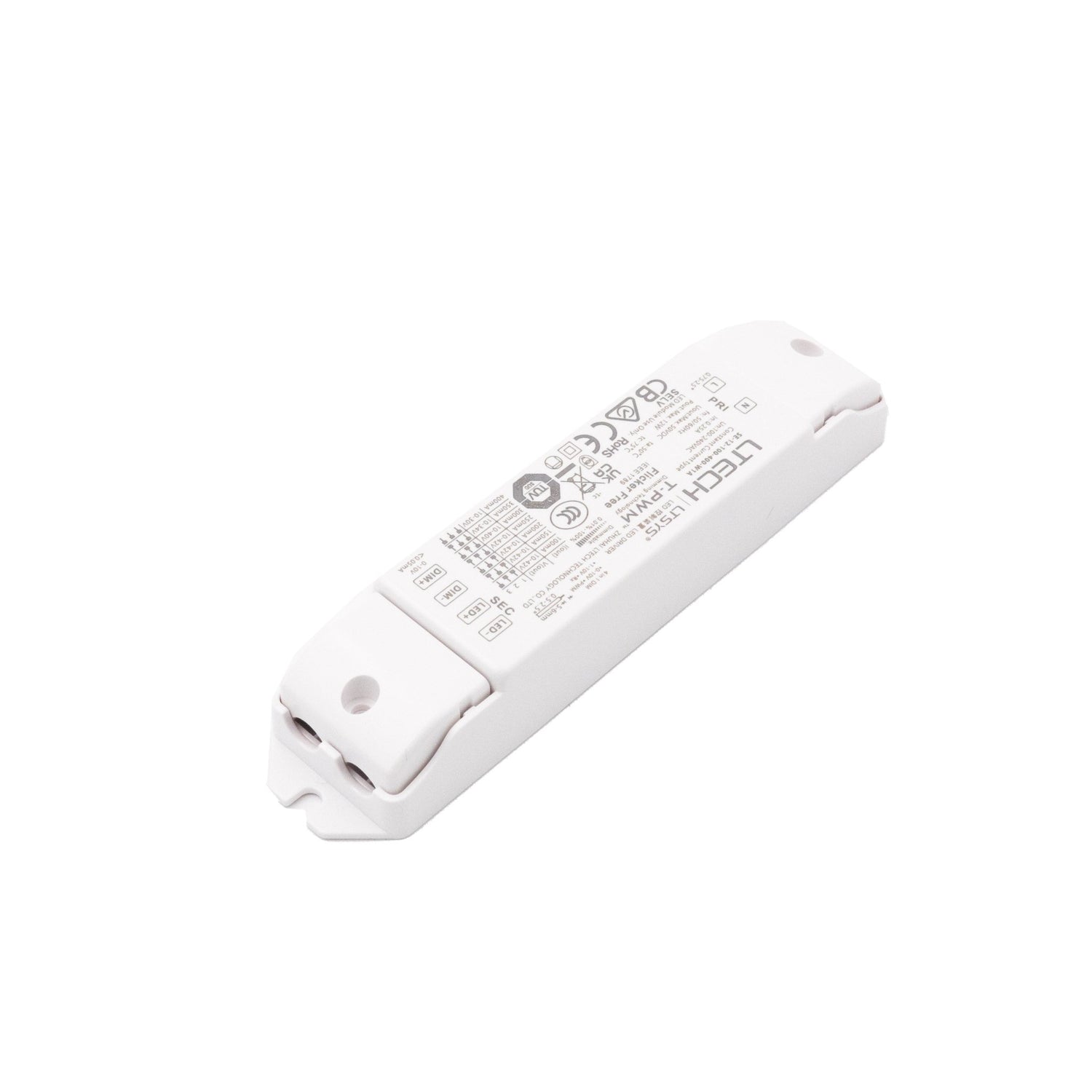

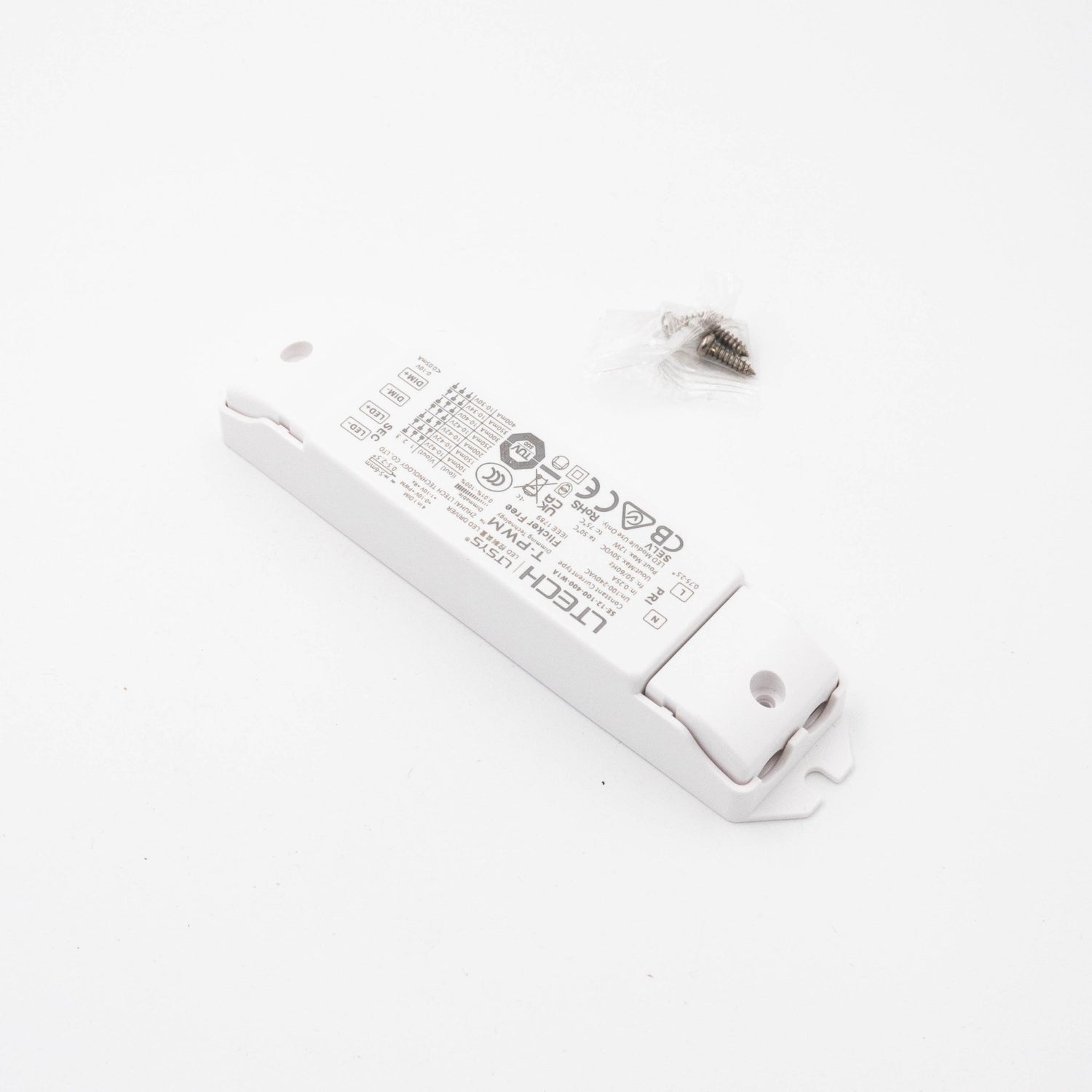

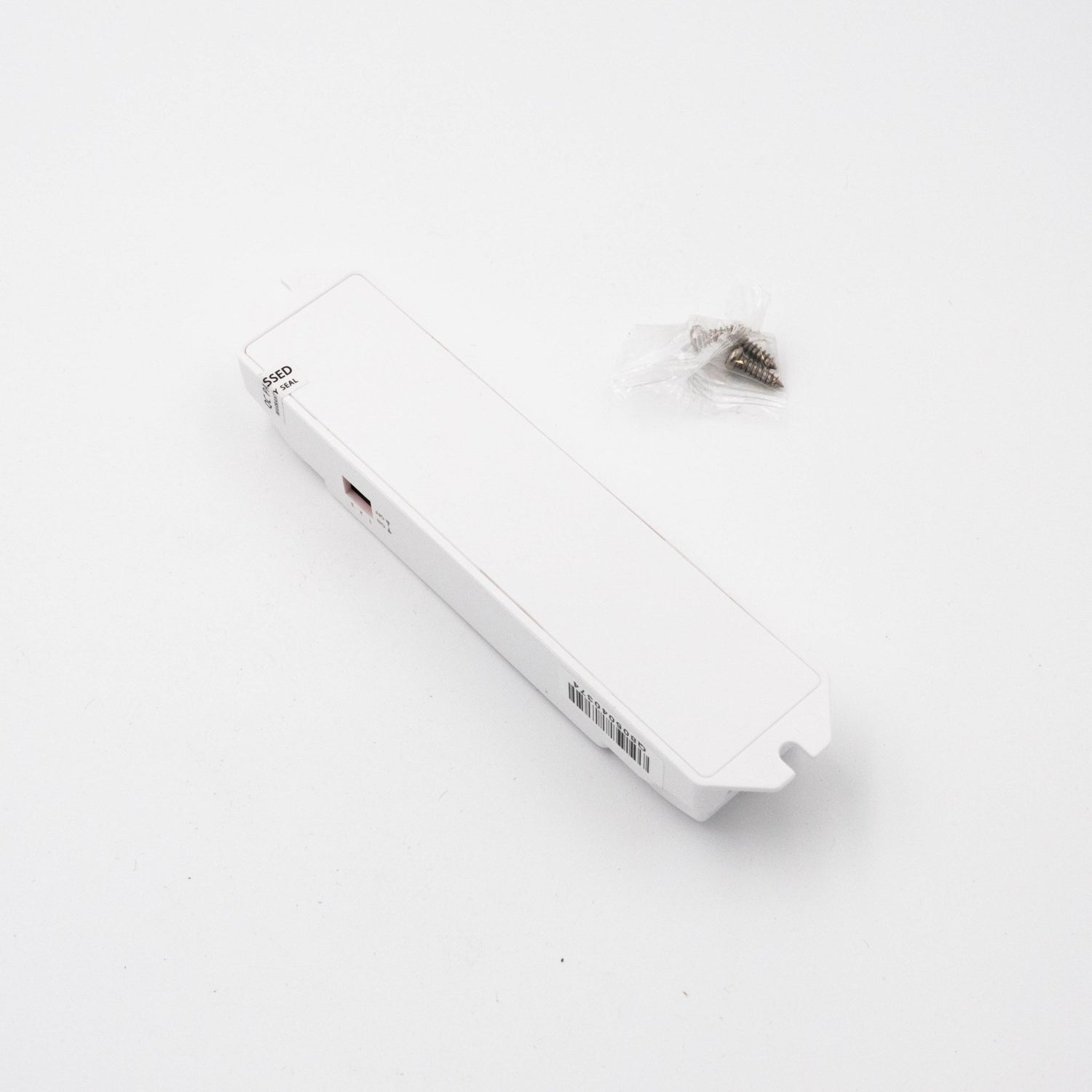

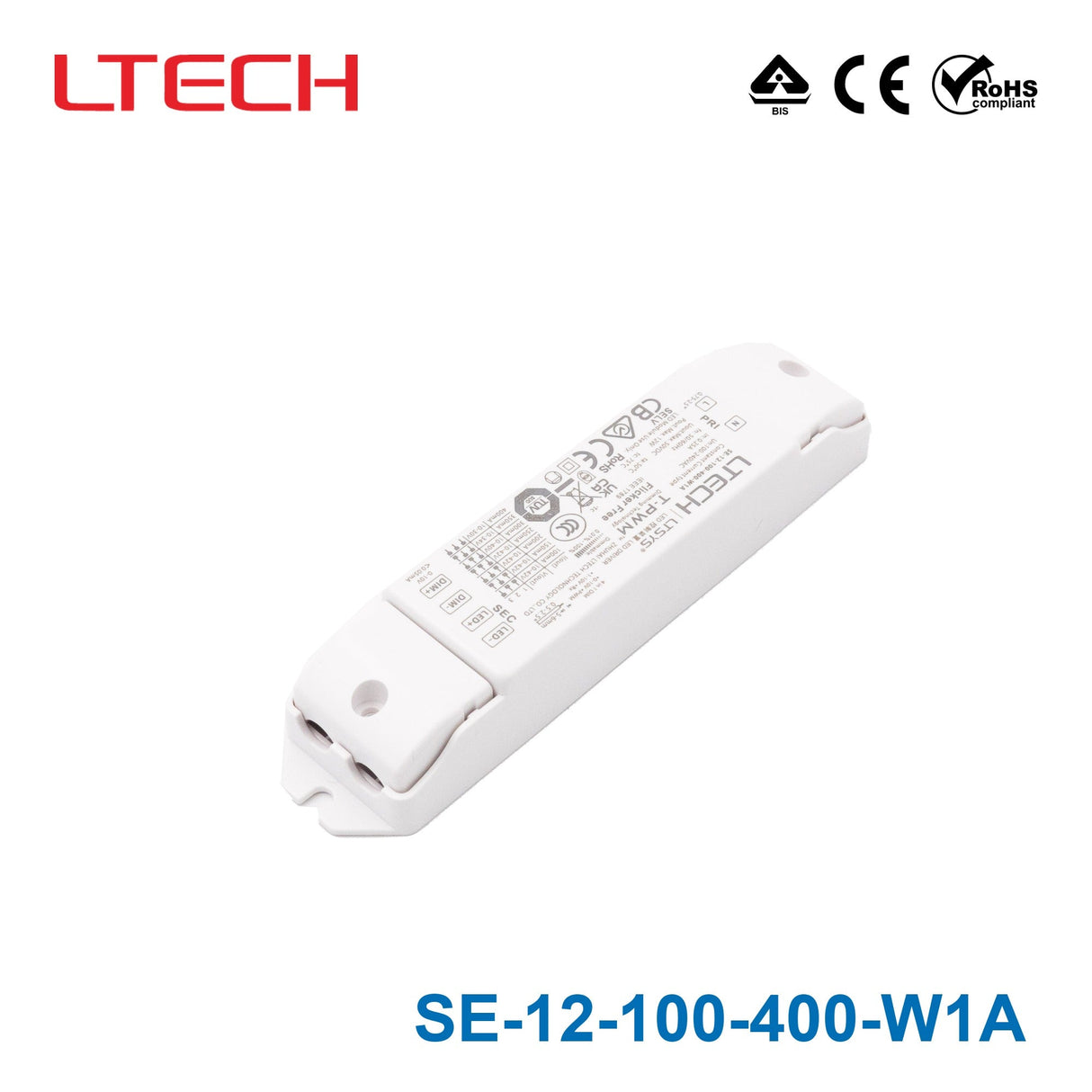

Ltech SE-12-100-400-W1A 12W 100mA ~ 400mA CC 0-10V LED Driver
Intelligent LED Driver
| Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight. |

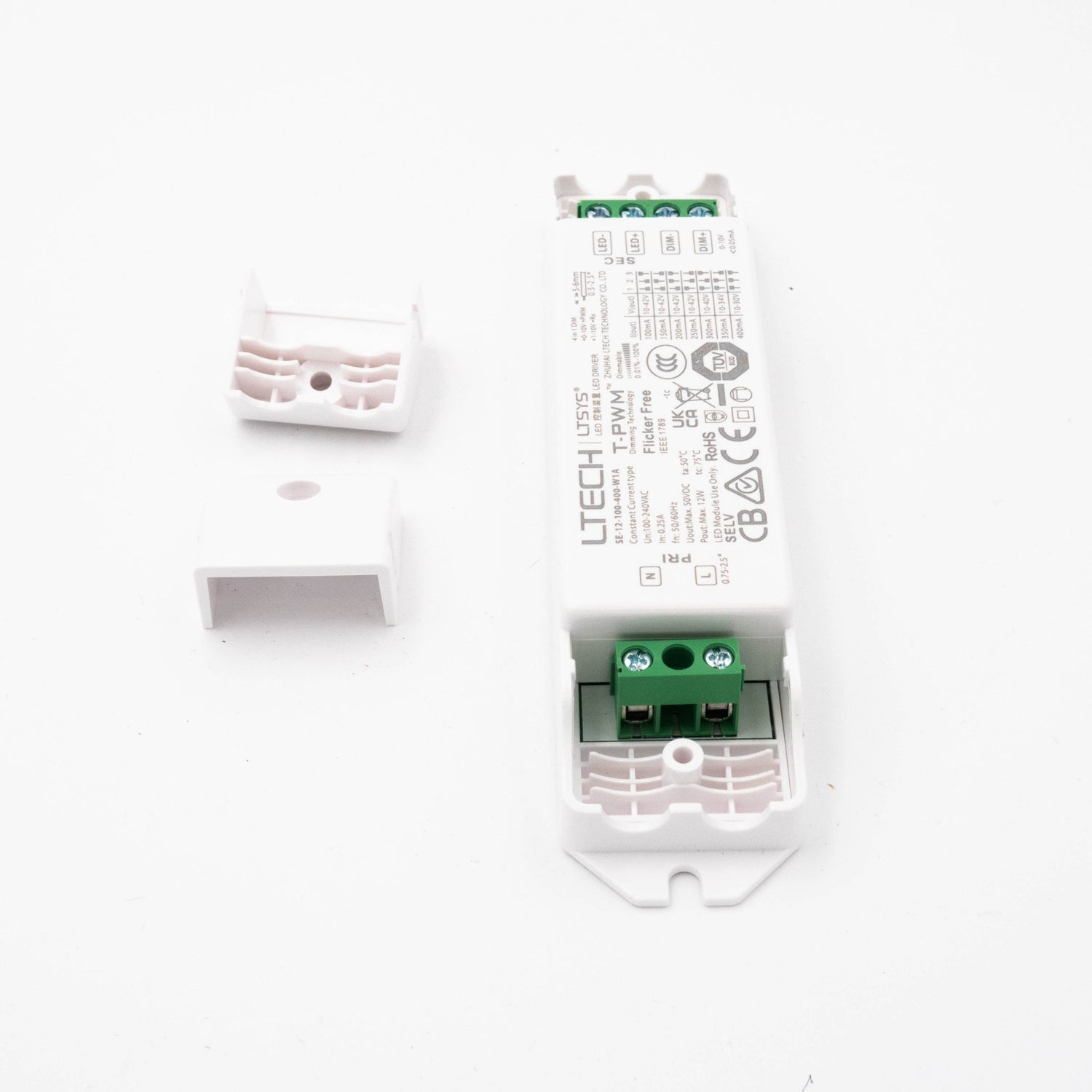

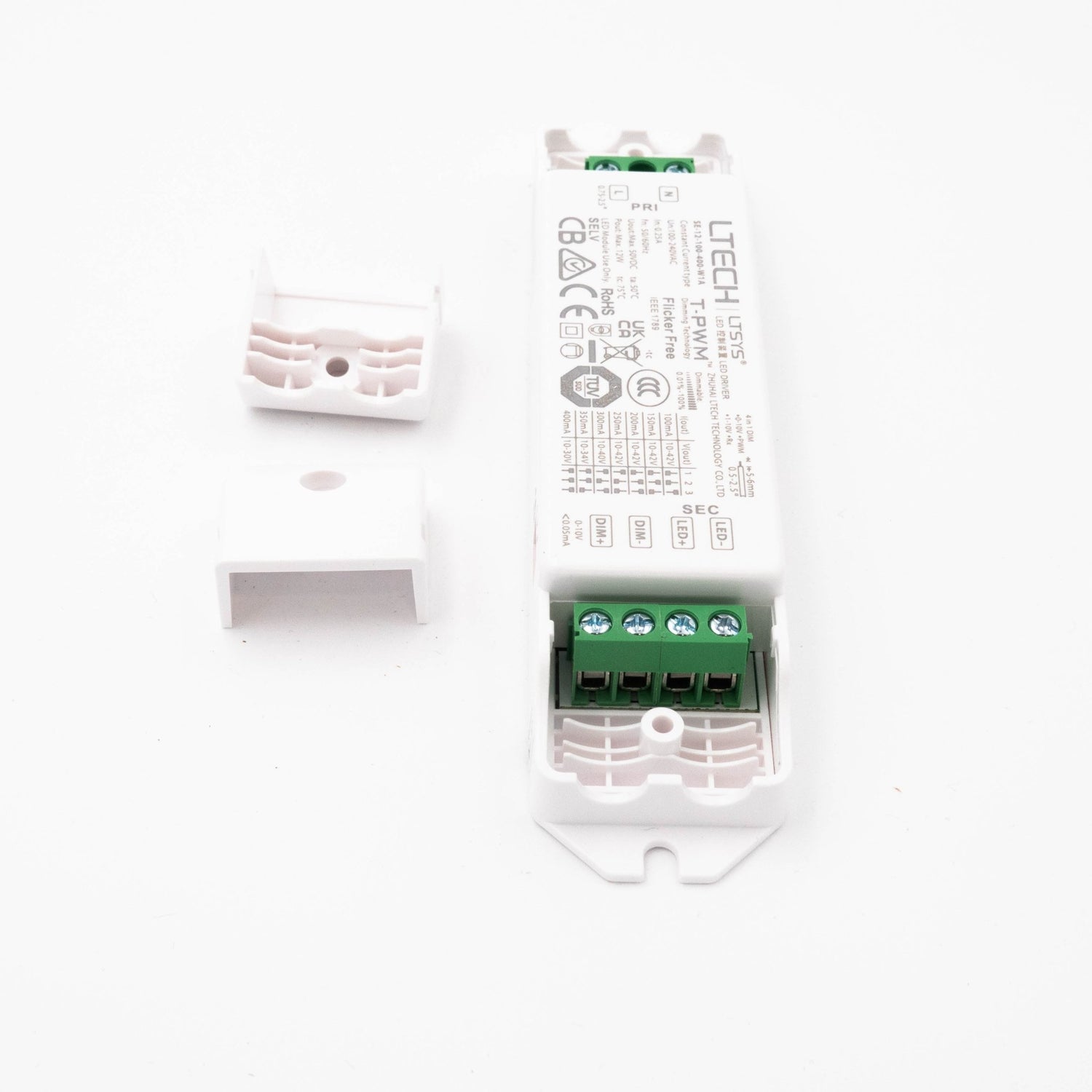

| The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm² wire diameter 60N tensile test,and complies with the tensile test standard GB7000.1-2015/IEC60598-1：2014. |
| Soft-on and fade-in dimming function enhances your visual comfort. |
| T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting. |
| Dimming from 0~100%, down to 0.01%. |
| 0-100% flicker-free dimming with high frequency exemption level. |
| Innovative thermal management technology protects the power life intelligently. |

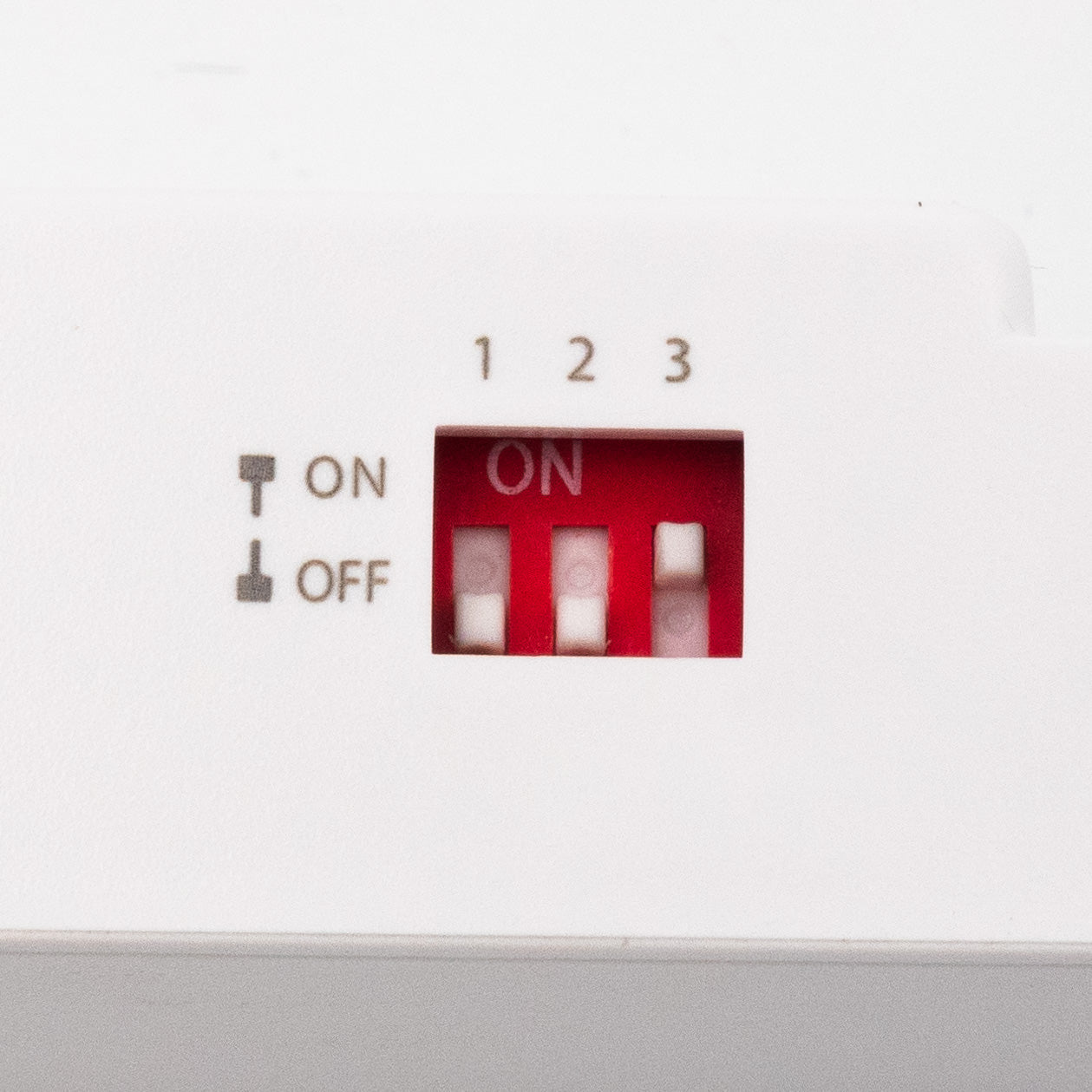

| Multiple current levels & wide voltage, suitable for different power LEDs. |
| Class 2 LED driver, full protective plastic housing. |
| Comply with Safety Extra Low Voltage standard |
| Over voltage, overload, shortcircuit protection and automatic recovery |
| Suitable for indoor light applications of I/II/III type. |
| Up to 50000-hour lifetime. |
| 5-year warranty (Rubycon capacitor) |
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating12 Watt
-
Output Voltage22 Volt
-
Rated Current0.4 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length4.37 in
-
Width1.38 in
-
Height0.79 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What kind of LED applications is the Ltech SE-12-100-400-W1A designed for?
The Ltech SE-12-100-400-W1A is a constant-current LED driver intended for low-power LED lighting applications that need adjustable output current. With a 12W power rating and a 100mA to 400mA output current range, it fits projects where matching the driver to the LED load is important.
What are the main electrical specifications of this LED driver?
This model is rated at 12W with a listed output voltage of 22V and a rated current of 400mA. The product name indicates a constant-current range of 100mA to 400mA, which helps distinguish it from fixed-output drivers.
Does this model support dimming?
Yes, this driver is positioned as a dimmable model, and the product data lists dimming control as PWM while the product name identifies it as a 0-10V LED driver. For buyers comparing dimming options, this makes it more suitable than a non-dimmable constant-current driver in lighting systems that require light level control.
Is the SE-12-100-400-W1A suitable for demanding environments?
It is specified for operation from -30°C to 50°C, which supports use in a wide range of indoor and protected commercial lighting environments. The description also highlights a V0 flame-resistant polycarbonate housing, which is relevant for buyers concerned about material durability and safety-oriented construction.
What type of LED load is this driver compatible with?
This model is intended for constant-current LED loads rather than constant-voltage products. Buyers should evaluate it against LED systems that need a driver in the 100mA to 400mA constant-current range and align with the listed 22V output specification.
How does this driver differ from larger LED drivers?
This is a compact 12W model built for lower-power applications, not a higher-wattage driver for larger LED loads. Its small size, light weight, and adjustable constant-current range make it a more targeted choice when a larger driver would be unnecessary.
What warranty is offered for the Ltech SE-12-100-400-W1A?
The listed warranty period for this model is 5 years. That gives commercial and project buyers a longer coverage window than many short-term electronics components, which can be relevant when evaluating lifecycle cost.
