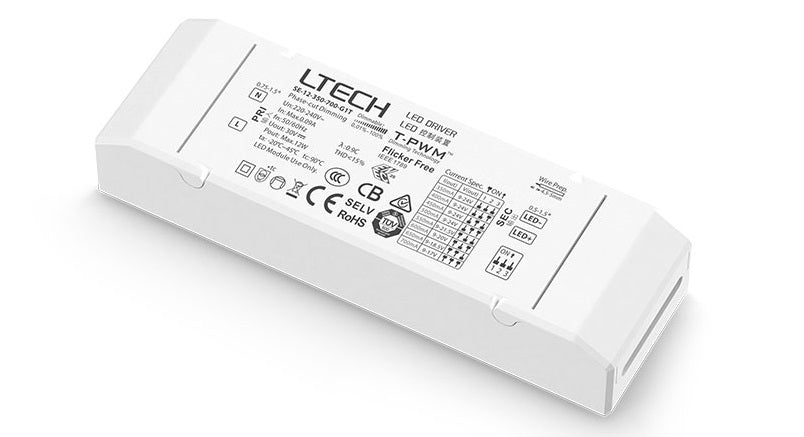

LTECH SE-12-350-700-G1T 12W 350mA ~ 700mA CC Triac LED Driver - Selectable Output

Intelligent LED Driver
SKU:
SE-12-350-700-G1T

$22.96 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Intelligent LED Driver

Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.
The clamshell design and screwless type for strain-relief,tensile strength of wires complies with the 0.5-1.5mm² wire diameter 60N tensile test,and complies with the tensile test standard GB7000.1-2015/IEC60598-1:2014.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting.
Dimming from 0~100%, down to 0.01%.
0-100% flicker-free dimming with high frequency exemption level.
Innovative thermal management technology protects the power life intelligently.
Multi-current wide voltage, suitable for different power LEDs.
Class 2 LED driver, full protective plastic housing.
Comply with Safety Extra Low Voltage standard
Over voltage, overload, shortcircuit protection and automatic recovery
Suitable for indoor light applications of I/II/III type.
Up to 50000-hour lifetime.
5-year warranty (Rubycon capacitor)

Specifications

  • Brand
    Ltech
  • Series
    Ltech Triac Series
  • Power Rating
    12 Watt
  • Output Voltage
    30 Volt
  • Rated Current
    0.35 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    PWM
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Current
  • Operating Temperature
    -20°C~45°C
  • Warranty
    5 Year
  • Length
    4.37 in
  • Width
    1.38 in
  • Height
    0.79 in
  • Weight
    0.02 lb
