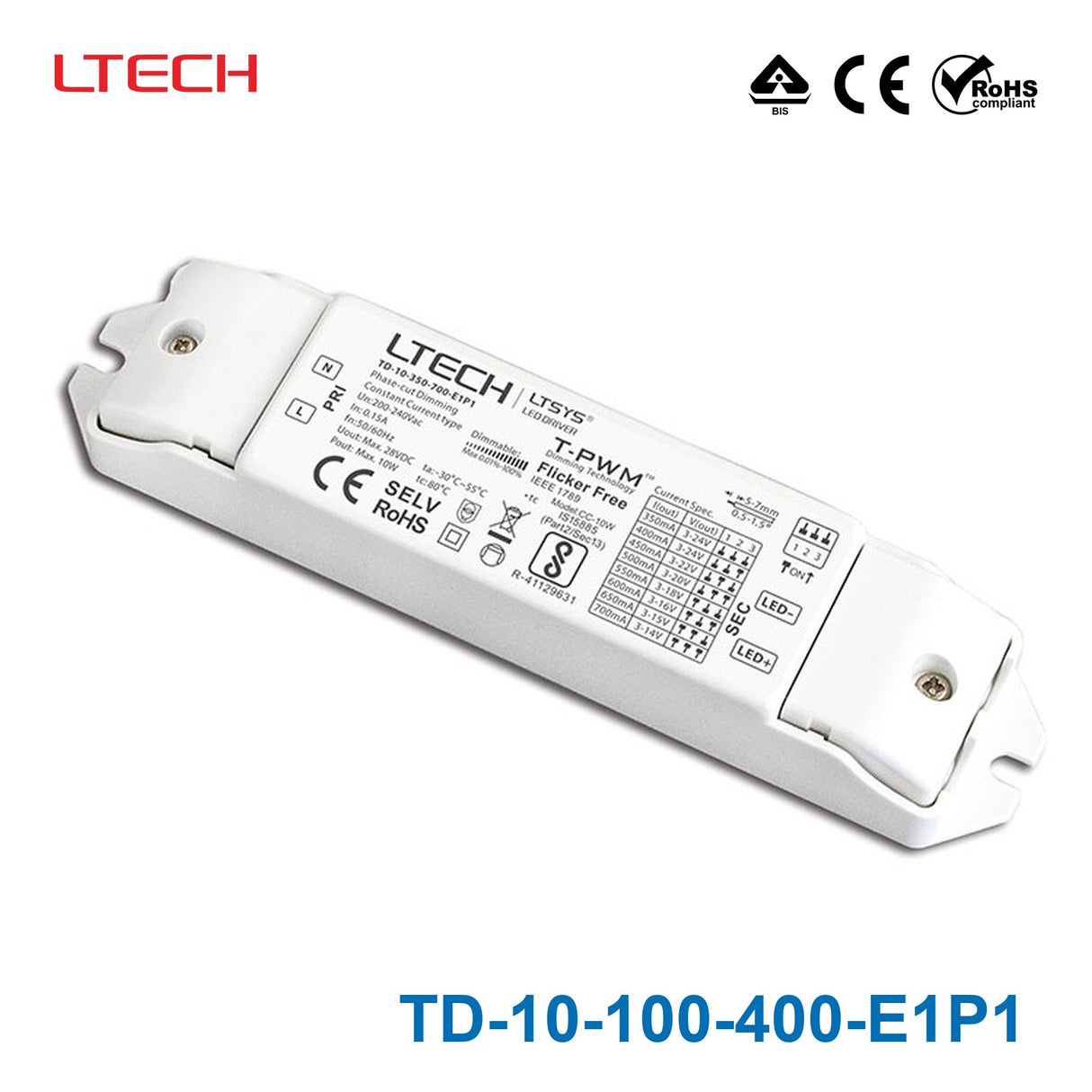

Ltech TD-10-100-400-E1P1 10W 100mA ~ 400mA CC Triac LED Driver - Se...
The TD-10-100-400-E1P1 is a constant-current LED driver intended for power LED applications. It is built for buyers who need a phase-cut dimmable driver rather than a constant-voltage power supply.
Input 200~240VAC. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 200~240VAC
- ✓Dimming: AC phase cut (TRIAC)
- ✓Output voltage: 48V
- ✓Output current: 100~400mA, selectable by DIP switch
- ✓Rated power: 15W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 135 x 30 x 20mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating15 Watt
-
Output Voltage48 Volt
-
Rated Current0.1 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What type of LED load is the Ltech TD-10-100-400-E1P1 designed for?
The TD-10-100-400-E1P1 is a constant-current LED driver intended for power LED applications. It is built for buyers who need a phase-cut dimmable driver rather than a constant-voltage power supply.
What dimming methods does this LED driver support?
This model supports AC phase-cut dimming, including leading-edge (Triac) and trailing-edge (ELV) control, and it also supports push dimming. That makes it a fit for projects that need compatibility with common phase-cut dimming environments.
What makes this model different from a non-dimmable or simpler LED driver?
The TD-10-100-400-E1P1 is designed specifically for dimming performance, with T-PWM digital dimming, a stated 0 to 100% dimming range, and very deep low-end dimming. It is also described as flicker-free to IEEE 1789 exemption level, which helps distinguish it from more basic drivers.
What are the key output specs for the TD-10-100-400-E1P1?
This model is listed with up to 48V output voltage and a rated current of 100mA. Its product title also identifies it as a selectable-output constant-current driver in the 100mA to 400mA range, which is useful when comparing it against fixed-current alternatives.
Is this LED driver suitable for demanding temperature conditions?
The specified operating temperature range is -30°C to 55°C. It is also described as using thermal management and power-life protection features, which supports use in more demanding commercial environments within that stated range.
What kind of service life or support expectation does this model offer?
The TD-10-100-400-E1P1 is listed with a 5-year warranty period. For B2B buyers, that makes it more suitable for longer-term projects where warranty coverage is part of the purchasing decision.
