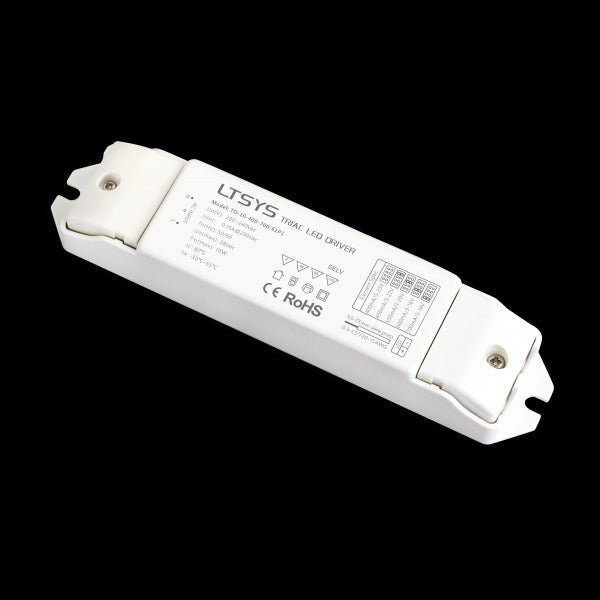

Ltech TD-10-350-700-E1P1 10W 350mA ~ 700mA CC Triac LED Driver - Se...
- Support Leading edge (Triac)
- Trailing edge (ELV) and Push Dimmer.
- Built-in SCM
- dimming curve and smoothing time can be customized.
- T-PWM digital dimming
- present a perfect visual experience.
- Dimming range: 0~100%
- dimming depth: Max. 0.01%.
- Flicker-free (IEEE 1789)
- achieve the level of exemption assessment.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Over load / Over-heat / Short circuit protection
- recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating15 Watt
-
Output Voltage28 Volt
-
Rated Current0.35 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What type of LED driver is the Ltech TD-10-350-700-E1P1?
The TD-10-350-700-E1P1 is a constant-current Triac LED driver designed for dimmable LED lighting applications. It supports selectable output current from 350mA to 700mA, which makes it useful when one driver model needs to cover multiple fixture requirements.
What makes this model different from a fixed-output LED driver?
This model offers selectable output current instead of only one fixed current value. That flexibility can simplify product selection when your LED fixture family uses different current requirements within the 350mA to 700mA range.
Is the TD-10-350-700-E1P1 compatible with phase-cut dimming systems?
Yes. This model supports AC phase-cut dimming and is described as working with both leading-edge (Triac) and trailing-edge (ELV) dimming control. It also supports push dimming for applications that require that control style.
How smooth is the dimming performance on this LED driver?
The product description states a 0 to 100 percent dimming range with dimming depth down to a maximum of 0.01 percent. It also uses T-PWM digital dimming and is described as flicker-free under IEEE 1789, which is intended to support a more stable visual experience.
What kinds of applications is this driver best suited for?
This driver is best suited for constant-current LED lighting applications that need dimming and may benefit from selectable current output. It is particularly relevant for commercial or professional projects comparing Triac or ELV dimming compatibility across multiple fixture variants.
Can this LED driver be used in demanding temperature conditions?
The TD-10-350-700-E1P1 is rated for operation from -30 degrees C to 55 degrees C. That gives it a relatively broad operating temperature range for projects that may face colder or warmer ambient conditions.
What are the key electrical specifications of the TD-10-350-700-E1P1?
This model is listed at 15W power rating, with 28V output voltage and 350mA rated current in the provided product data. Its product name and description also identify it as a selectable-output constant-current driver covering 350mA to 700mA.
Does this model include long-term reliability features?
The product description highlights innovative thermal management technology and intelligent power life protection. It also carries a 5-year warranty, which is useful for buyers evaluating long-service LED driver options.
