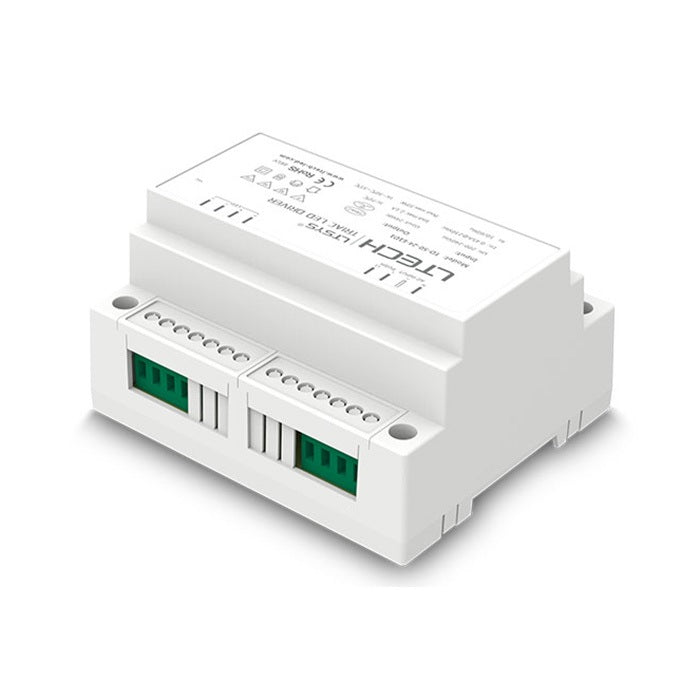

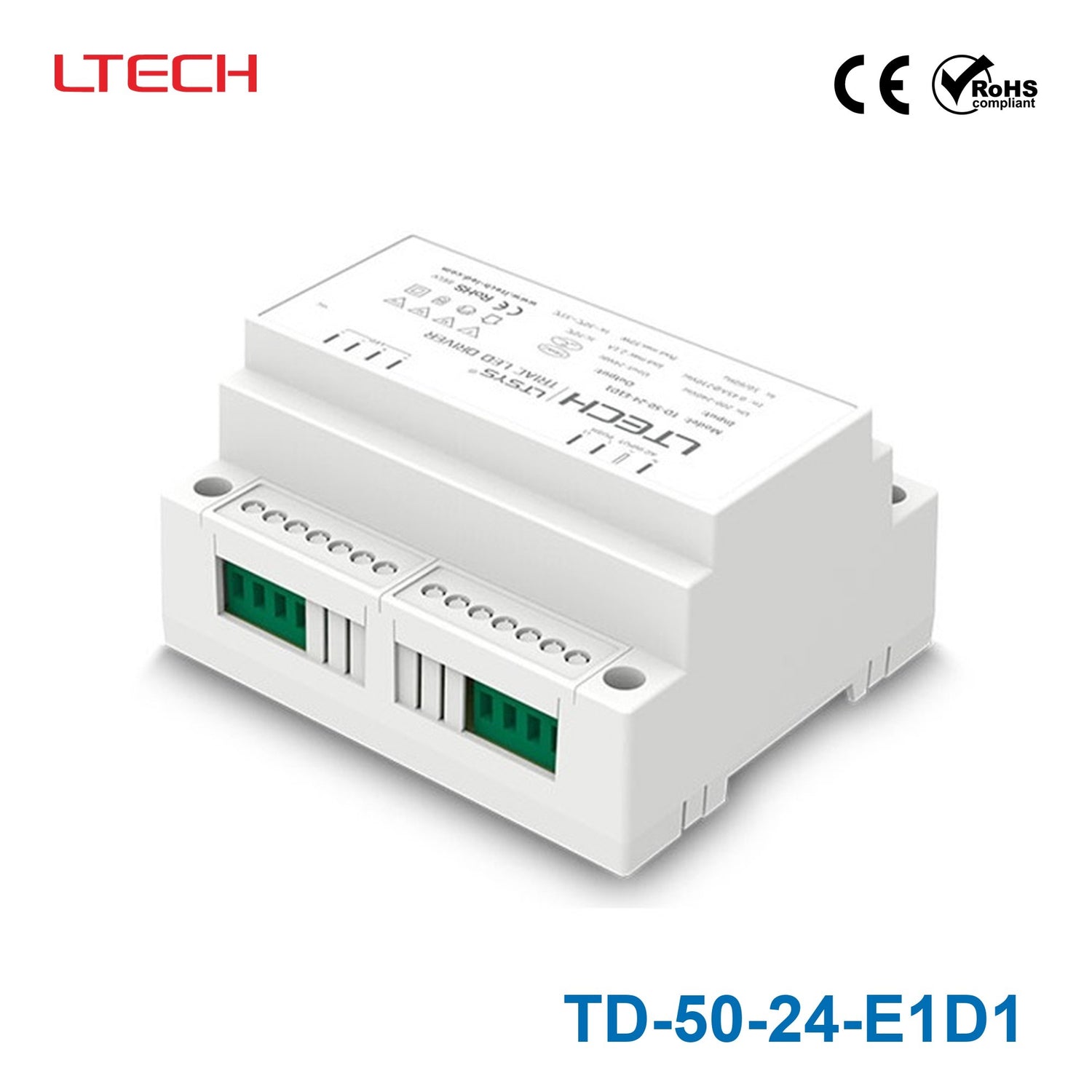

Ltech TD-50-24-E1D1 50W 24VDC CV Triac LED Intelligent Driver
Notify me when it's back in stock
Your order will be processed within 24 hours
Ltech TD-50-24-E1D1 50W 24VDC CV Triac LED Intelligent Driver
Description
Description
1、Dimming interface: Triac/ELV, Push Dim.
2、Apply to the leading edge and trailing edge Triac dimmers.
3、Built-in high-performance MCU, the dimming curve can be customized.
4、PWM digital dimming, no alter LED color rendering index.
5、Dimming range: Max. 0.1-100%.
6、Efficiency > 87%.
7、Short circuit / Over-heat / Overload / Over voltage protection.
8、Class 2 power supply. Full protective plastic housing.
9、Compliant with Safety Extra Low Voltage standard.
10、Suitable for indoor environments.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating50 Watt
-
Output Voltage24 Volt
-
Rated Current2.1 Ampere
-
Input Voltage200V~240V
-
Dimming ControlPush Dimming,Tri-level
-
Standards MetCE,ROHS,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Length4.21 in
-
Width3.9 in
-
Height2.28 in
-
Weight0.57 lb
File Downloads
File Downloads
Specification Sheet
