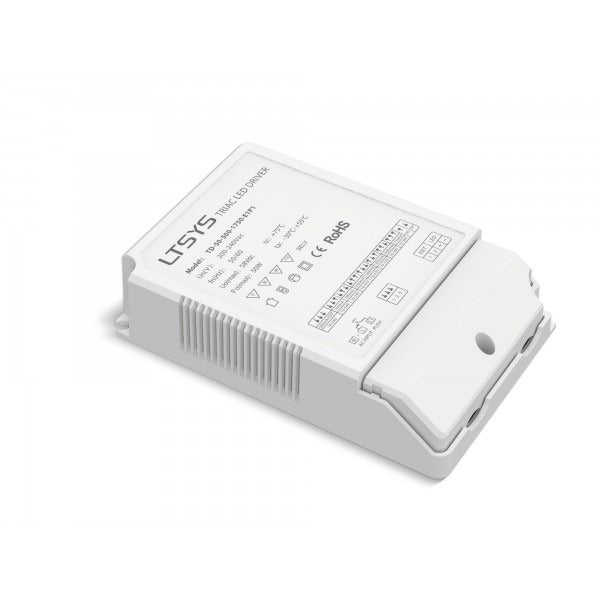

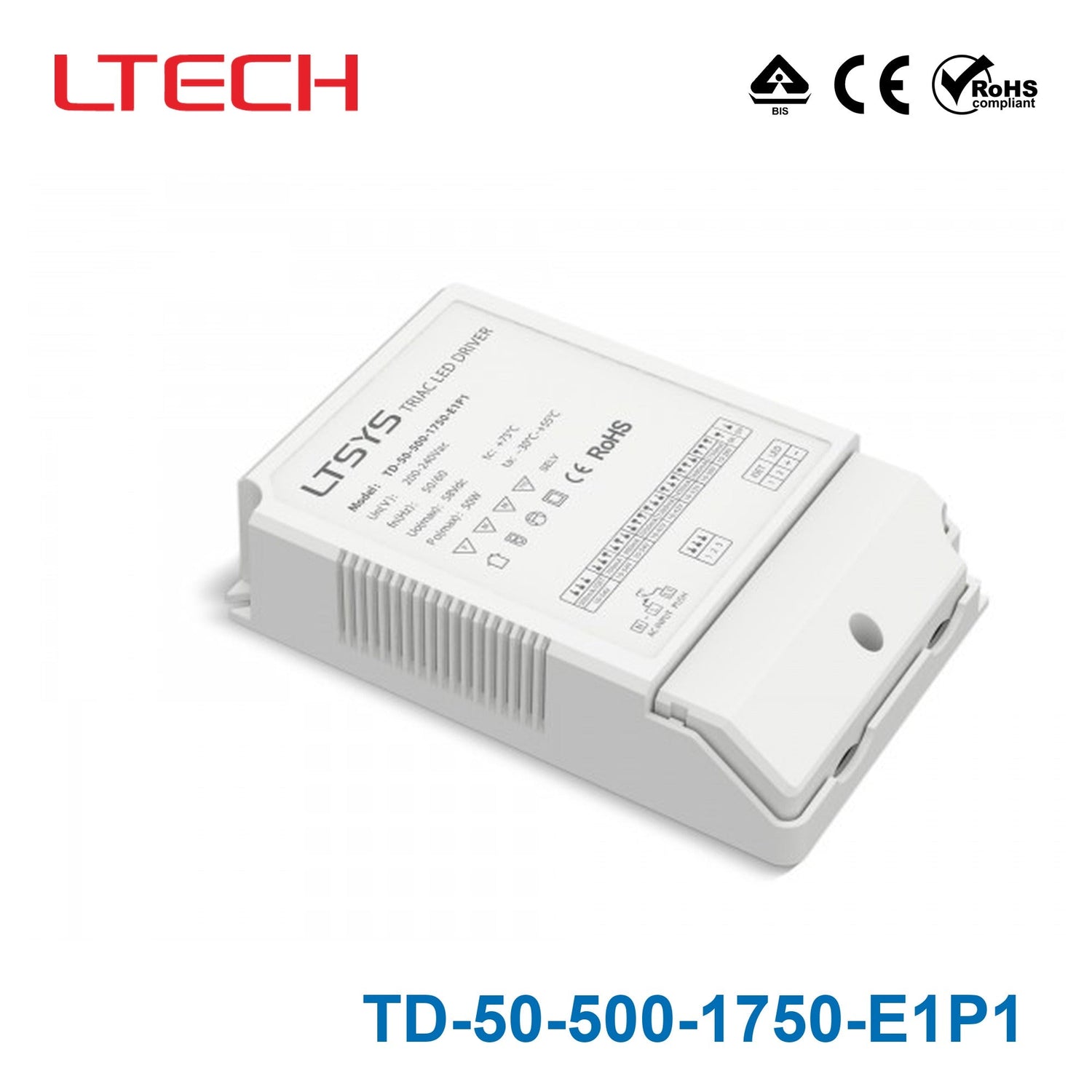

TD-50-500-1750-E1P1 50W 500-1750mA CC Triac LED Driver - Selectable Output

$54.07 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Support Leading edge (Triac)
  • Trailing edge (ELV) and Push Dimmer.
  • Built-in SCM
  • dimming curve and smoothing time can be customized.
  • T-PWM digital dimming
  • present a perfect visual experience.
  • Dimming range:0~100%
  • dimming depth: Max. 0.01%.
  • licker-free (IEEE 1789) achieve the level of exemption assessment.
  • FInnovative thermal management technology
  • intelligent power life protection.
  • Multi-current & wide voltage
  • suitable for different power LED.
  • Over load / Over-heat / Short circuit protection
  • recover automatically.
  • Class 2 powersupply.
  • Full protective plastic housing.
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for internal lights application for I/II/III.

Specifications

  • Brand
    Ltech
  • Series
    Ltech Triac Series
  • Power Rating
    50 Watt
  • Output Voltage
    50 Volt
  • Rated Current
    0.5 Ampere
  • Input Voltage
    200V~240V
  • No of Output
    1
  • Dimming Control
    AC Phase Cut Dimming
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~55°C
  • Warranty
    5 Year
  • Length
    5.24 in
  • Width
    3.5 in
  • Height
    1.18 in
  • Weight
    0.53 lb
