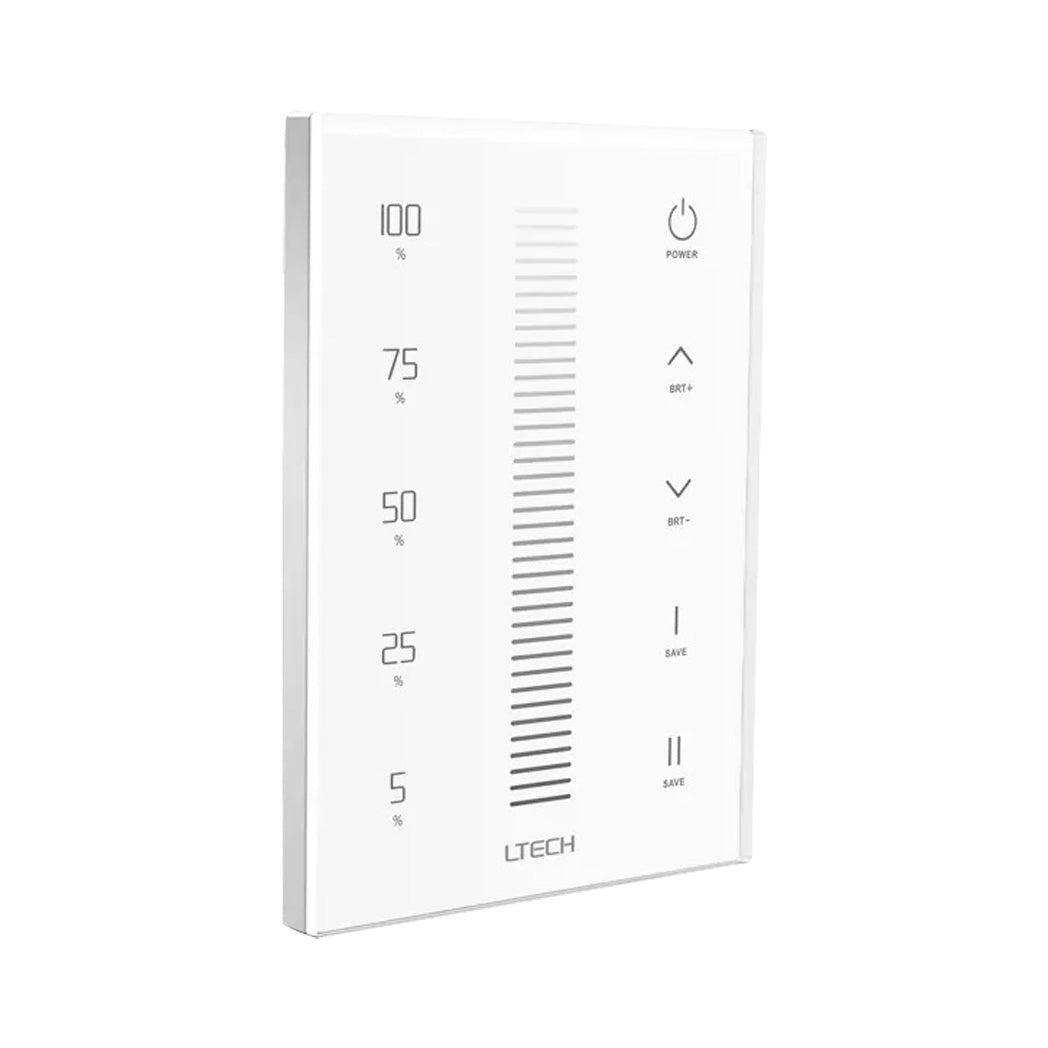

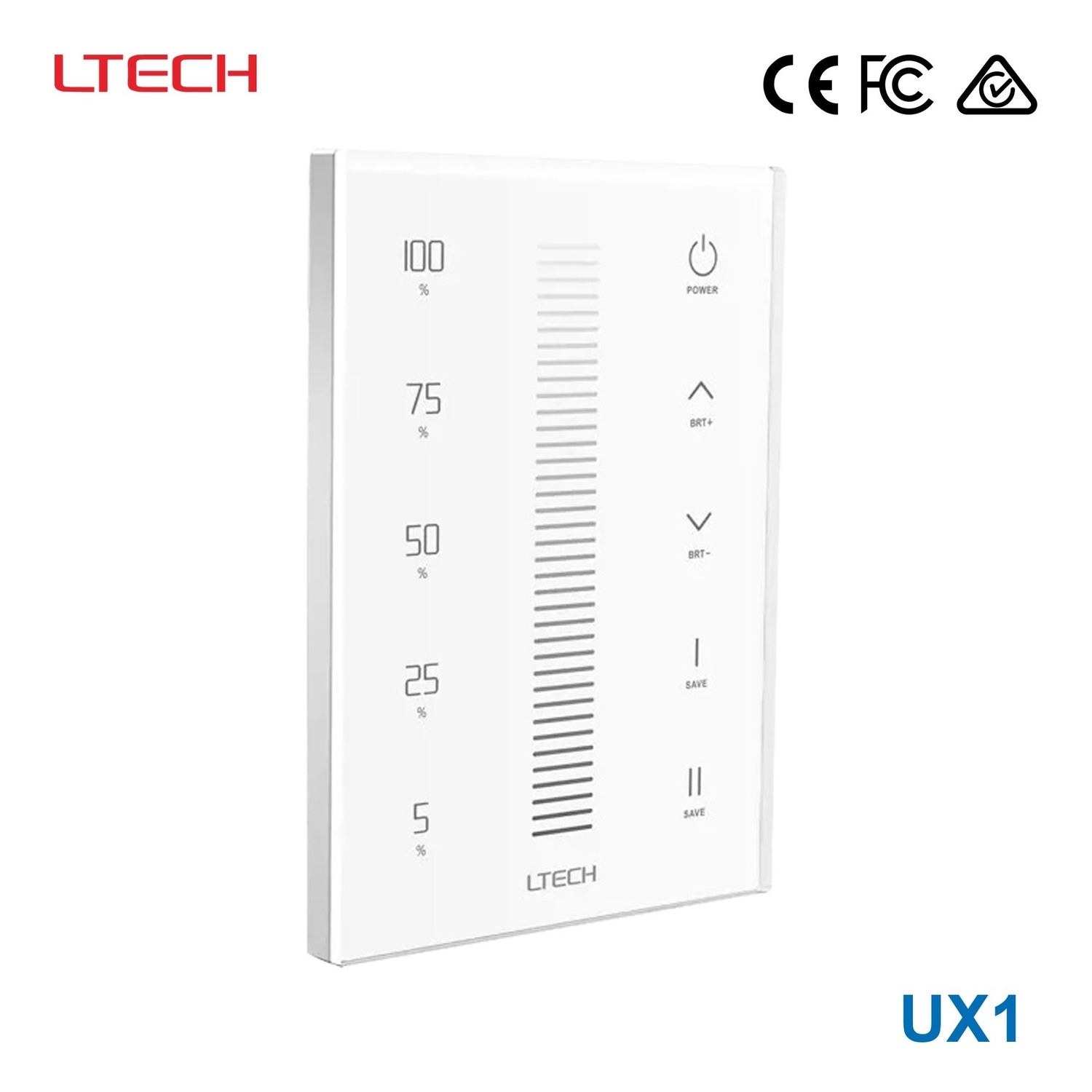

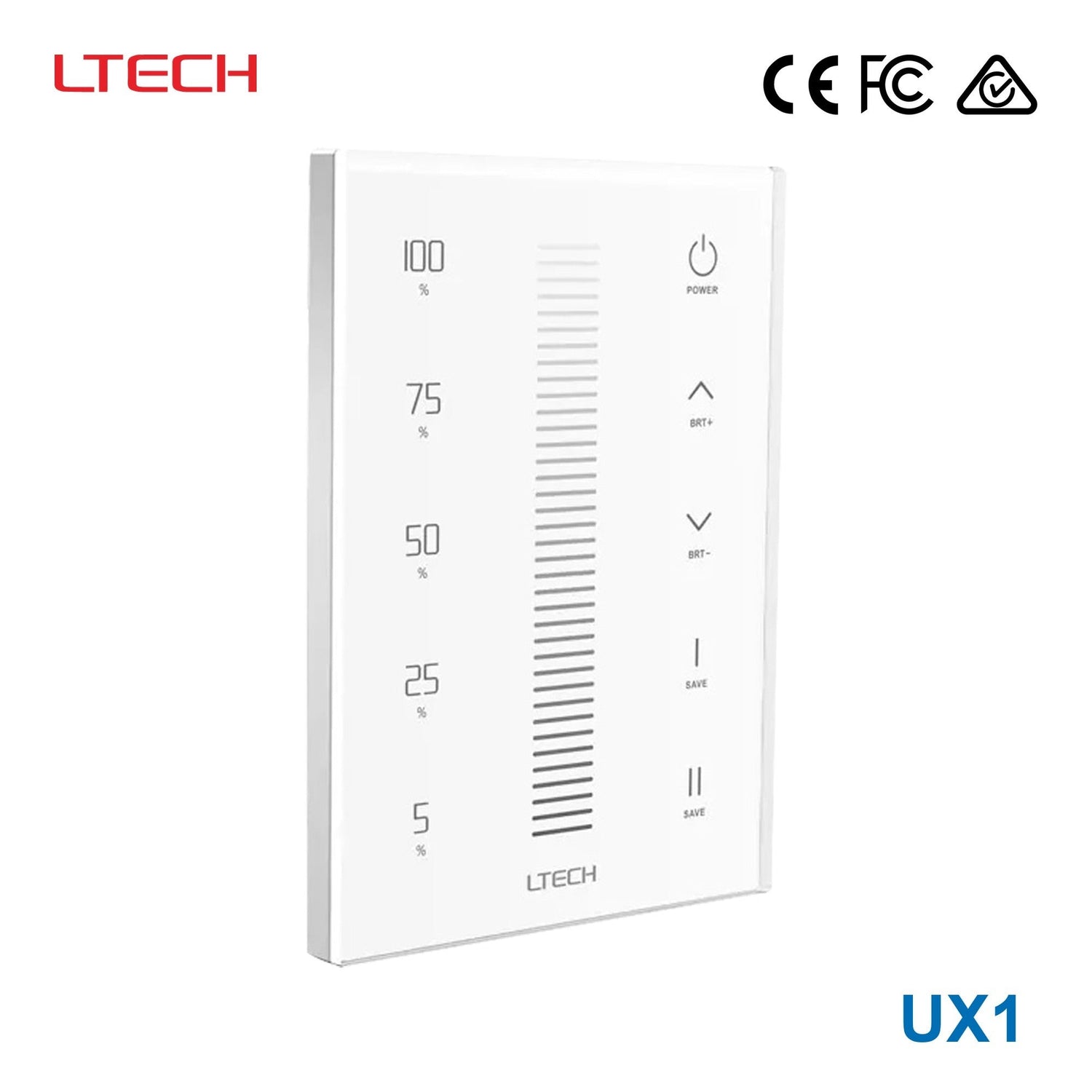

Ltech UX1 Wireless RF/DMX512 Multi-zone Touch Panel - Dimming
Description
Description
The U1 LED Dimmer Touch panel gives you the opportunity to easily Dim your LED lights. You can select the brightness by moving your finger over the bar in the middle. In addition, the UX1 has four zones. You can save your setting with the buttons I or II. The UX1 sends a DMX or a 2.4GHz RF signal. Through the DMX signal it can be controlled by connecting DMX controllers. DMX controllers which can be used for this are the LT-801-12A or LT-811-12A. Via the 2.4GHz RF signal it can be wirelessly controlled, here you connect the UX1 with R4-5A or R4-CC receiver. When using PWM Constant Voltage LED lighting you need the LED Receiver R4-5A and when using Constant Current lighting, you need the R4-CC, where you have the choice of 350mA / 700mA / 1050mA control. The UX1 can collaborate via RF 2.4GHz with the V5 remote, making it possible to operate remotely as well as manually. Via a WiFi signal, it is possible to connect the UX1 with the WiFi-104. This makes it possible to control via the app on your phone or tablet. The UX1 has a universal backplate for all kind of wall boxes.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DX Series
-
Input Voltage5V~5V
-
Dimming ControlDMX,RF Signal
-
Standards MetCE,FCC,RCM
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.75 in
-
Width4.17 in
-
Height0.71 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech UX1 control?
The Ltech UX1 is a wireless RF and DMX512 touch panel designed for dimming LED lighting. This model focuses on brightness control rather than color-changing functions, making it a fit for single-color dimming applications.
How is brightness adjusted on the UX1?
The UX1 uses a touch bar in the center of the panel for dimming control. You adjust light intensity by moving your finger along the bar, which gives a fast and simple way to change brightness levels.
Does the UX1 support multiple lighting zones?
Yes, the UX1 supports four zones. That makes it useful when you want separate dimming control for multiple lighting areas from a single wall-style touch panel.
Can the UX1 save lighting settings?
Yes, this model includes buttons I and II for saving settings. That allows users to recall preferred dimming scenes without manually readjusting brightness each time.
Where is the Ltech UX1 a good fit?
The UX1 is well suited for commercial and professional LED dimming environments that benefit from multi-zone control and a clean touch-panel interface. It can be a practical option for showrooms, architectural spaces, and other business installations using RF or DMX-based lighting control.
What environments can the UX1 operate in?
This model is rated for operation from -30°C to 55°C. That range supports use in a variety of indoor and protected commercial environments where temperature conditions can vary.
What are the basic physical and support specs for this model?
The UX1 has a listed weight of 0.2300 kg, which keeps it relatively lightweight for a touch-panel controller. It also includes a 5-year warranty period, which is useful for buyers evaluating long-term commercial use.
