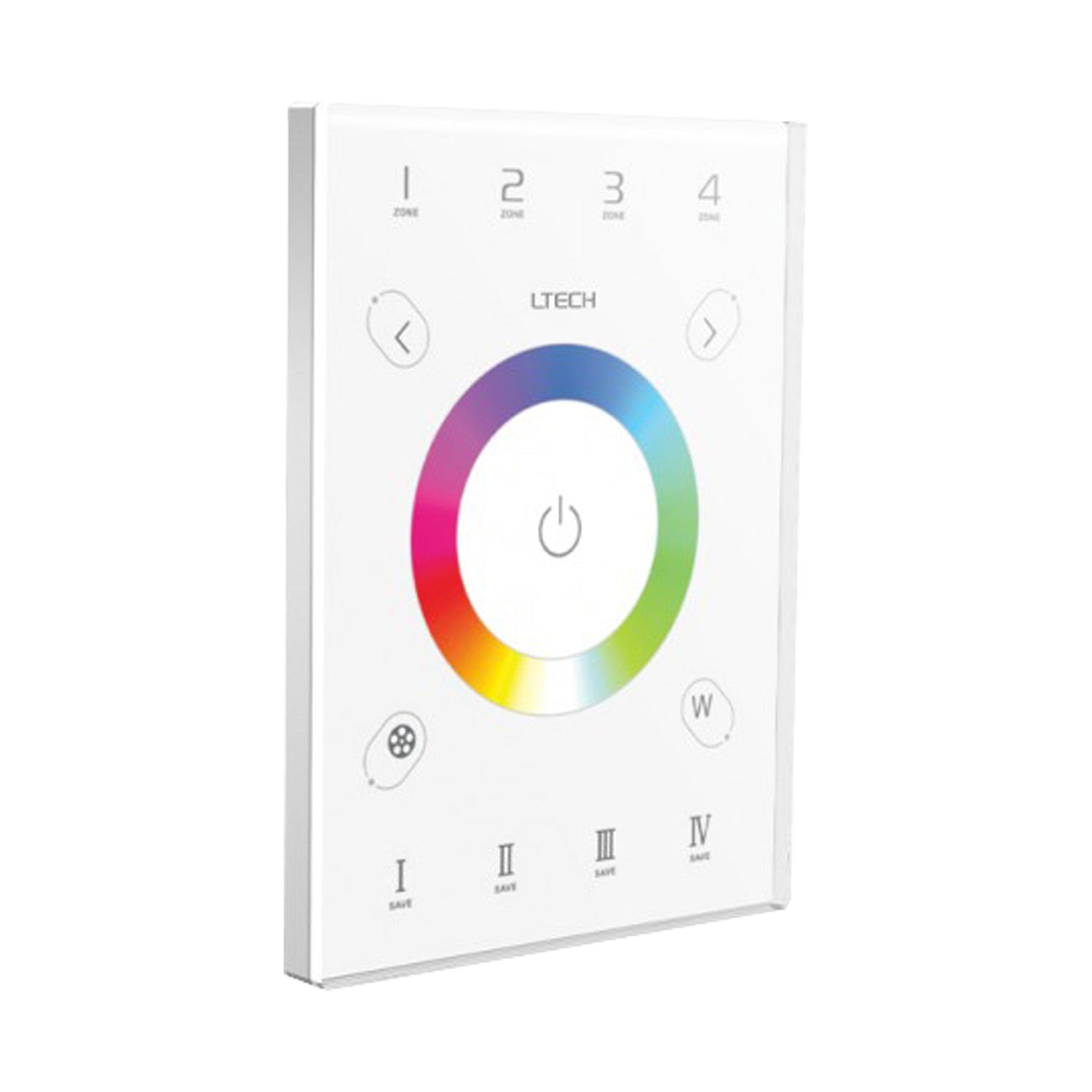

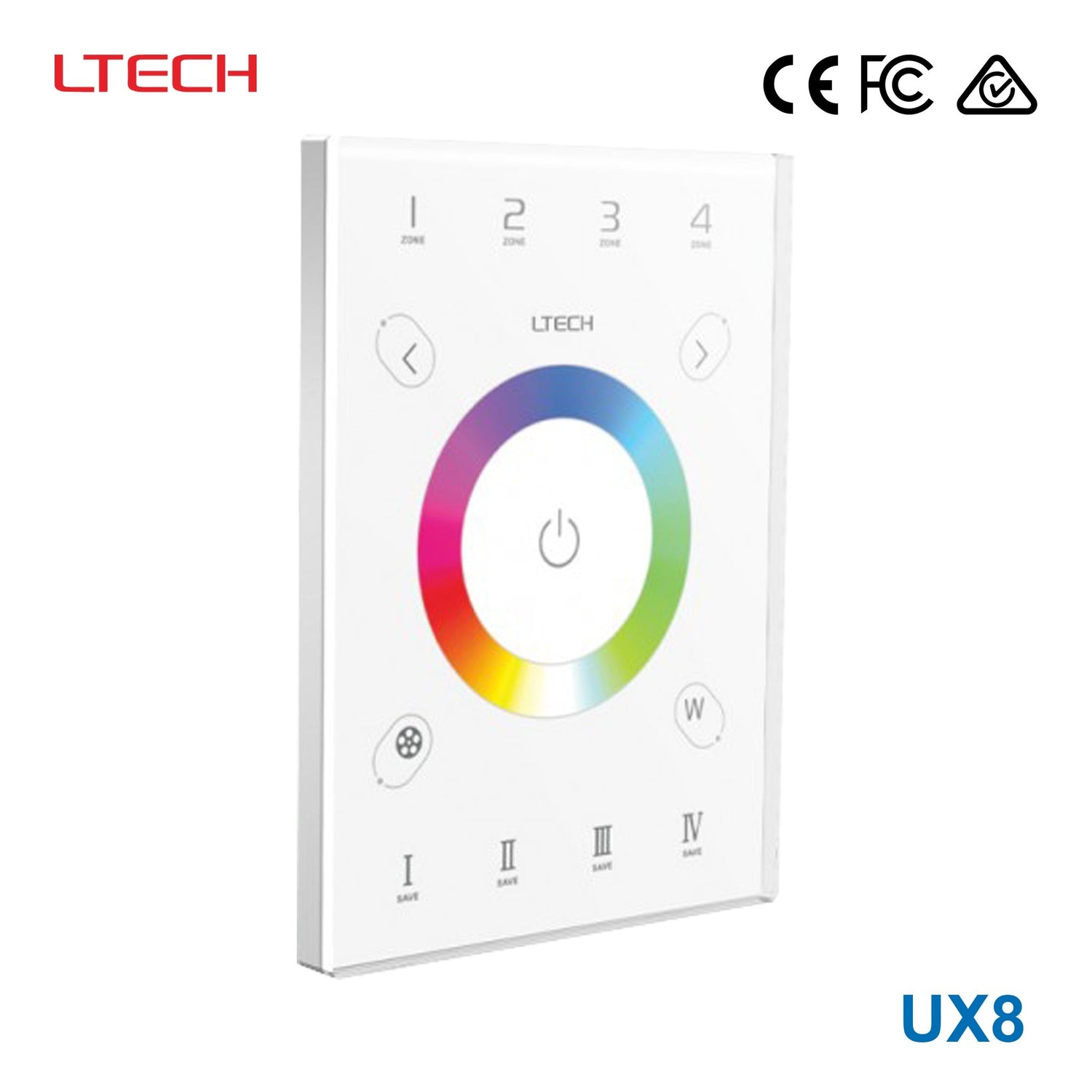

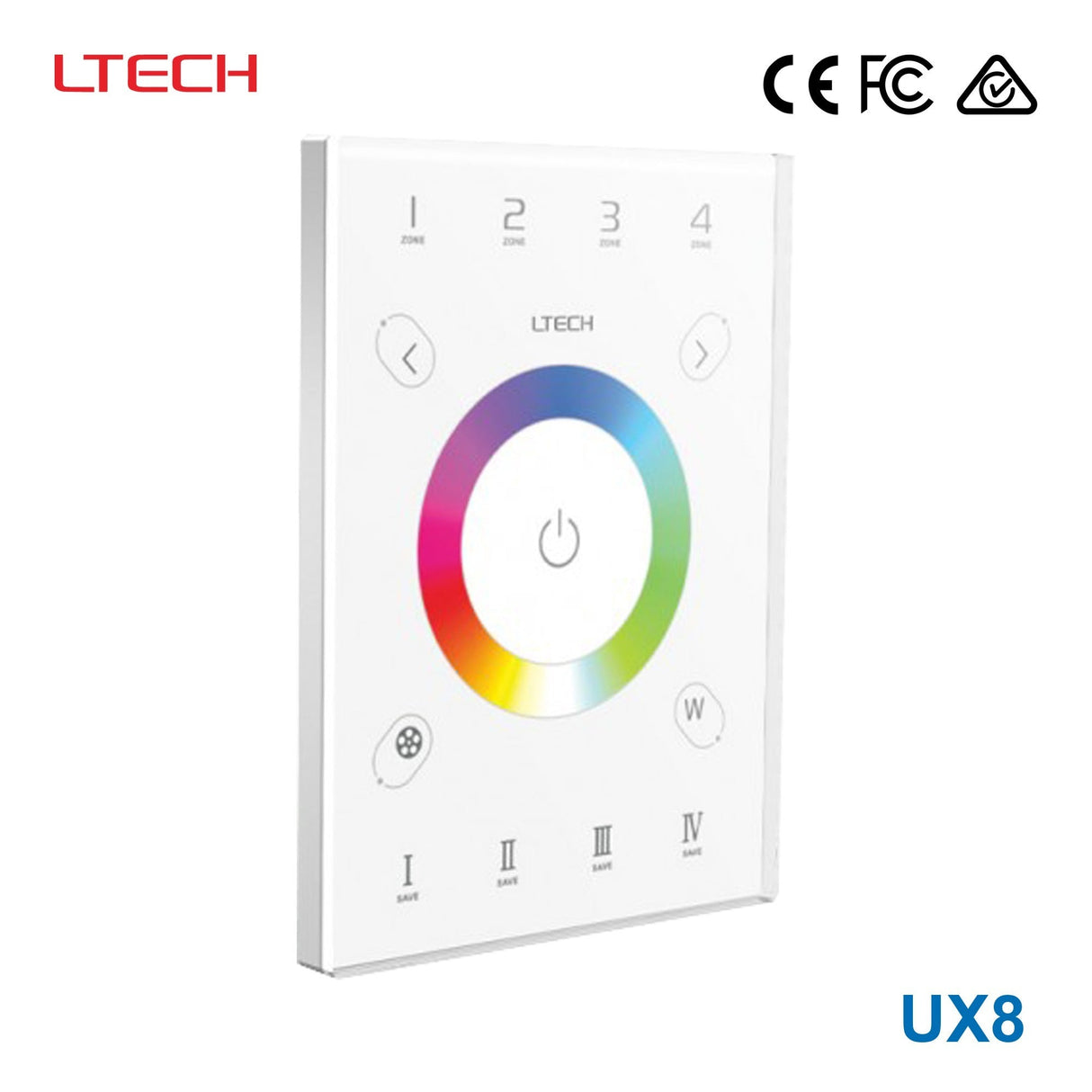

Ltech UX8 Wireless RF/DMX512 Multi-zone Touch Panel - RGBW
Description
Description
The UX8 LED Dimmer Touch panel gives you the opportunity to easily control your RGBW LED lights. You can choose the colors by moving your finger over the color wheel in the middle. In addition, the UX8 has four zones which can be selected via the buttons 1 to 4 at the top of the panel, you can create scenes and store them with the buttons I to IV, there is a mode feature with 11 different modes, brightness control by zone, speed function and separate brightness control per color. To control the white light there is the W button by pressing it briefly the white light goes on or off, and by keeping it pressed you can dim the white light. The UX8 sends a DMX or a 2.4GHz RF signal. Through the DMX signal the 4 zones can be controlled by connecting DMX controllers + LED control lights. DMX controllers which can be used for this are the LT-840-6A or LT-820-5A. Via the 2.4GHz RF signal the four zones can be wirelessly controlled, here you connect the UX8 with R4-5A or R4-CC receiver. When using PWM Constant Voltage LED lighting you need the LED Receiver R4-5A and when using Constant Current lighting, you need the R4-CC, where you have the choice of 350mA / 700mA / 1050mA control. The UX8 can collaborate via RF 2.4GHz with the V8 remote, making it to operate remotely as well as manually the four zones on the panel. Via a WiFi signal, it is possible to connect the UX8 with the WiFi-104. This makes it possible to operate the four areas next to the wall panel and remote control via the app on your phone or tablet. The UX8 has a universal backplate for all kind of wall boxes.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DX Series
-
Input Voltage5V~5V
-
Dimming ControlDMX,RF Signal
-
Standards MetCE,FCC,RCM
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length5.75 in
-
Width4.17 in
-
Height0.71 in
-
Weight0.51 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech UX8 used for?
The Ltech UX8 is a wireless touch panel for controlling RGBW LED lighting. It is designed for multi-zone lighting control and gives users access to color selection, brightness adjustments, stored scenes, and preset modes from a single wall-style interface.
How many lighting zones can the UX8 control?
This model supports 4 separate zones, selected with the 1 to 4 buttons at the top of the panel. That makes it useful for commercial or multi-area spaces where different RGBW lighting groups need to be managed independently.
Does the UX8 support scene recall and dynamic lighting modes?
Yes, the UX8 includes scene storage with buttons I to IV for saved lighting looks. It also includes a mode function with 11 different modes, along with speed control for adjusting how those modes run.
What control methods does the Ltech UX8 support?
The product supports RF and DMX control. That combination makes it relevant for buyers looking for a touch panel that fits wireless control environments while also aligning with DMX-based lighting applications.
Can the UX8 adjust more than overall brightness?
Yes, the UX8 provides brightness control by zone and also supports separate brightness control per color. This gives more precise control over RGBW lighting scenes than a basic single-level dimming interface.
Is the Ltech UX8 suitable for demanding indoor environments?
It is rated for operation from -30°C to 55°C, which indicates a broad working temperature range for challenging environments. Buyers should still confirm that the overall project conditions match the product's operating limits.
What warranty comes with the Ltech UX8?
The listed warranty period for this model is 5 years. That can be an important consideration for commercial buyers evaluating long-term reliability and support expectations.
