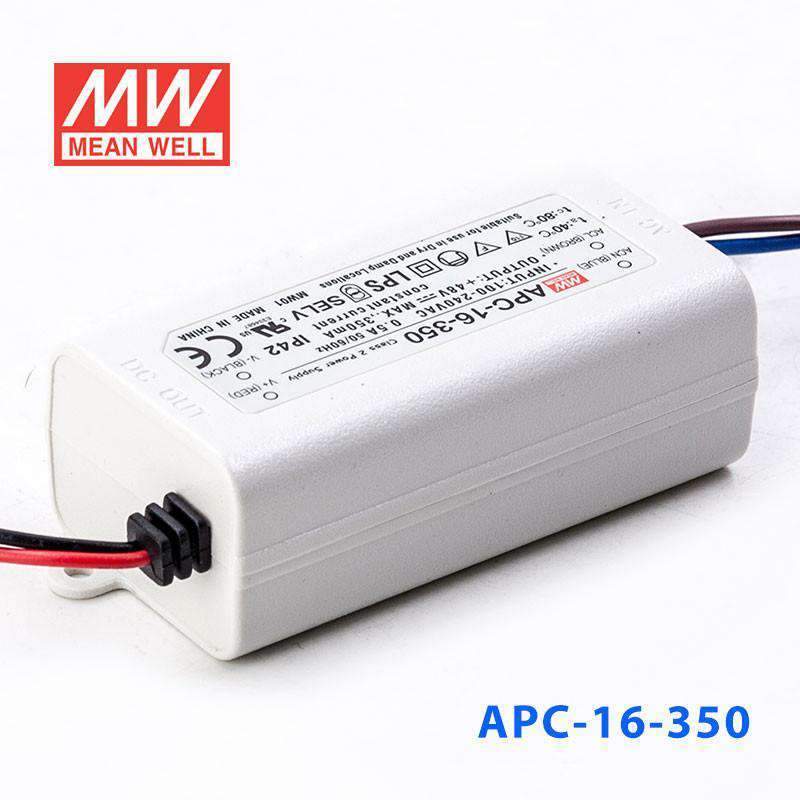

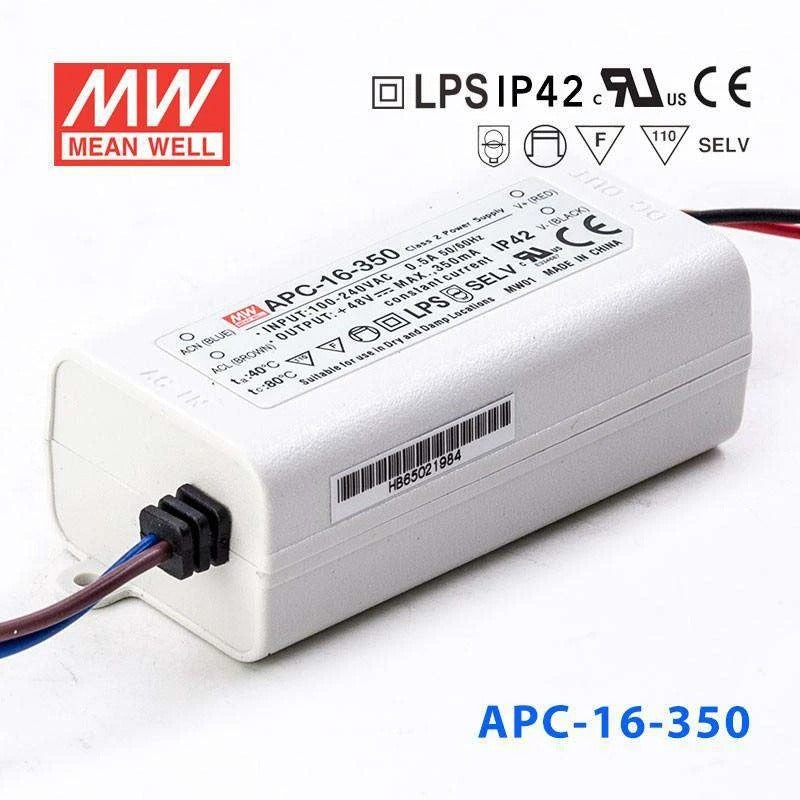

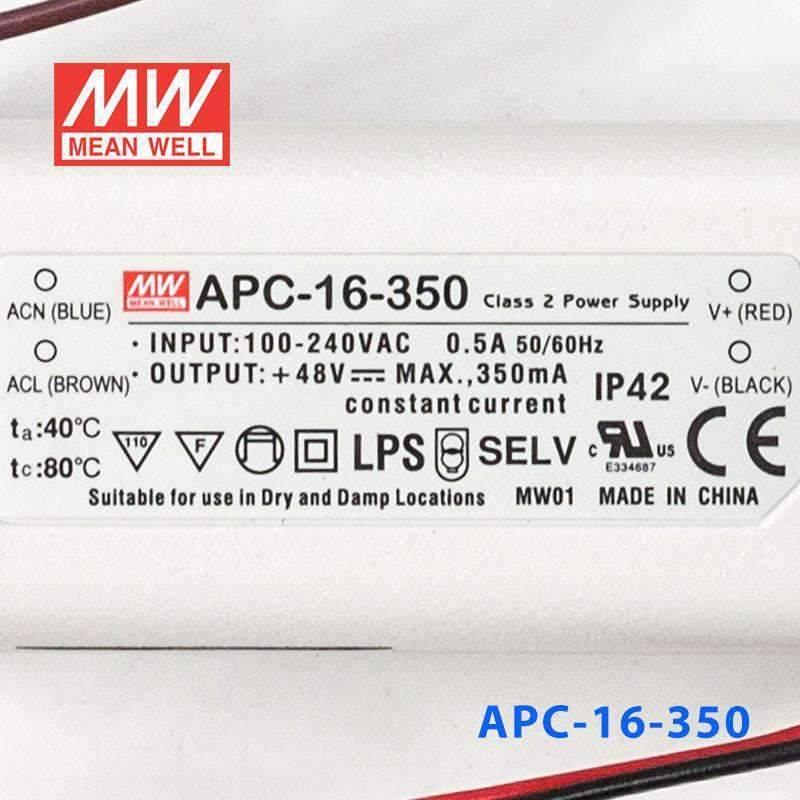

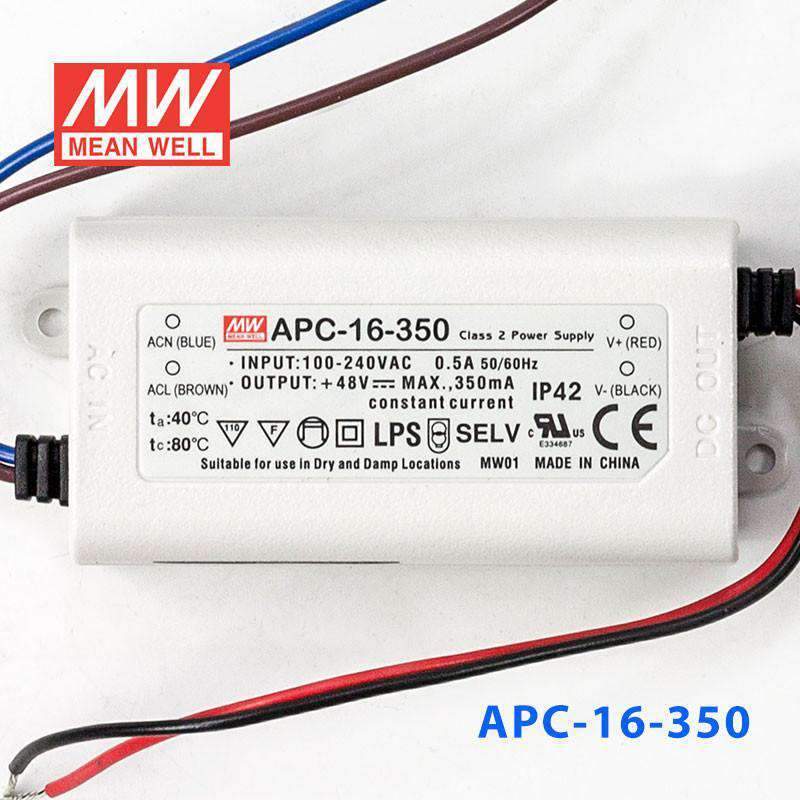

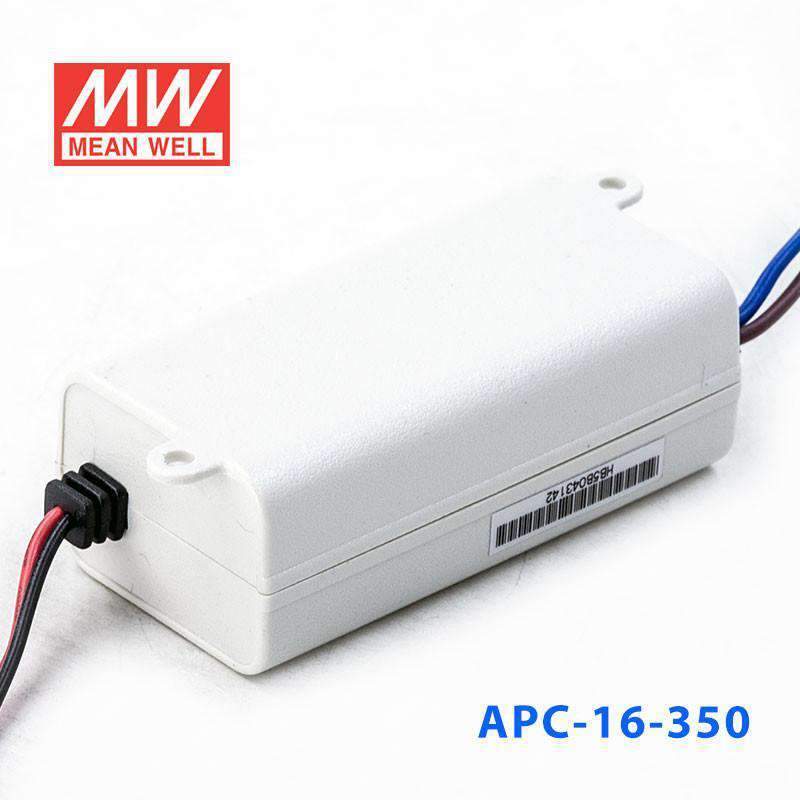

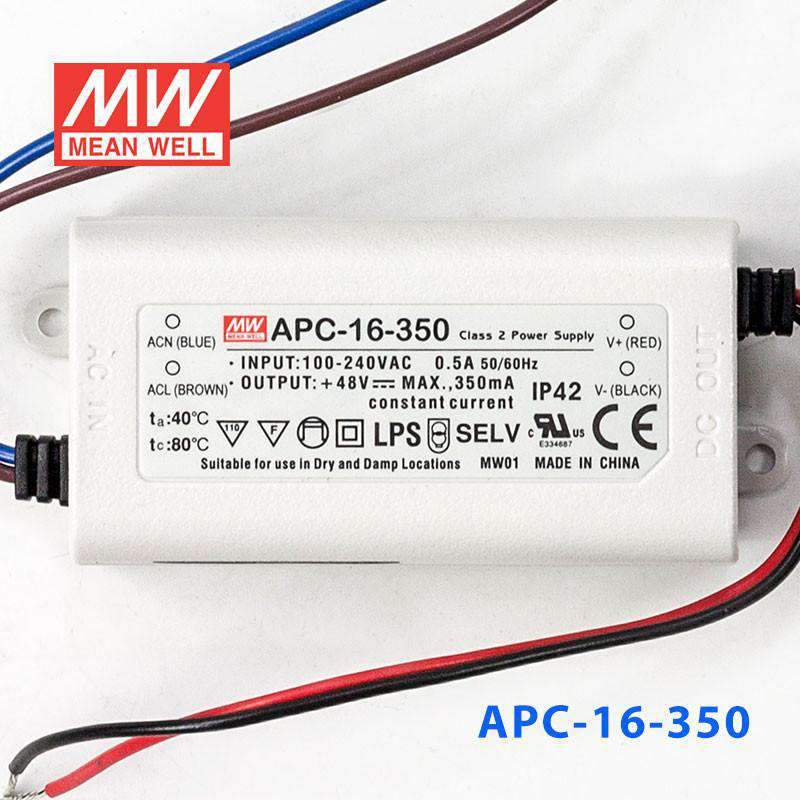

Mean Well APC-16-350 Power Supply 16W 350mA
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case |
| Protections: Short circuit / Over voltage |
| Constant current design (C.C. mode) |
| IP30 design |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current | Cold start, 70A at 230VAC |
| Overload Range | >105% rated output current |
| Protection Type | Hiccup up mode, auto-recovery |
| Over voltage protection | 110%~145% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | UL8750 approved; Design refer to IEC61347-1, IEC61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class A , EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, 18AWGx2C (15cm) |
| Connection Output | UL rated, 20AWGx2C (15cm) |
| Dimension (LxWxH)(mm) | 77x 40x 29 |
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating16.8 Watt
-
Output Voltage48 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.03 in
-
Width1.57 in
-
Height1.14 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the APC-16-350 typically used for?
The Mean Well APC-16-350 is typically used for constant-current LED lighting and moving sign applications that need a 350mA drive current with more power headroom than the 12W APC models. With 16.8W rated power, it is suited to 350mA LED loads that need higher voltage or slightly more output capacity.
Is the APC-16-350 a good fit for 350mA LED loads that need more headroom than the APC-12-350?
Yes. Both models are 350mA constant-current drivers, but the APC-16-350 offers a higher 16.8W power rating compared with 12.6W on the APC-12-350. That makes it a better fit when the LED load still needs 350mA but requires more output capability.
Can the APC-16-350 be used for indoor LED lighting or sign projects?
Yes. The APC series is positioned for LED lighting and moving sign applications, so the APC-16-350 is suitable for indoor lighting and sign assemblies that are designed for 350mA constant-current operation and fit within the driver's electrical rating.
Will the APC-16-350 run on common AC mains supplies?
Yes. The specified input range is 90-264VAC, so the APC-16-350 can operate from common 120V and 240V mains systems within that range. That helps standardize the same driver across a variety of installation environments.
Is the APC-16-350 suitable for exposed outdoor installation?
No. The APC-16-350 uses an IP30 design, which means it should generally be used indoors or inside a protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -30°C to +70°C, but ingress protection remains limited.
How does the APC-16-350 compare with APC-12-350 and APC-12-700?
The APC-16-350 provides 16.8W at 350mA, which gives it more output capacity than the APC-12-350 at 12.6W and 350mA. Compared with the APC-12-700, the main difference is current level: the APC-16-350 is for 350mA LED loads, while the APC-12-700 is for 700mA loads. Matching the driver current to the LED requirement is the key selection rule.
