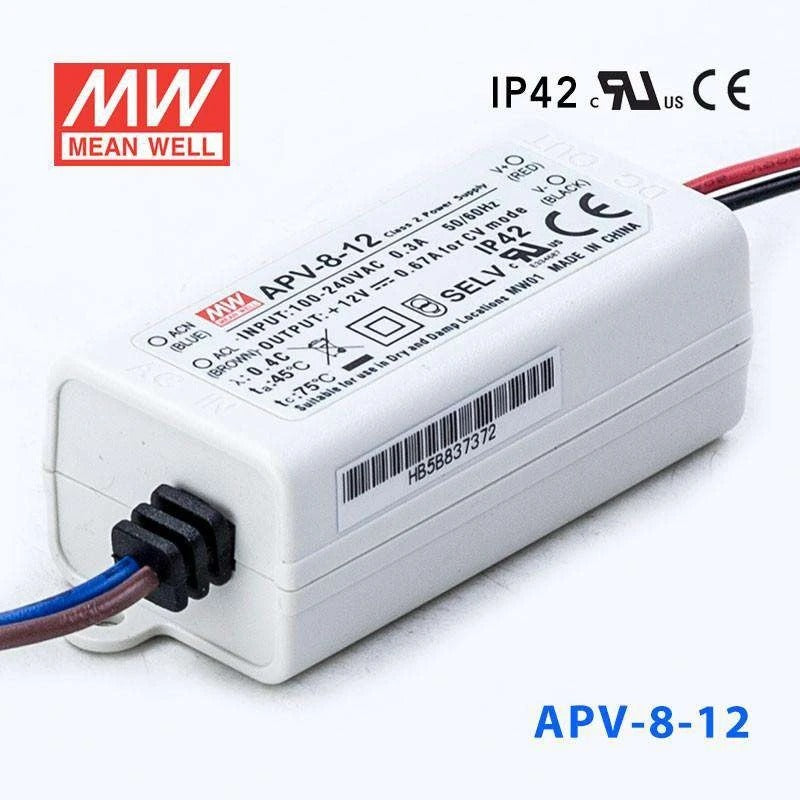

Mean Well APV-8-12 Power Supply 8W 12V 670mA
The APV-8 is a 8.04W Mean Well AC-DC constant voltage LED driver (input: 90~264VAC, output: 12V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 0.67A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CE, EAC, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating8.04 Watt
-
Output Voltage12 Volt
-
Rated Current0.67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length2.36 in
-
Width1.18 in
-
Height0.93 in
-
Weight0.11 lb
::specification::
Frequently Asked Questions
What LED lighting tasks suit the APV-8-12 at 8W and 12V?
The APV-8-12 outputs 12V at 0.67A for a maximum of 8.04W. Its compact 60.0 × 30.0 × 23.5 mm size makes it suited to very short 12V LED strip accent lighting, individual 12V LED panel spotlights, and small 12V LED signage elements where space is limited and load is well under 8W.
How long a 12V LED strip can the APV-8-12 support?
The APV-8-12 provides 8.04W at 12V. At a strip rated 4.8 W/m, that supports approximately 1.7 m. Divide 8.04W by your strip's rated power per meter to find the maximum run length, and check your strip's rated power per meter before specifying.
How does the APV-8-12 compare to the APV-12-12 and APV-16-12 at 12V?
All three output 12V from 90–264VAC. The APV-8-12 provides 8.04W at 0.67A in the smallest housing at 60.0 × 30.0 × 23.5 mm. The APV-12-12 provides 12W at 1A in a 77.0 × 40.0 × 29.0 mm enclosure. The APV-16-12 provides 15W at 1.25A in the same 77.0 × 40.0 × 29.0 mm housing. The APV-8-12 is the right choice when physical footprint is the primary constraint.
Is the APV-8-12 suitable for use in enclosed LED fixture housings?
Yes. The APV-8-12 weighs only 0.05 kg and measures 60.0 × 30.0 × 23.5 mm, making it one of the smallest options in the APV series. It operates from -30°C to +70°C. Its IP42 rating means it should be kept away from moisture, and ventilation should be provided within any enclosure to avoid heat buildup.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other APV-8 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APV-8-5 Power Supply 8W 5V 1.4A | 7W | 5V | 1.4A | IP42 | $6.18 | View |
| Mean Well APV-8-24 Power Supply 8W 24V 340mA | 8.16W | 24V | 0.34A | IP42 | $6.53 | View |
