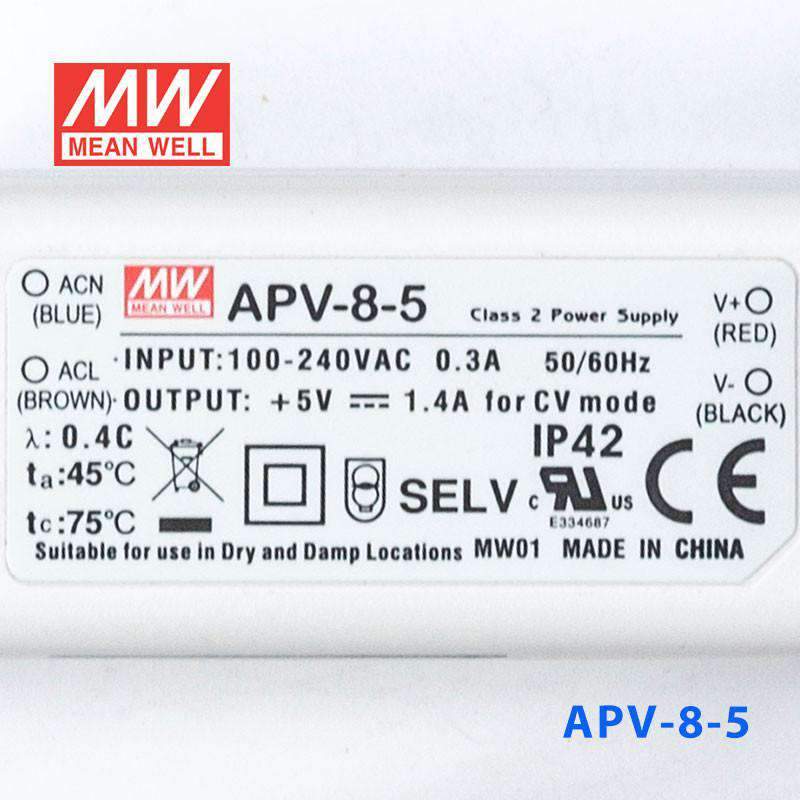

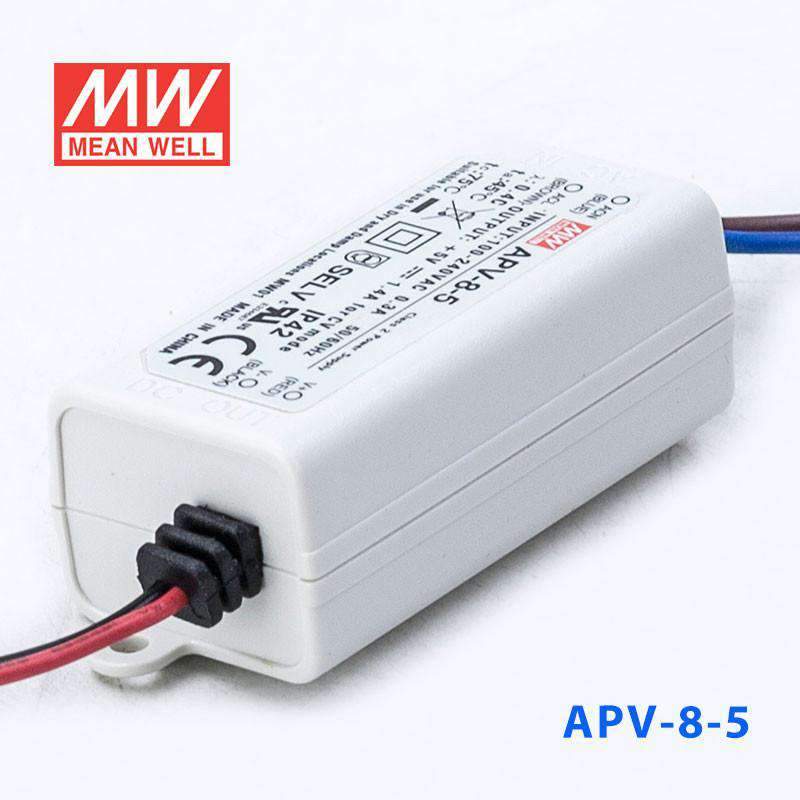

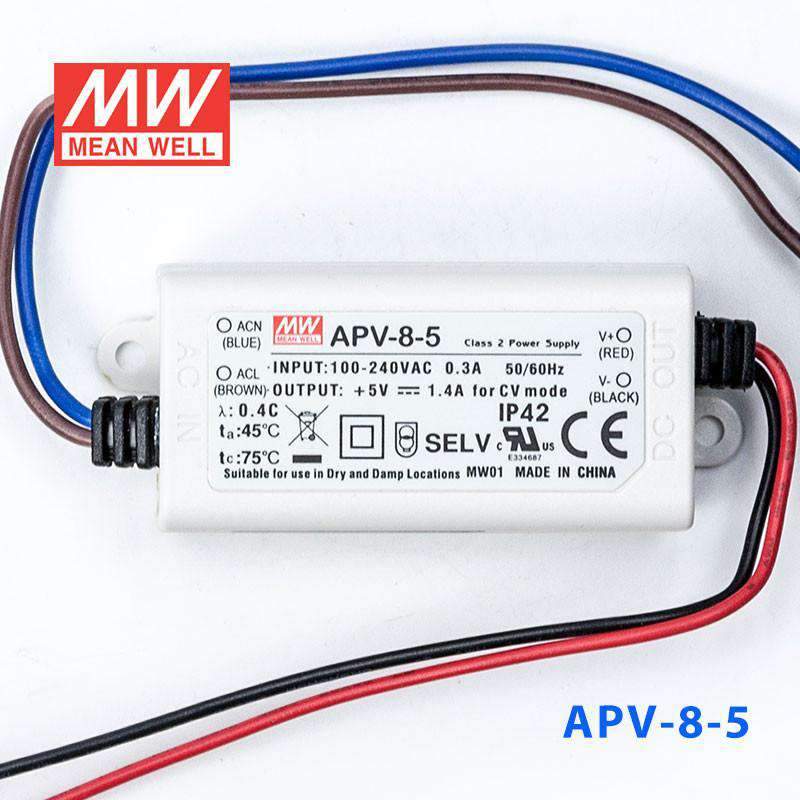

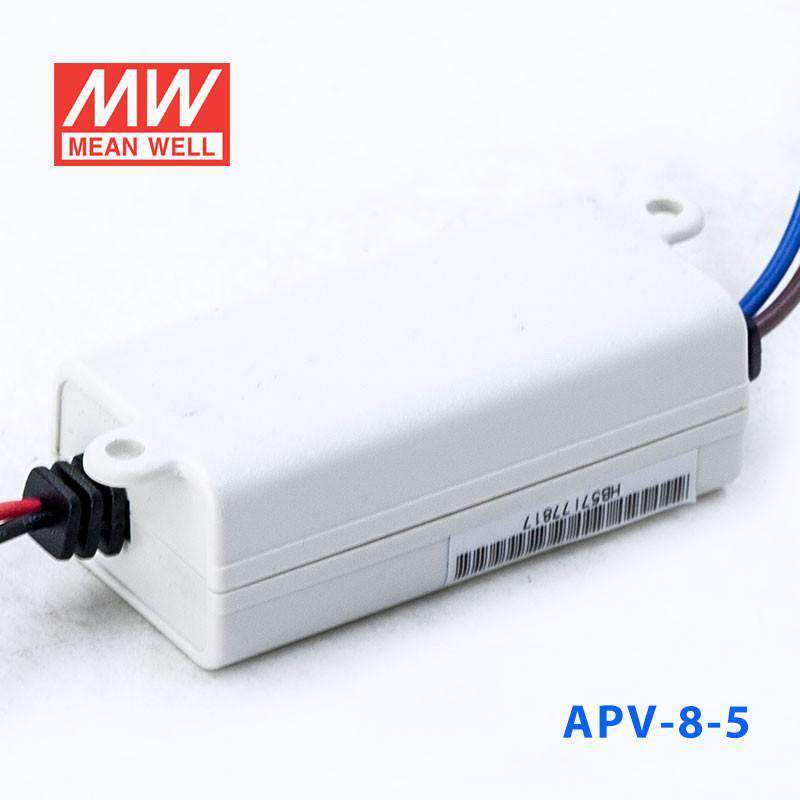

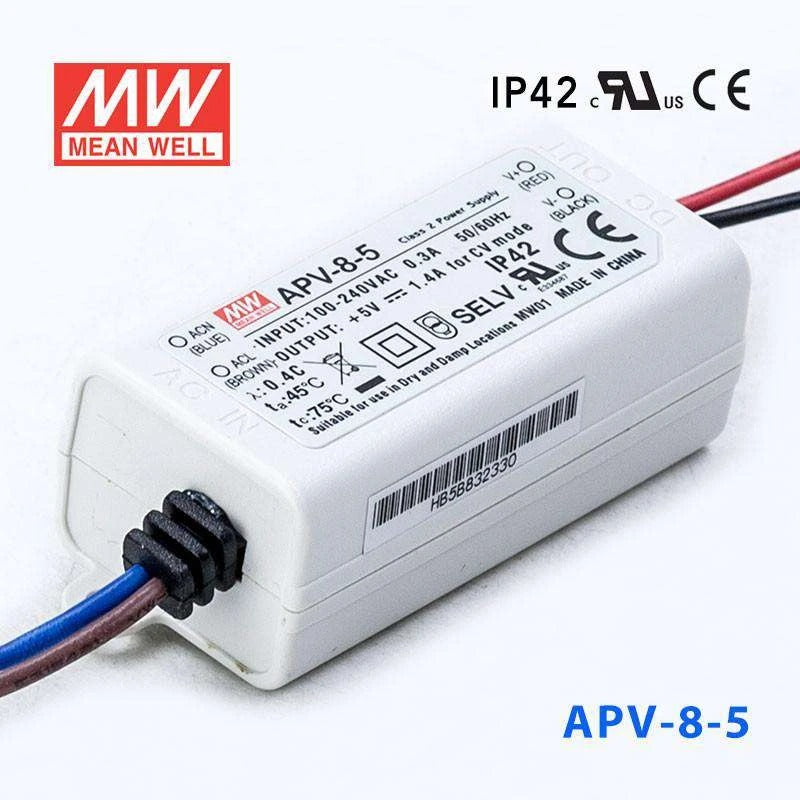

Mean Well APV-8-5 Power Supply 8W 5V 1.4A

Name: Mean Well APV-8-5 Power Supply 8W 5V 1.4A
Brand: Mean Well
SKU: APV-8-5
Price: 6.13 USD
Availability: InStock

Class II designlow costsmall and compactIP42

SKU APV-8-5

$6.13 USD

Shipping calculated at checkout.

Select model — 5 in this family

APV-8-5

APV-8-5 8W 5V In stock $6.13 USD

APV-12-5 12W 5V Low stock $6.00 USD

APV-16-5 16W 5V Low stock $7.60 USD

APV-25-5 25W 5V Low stock $12.19 USD

APV-35-5 35W 5V Low stock $9.94 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

APV-8-5 is the 5V output model of this series: rated current 1.4A, rated power 7W, typical efficiency 74%.

APV-8 series is one 8W AC/DC constant voltage mode single output LED power supply. It accepts the full range input 90~264VAC and provides three models with different output voltage, 5V, 12V, 24V, respectively, that the small wattage LED applications employ the most frequently. Exploiting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-8 ideally fits the entry-level LED applications.

Features

Constant voltage design
Universal AC input / Full range
Class Ⅱ power unit, no FG
Fully isolated plastic case
IP42 design
Small and compact size
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.5W
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

APV-8-5Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 1.4A
CURRENT RANGE: 0 ~ 1.4A
RATED POWER: 7W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC (Note.6)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 74%
AC CURRENT: 0.15A/230VAC 0.3A/115VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=120μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER LOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750,CSA C22.2 No.250.0-08,BIS IS15885(except for 5V), BIS IS15885(R-62002178 made in India only), EAC TP TC 004, BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF: 9638.4K hrs min. Telcordia SR-332 (Bellcore) ; 1631.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 60*30*23.5mm(L*W*H)
PACKING: 0.05Kg;144pcs/7.6Kg/0.79CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. When applying DC voltage for input, please connect the brown input wire to the positive side whereas blue input wire to the negative side.
7. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

APV-8-5 Mechanical Specification — Mechanical Specification

Typical applications

Display devices for decorative & advertising accessories (Note.7)
General-purpose electronics operated in dusty or damp environments

Downloads

Certificates2

UL Certificate (APV-8)(EN) PDF Download

EMC Certificate (APV-8)(EN) PDF Download

Test reports1

Test Report (APV-8-5)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What 5V LED lighting applications suit the APV-8-5?

The APV-8-5 outputs 5V at 1.4A for a maximum of 7W. Its compact 60.0 × 30.0 × 23.5 mm housing makes it suited to very short 5V addressable LED strip segments, small 5V LED pixel accent lighting, and miniature 5V LED display elements where total load stays within 7W.

How long a 5V LED strip can the APV-8-5 support?

The APV-8-5 delivers 7W at 5V. At a strip rated 5 W/m, that supports approximately 1.4 m. Divide 7W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before purchasing.

What are the environmental limits for the APV-8-5?

The APV-8-5 operates from -30°C to +70°C (with derating per the derating curve) at 20–90% RH non-condensing, and carries an IP42 ingress protection rating. It is intended for dry indoor installations. For outdoor or wet-location 5V LED installations, choose a driver with a higher, suitable IP rating.
