Mean Well DDR-60L-24 DC-DC Converter | 60W

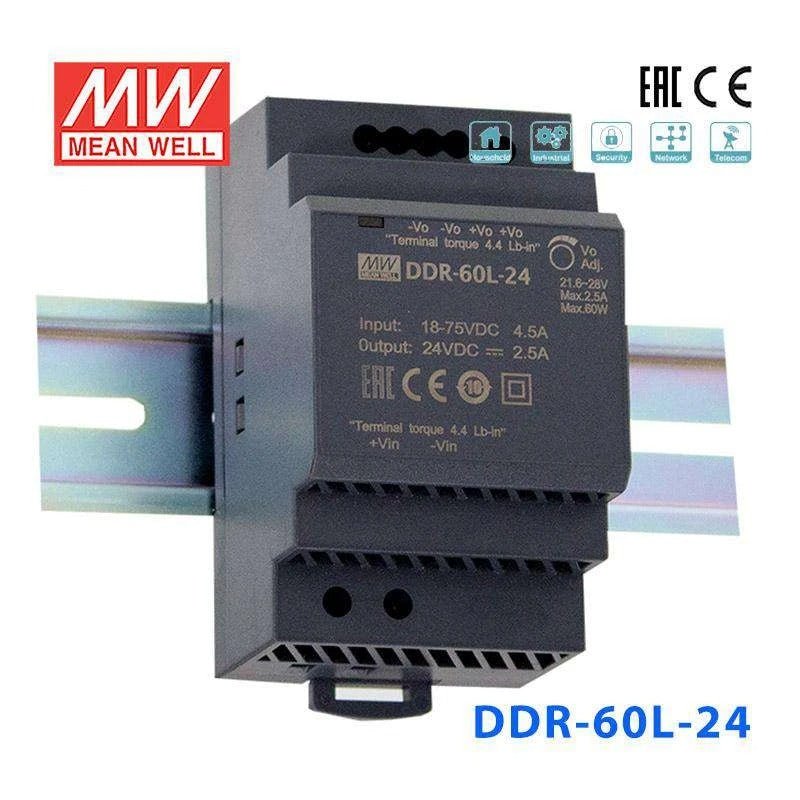

Name: Mean Well DDR-60L-24 DC-DC Converter - 60W - 18~75V in 24V out 2.5A
Brand: Mean Well
SKU: DDR-60L-24
Price: 32.14 USD
Availability: InStock

Overview

DDR-60L-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 92%.

DDR-60 series is a 60W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (52.5mm), 4:1 ultra wide input voltage, -40~+85℃ wide operating temperature, 4KVdc I/O isolation, adjustable output voltage ( 10%) and full protective functions...etc. This series has two input options: 9~36V /18~75V and various output options: 5V / 12V / 15V / 24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.

Features

Width only 52.5mm (3SU)
4:1 ultra wide input range
-40~+85℃ wide working temperature
No minimum load required
DC output adjustable (±10%)
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
3 years warranty

Specifications

DDR-60L-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 2.5A
CURRENT RANGE: 0 ~ 2.5A
RATED POWER: 60W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 28V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 120ms, 85ms at full load
HOLD UP TIME (Typ.): L-type: 10ms@48Vdc input
EXTERNAL CAPACITANCE LOAD (Max.): 2200μF

INPUT

VOLTAGE RANGE^Note.4: 18 ~ 75Vdc
EFFICIENCY (Typ.): 92%
DC CURRENT (Typ.): 1.5A /48Vdc
INRUSH CURRENT (Typ.): 20A /48Vdc

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 28.8 ~ 34V Protection type : Shut down o/p voltage, re-power on to recover
REVERSE POLARITY: By internal MOSFET, no damage, recovers automatically after fault condition removed
UNDER VOLTAGE LOCKOUT: 24Vin (G-type):Power ON≥9V , OFF≤8.5V 48Vin (L-type):Power ON≥18V , OFF≤17V

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 5 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 5 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~60℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 5000 meters

SAFETY & EMC (Note 5)

SAFETY STANDARDS: IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVdc
ISOLATION RESISTANCE: I/P-O/P>100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A
Radiated BS EN/EN55032 Class A for 1m I/O cable , Class B for 30cm I/O cable
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line; criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A
Radiated	BS EN/EN55032	Class A for 1m I/O cable , Class B for 30cm I/O cable
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line; criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 3261.6K hrs min. Telcordia SR-332 (Bellcore) ; 611.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 52.5*90*54.5mm (W*H*D)
PACKING: 216g; 60pcs/14Kg/0.97CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at normal input (G:24Vdc, L:48Vdc), rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

DDR-60L-24 Block Diagram — Block Diagram

DDR-60L-24 Derating Curve — Derating Curve

DDR-60L-24 Output derating VS input voltage — Output derating VS input voltage

DDR-60L-24 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates4

CE Certificate(DDR-60)(EN) PDF Download

UL Certificate(DDR-60)(EN) PDF Download

EMC Certificate(DDR-60)(EN) PDF Download

EAC Certificate(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DDR-60L-24 to step down a 48V DC bus to 24V for PLC and automation equipment?

Yes. The DDR-60L-24 accepts 18-75V DC input, covering 48V nominal buses. It outputs 24V at 2.5A (60W), which is a standard supply voltage for compact PLCs, relays, solenoid valves, and 24V field devices commonly used in factory automation panels.

Is the DDR-60L-24 a good fit for powering 24V building automation controllers from a 48V DC backbone?

Yes. Building management systems often distribute 48V DC along cable trays and then convert locally to 24V for controllers, actuators, and sensors. The DDR-60L-24's 60W capacity and compact 52.5 x 90 x 54.5 mm size make it straightforward to install at each local panel. Its 4KVdc I/O isolation separates downstream equipment from the bus.

Can the DDR-60L-24 supply 24V power to a small Modbus RTU network of field transmitters?

Yes. Most 4-20mA loop-powered or Modbus RTU transmitters draw well under 1A each at 24V. With 2.5A available, the DDR-60L-24 can power multiple transmitters on a shared 24V rail. The 4KVdc I/O isolation keeps the 24V rail separated from the upstream DC bus.

Is the DDR-60L-24 suitable for converting 48V telecom power to 24V for edge networking gear?

Yes. Telecom sites commonly provide -48V DC (referenced as 48V magnitude). The DDR-60L-24 accepts up to 75V DC input, comfortably accommodating telecom bus voltages including float-charge levels. It delivers 24V at 2.5A for switches, small routers, or PoE injectors rated at 24V input.

Can the DDR-60L-24 operate in a non-ventilated weatherproof enclosure exposed to temperature extremes?

The DDR-60L-24 has an operating range of -40°C to +85°C, with output derating at higher temperatures per the datasheet's derating curve. Its compact 90.0 x 54.5 x 52.5 mm profile fits easily in sealed NEMA or IP-rated enclosures. Verify that worst-case enclosure temperature and your load stay within the derating curve.

What DDR-60L models are available if I need a different output voltage?

The DDR-60L series offers four output options, all with 18-75V DC input: DDR-60L-5 (60W, 5V, 12A), DDR-60L-12 (60W, 12V, 5A), DDR-60L-15 (60W, 15V, 4A), and DDR-60L-24 (60W, 24V, 2.5A). All share the same 52.5 x 90 x 54.5 mm size and 4KVdc I/O isolation.
