Description
Description
Features
Universal AC input / Full range |
Protections: Short circuit / Overload / Over voltage |
Battery low protection/ Battery reverse polarity protection by fuse |
Can be installed on DIN rail TS-35/7.5 or 15 |
Alarm signal for AC OK and Battery low(via TTL open collector, optional via relay) |
Cooling by free air convection |
Pass LPS |
LED indicator for power on 100% full load burn-in test |
3 years warranty |
General Specification
AC input voltage range | 90~264VAC; 127~370VDC |
AC inrush current | Cold start 30A at 115VAC, 60A at 230VAC |
DC adjustment range | ±8.6% rated output voltage |
Overload protection | 105%~150% constant current limiting, auto-recovery |
Over-voltage protection | 105%~135% rated output voltage |
Setup, rise, hold up time | 400ms, 50ms, 50ms |
Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
Working temperature | -30~+70°C |
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved |
EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
Connection | I/P: 3 poles, O/P: 8 poles screw DIN terminal |
Dimension (LxWxH) | 40x90x100 |
Packing | 42pcs / 13.6kg |
Specifications
Specifications
-

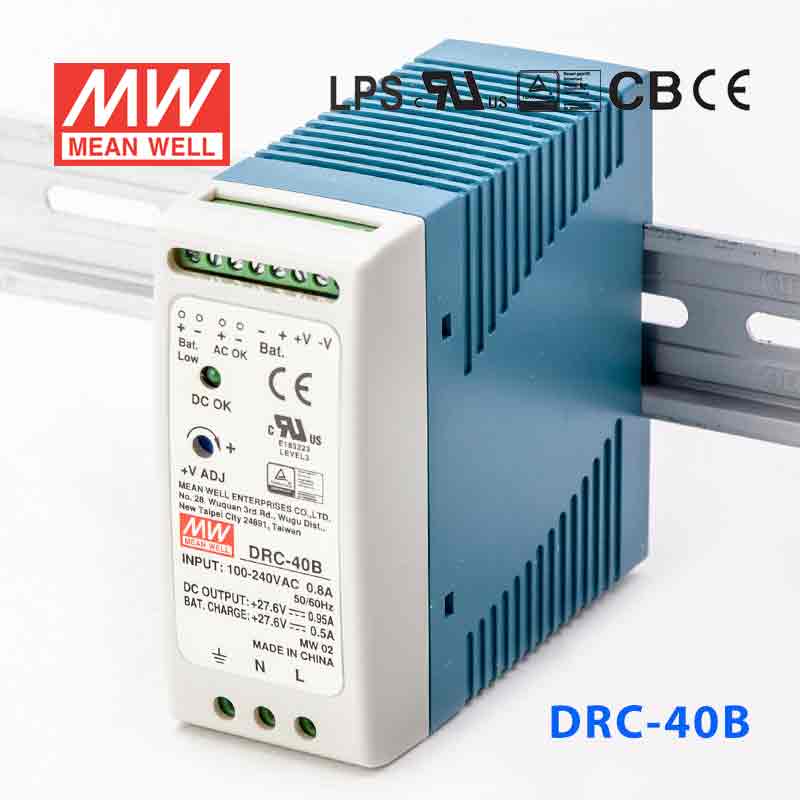

BrandMean Well
-
SeriesDRC Series
-
Power Rating40.02 Watt
-
Output Voltage27.6 Volt
-
Rated Current0.95 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height1.57 in
-
Weight0.66 lb
