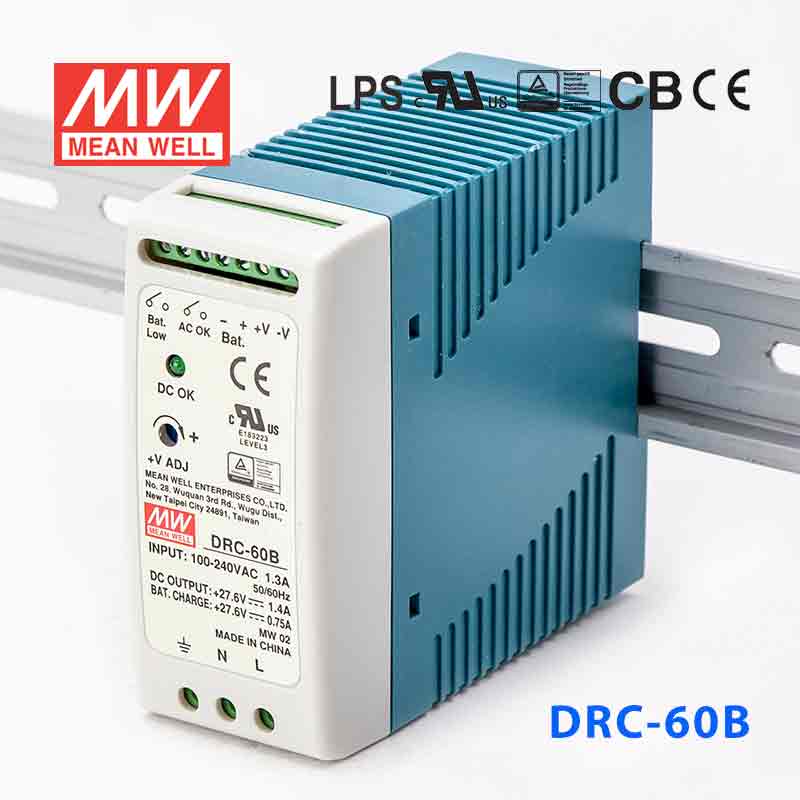

Mean Well DRC-60B Power Supply 59.34W 27.6V
Description
Description
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
LED indicator for power on
100% full load burn-in test
Key Features
- ✓✓Universal AC input / Full rangeProtections: Short circuit / Overload / Over voltage
- ✓✓Battery low protection/ Battery reverse polarity protection by fuse
- ✓✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓✓Alarm signal for AC OK and Battery low(via TTL open collector, optional via relay)
- ✓✓Cooling by free air convection
- ✓✓Pass LPS
- ✓✓LED indicator for power on100% full load burn-in test
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDRC Series
-
Power Rating59.34 Watt
-
Output Voltage27.6 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height1.57 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well DRC-60B for a 27.6V control panel or automation cabinet?
Yes, this DIN rail power supply is built for constant-voltage 27.6V output and can deliver up to 1.4A, with 59.34W total output power. Its DIN rail form factor, 90-264VAC input range, and UPS function make it suitable for industrial or automation panels that need regulated 27.6V power in a compact enclosure.
Is the DRC-60B a good fit for embedded or industrial IT equipment that needs battery-backed 27.6V power?
It can be a fit when the equipment is designed for constant-voltage 27.6V input and stays within 1.4A or 59.34W. The built-in UPS function is the main reason to consider this model for embedded or industrial IT systems where ride-through or backup behavior matters.
Can I use the DRC-60B in a DIN rail monitoring or alarm system that needs stable 27.6V output?
Yes, if the system is a constant-voltage 27.6V load and its total demand does not exceed 1.4A or 59.34W. The DIN rail format, pass LPS feature, and 3-year warranty make it a practical option for compact monitoring, signaling, or control assemblies built around 27.6V distribution.
How does the DRC-60B compare with the other Mean Well DRC series models?
The DRC-60B is the 59.34W, 27.6V, 1.4A model in the series. Other listed models are DRC-40B at 40.02W, 27.6V, 0.95A; DRC-100B at 96.6W, 27.6V, 2.25A; DRC-180B at 179.4W, 27.6V, 4.5A; DRC-40A at 40.02W, 13.8V, 1.9A; DRC-60A at 59.34W, 13.8V, 2.8A; DRC-100A at 96.6W, 13.8V, 4.5A; and DRC-180A at 179.4W, 13.8V, 9A.
Is the Mean Well DRC-60B suitable for outdoor or harsh-temperature locations?
The operating temperature range is -30°C to +70°C, so it is specified for wide temperature conditions. The provided specs do not include an IP rating, so it should not be treated as an outdoor-exposed power supply based on these specs alone and is better matched to protected indoor enclosures.
Other DRC Series Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DRC-60A Power Supply 59.34W 13.8V | 59.34W | 13.8V | 2.8A | Indoor | $39.69 | View |
| Mean Well DRC-100B Power Supply 96.6W 27.6V | 96.6W | 27.6V | 2.25A | Indoor | $56.03 | View |
| Mean Well DRC-180B 179.4W 27.6V Power Supply With UPS | 179.4W | 27.6V | 4.5A | Indoor | $98.00 | View |
| Mean Well DRC-180A 179.4W 13.8V Power Supply With UPS | 179.4W | 13.8V | 9A | Indoor | $98.00 | View |
| Mean Well DRC-40B Power Supply 40.02W 27.6V | 40.02W | 27.6V | 0.95A | Indoor | $36.34 | View |
| Mean Well DRC-40A Power Supply 40.02W 13.8V | 40.02W | 13.8V | 1.9A | Indoor | $36.27 | View |
| Mean Well DRC-100A Power Supply 96.6W 13.8V | 96.6W | 13.8V | 4.5A | Indoor | $53.09 | View |
