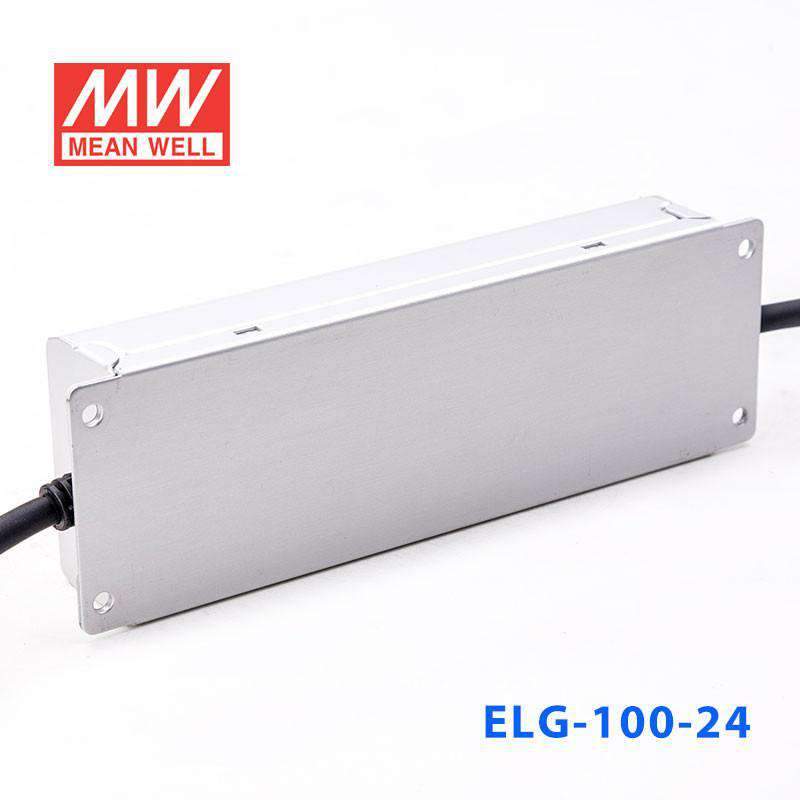

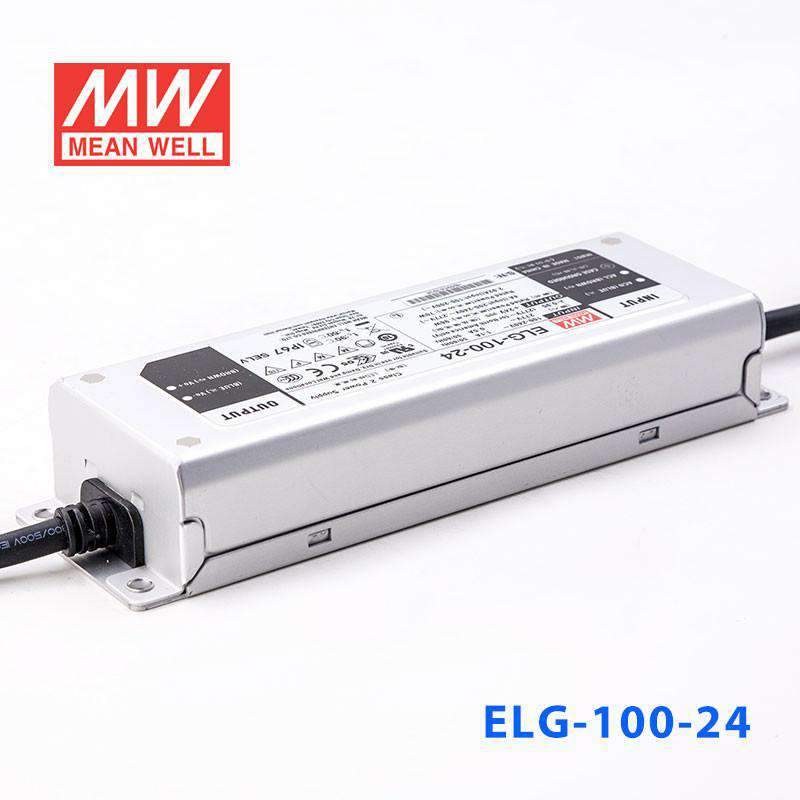

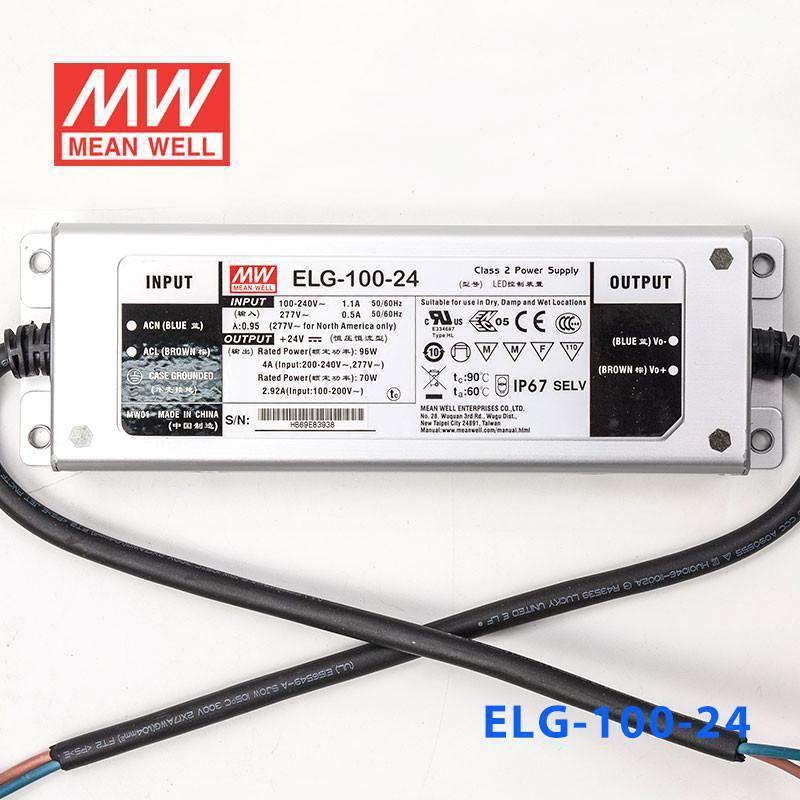

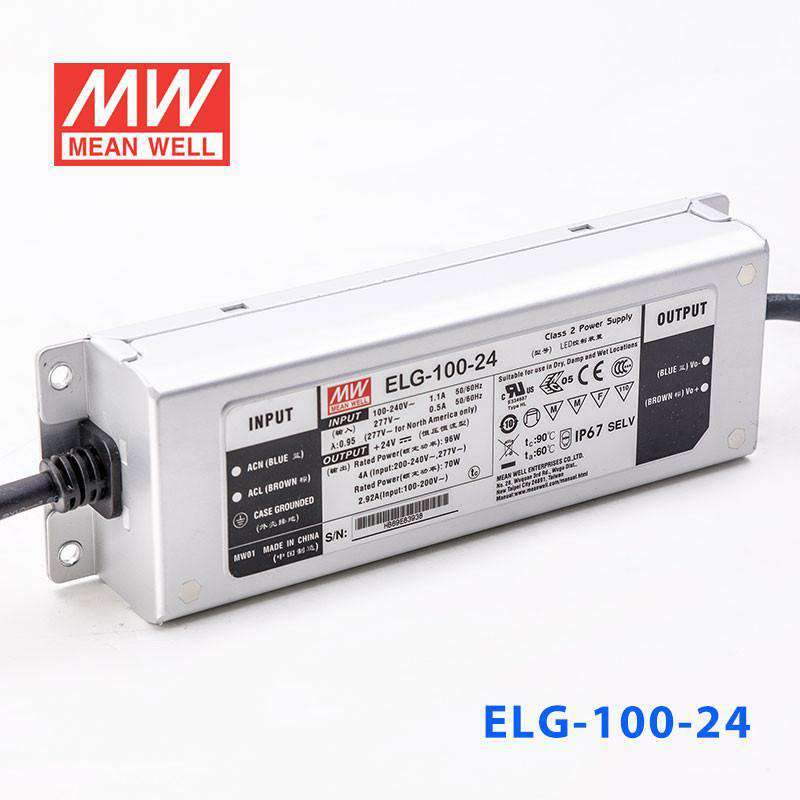

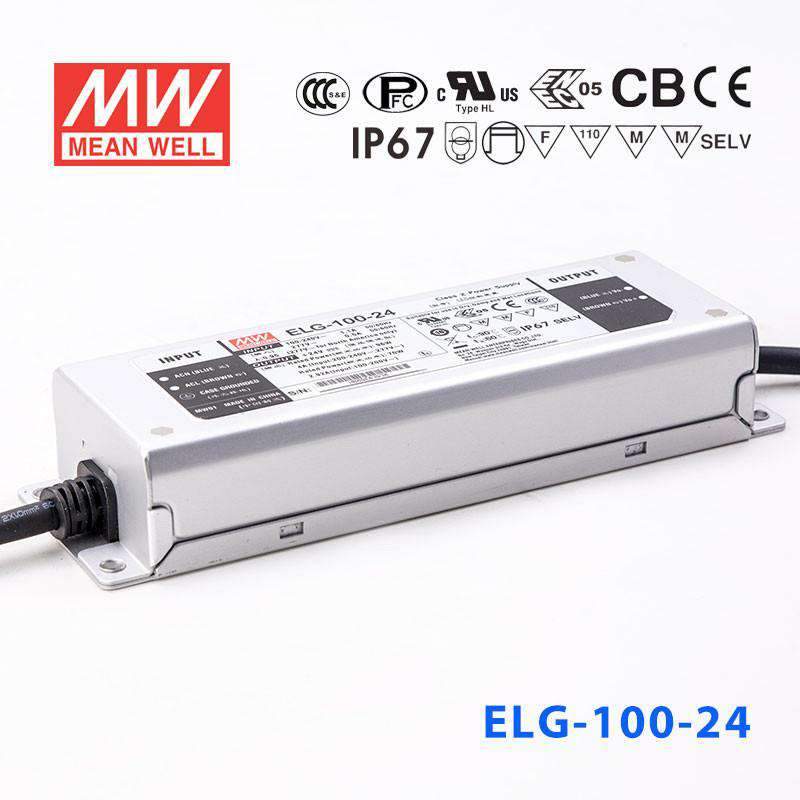

Mean Well ELG-100-24 Power Supply 96W 24V
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I use the ELG-100-24 to power 24V LED strip lights outdoors?
Yes. The ELG-100-24 is rated IP67, meaning it is fully protected against dust and temporary immersion in water. It can be mounted in outdoor fixtures, enclosures, or exposed outdoor signage runs where moisture and rain are a concern.
How many meters of 24V LED strip can the ELG-100-24 power?
The ELG-100-24 delivers 96W at 24V. Divide 96W by your strip's rated wattage per meter to get maximum length—for example, a 14.4 W/m strip would allow up to approximately 6.6 meters. Always check your specific strip's rated power per meter and derate by 20% for thermal headroom.
Is the ELG-100-24 suitable for powering LED signage cabinets?
Yes. At 96W and 24V, this driver comfortably powers medium-sized LED sign modules or channel letter lighting. Its IP67 rating also allows it to be installed inside outdoor sign cabinets that are exposed to weather.
Can I use this driver for architectural LED cove lighting in a commercial space?
Yes. The ELG-100-24 supports 24V constant-current output and accepts 100–305VAC input, making it compatible with both North American and international mains. Its wide operating temperature range of -40°C to +90°C suits demanding in-ceiling or cove installations.
Will the ELG-100-24 work with 24V LED modules for under-cabinet lighting?
Yes. The 24V output and 4A maximum current are well matched to under-cabinet LED module runs. The compact 199 × 63 × 35.5 mm metal housing fits in tight cabinet spaces, and the IP67 rating provides a safety margin in kitchen environments.
What is the difference between ELG-100-24 variants like the A, B, AB, and D2 suffixes?
The base ELG-100-24 (96W) has no dimming or adjustment. The 'A' suffix adds a potentiometer for output adjustment; 'B' adds 3-in-1 dimming (10V, PWM, resistance); 'AB' combines both adjustment and dimming; 'D2' adds DALI dimming. The -3Y suffix indicates an extended 3-year warranty variant with 100W rating. All share the same 24V / 4A output.
