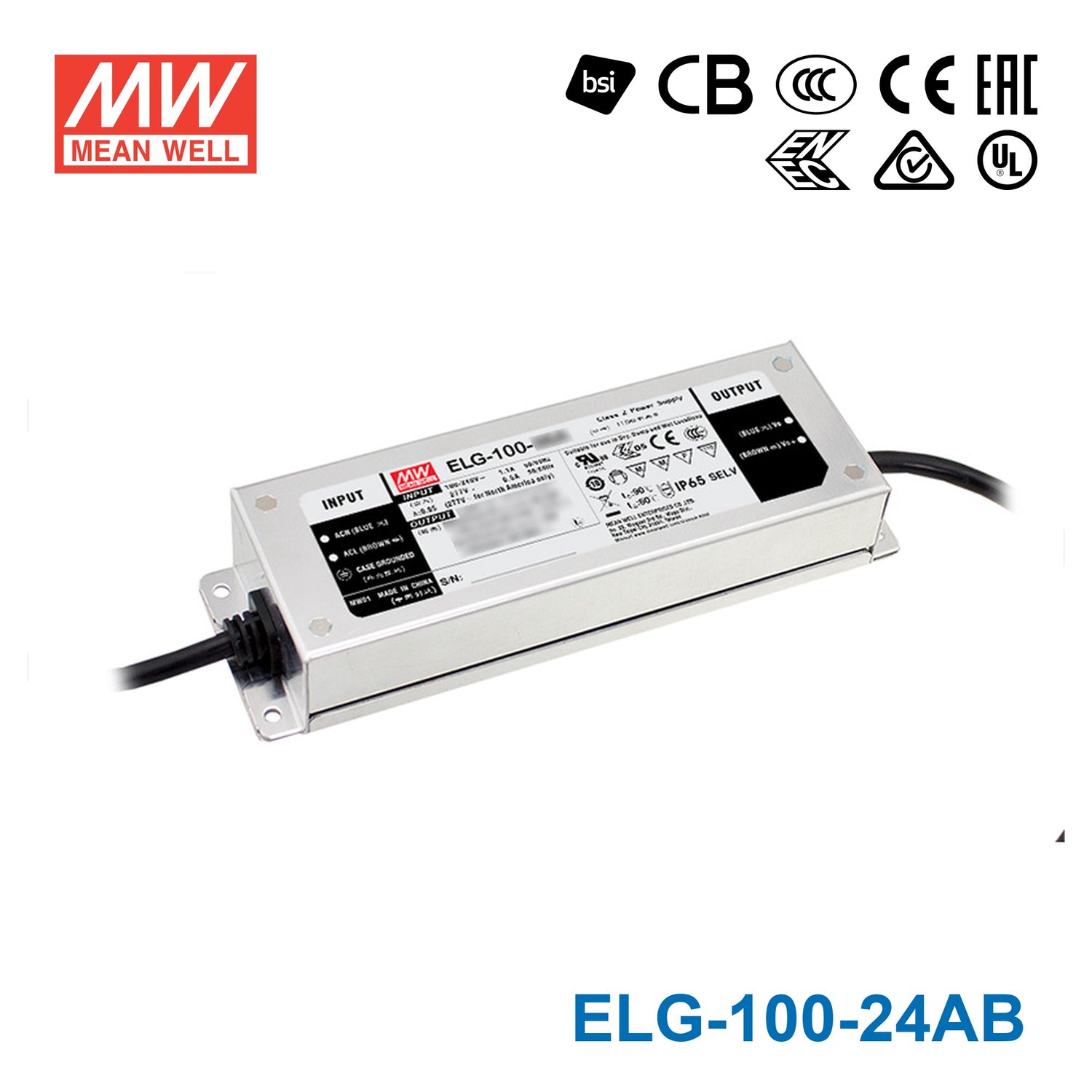

Mean Well ELG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable

The ELG-100-24AB is rated IP65, protecting it against water jets and heavy moisture. It is suitable for outdoor installations in sheltered positions such as sign cabinets or covered canopies, but is not rated for immersion like an IP67 unit.

The ELG-100-24AB supplies 96W at 24V. For a 12 W/m strip: 96 ÷ 12 = 8 meters maximum. For a 19.2 W/m high-output strip: 96 ÷ 19.2 = 5 meters. Always confirm your strip's rated power per meter and derate by 20% for safe continuous operation.

The 'AB' suffix means this driver combines both output voltage adjustment (potentiometer) and 3-in-1 dimming via 10V signal, PWM, or resistance. This makes it suitable for installations requiring both commissioning-time brightness calibration and ongoing dimming control through a building automation or lighting control system.

Yes. The ELG-100-24AB's built-in dimming input (10V, PWM, or resistance) allows integration with wall dimmers or smart lighting controllers commonly used in hotels and restaurants. It delivers 96W at 24V, enough for significant linear lighting runs in corridors, bars, or feature walls.

Yes, in terms of power delivery. The ELG-100-24AB provides 96W at 24V with dimming control input, supporting tunable-white LED strips that operate at 24V. Note that tunable-white typically requires two separate channels; you would need one driver per channel.

Yes. The ELG-100-24AB's IP65 rating protects against dust ingress, and its 3-in-1 dimming input allows precise light level control suitable for museum case lighting. The -40°C to +90°C operating range ensures stable operation in climate-controlled or challenging environments.
