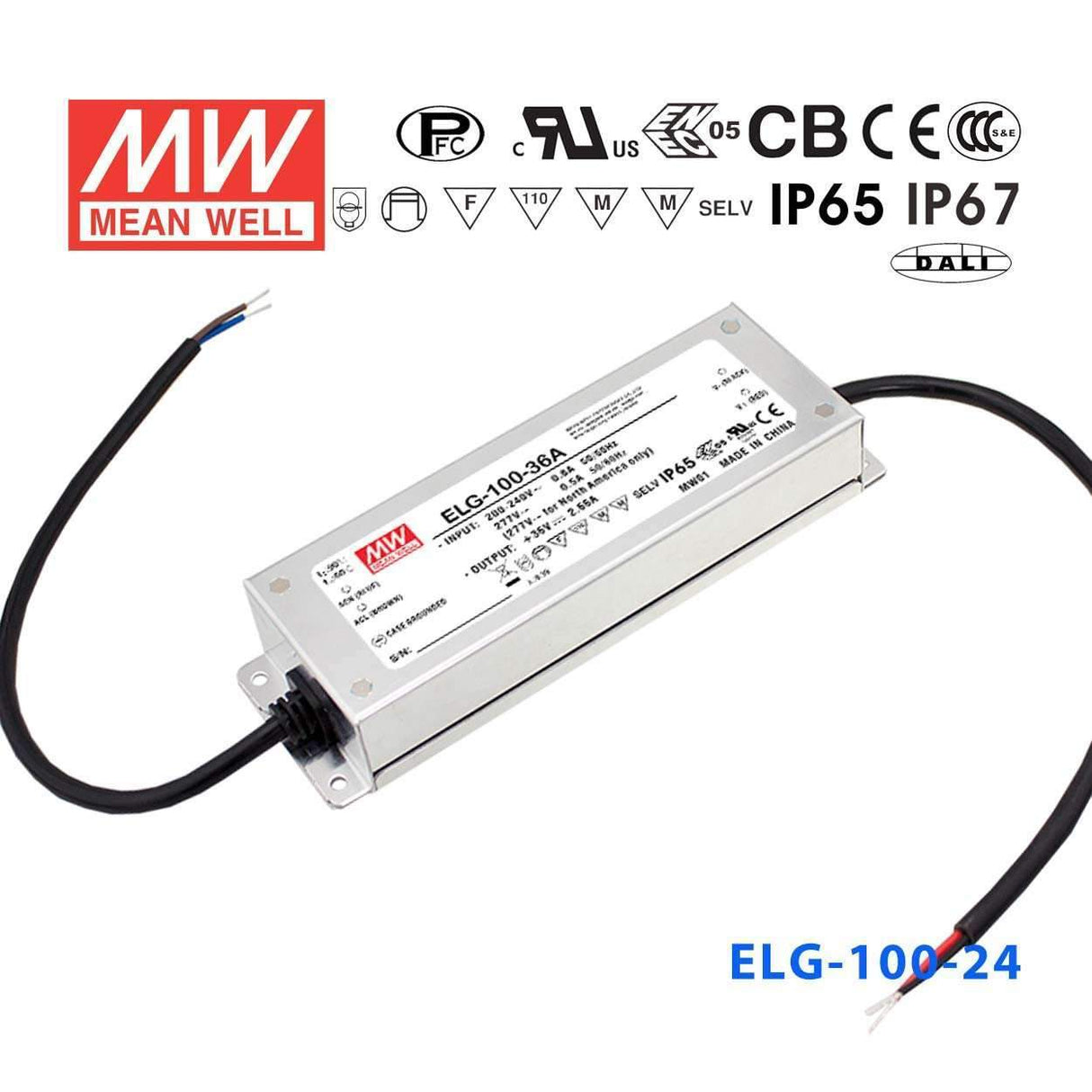

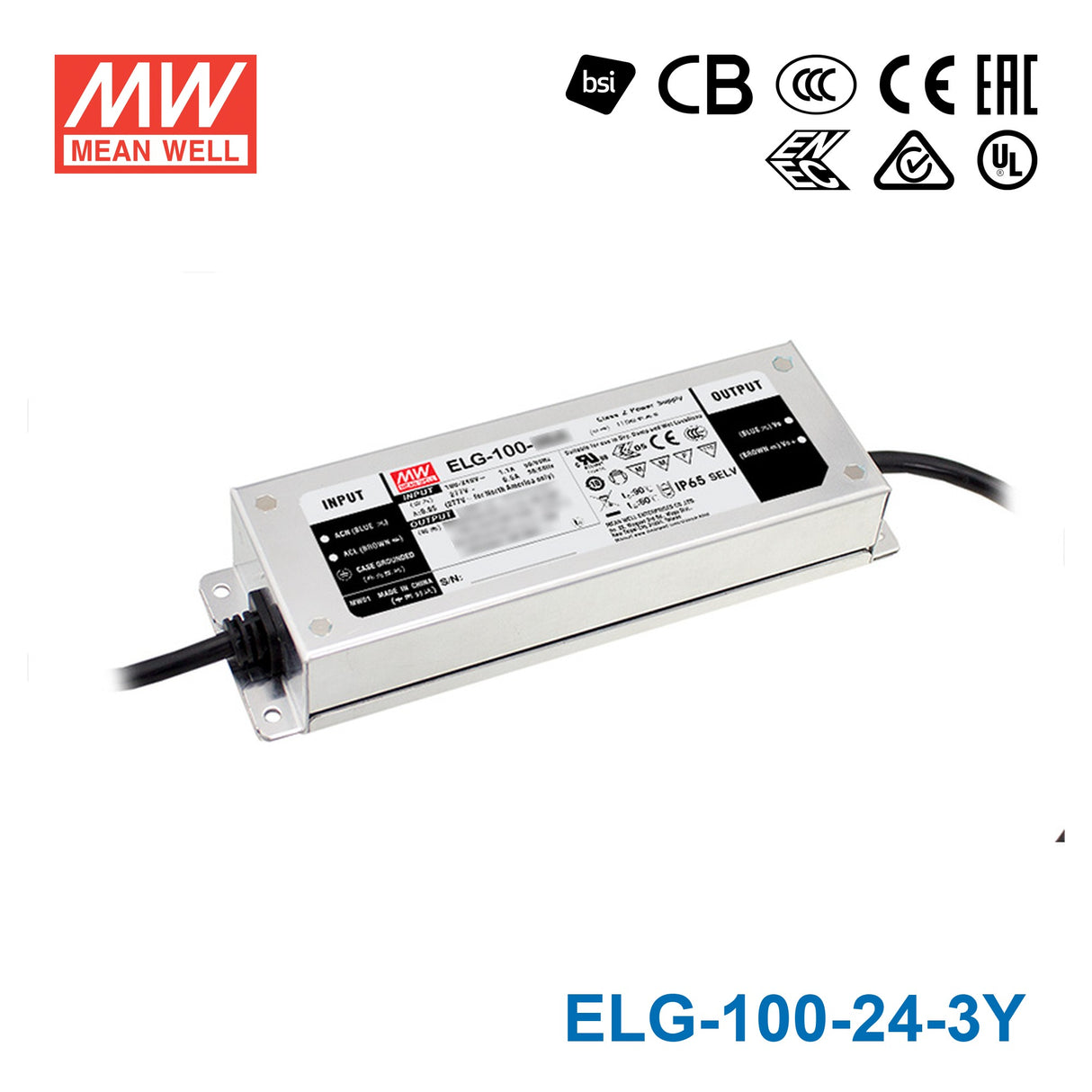

Mean Well ELG-100-24-3Y Constant Voltage + Constant Current LED Driver 24V 100W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-100-24-3Y Constant Voltage + Constant Current LED Dr...
The ELG-100-24 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-24-3Y be installed in a wet outdoor location?
Yes. The ELG-100-24-3Y carries an IP67 waterproof rating, so it can withstand temporary immersion and is suitable for wet outdoor locations such as landscape lighting enclosures or exposed outdoor signage. Permanent submersion is not recommended.
How much 24V LED strip can the ELG-100-24-3Y drive?
This driver is rated at 100W and 24V. For a 10 W/m strip, that supports up to 10 meters; for a 20 W/m high-density strip, up to 5 meters. Always verify your strip's rated power per meter and leave a 20% safety margin to avoid overloading the driver.
Is the ELG-100-24-3Y a good fit for powering LED displays in retail storefronts?
Yes. With 100W at 24V and IP67 protection, it can reliably power LED display lighting in window or storefront installations where vibration, dust, and temperature swings occur. The -40°C to +90°C operating range ensures stable performance year-round.
Can I use this driver for 24V LED strip in a commercial refrigeration display case?
Yes. The ELG-100-24-3Y operates down to -40°C, making it suitable for cold-storage and refrigeration lighting applications where ambient temperatures are well below freezing. The IP67 enclosure also tolerates condensation that can form in such environments.
What certifications does the ELG-100-24-3Y carry?
The ELG-100-24-3Y is certified to BSMI, CB, CE, EAC, and UL standards. This makes it suitable for projects in North America, Europe, and markets requiring BSMI (Taiwan) or EAC (Russia/Eurasia) compliance.
How does the ELG-100-24-3Y differ from the standard ELG-100-24?
The ELG-100-24-3Y is rated at 100W versus 96W for the standard ELG-100-24, and it comes with an extended 3-year warranty designation in the part number. It holds BSMI and UL certifications while the standard ELG-100-24 also adds CCC, ENEC, and c_rcm. Both share the same 24V / 4A output and IP67 rating.
