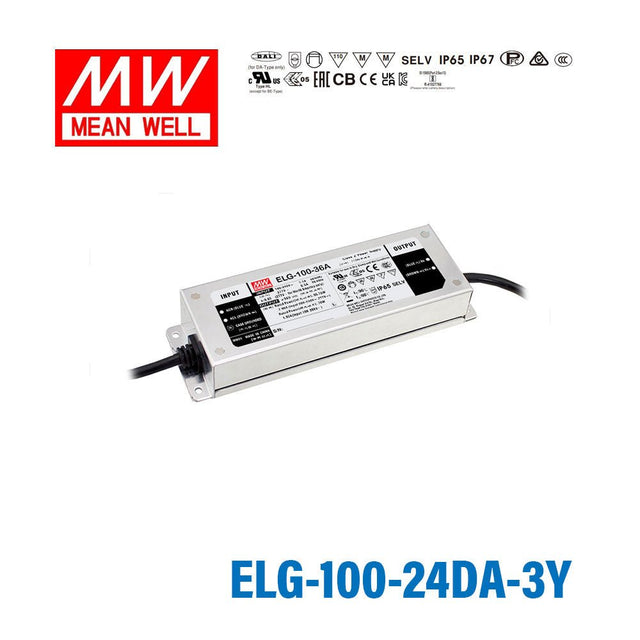

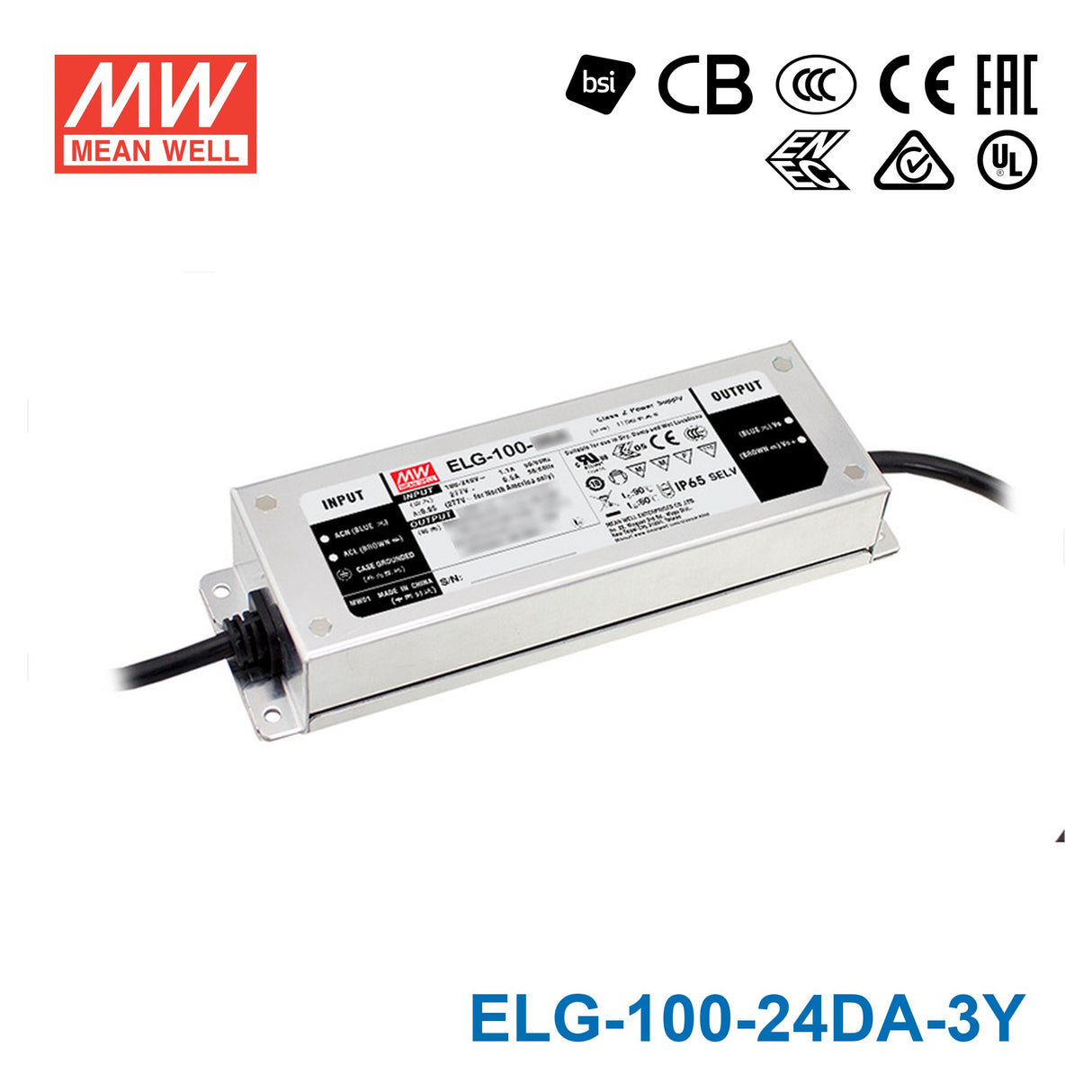

Mean Well ELG-100-24DA-3Y Power Supply 100W 24V - DALI

metal case, IP65/IP67, 5 years warranty
SKU:
ELG-100-24DA-3Y

Model
$49.31 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Constant voltage + Constant Current mode output
Metal housing design with functional ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime > 50000 hours
5 years warranty

General Specification

AC input voltage range 100 ~ 305VAC 142 ~ 431VDC continue, 320VAC for 24Hrs; 360VAC for 1Hr
AC inrush current COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Over voltage protection

28 ~ 34V | 41 ~ 48V | 47 ~ 54V | 54 ~ 62V | 62 ~ 72V

Shut down output voltage, re-power on to recover

Setup, rise, hold up time 1000ms, 80ms/115VAC | 500ms, 100ms/230VAC
Withstand voltage I/P-O/P:3.75KVAC | I/P-FG:2.0KVAC | O/P-FG:1.5KVAC
Working temperature -40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards

UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB19510.1, GB19510.14; IP65 or IP67;KC61347-1,KC61347-2-13 approved

EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH) 199x63x35.5mm
Packing 0.85kg; 16pcs / 14.2kg / 0.72CUFT

Specifications

  • Brand
    Mean Well
  • Series
    ELG Series
  • Power Rating
    96 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    142V~431V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    CCC,CE,EAC,FCC,RCM,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    7.83 in
  • Width
    2.48 in
  • Height
    1.4 in
  • Weight
    1.87 lb

File Downloads

::specification::
