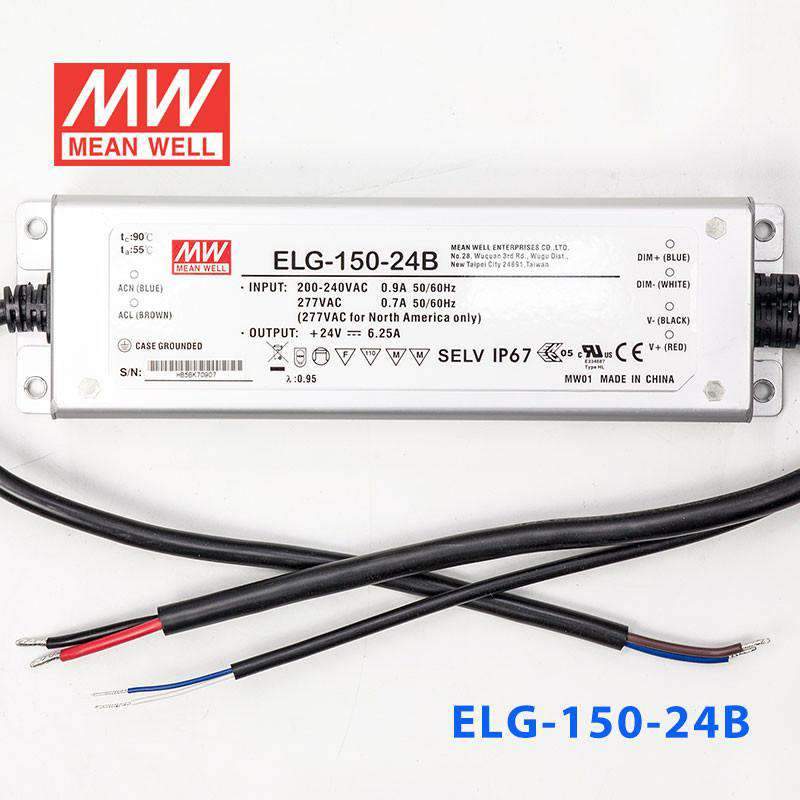

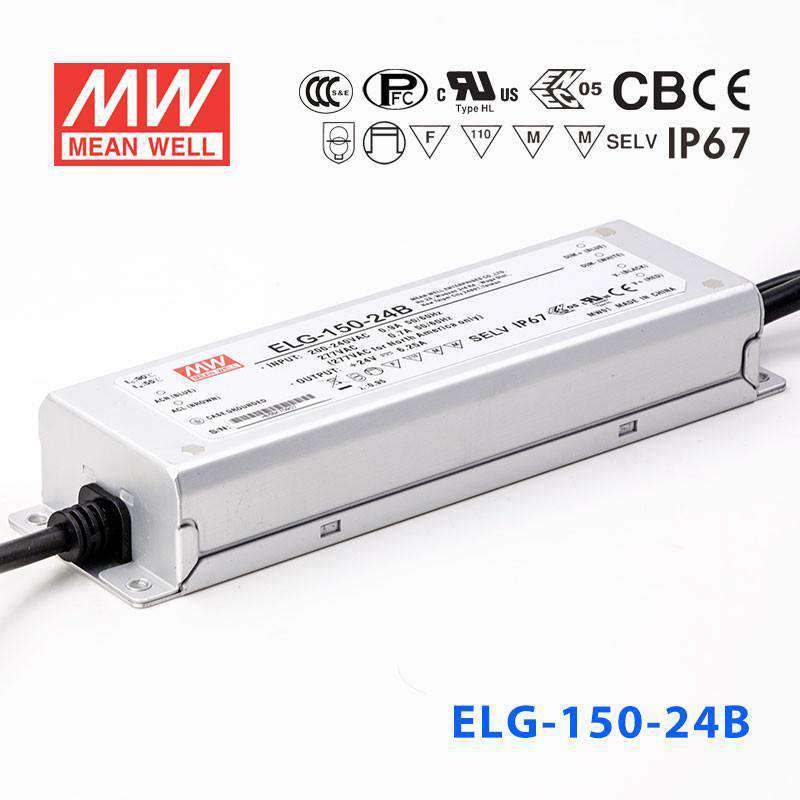

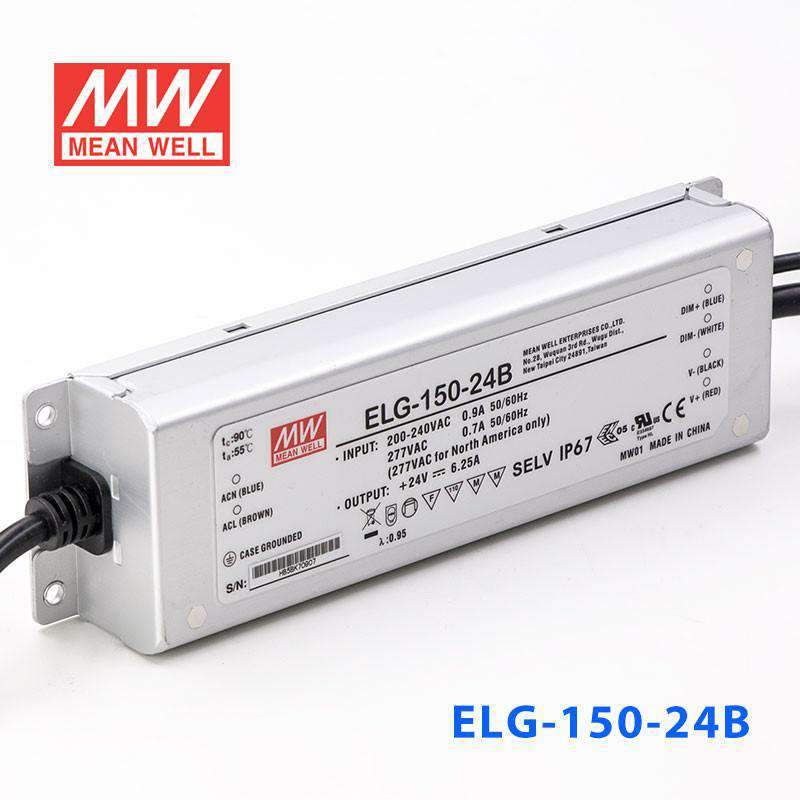

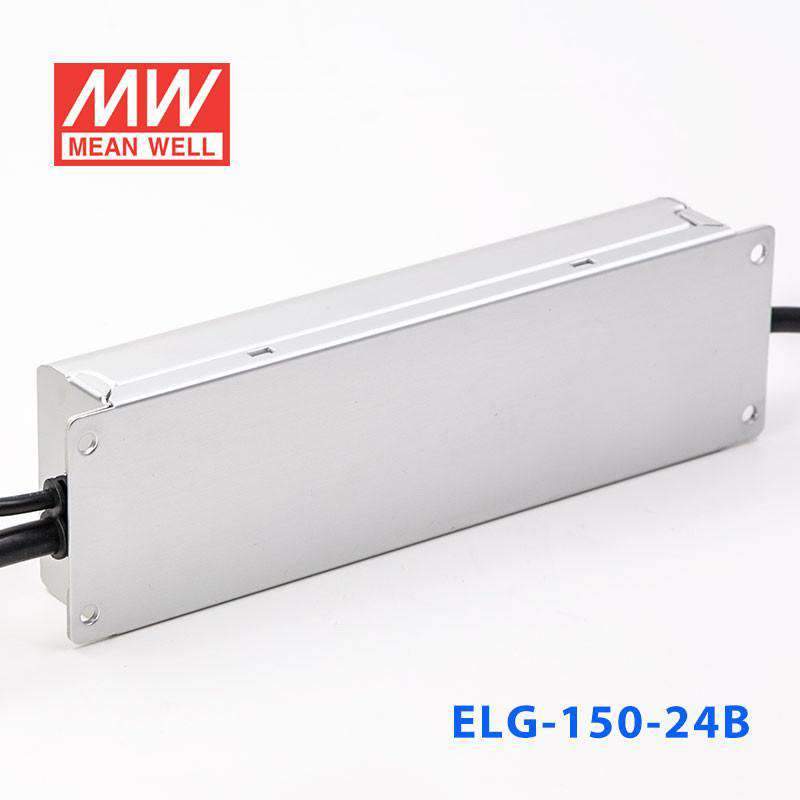

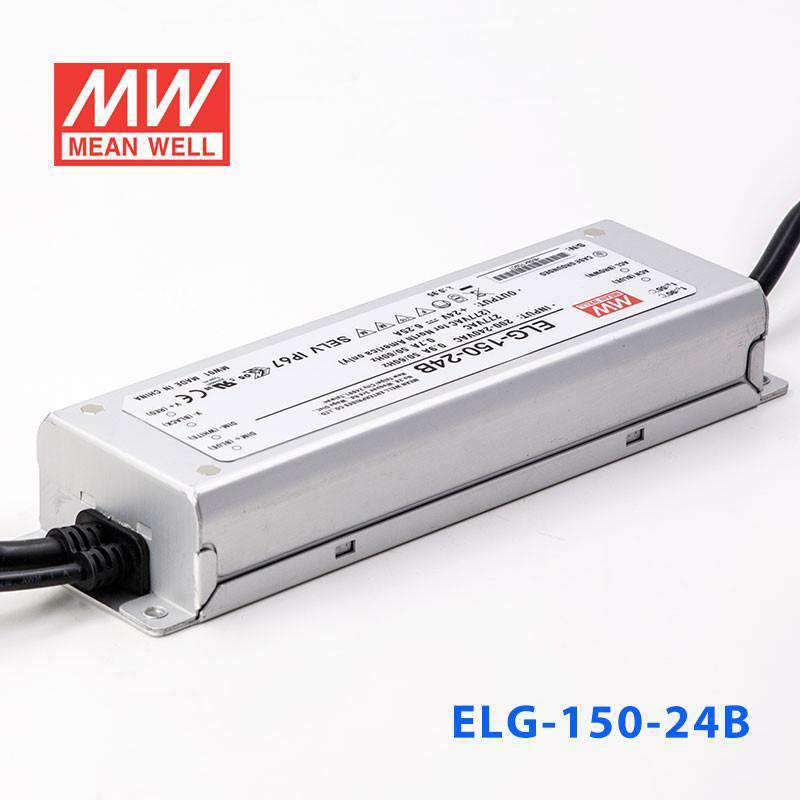

Mean Well ELG-150-24B Power Supply 150W 24V - Dimmable 6.25A
Overview
ELG-150-24B is the 24V output model of this series: rated current 6.25A, typical efficiency 89%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).
ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 rating for indoor or outdoor installations
- Function options: 3 in 1 dimming (dim-to-off)
- Typical lifet ime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.2
- 12 ~ 24V
- RATED CURRENT
- 6.25A
- RATED POWER 100VAC ~ 180VAC
- 105W
- RATED POWER 200VAC ~ 305VAC
- 150W
- RIPPLE & NOISE (max.)Note.3
- 200mVp-p
- VOLTAGE TOLERANCENote.4
- ±3.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
- HOLD UP TIME (Typ.)
- 10ms/115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT
- 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- Standby power consumption <0.5W
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28 ~ 34V Shut down output voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP67; KC61347-1,KC61347-2-13 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 219*63*35.5mm (L*W*H)
- PACKING
- 0.95Kg ; 16pcs/16.0kg/0.77CUFT
Certifications & ratings
- Type
- Type HL
MODEL ENCODING
- Blank
- Io and Vo fixed; IP67
- A
- Io and Vo adjustable through built-in potentiometer; IP65
- B (this model)
- 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
- DA
- DALI control technology; IP67
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 13. ELG-150-12(except blank/A-Type) is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps) .
Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can the ELG-150-24B be installed outdoors in direct rain exposure?
Yes. The ELG-150-24B carries an IP67 waterproof rating, meaning it can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it appropriate for outdoor LED sign and landscape lighting installations where the driver may be exposed to rain.
Can I use the ELG-150-24B to drive 24V LED strips inside an outdoor architectural lighting fixture?
Yes. With 150W at 24V and IP67 protection, the ELG-150-24B is suitable for outdoor architectural fixtures, facade lighting, and similar applications where the driver is housed inside a weatherproof fitting. It supplies up to 6.25A to 24V LED loads.
Is the ELG-150-24B compatible with PWM dimmers or 0–10V dimming systems?
Yes. The B suffix designates a three-in-one dimming interface: 10V PWM signal (100Hz–3kHz), 0–10VDC analog signal, and resistance dimming. All three methods can reduce the output to a minimum dimming level of about 8%, making the ELG-150-24B compatible with standard commercial dimmer controllers.
What strip length can the ELG-150-24B support at 24V?
The driver can supply up to 150W total. For a 10 W/m strip, that is up to 15 m (150 ÷ 10). For a 19.2 W/m strip, approximately 7.8 m (150 ÷ 19.2). Check your specific strip's rated power per meter; never exceed the 150W total output.
Can the ELG-150-24B power LED strips in a cold-room or freezer environment?
Yes. The case temperature (Tcase) range is -40°C to +90°C, so the driver functions normally in sub-zero cold-room or freezer environments. The IP67-rated enclosure adds protection against moisture, but the sheet specifies 20–95% RH non-condensing working humidity, so avoid mounting points where condensation forms on the driver.
Is the ELG-150-24B suitable for use in a neon-replacement LED tube signage project?
Yes. 24V LED neon-flex or tube strips are commonly used in neon-replacement signage, and the ELG-150-24B's 150W, 24V output can power a meaningful length of such strip. The IP67 rating is also beneficial for outdoor sign cabinets subject to weather.
