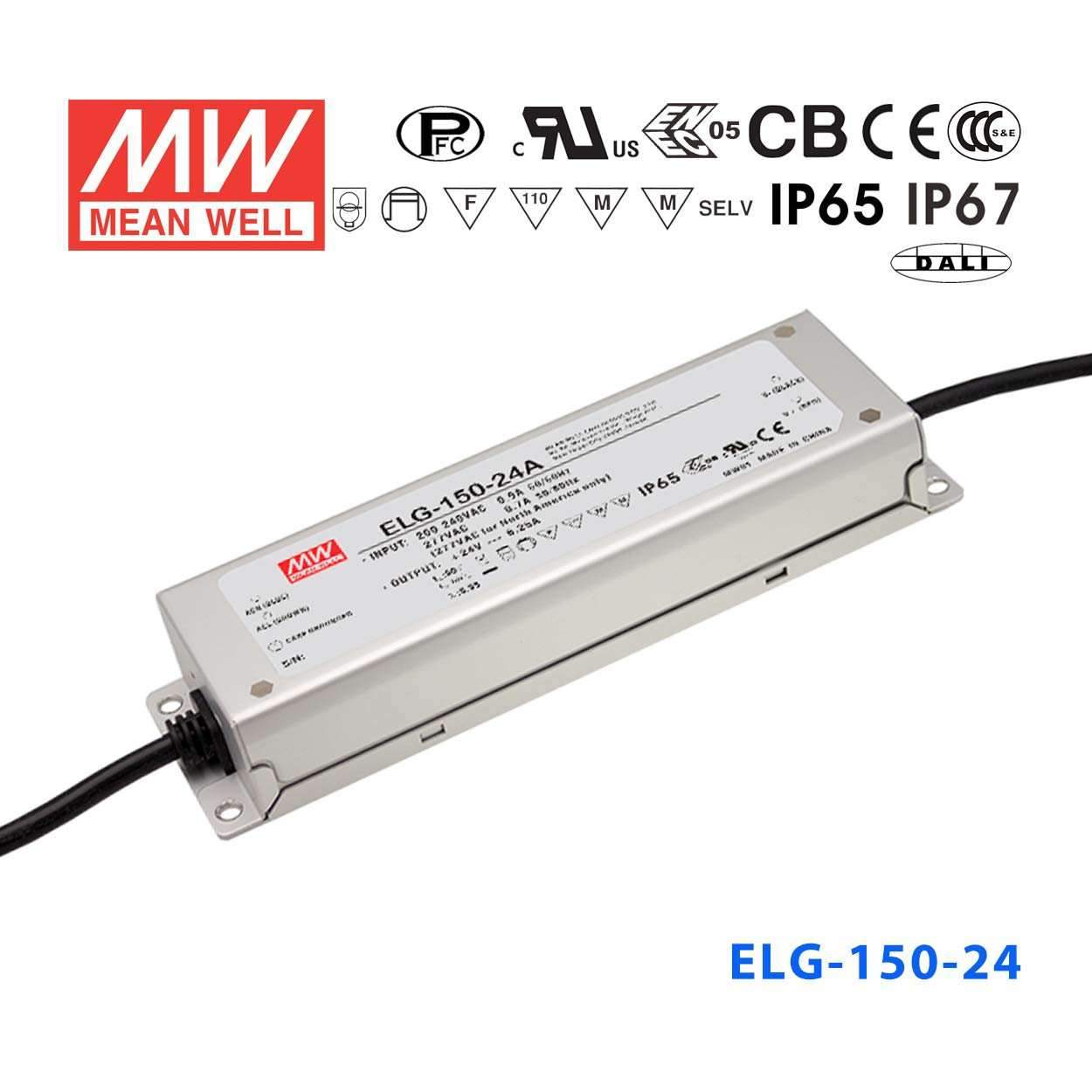

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well ELG-150-24D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
What dimming protocol does the ELG-150-24D2 support?
The D2 suffix indicates this driver accepts a 0–10V dimming signal via a two-wire input, which is compatible with standard 0–10V dimming controllers used in commercial building automation and lighting control systems. This differs from the B variant's three-in-one interface.
Can the ELG-150-24D2 be used for 24V LED strip lighting in a building automation system?
Yes. The 0–10V interface on the ELG-150-24D2 integrates directly with BAS (building automation system) controllers that output a 0–10V analog signal for dimming. At 150W and 24V, it can power a significant run of 24V LED strip or multiple LED fixtures from a single driver.
Is the ELG-150-24D2 waterproof enough for outdoor LED sign installations?
Yes. The ELG-150-24D2 is rated IP67, meaning it is protected against dust and temporary immersion, suitable for outdoor sign cabinets and exterior luminaire housings where rain exposure is likely. The operating temperature range of -40°C to +90°C covers most outdoor climates.
How many meters of 24V, 14.4 W/m LED strip can the ELG-150-24D2 power?
At 150W total output, dividing by 14.4 W/m gives approximately 10.4 m of strip. For a 20 W/m strip, the limit is about 7.5 m (150 ÷ 20). Check your strip's rated power per meter and keep the total installed load within 150W.
Can the ELG-150-24D2 drive 24V LED modules for outdoor illuminated signage cabinets?
Yes. Illuminated signage cabinets using 24V LED modules are a typical application for this driver. The IP67 housing allows it to be mounted inside the cabinet regardless of outdoor exposure, and 150W at 6.25A is sufficient for medium to large sign faces using standard-density LED modules.
Does the ELG-150-24D2 work on international mains voltages including 277V?
Yes. The input range is 100–305VAC, which covers 120V, 208V, 240V, and 277V single-phase supplies without any manual adjustment, making it suitable for both North American commercial wiring and international installations.
