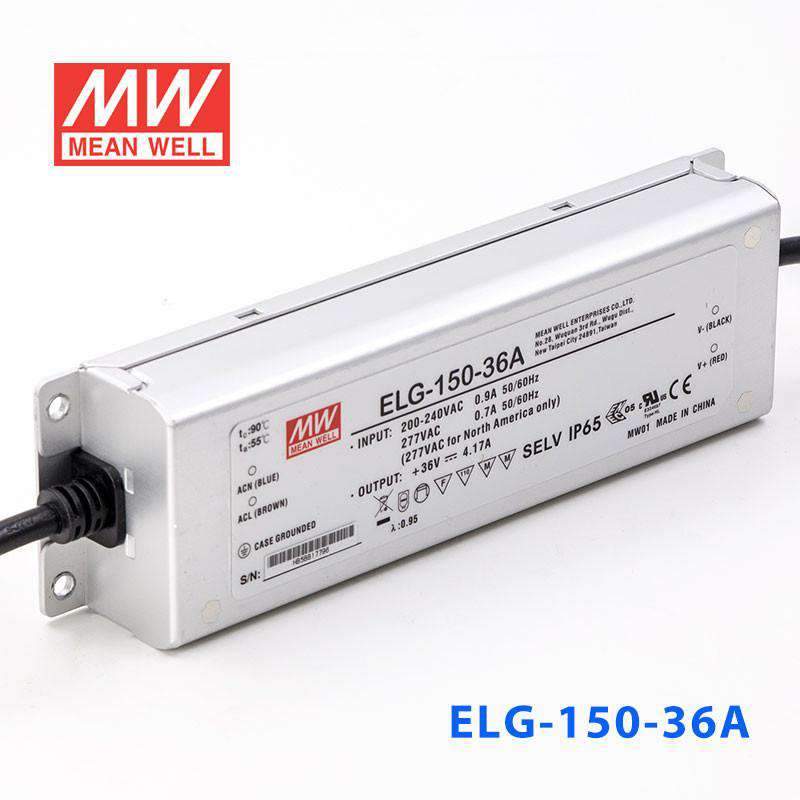

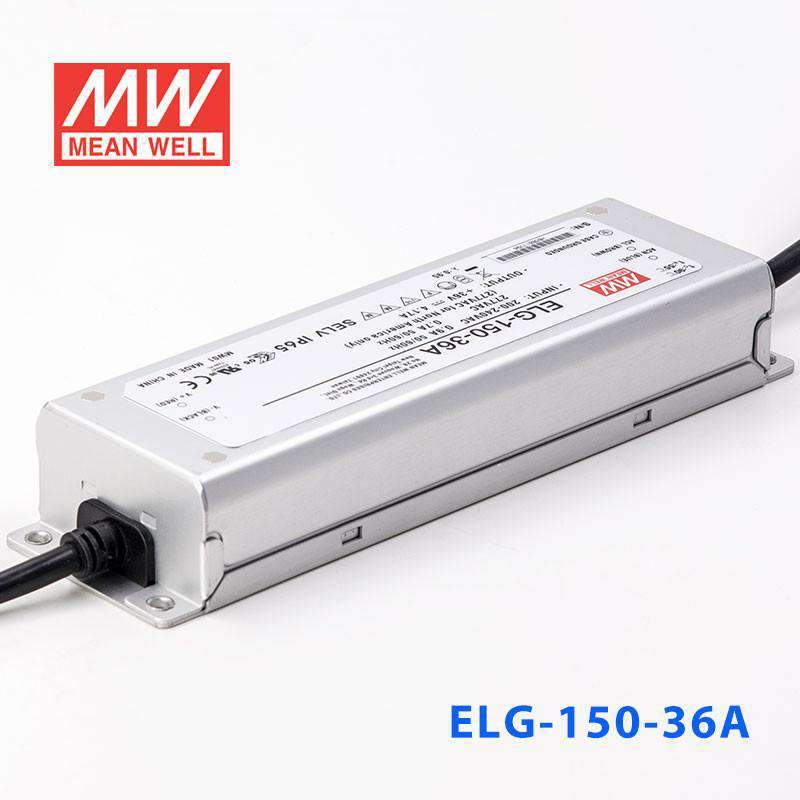

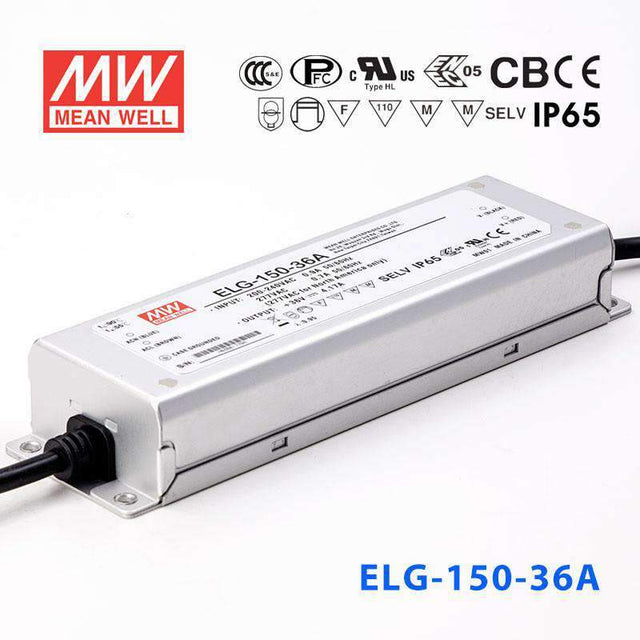

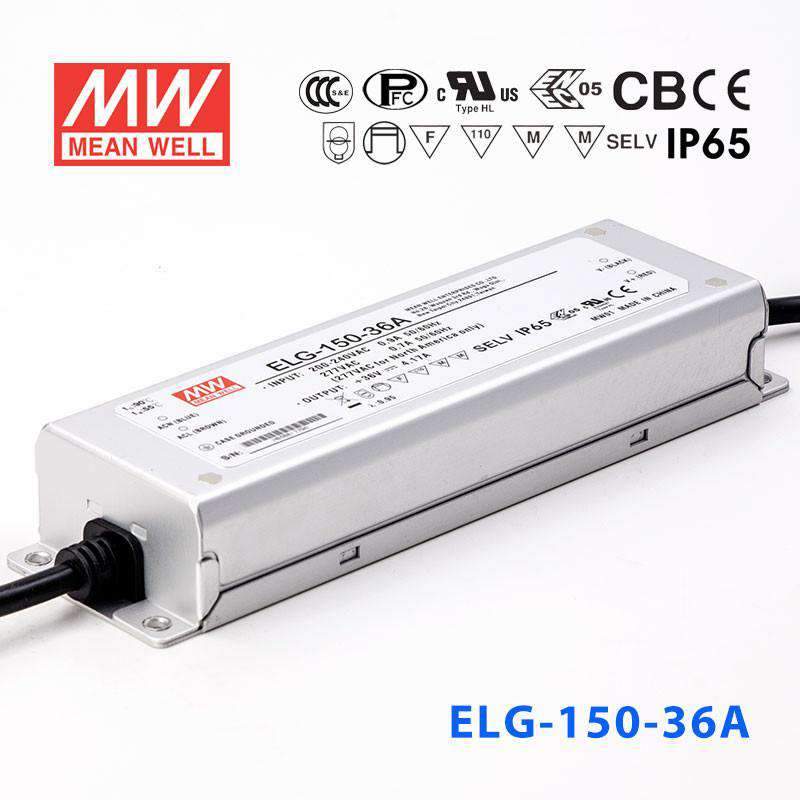

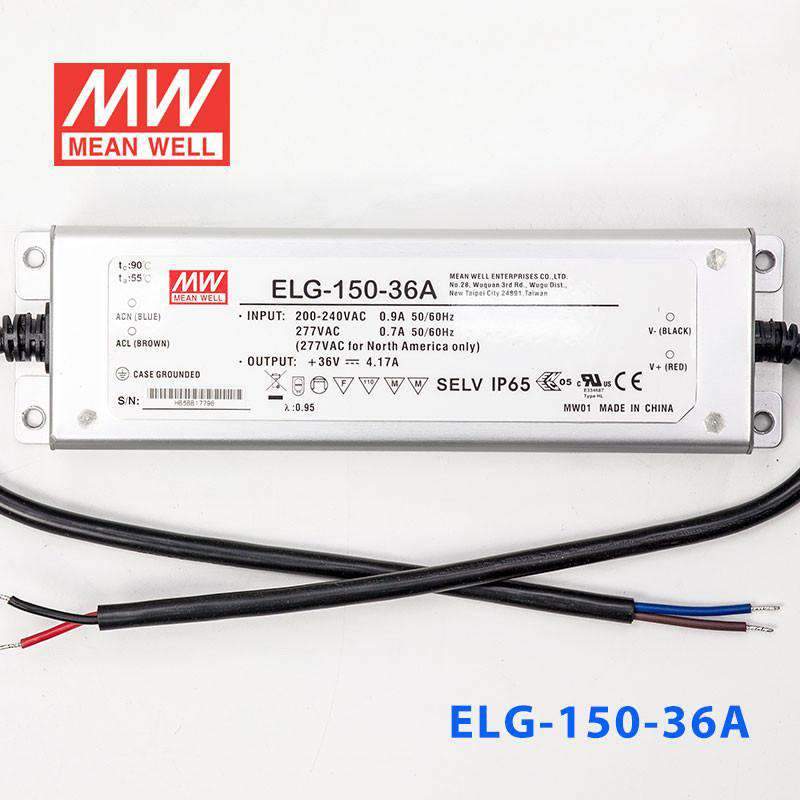

Mean Well ELG-150-36A Power Supply 150W 36V - Adjustable
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150.1 Watt
-
Output Voltage36 Volt
-
Rated Current4.17 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-36A be used to drive 36V LED strip lighting in a covered outdoor pergola or canopy?
Yes. The ELG-150-36A is rated IP65, protecting it against water jets and dust, which is sufficient for covered outdoor locations such as pergolas or canopies. It outputs 36V at 4.17A (150.1W total) and supports output adjustment for fine-tuning brightness.
What does the 'A' suffix mean on the ELG-150-36A, and how is it used in practice?

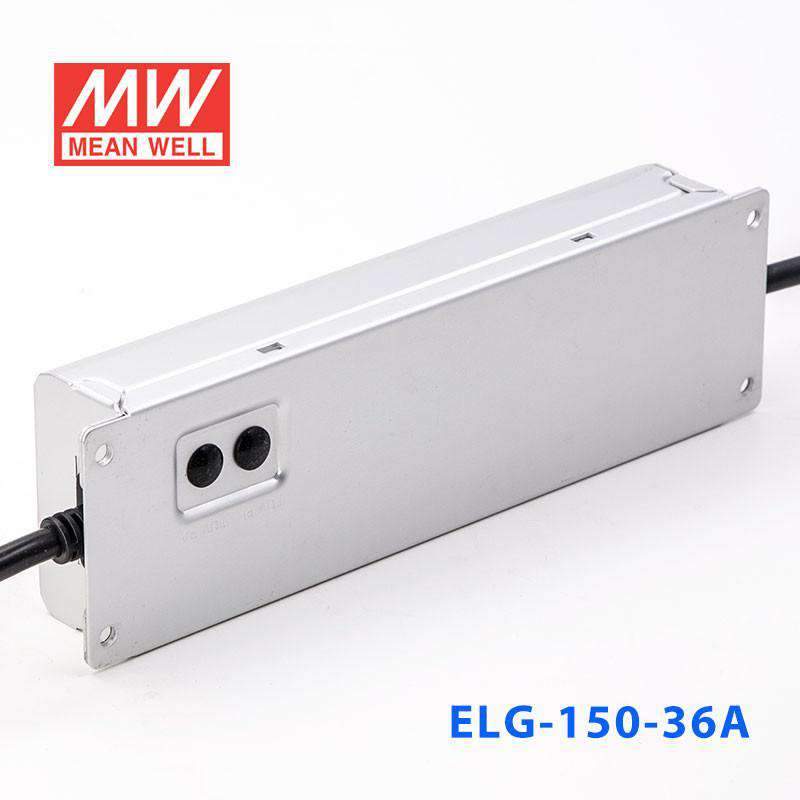

The A suffix indicates the driver includes an external trim potentiometer for adjusting output voltage and current within the 18–36V CC voltage range, and a dimming signal input. In practice this allows an installer to set the operating point precisely without replacing the driver, which is useful when the LED load requires a voltage slightly below 36V.
Is the ELG-150-36A suitable for powering 36V LED signage modules on a semi-exposed building fascia?
Yes. IP65 protects against directed water spray and dust, making the ELG-150-36A appropriate for semi-exposed fascia sign enclosures where the driver is not in standing water but may be reached by rain. Its 150.1W, 36V output covers a typical array of 36V signage LED modules.
How many meters of 36V, 10 W/m LED strip can the ELG-150-36A power?
At 150.1W total output, a 10 W/m strip allows up to approximately 15 m (150.1 ÷ 10). For a 16.8 W/m strip, that drops to about 8.9 m (150.1 ÷ 16.8). Verify your strip's rated power per meter and keep total installed load within 150.1W.
Can the ELG-150-36A work in an indoor grow-light application using 36V LED bars?
Yes. 36V LED grow bars that draw up to 150.1W total are a suitable load. The ELG-150-36A's adjustable output allows the light intensity to be trimmed to the required level, and it operates over -40°C to +90°C, covering the temperature range found in indoor growing environments.
Does the ELG-150-36A accept universal mains input for international projects?
Yes. The input range is 100–305VAC with no manual voltage selector, covering 120V, 230V, and 277V single-phase supplies. This makes the ELG-150-36A suitable for deployment across different countries or in North American buildings with 277V commercial circuits.
