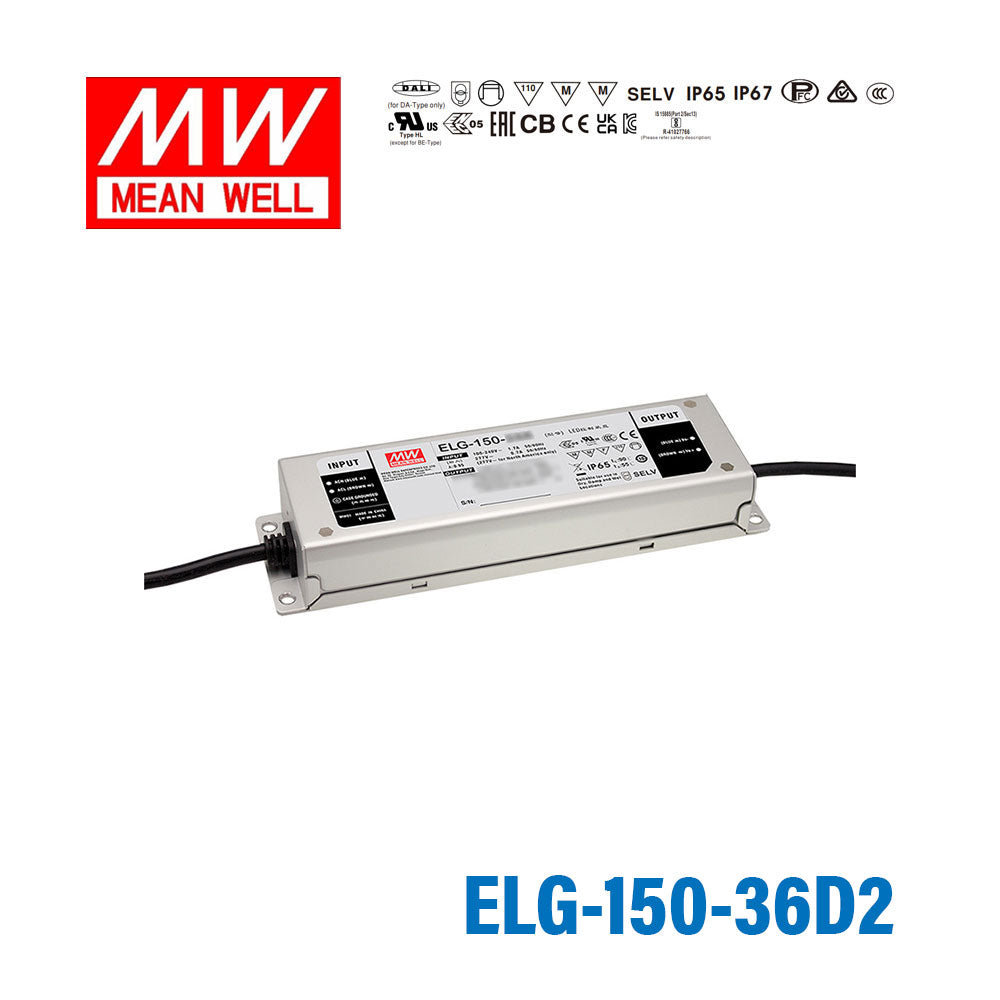

Mean Well ELG-150-36D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage36 Volt
-
Rated Current4.17 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
What type of dimming does the ELG-150-36D2 support?
The 'D2' suffix on Mean Well ELG series indicates a DALI (Digital Addressable Lighting Interface) dimming input. The ELG-150-36D2 can be controlled by a DALI bus, allowing digital broadcast or addressed dimming commands from a compatible DALI controller. This is distinct from the 0–10V analog dimming found on 'A' or 'DA' suffix models.
Can I use the ELG-150-36D2 in a DALI-controlled commercial lighting system with 36V LED strips?
Yes. The ELG-150-36D2 is designed for exactly this use case. Its DALI interface allows the driver to receive dimming commands from a building management or DALI lighting control system, making it appropriate for commercial offices, retail spaces, or hospitality venues that use a DALI infrastructure for 36V strip or module lighting.
Is the ELG-150-36D2 rated for outdoor or wet-area installation?
Yes. The ELG-150-36D2 carries an IP67 rating, meaning it is dust-tight and protected against temporary water immersion up to 1 meter. This makes it suitable for outdoor luminaires, wet-location signage, or installations where moisture exposure is likely.
How long a run of 36V LED strip can the ELG-150-36D2 support?
The ELG-150-36D2 delivers 150W at 36V. To estimate length, divide 150W by your strip's power per meter rating. For a 10 W/m strip, that is approximately 15 meters; for a 15 W/m strip, approximately 10 meters. Check your specific strip's rated power per meter and limit continuous load to 80% of rated output, yielding roughly 12 m and 8 m respectively.
Can the ELG-150-36D2 replace a 0-10V dimmable driver in a retrofit project?
Not directly — the ELG-150-36D2 uses a DALI digital interface, not a 0–10V analog input. If the existing control infrastructure uses 0–10V dimming, you would need the ELG-150-36DA (DALI) or ELG-150-36A/AB (0–10V) variant instead. Confirm your dimming protocol before selecting the correct suffix.
Is the ELG-150-36D2 a good fit for a museum or gallery 36V accent lighting system with DALI controls?
Yes. Museum and gallery lighting commonly relies on DALI for scene control and energy management. The ELG-150-36D2's DALI input, 150W capacity, and IP67 housing make it well suited for track or cove-mounted 36V accent fixtures in those environments, including installations in high-humidity spaces or near water features.
