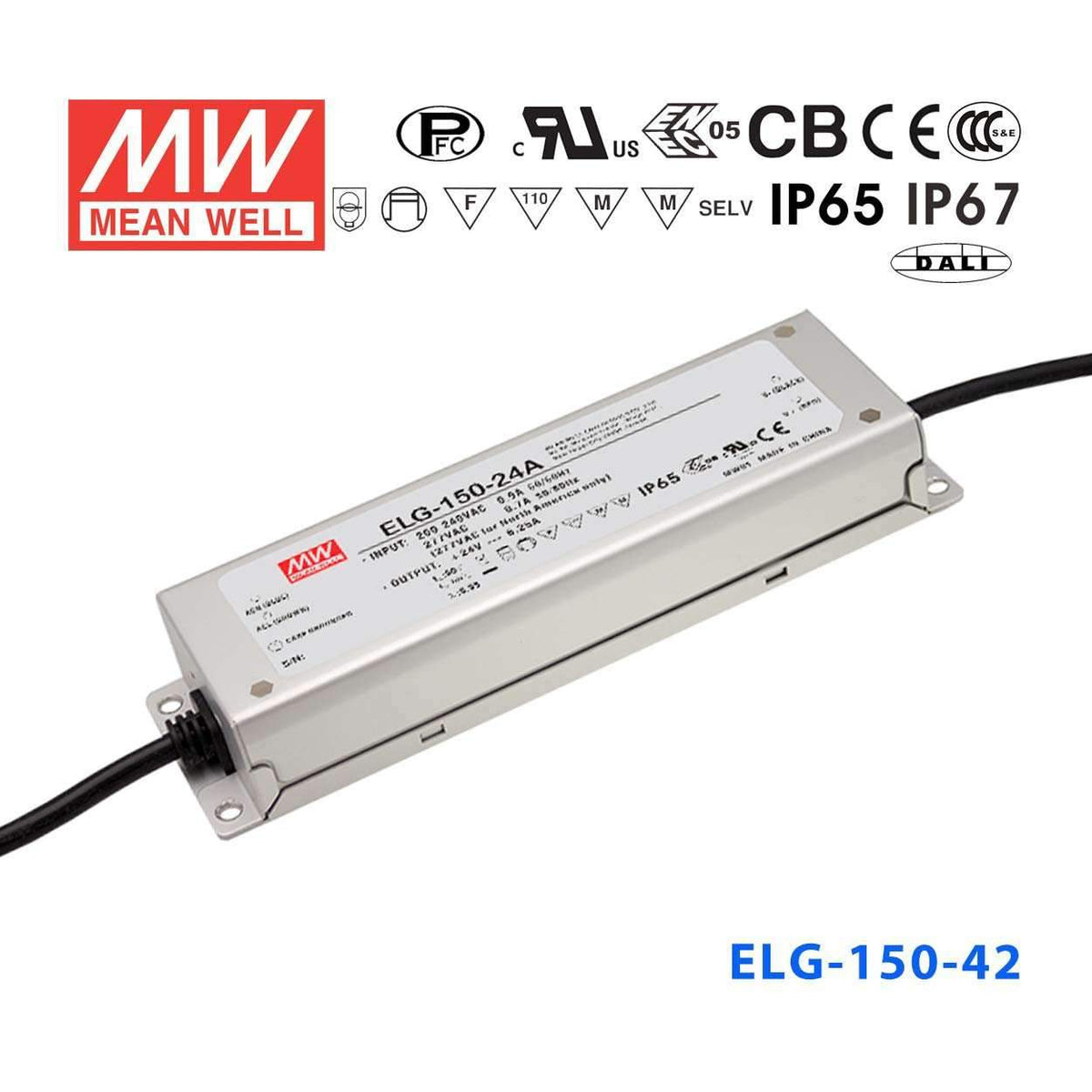

Mean Well ELG-150-42 Power Supply 150W 42V
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage42 Volt
-
Rated Current3.57 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the ELG-150-42 to power 42V LED strips in an outdoor sign cabinet?
Yes. The ELG-150-42 carries an IP67 waterproof rating and supports a -40°C to +90°C operating temperature, making it suitable for outdoor sign cabinets exposed to weather. Its 150W output at 42V can drive a substantial run of 42V LED strip or modules within the cabinet.
How long a run of 42V LED strip can the ELG-150-42 power?
The ELG-150-42 delivers 150W at 42V. To estimate maximum strip length, divide 150W by your strip's watt-per-meter rating. For a 10 W/m strip, that is approximately 15 meters; for a 14.4 W/m strip, approximately 10.4 meters. Always verify your strip's specific power per meter and limit continuous load to 80%, giving roughly 12 m and 8.3 m respectively in those examples.
Is the ELG-150-42 suitable for wet-location or rain-exposed LED luminaire applications?
Yes. With an IP67 rating, the ELG-150-42 is dust-tight and protected against temporary water immersion up to 1 meter for 30 minutes. This qualifies it for wet-location luminaires, outdoor wall washers, or facade-mounted fixtures where direct moisture exposure is expected.
Does the ELG-150-42 include dimming capability or output adjustment?
No. The ELG-150-42 base model (no letter suffix) does not include external dimming inputs or a built-in adjustment potentiometer. For external 0–10V dimming, choose the ELG-150-42A or ELG-150-42AB; for built-in trimming only, choose the ELG-150-42B; for DALI dimming, choose the ELG-150-42DA or ELG-150-42D2.
Can the ELG-150-42 drive 42V high-bay LED retrofit modules in industrial facilities?
Yes. The ELG-150-42's wide input range (100–305VAC), 150W constant-current output, and IP67 protection make it a capable driver for 42V high-bay LED retrofit modules in industrial or warehouse environments. The metal case and robust operating temperature range support the thermal demands of high-ambient industrial spaces.
Is the ELG-150-42 appropriate for powering 42V LED strips in a cold-storage or freezer room?
Yes. The ELG-150-42 is rated down to -40°C, which covers the operating temperature of most commercial freezer and cold-storage environments. Its IP67 rating also provides protection against condensation and cleaning moisture typical in food-storage facilities.
