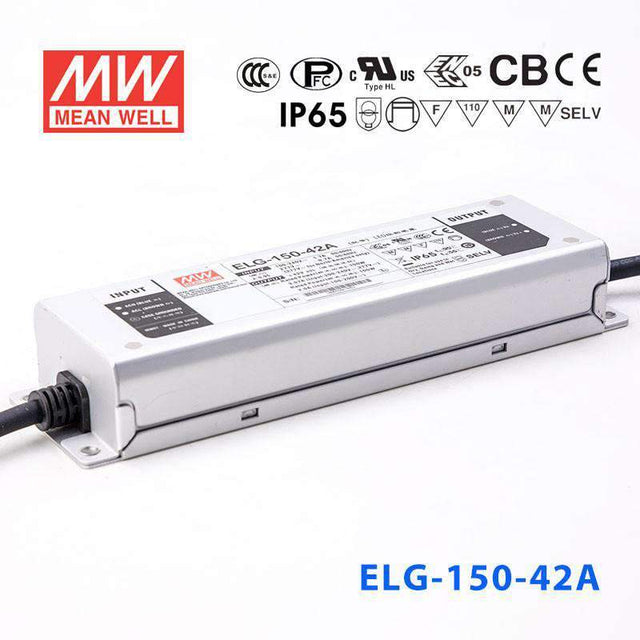

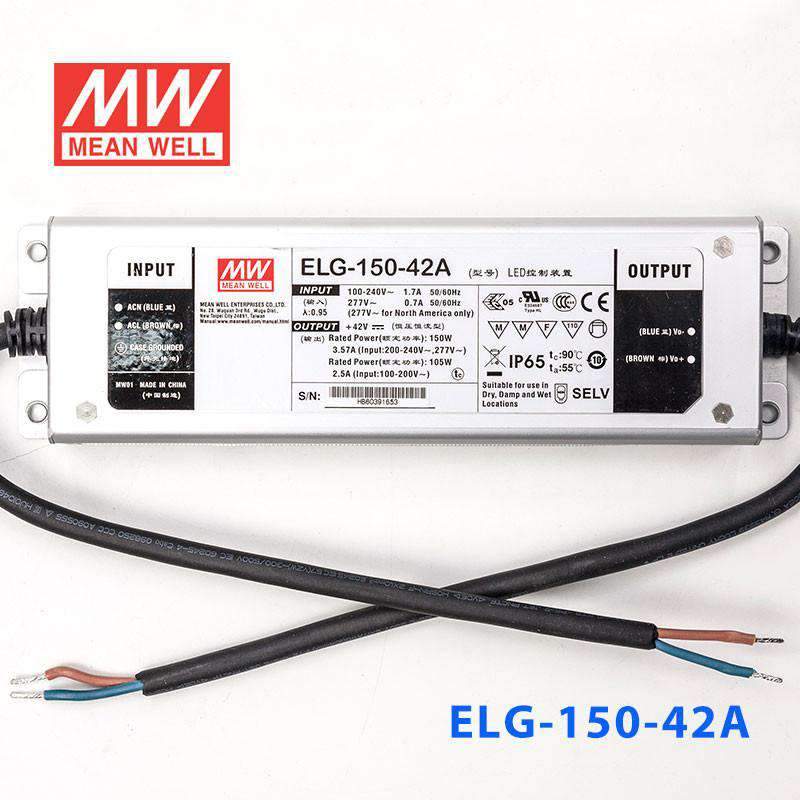

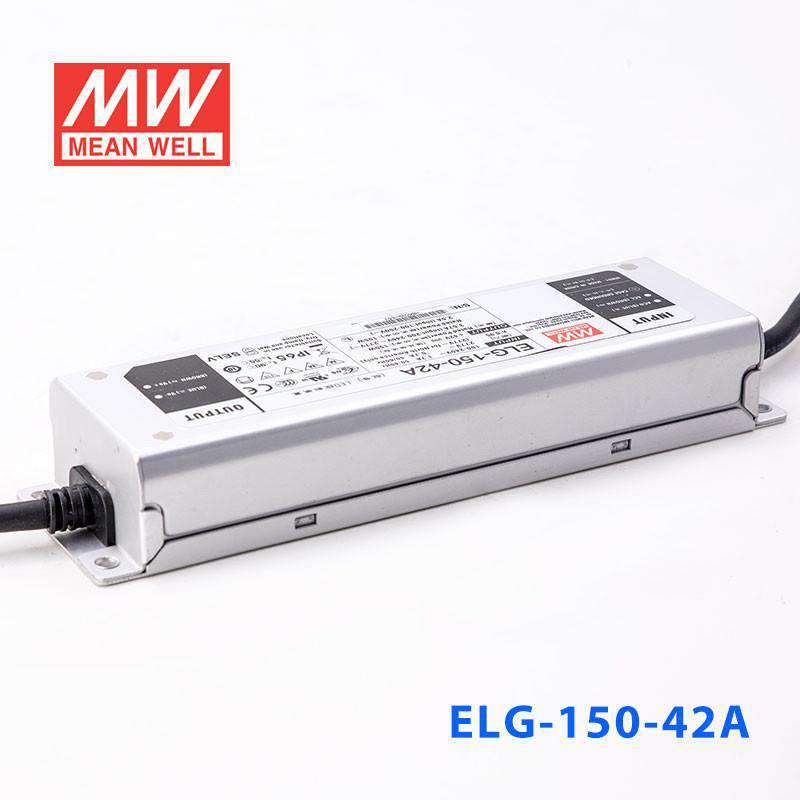

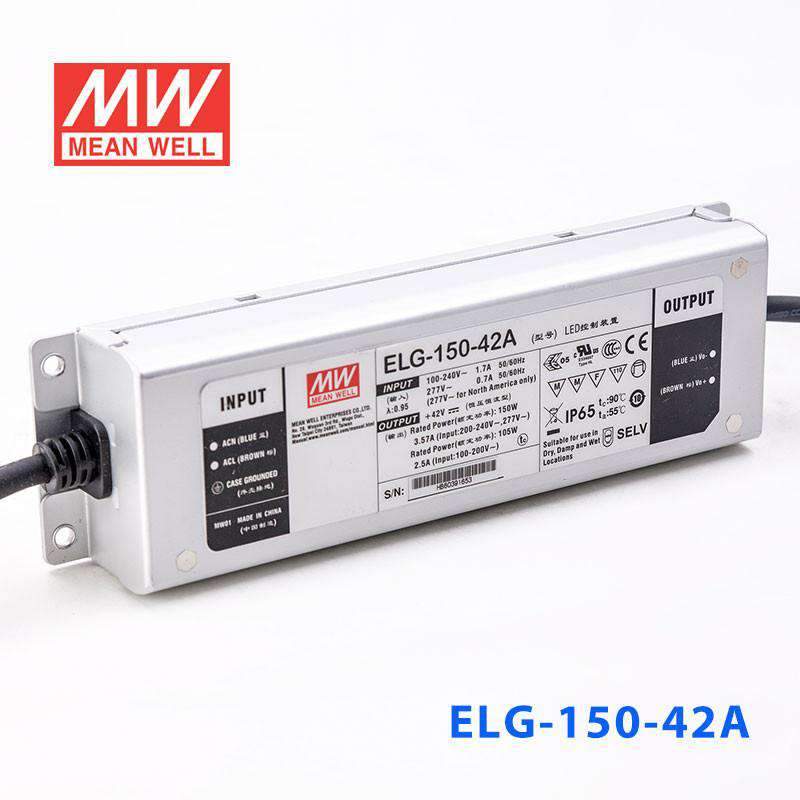

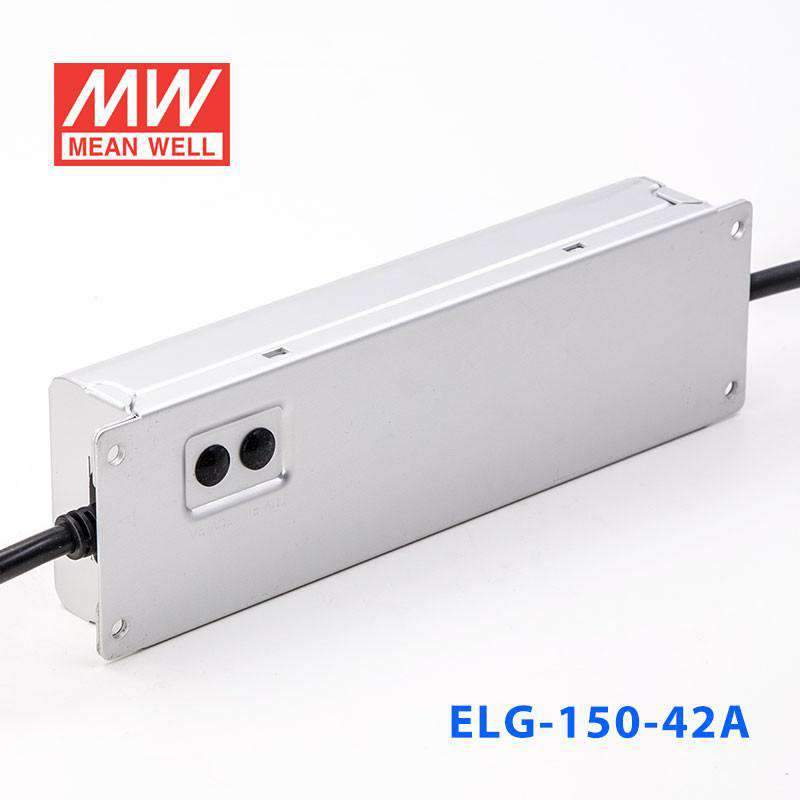

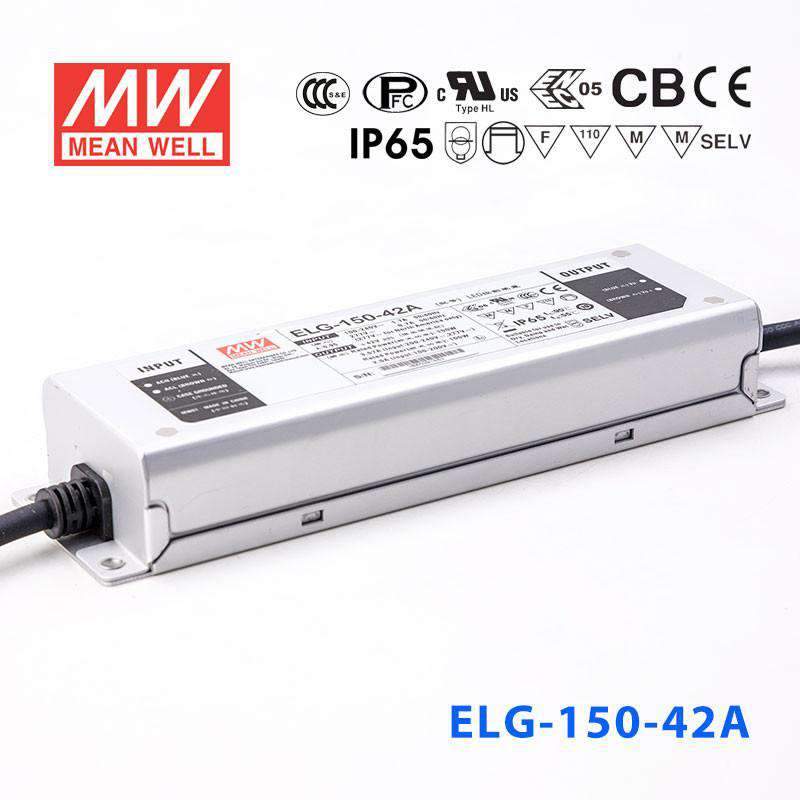

Mean Well ELG-150-42A Power Supply 150W 42V

Name: Mean Well ELG-150-42A Power Supply 150W 42V - Adjustable 3.57A
Brand: Mean Well
SKU: ELG-150-42A
Price: 40.43 USD
Availability: InStock

Overview

ELG-150-42A is the 42V output model of this series: rated current 3.57A, typical efficiency 90%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifet ime>50000 hours
5 years warranty

Specifications

ELG-150-42ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.2: 21 ~ 42V
RATED CURRENT: 3.57A
RATED POWER 100VAC ~ 180VAC: 105W
RATED POWER 200VAC ~ 305VAC: 150W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 37.8 ~ 46.2V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 1.8 ~ 3.57A
VOLTAGE TOLERANCE^Note.4: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT: 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 47 ~ 54V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65; KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 219*63*35.5mm (L*W*H)
PACKING: 0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
14. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-150-42A Block Diagram — Block Diagram

ELG-150-42A OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-150-42A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-150-42A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-150-42A Mechanical Specification ※ A-Type — Mechanical Specification ※ A-Type

ELG-150-42A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-150-42A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-150-42A datasheetELG-150-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-150)(EN) PDF Download

UL Certificate (ELG-150)(EN) PDF Download

EMC Certificate (ELG-150)(EN) PDF Download

ENEC Certificate (ELG-150)(EN) PDF Download

Test reports1

Test Report (ELG-150-42)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What control interface does the ELG-150-42A support for dimming?

The 'A' suffix on the ELG-150 series indicates a built-in potentiometer, not a dimming input: the ELG-150-42A lets you set the output voltage (37.8–46.2V) and current (1.8–3.57A) by hand. It has no external dimming leads; for 0–10V, 10V PWM, or resistance dimming choose the ELG-150-42B or 42AB, and for DALI the 42DA.

Can I use the ELG-150-42A with a 0–10V wall dimmer for 42V LED strip lighting in a retail space?

No. The ELG-150-42A has no 0–10V dimming input; its potentiometer only sets a fixed output level during installation. For brightness control of 42V LED strip displays or accent lighting from a 0–10V wall dimmer, use the ELG-150-42B or ELG-150-42AB.

Is the ELG-150-42A suitable for semi-exposed outdoor LED strip installations?

The ELG-150-42A is rated IP65, meaning it is dust-tight and protected against low-pressure water spray from any direction. This makes it appropriate for semi-sheltered outdoor installations such as covered walkways, canopy soffits, or outdoor-rated enclosures where direct rain exposure is avoided.

How much 42V LED strip can the ELG-150-42A power?

The ELG-150-42A outputs 150W at 42V. Divide 150W by your strip's power per meter to find maximum length. For a 10 W/m strip, that is approximately 15 meters; for a 15 W/m strip, approximately 10 meters. Check your specific strip's rated power per meter and limit continuous load to about 80% — roughly 12 m and 8 m respectively in those examples.

Is the ELG-150-42A a good fit for museum or gallery track lighting using 42V LED modules?

Yes, where a fixed, precisely set light level is needed. The built-in potentiometer and 150W capacity let installers calibrate the output of museum or gallery accent lighting during commissioning; if run-time dimming is required, choose the 42B or 42AB. Its IP65 housing also tolerates the humidity-controlled environments common in these spaces.

Can the ELG-150-42A power LED strips in a hospitality or hotel corridor with a building automation 0–10V dimming system?

It can power the strips, but it cannot be dimmed by a 0–10V building automation system because the A type has no dimming input. For 0–10V control, the ELG-150-42B or ELG-150-42AB is the right choice. The 150W output can drive a long run of 42V LED strip along a corridor without requiring parallel drivers.
