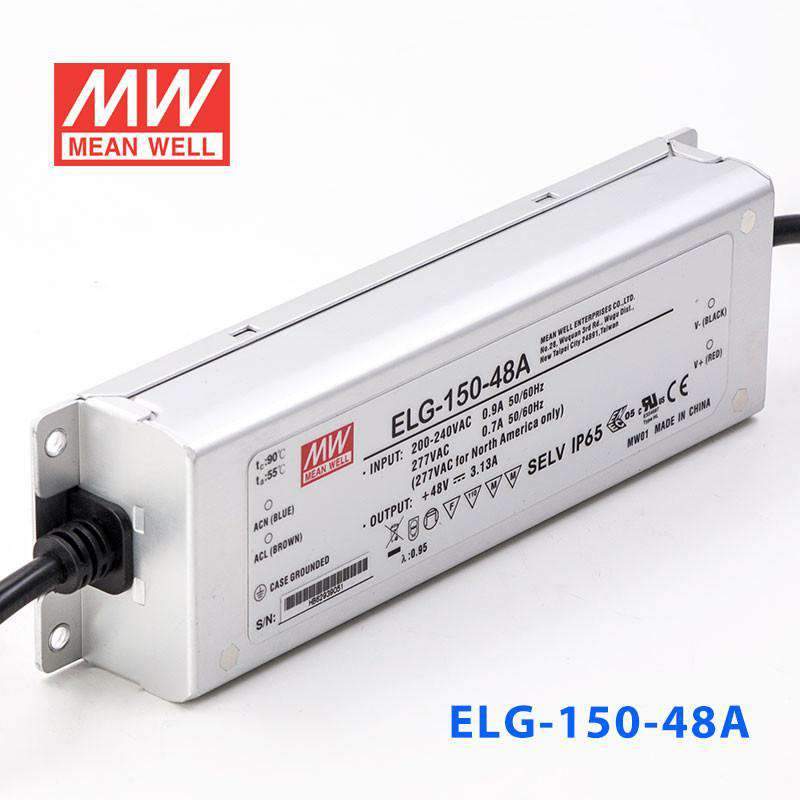

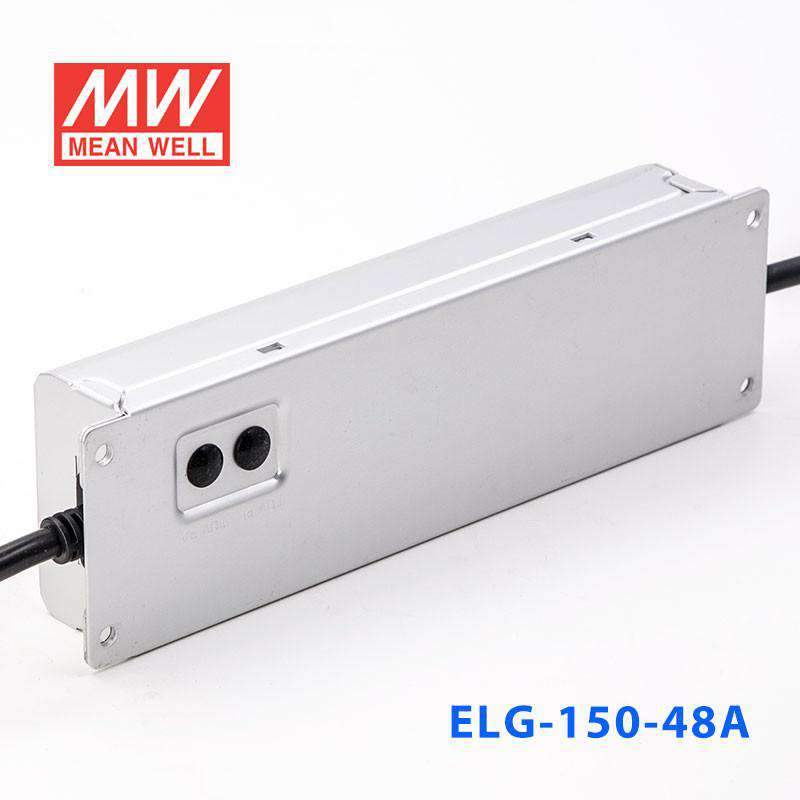

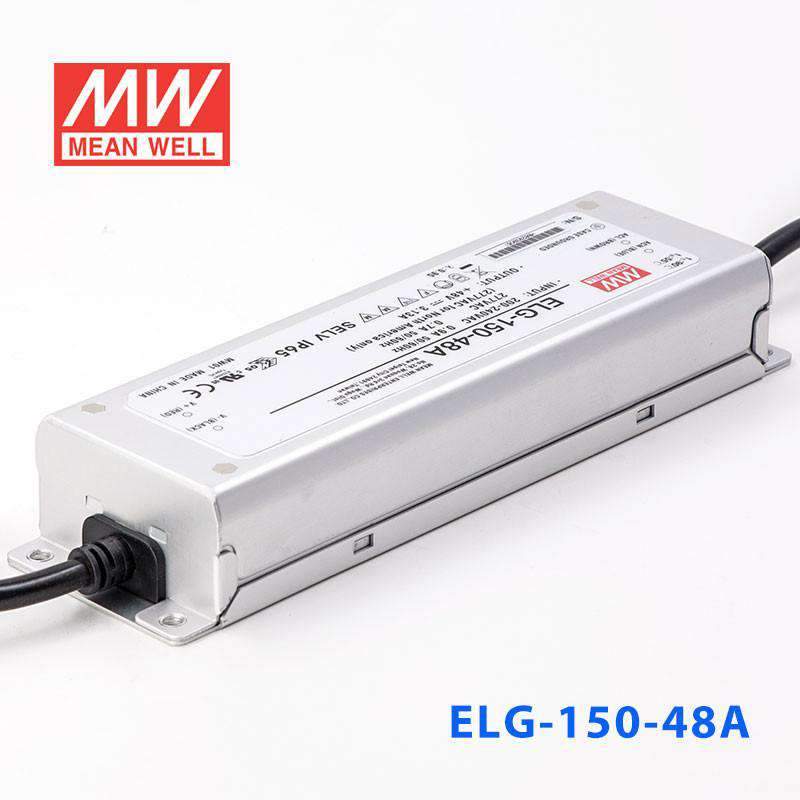

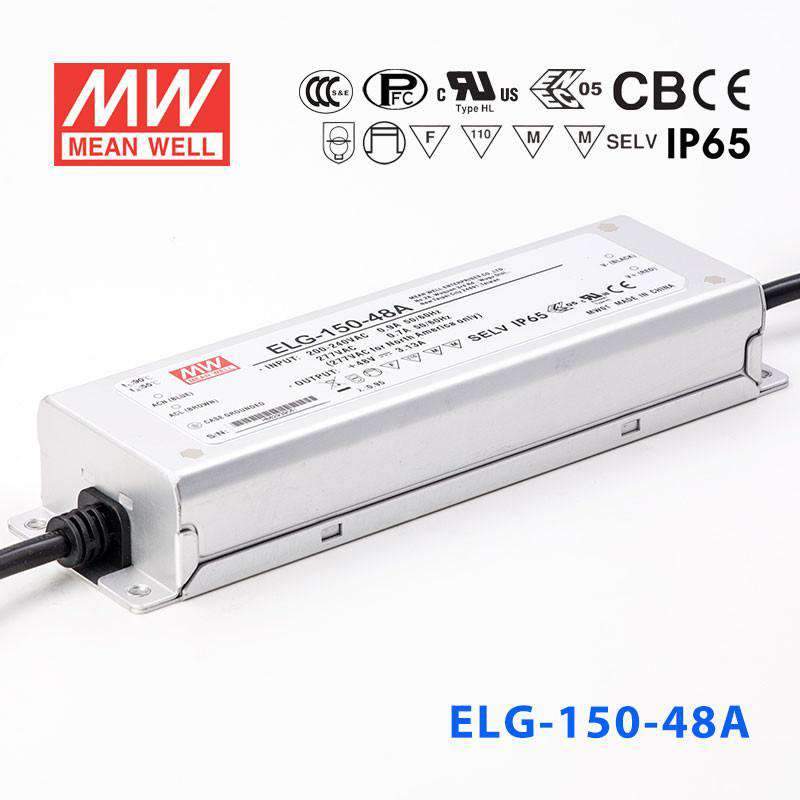

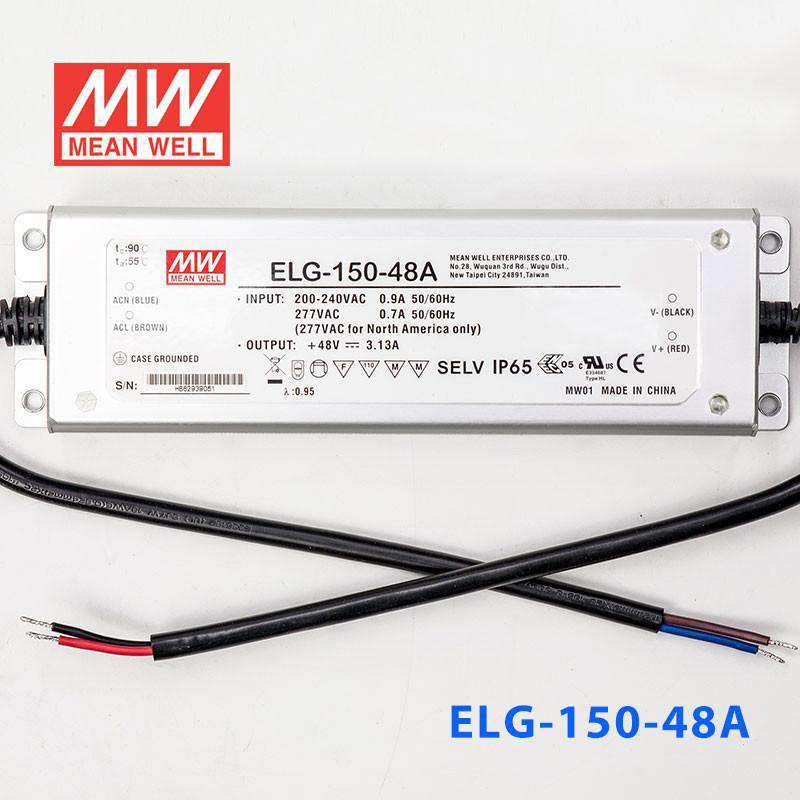

Mean Well ELG-150-48A Power Supply 150W 48V

Name: Mean Well ELG-150-48A Power Supply 150W 48V - Adjustable 3.13A
Brand: Mean Well
SKU: ELG-150-48A
Price: 41.64 USD
Availability: InStock

Overview

ELG-150-48A is the 48V output model of this series: rated current 3.13A, typical efficiency 90%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifet ime>50000 hours
5 years warranty

Specifications

ELG-150-48ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.2: 24 ~ 48V
RATED CURRENT: 3.13A
RATED POWER 100VAC ~ 180VAC: 105W
RATED POWER 200VAC ~ 305VAC: 150.2W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 43.2 ~ 52.8V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 1.56 ~ 3.13A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT: 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 62V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65; KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 219*63*35.5mm (L*W*H)
PACKING: 0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
14. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-150-48A Block Diagram — Block Diagram

ELG-150-48A OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-150-48A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-150-48A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-150-48A Mechanical Specification ※ A-Type — Mechanical Specification ※ A-Type

ELG-150-48A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-150-48A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-150-48A datasheetELG-150-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-150)(EN) PDF Download

UL Certificate (ELG-150)(EN) PDF Download

EMC Certificate (ELG-150)(EN) PDF Download

ENEC Certificate (ELG-150)(EN) PDF Download

Test reports1

Test Report (ELG-150-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-150-48A be used to drive 48V LED strips in a covered outdoor pergola or canopy?

Yes. The ELG-150-48A carries an IP65 rating, protecting it against dust and low-pressure water jets, which suits covered outdoor environments such as pergolas or canopies where rain splash may occur. Its 150.2W at 48V supports substantial strip loads in these applications.

What does the adjustable feature on the ELG-150-48A allow me to do?

The A suffix indicates the ELG-150-48A has a built-in trimmer potentiometer that allows field adjustment of the output voltage (43.2–52.8V) and current (1.56–3.13A), without requiring any external control signal. This is useful for fine-tuning LED brightness or matching the driver to specific LED module forward-voltage requirements on-site.

How much 48V LED strip can the ELG-150-48A power?

The ELG-150-48A outputs 150.2W at 48V with a 3.13A maximum. For a strip rated at 12W/m, that is approximately 12.5 m (150 ÷ 12 ≈ 12.5); for a 20W/m high-output strip, about 7.5 m (150 ÷ 20 = 7.5). Always confirm your strip's actual rated power per meter and apply appropriate derating for continuous operation.

Is the ELG-150-48A suitable for powering 48V LED panels in damp indoor environments like commercial kitchens?

Yes. The IP65 rating on the ELG-150-48A provides full dust protection and resistance to water jets from any direction, making it appropriate for damp indoor environments including commercial kitchens or food-service areas where splashing or cleaning occurs.

Can the ELG-150-48A operate in cold storage or refrigeration lighting applications?

Yes. The ELG-150-48A is rated for a case temperature (Tcase) of -40°C to +90°C, covering the temperature ranges found in cold storage and refrigeration environments. The IP65 case protects against dust and water spray, but the sheet specifies 20–95% RH non-condensing working humidity, so mount it where condensation does not form on the driver.

How does the ELG-150-48A compare to the ELG-150-48 for an indoor commercial installation?

Both models share the same 150.2W, 48V, 3.13A output and physical dimensions. The ELG-150-48A adds a built-in trimmer for output adjustment, making it more flexible for commissioning. The trade-off is that the A variant is rated IP65 rather than the IP67 of the base ELG-150-48, so for fully outdoor or submersion-risk environments, the ELG-150-48 offers higher ingress protection.

Can the ELG-150-48A be used as a constant-current driver for 48V LED modules in retail display cases?

Yes. The ELG-150-48A operates in constant-current mode within its 24–48V CC region, which is compatible with 48V LED modules used in retail display cases and showcase lighting. The field-adjustable output also allows fine-tuning of light output during fixture commissioning without changing components.
