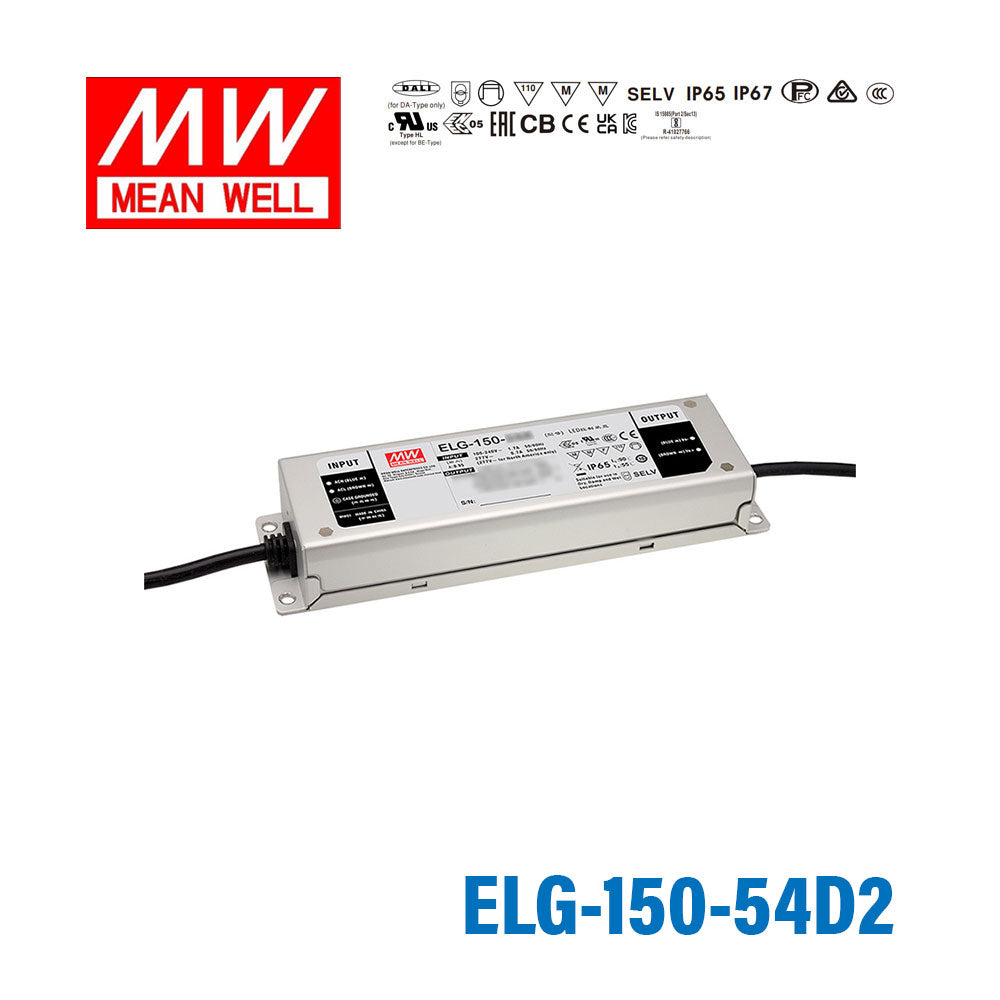

Mean Well ELG-150-54D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage54 Volt
-
Rated Current2.5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-54D2 be used in outdoor LED signage applications?
Yes. The ELG-150-54D2 is rated IP67 and delivers 150W at 54V, making it suitable for outdoor LED signage where the driver may be exposed to moisture. Its wide CC voltage range of 100–305V accommodates both North American and international supply voltages.
Is the ELG-150-54D2 appropriate for a wet or rain-exposed outdoor mounting location?
Yes. With an IP67 rating, the ELG-150-54D2 is fully sealed against dust and temporary water immersion. It can be mounted in outdoor enclosures, sign cabinets, or underground junction boxes exposed to direct rain without additional weatherproofing.
How many meters of 54V LED strip can the ELG-150-54D2 power?
The ELG-150-54D2 delivers 150W at 54V. For a 10 W/m strip, that is approximately 15 meters; for a 20 W/m strip, approximately 7.5 meters. Always confirm your strip's rated power per meter and apply a 20% derating margin for reliable long-term operation.
Can the ELG-150-54D2 be used for 54V LED strip in cold-storage or outdoor winter installations?
Yes. The operating temperature range of -40°C to +90°C ensures reliable startup and operation in freezer and extreme cold environments. The IP67 sealed metal housing resists condensation and moisture ingress common in temperature-cycling installations.
Is the ELG-150-54D2 a good fit for 54V LED architectural lighting in commercial office buildings?
Yes. At 150W and 54V, this driver can supply substantial 54V LED strip runs for office cove, perimeter, or under-desk accent lighting. Its 219.0 × 63.0 × 35.5 mm metal housing is compact enough for above-ceiling or in-wall mounting in commercial spaces.
What is the difference between the ELG-150-54D2 and the ELG-150-54DA for 54V LED applications?
Both models are 54V with IP67 protection. The ELG-150-54D2 is rated at 150W / 2.5A with a CC voltage range of 100–305V and carries BSMI, CB, CE, EAC, and UL certifications. The ELG-150-54DA is rated at 151.2W / 2.8A with a CC range of 27–54V and adds c_bsi, CCC, ENEC, KC, and c_rcm for broader international certification coverage.
