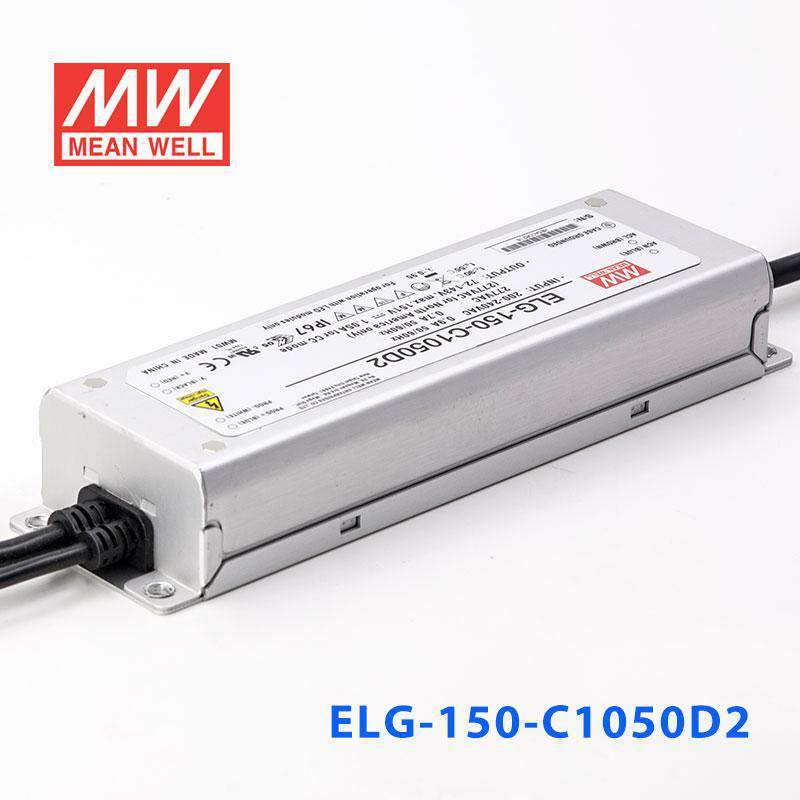

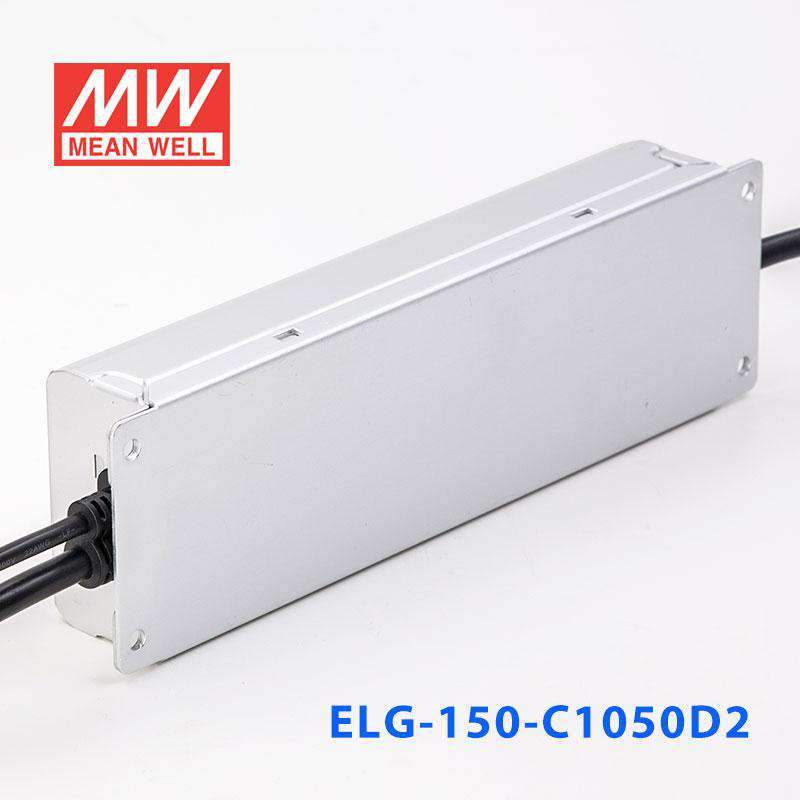

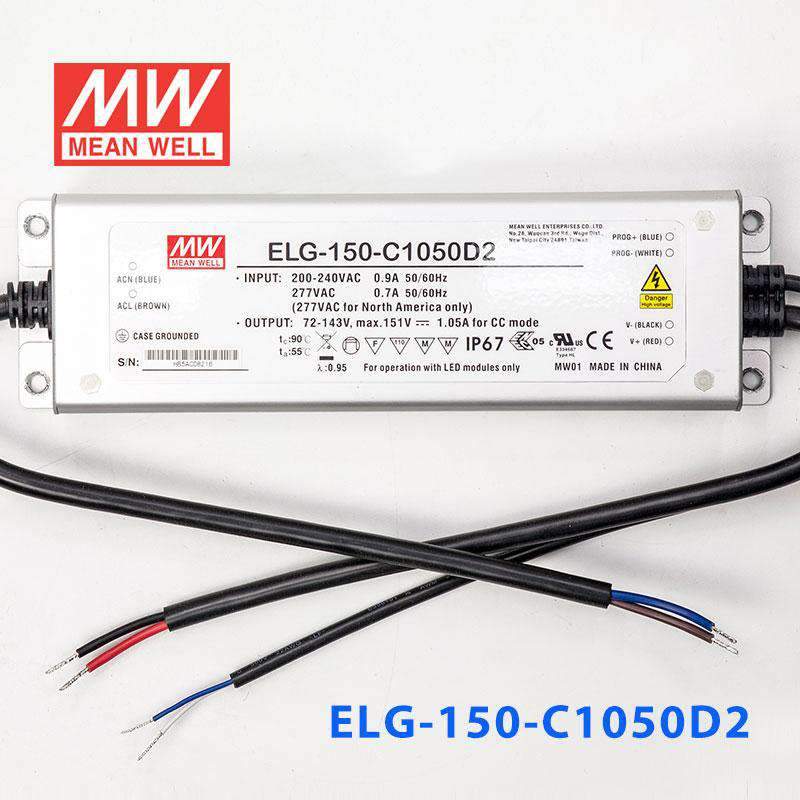

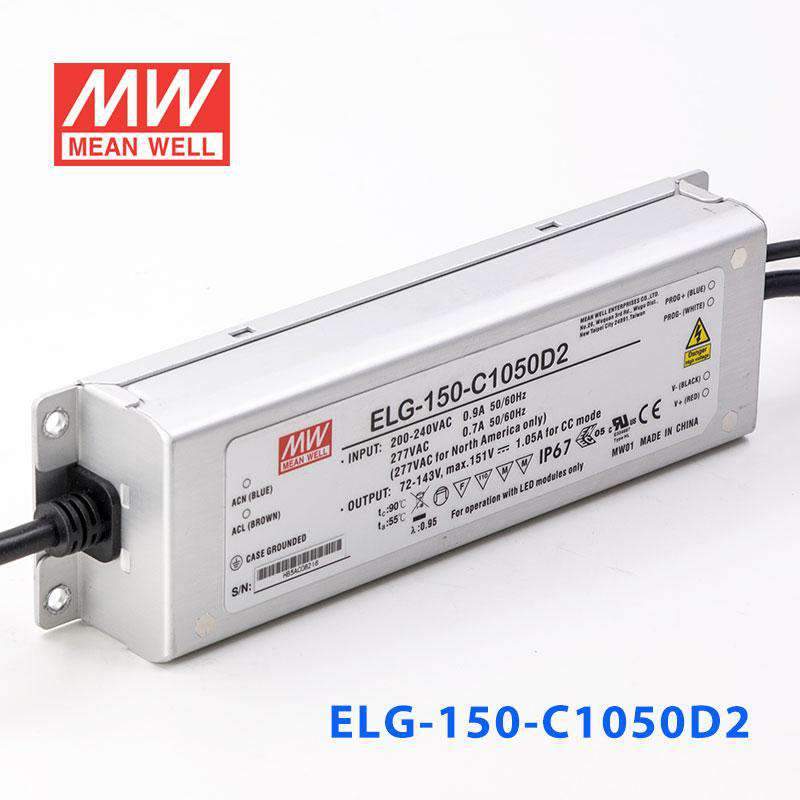

Mean Well ELG-150-C1050D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C1050D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage143 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C1050D2 be used to power LED downlights in a commercial building?
Yes. The ELG-150-C1050D2 operates in constant-current mode and is IP67 waterproof, making it suitable for LED downlight installations including those in damp commercial environments. The CC voltage range is 100–305V, which accommodates a wide range of LED string configurations depending on each LED's forward voltage.
Is this driver suitable for outdoor LED signage or area lighting applications?
The ELG-150-C1050D2 carries an IP67 waterproof rating and operates from 100–305VAC, making it appropriate for outdoor LED signage or area lighting fixtures. The constant-current output ensures stable LED drive across varying temperatures and input voltages.
Can the ELG-150-C1050D2 power an LED array in a wet outdoor enclosure?
Yes. The IP67 rating provides full dust protection and resistance to temporary water immersion, so the driver can be installed inside wet or fully weatherproof outdoor enclosures. Ensure the LED string's total forward voltage falls within the 100–305V CC operating range.
What LED string voltages are compatible with the ELG-150-C1050D2?
The ELG-150-C1050D2 has a CC voltage range of 100–305V, which is broader than most variants in the ELG-150-C1050 series. The number of LEDs that can be driven in series depends on each LED's forward voltage — the combined string Vf must fall within the 100–305V window.
What makes the ELG-150-C1050D2 different from the ELG-150-C1050 within the same series?
Both are 150W constant-current LED drivers with IP67 ratings, but they differ in their CC voltage range: the ELG-150-C1050 operates at 72–143V while the ELG-150-C1050D2 operates at 100–305V. This wider range in the D2 variant allows it to drive longer LED strings or different LED configurations. The ELG-150-C1050D2 also has a different certification set (BSMI, CB, CE, EAC, UL vs. the broader certification suite of the standard model).
Can the ELG-150-C1050D2 operate in very cold or very hot environments?
Yes. The operating temperature range of -40°C to +90°C allows the driver to function reliably in extreme cold such as outdoor winter installations as well as in high-temperature environments like enclosed outdoor enclosures in summer.
