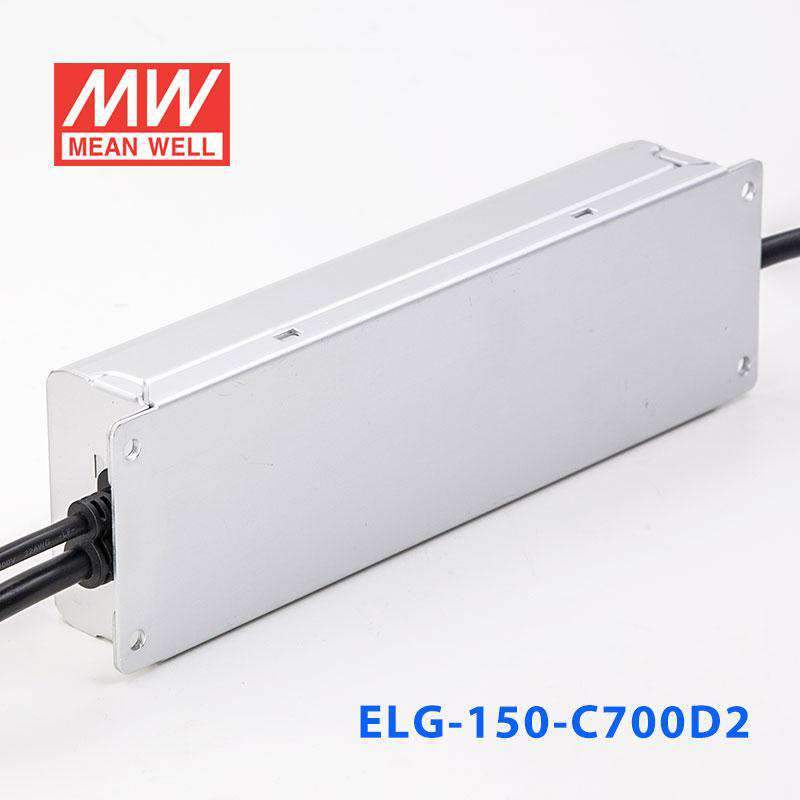

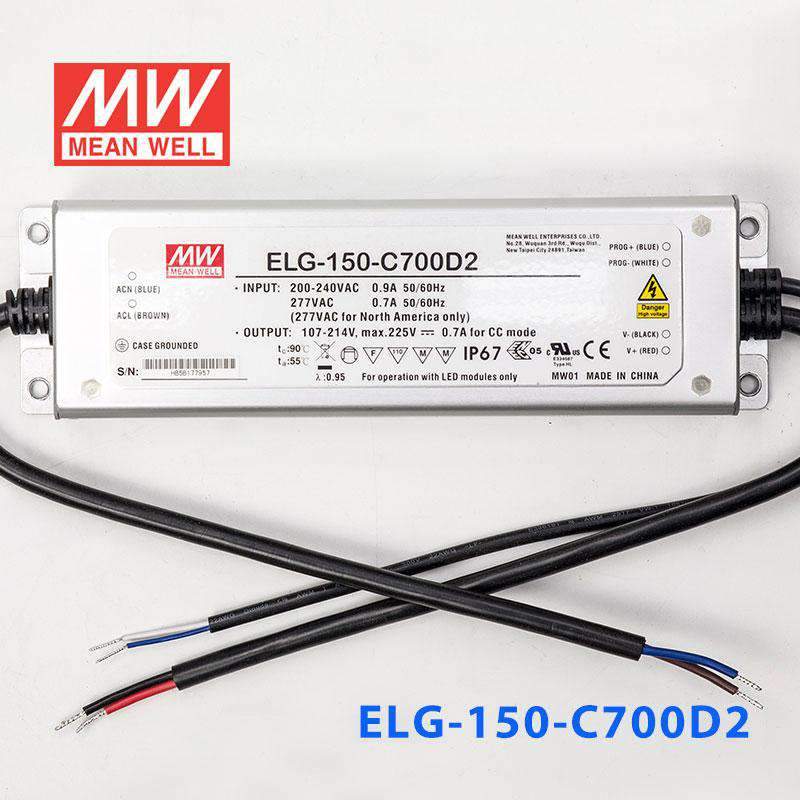

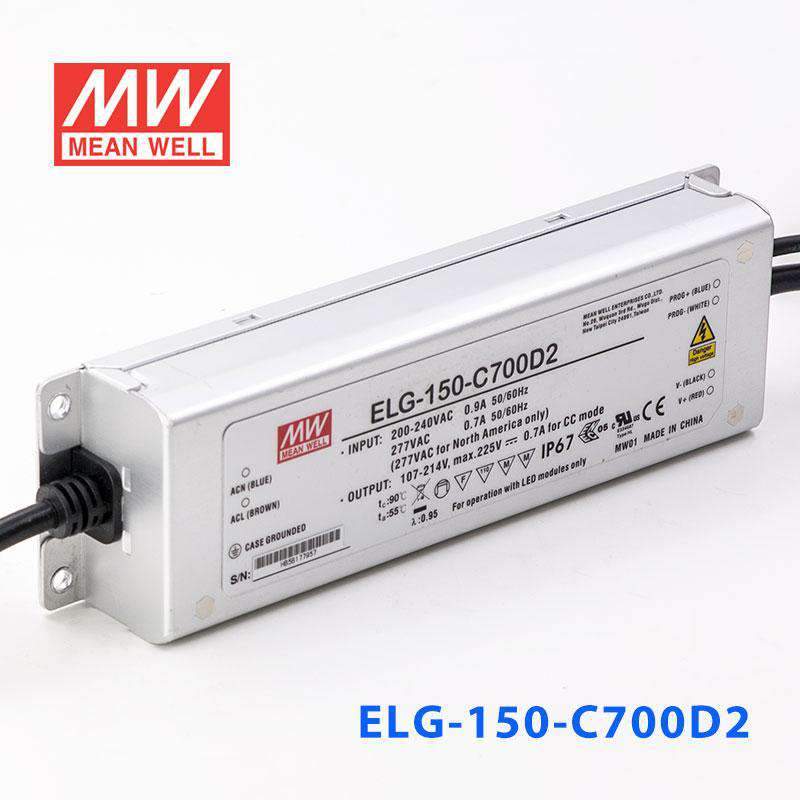

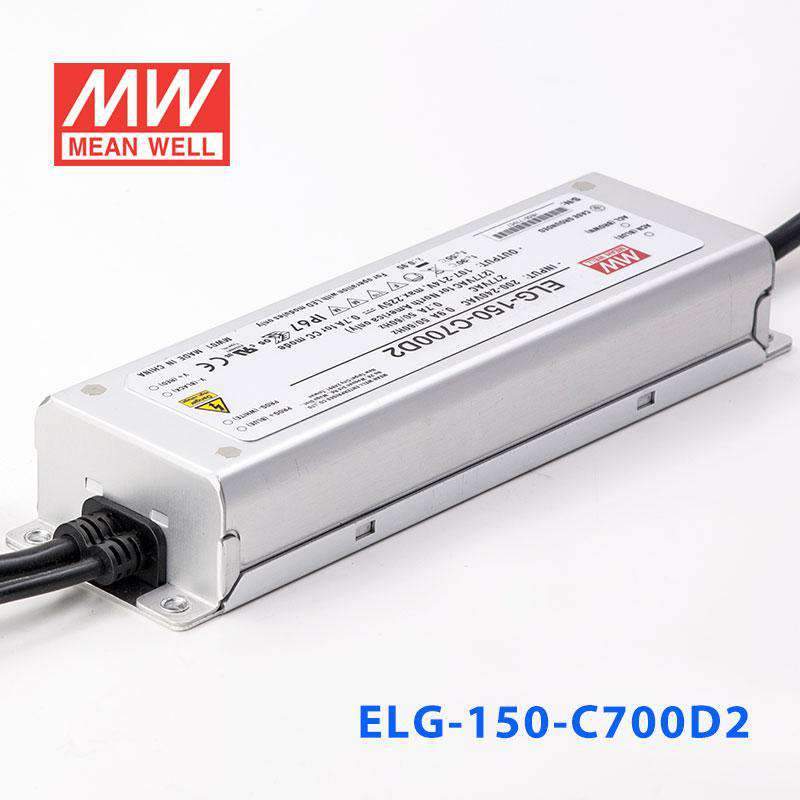

Mean Well ELG-150-C700D2 AC-DC Single output LED Driver (CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-150-C700D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage214 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-C700D2 be used with DALI lighting control systems?
Yes. The D2 suffix designates DALI dimming capability, making the ELG-150-C700D2 compatible with DALI-based building automation and lighting management systems. It can be addressed and dimmed individually or in groups through a DALI controller.
Is the ELG-150-C700D2 suitable for powering LED downlights in a smart building installation?
Yes. The DALI protocol support makes the ELG-150-C700D2 well matched to smart building lighting systems that use DALI for centralized control and dimming of LED downlights. At 150W and 0.7A constant current, it can sustain the LED arrays used in commercial ceiling fixtures.
Can the ELG-150-C700D2 be installed in outdoor luminaires?
Yes. The ELG-150-C700D2 carries an IP67 waterproof rating, providing full protection against dust ingress and temporary water immersion. Its -40°C to +90°C operating range accommodates the thermal conditions found in outdoor luminaire enclosures across most climates.
What is the CC voltage range of the ELG-150-C700D2, and how does that affect LED string configuration?
The ELG-150-C700D2 lists a CC voltage range of 100–305V in the datasheet (per the D2 variant specs). The number of series-connected LEDs depends on each LED's forward voltage — the sum of forward voltages across the string must fall within that range for stable constant current regulation.
Can I use the ELG-150-C700D2 for dimmable LED track lighting in a retail environment?
Yes. DALI dimming allows precise group-level or individual-zone control of LED track fixtures, which is well suited to retail environments where lighting scenes must be adjusted for different product displays. The 150W output at 0.7A constant current supports the LED modules used in commercial track luminaires.
Does the ELG-150-C700D2 support 277V commercial electrical installations?
Yes. The ELG-150-C700D2 accepts inputs from 100 to 305VAC, which covers the 277V single-phase circuits standard in North American commercial construction. No step-down transformer is required for 277V installations.
