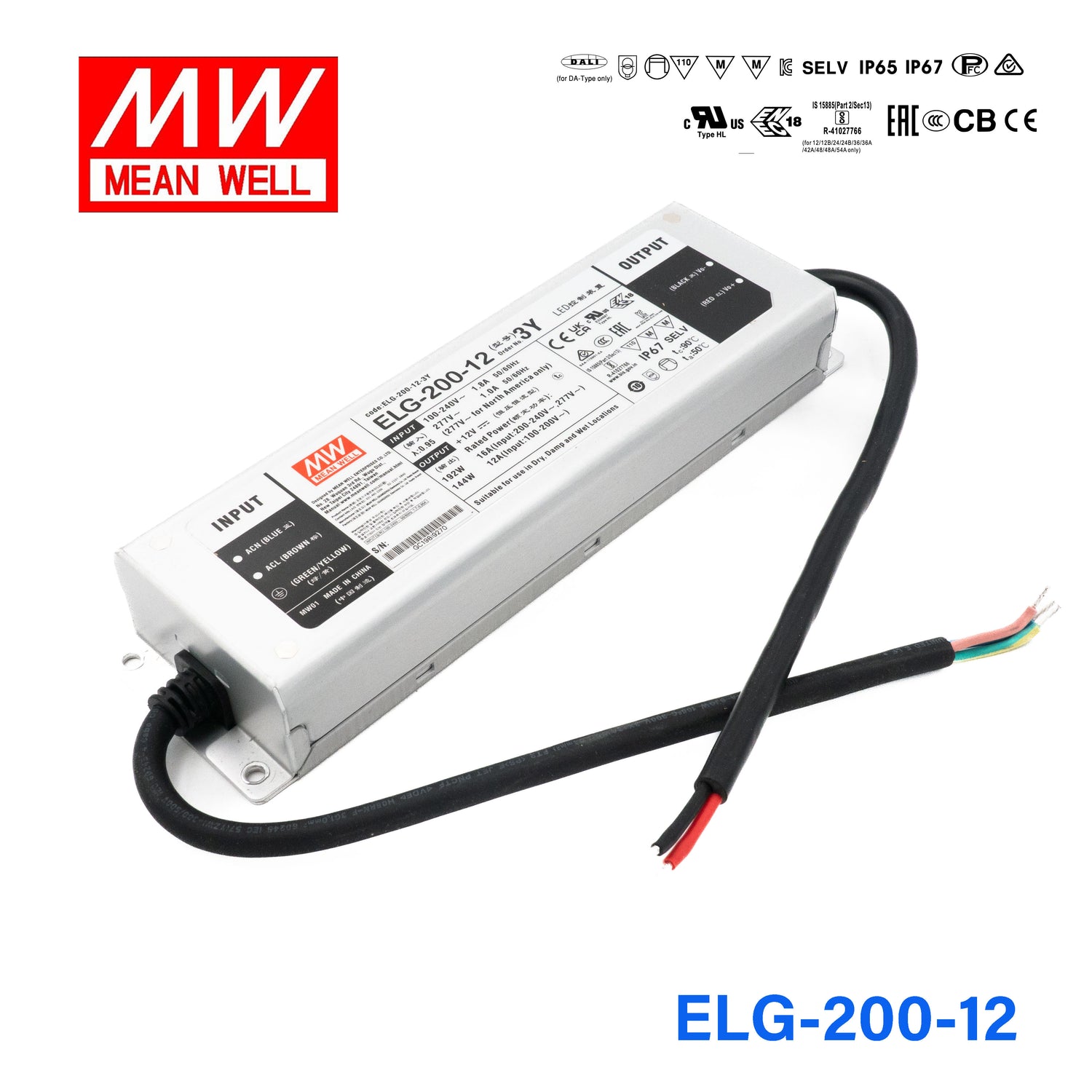

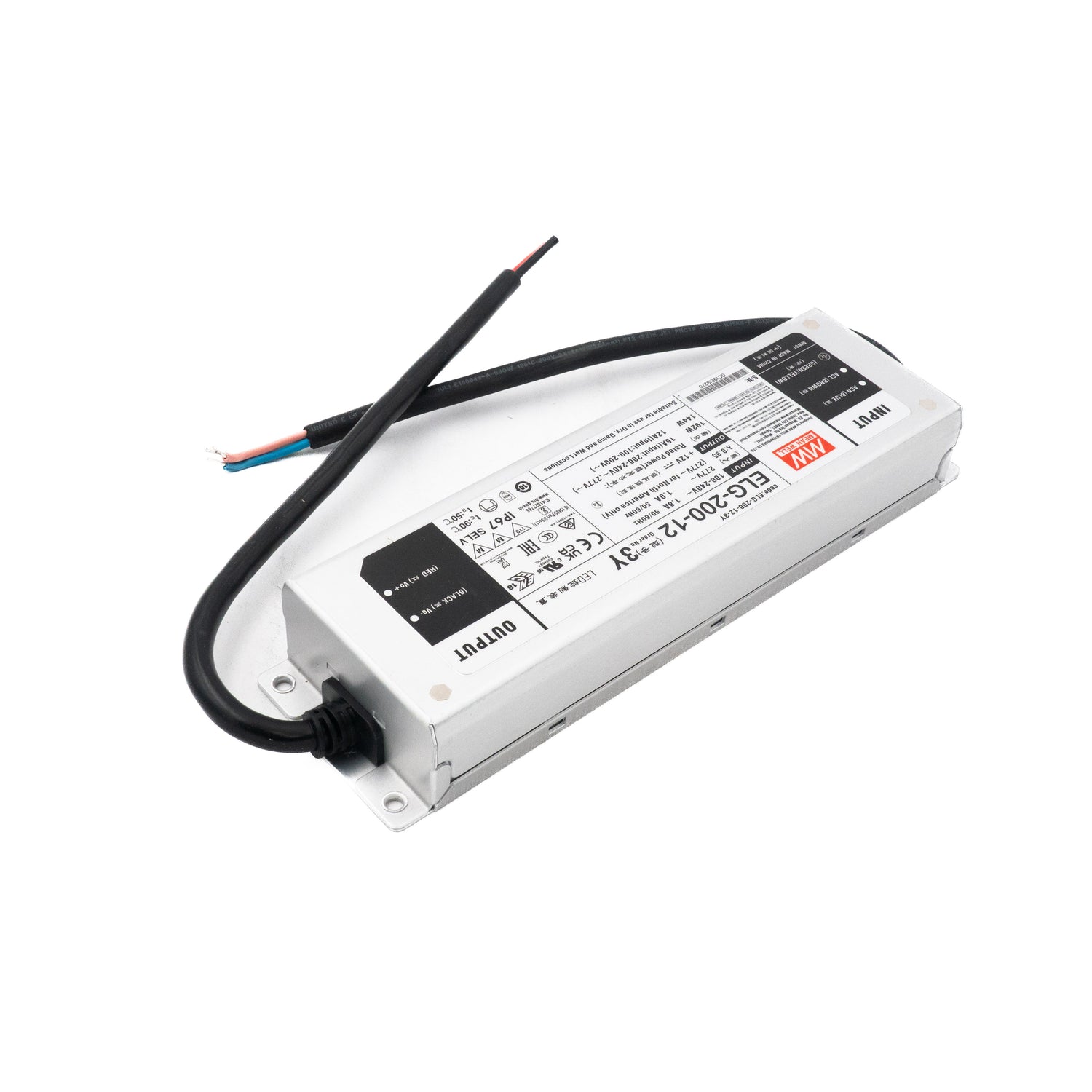

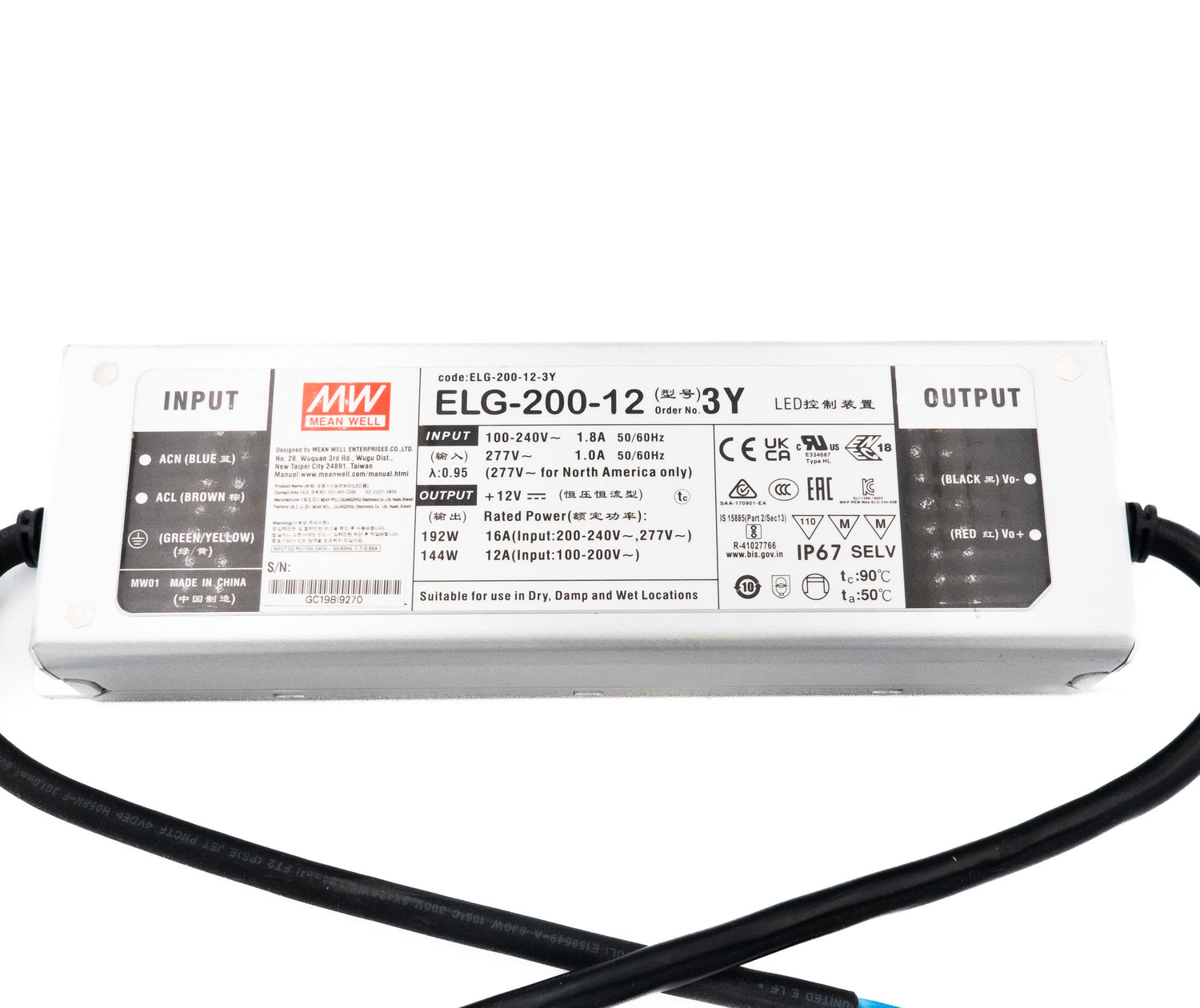

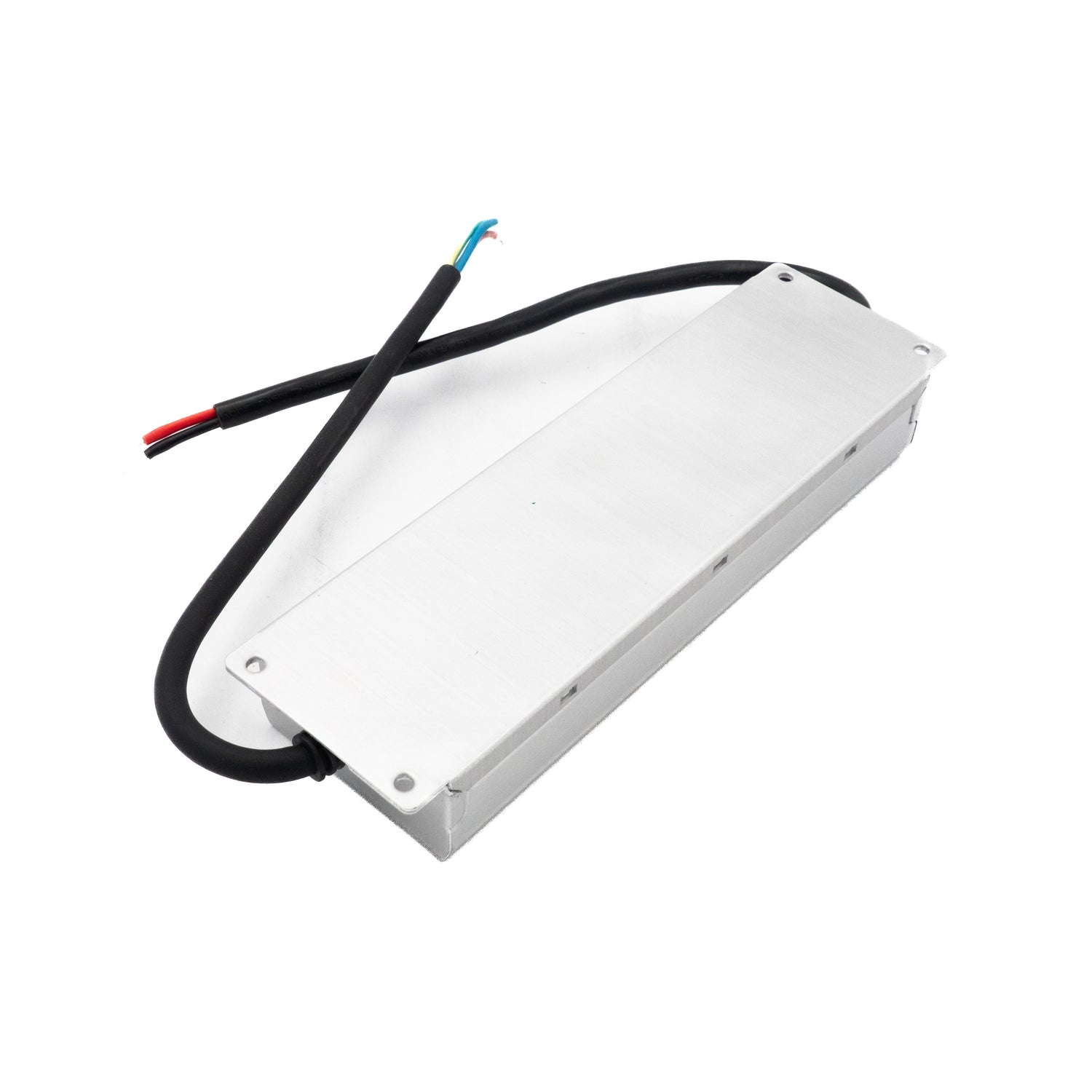

Mean Well ELG-200-12 Power Supply 192W 12V 16A

Name: Mean Well ELG-200-12 Power Supply 192W 12V 16A
Brand: Mean Well
SKU: ELG-200-12
Price: 49.88 USD
Availability: InStock

Overview

ELG-200-12 is the 12V output model of this series: rated current 16A, typical efficiency 90%. Type Blank: Io and Vo fixed (IP67).

ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-12Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.2: 6 ~ 12V
RATED CURRENT: 16A
RATED POWER 200VAC ~ 305VAC: 192W
RATED POWER 100VAC ~ 180VAC: 144W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT: 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION^Note.7: No load power consumption <0.5W for Blank / A -Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.5 ~ 18V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +90℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB/T19510.1,GB/T19510.213; IP67;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ;BS EN/ EN61000-3-3;GB/T 17743,GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2391.4K hrs min. Telcordia SR-332 (Bellcore) ;204.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5mm (L*W*H)
PACKING: 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank (this model): Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. No load/standby power consumption is specified for 230VAC input.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B).
14. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-200-12 Block Diagram — Block Diagram

ELG-200-12 OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

ELG-200-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-12 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-12 E L G - 2 0 0 series — E L G - 2 0 0 series

ELG-200-12 ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

ELG-200-12 Dimensions (mm) — Dimensions (mm)

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-12 datasheetELG-200-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-200)(EN) PDF Download

UL Certificate (ELG-200)(EN) PDF Download

EMC Certificate (ELG-200)(EN) PDF Download

ENEC Certificate (ELG-200)(EN) PDF Download

Test reports1

Test Report (ELG-200-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-200-12 be used for 12V LED strip lighting in an outdoor installation exposed to rain?

Yes. The ELG-200-12 is rated IP67, providing full protection against dust ingress and temporary water immersion. It can be mounted in outdoor sign cabinets, underground enclosures, or exterior luminaire housings subject to direct water contact without additional sealing.

Is the ELG-200-12 suitable for powering 12V LED strip in a large commercial interior lighting project?

Yes. At 192W and 12V, the ELG-200-12 delivers up to 16A of output current, which supports extensive 12V LED strip runs in commercial interior cove, shelf, or accent lighting. The 16A output handles high-density strip types used in demanding retail or hospitality environments.

How many meters of 12V LED strip can the ELG-200-12 support?

The ELG-200-12 provides 192W at 12V. For a 9.6 W/m strip, that is up to 20 meters; for a 14.4 W/m strip, approximately 13 meters. Divide 192W by your strip's rated power per meter and apply a 20% derating margin for sustained reliable performance.

Can the ELG-200-12 power 12V LED strips for outdoor LED channel letter or cabinet sign applications?

Yes. The IP67 waterproof rating and 192W output at 12V make this driver well suited for 12V LED channel letters or backlit sign cabinets in outdoor locations. Its compact 244 × 71 × 37.5 mm metal housing with four 4.5 mm mounting holes is straightforward to install inside sign enclosures.

Is the ELG-200-12 appropriate for 12V LED strip lighting in cold-storage or freezer environments?

Yes. With a working case temperature range of -40°C to +90°C, this driver is rated to operate in cold-storage and freezer conditions. The IP67 sealed enclosure also protects it against moisture in refrigerated environments.

Can the ELG-200-12 be used for 12V LED strip in outdoor landscape or pathway lighting?

Yes. The IP67 rating and -40°C to +90°C case temperature range allow the ELG-200-12 to be installed in ground-level enclosures common in landscape and pathway lighting systems. Its 192W capacity at 12V supports multiple parallel LED strip circuits or fixtures from a single driver.

How does the ELG-200-12 compare to the ELG-200-12-3Y in this series?

Both are rated 192W at 12V / 16A with a 6–12V constant-current region, IP67 protection and the same 244 × 71 × 37.5 mm dimensions, and both are covered by the same series safety and EMC standards (UL8750, EN61347, EAC, KC and others). The difference is the input wiring: the ELG-200-12-3Y is the 3-wire input model with AC/N, AC/L and PE conductors, while the ELG-200-12 uses a two-wire AC input.
