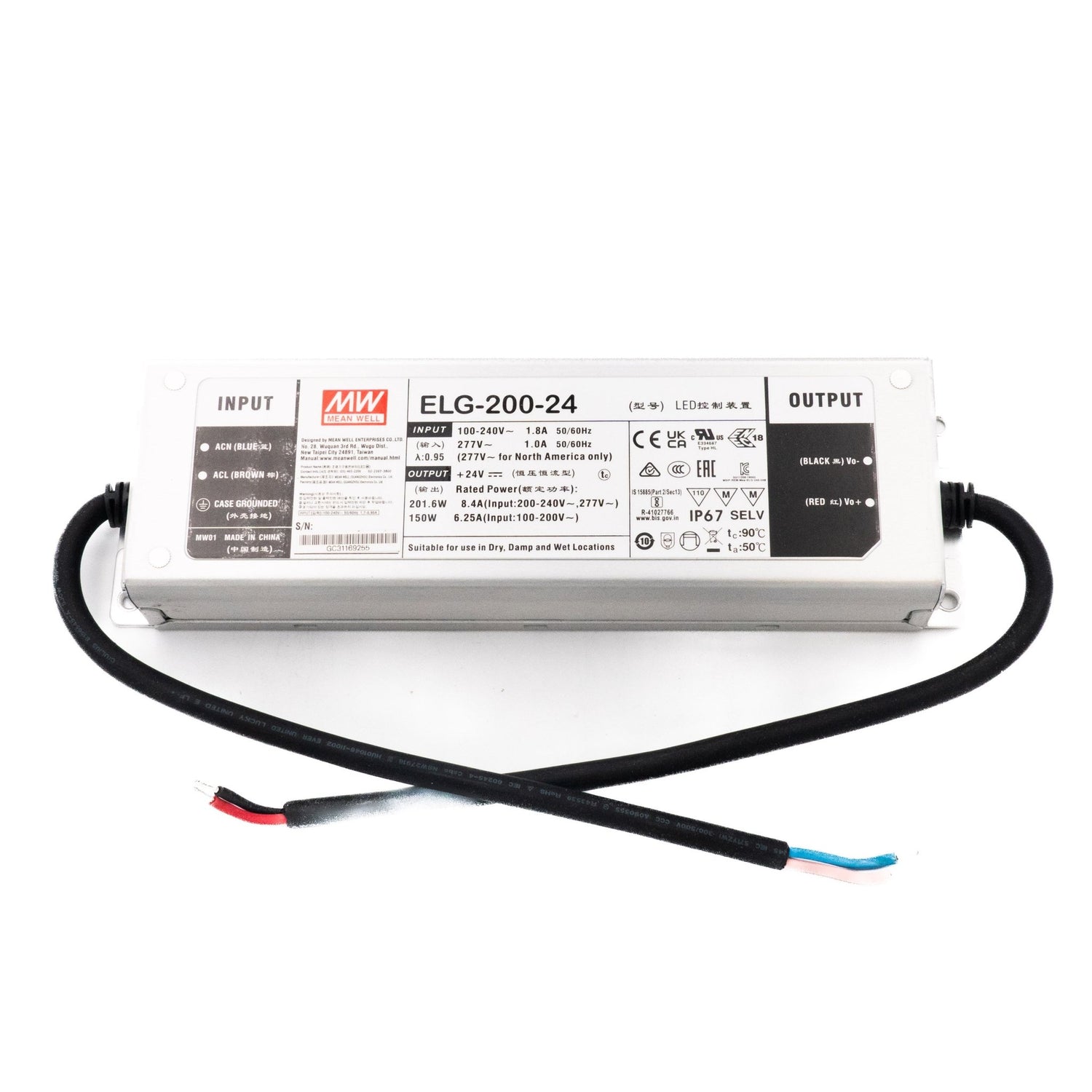

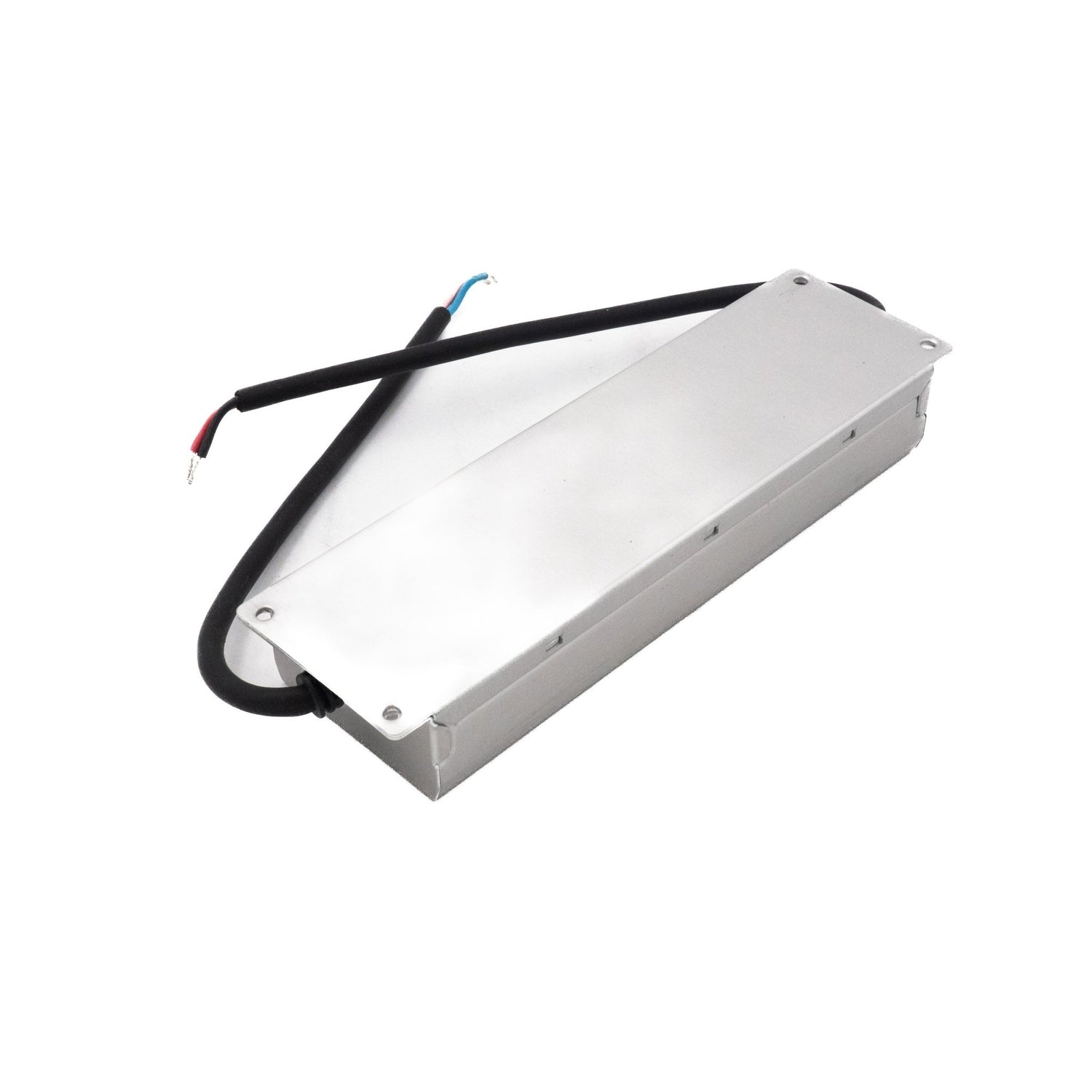

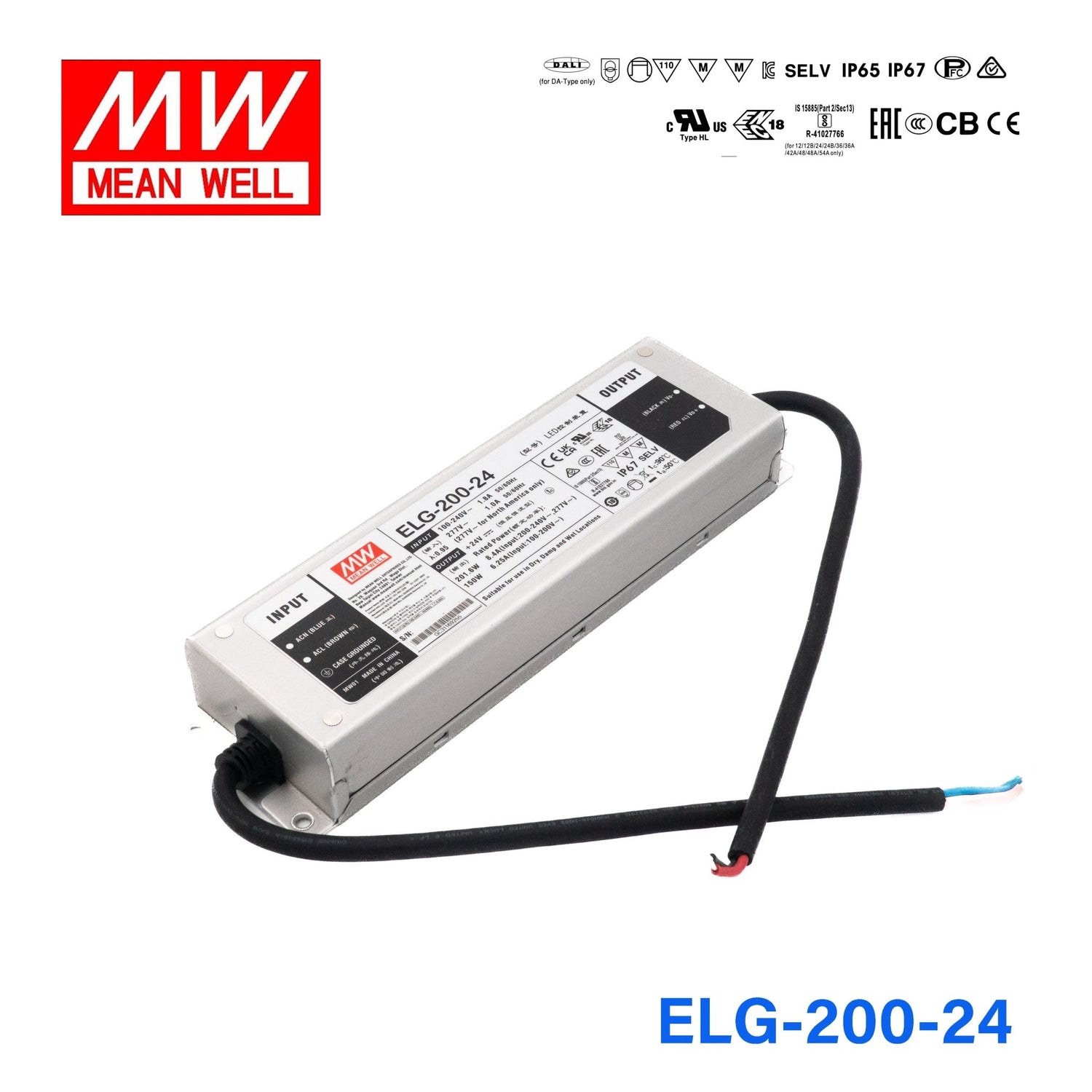

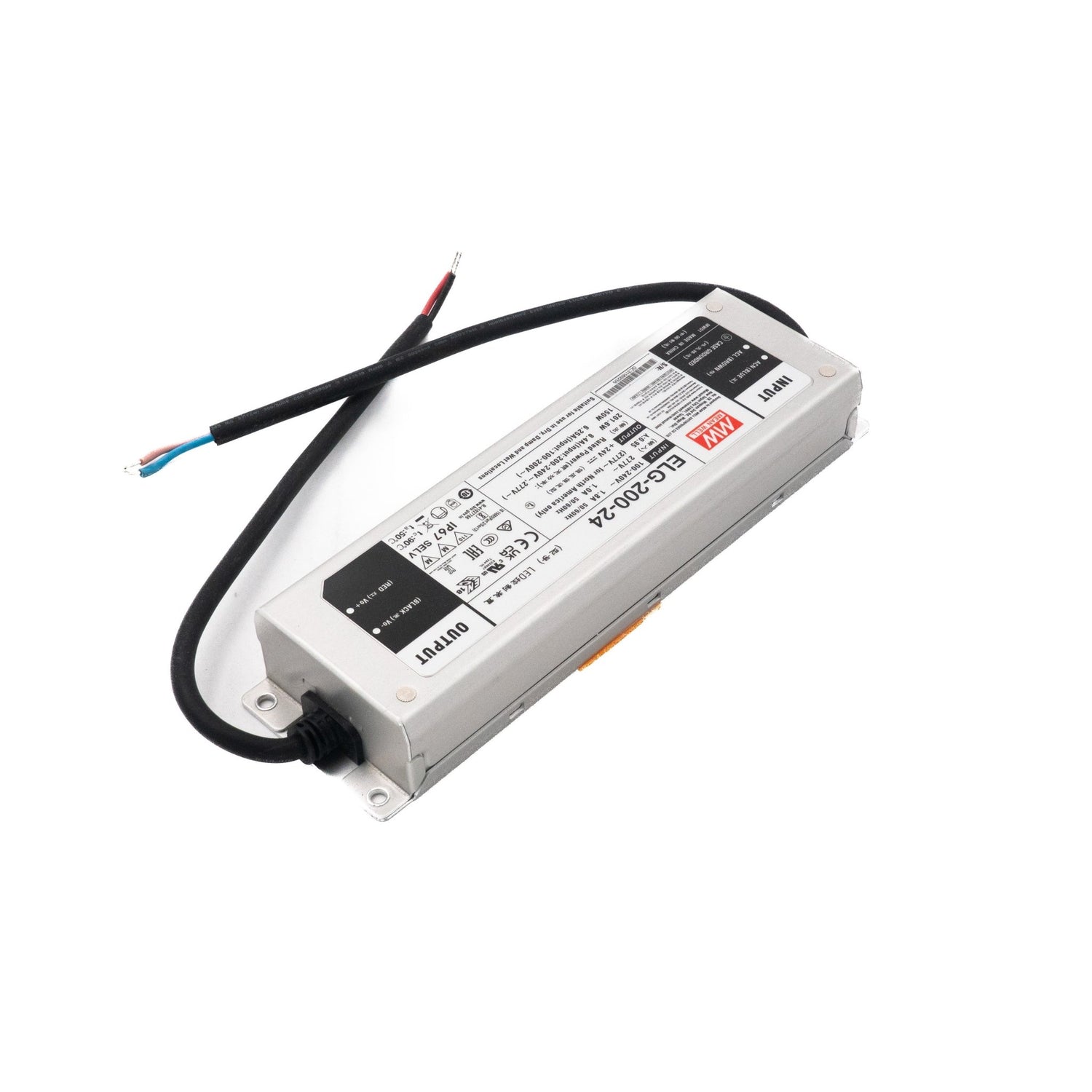

Mean Well ELG-200-24 Power Supply 200W 24V
Description
Description
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-200-24 power 24V LED strip lighting for commercial signage?
Yes. The ELG-200-24 delivers 24V DC at up to 8.4A (201.6W) in constant-current mode, suitable for 24V LED strips used in commercial signage. At 201.6W, a 20W/m strip allows approximately 10 meters and a 14.4W/m strip allows approximately 14 meters; check your strip's rated power per meter for the precise run length.
Is the ELG-200-24 suitable for use in wet or outdoor locations?
Yes. The ELG-200-24 carries an IP67 waterproof rating, providing full protection against dust and temporary submersion in water. It is well suited for outdoor LED installations, façade lighting, and signage cabinets that may be exposed to rain or high-humidity conditions.
Can the ELG-200-24 operate on both US and European mains supplies?
Yes. The ELG-200-24 accepts 100–305VAC input, covering 120V (North America), 230V (Europe), and 277V (US commercial) without any manual switching or reconfiguration.
Is the ELG-200-24 appropriate for powering 24V LED strips in outdoor architectural lighting?
Yes. The ELG-200-24's IP67 rating and -40°C to +90°C operating range make it well suited for year-round outdoor architectural LED applications. Its 201.6W output supports long strip runs and larger LED arrays typical of building façade or landscape lighting projects.
Can the ELG-200-24 drive 24V LED strips in a large illuminated retail display?
Yes. At 201.6W / 24V / 8.4A the ELG-200-24 can power extensive 24V LED strip arrays in retail display fixtures. For a 19.2W/m strip, the driver supports approximately 10.5 meters; divide 201.6W by your strip's rated wattage per meter for an exact figure.
What certifications does the ELG-200-24 carry for international projects?
The ELG-200-24 is certified to UL, c_bsi (cUL equivalent), CB, CCC, CE, ENEC, EAC, KC, and c_rcm standards, covering North America, Europe, China, Australia/New Zealand, Korea, and other major markets.
How does the ELG-200-24 compare to the ELG-200-24A and ELG-200-24B for an outdoor 24V LED project?
All three share the same 24V output and 5-year warranty. The base ELG-200-24 has no dimming or adjustment capability. The ELG-200-24A (IP65) adds an output-adjustment potentiometer for static tuning. The ELG-200-24B (IP67) adds a 3-in-1 dimming interface (0–10V, PWM, resistance). For a fixed-output outdoor installation, the base ELG-200-24 is the simplest choice; for controllable lighting, the B variant is preferable.
Other ELG-200 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ELG-200-24DA Power Supply 200W 24V - DALI | 201.6W | 24V | 8.4A | IP67 | $56.01 | View |
| Mean Well ELG-200-24B Power Supply 200W 24V - Dimmable | 201.6W | 24V | 8.4A | IP67 | $53.51 | View |
| Mean Well ELG-200-12 Power Supply 192W 12V | 192W | 12V | 16A | IP67 | $49.88 | View |
| Mean Well ELG-200-12A Power Supply 192W 12V 3-wire Input - Adjustable | 192W | 12V | 16A | IP65 | $51.37 | View |
| Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC | 200W | 12V | 16A | IP67 | $59.29 | View |
| Mean Well ELG-200-C1050A Power Supply 200W 1050mA - Adjustable | 199.5W | 200V | 1.05A | IP65 | $56.25 | View |
