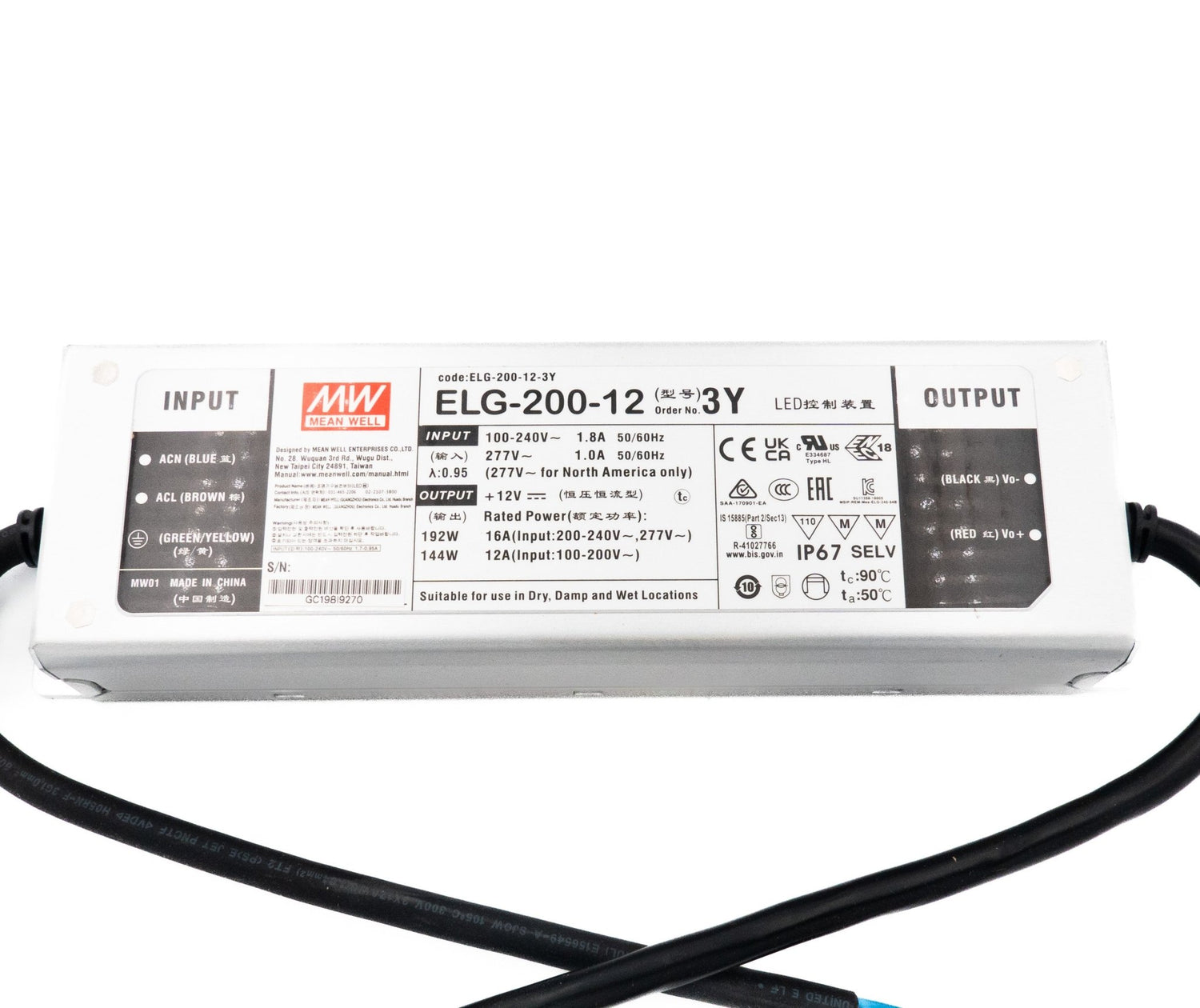

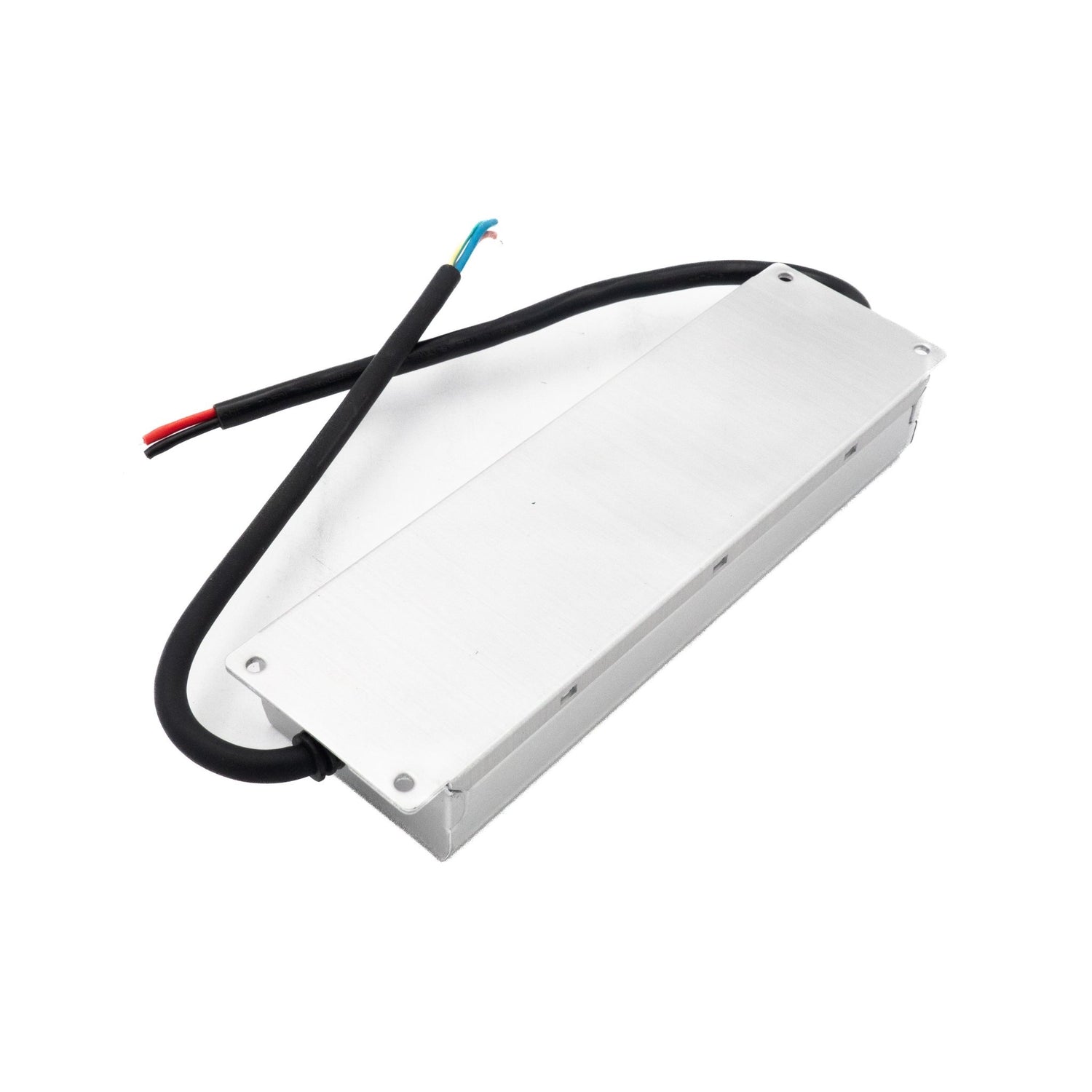

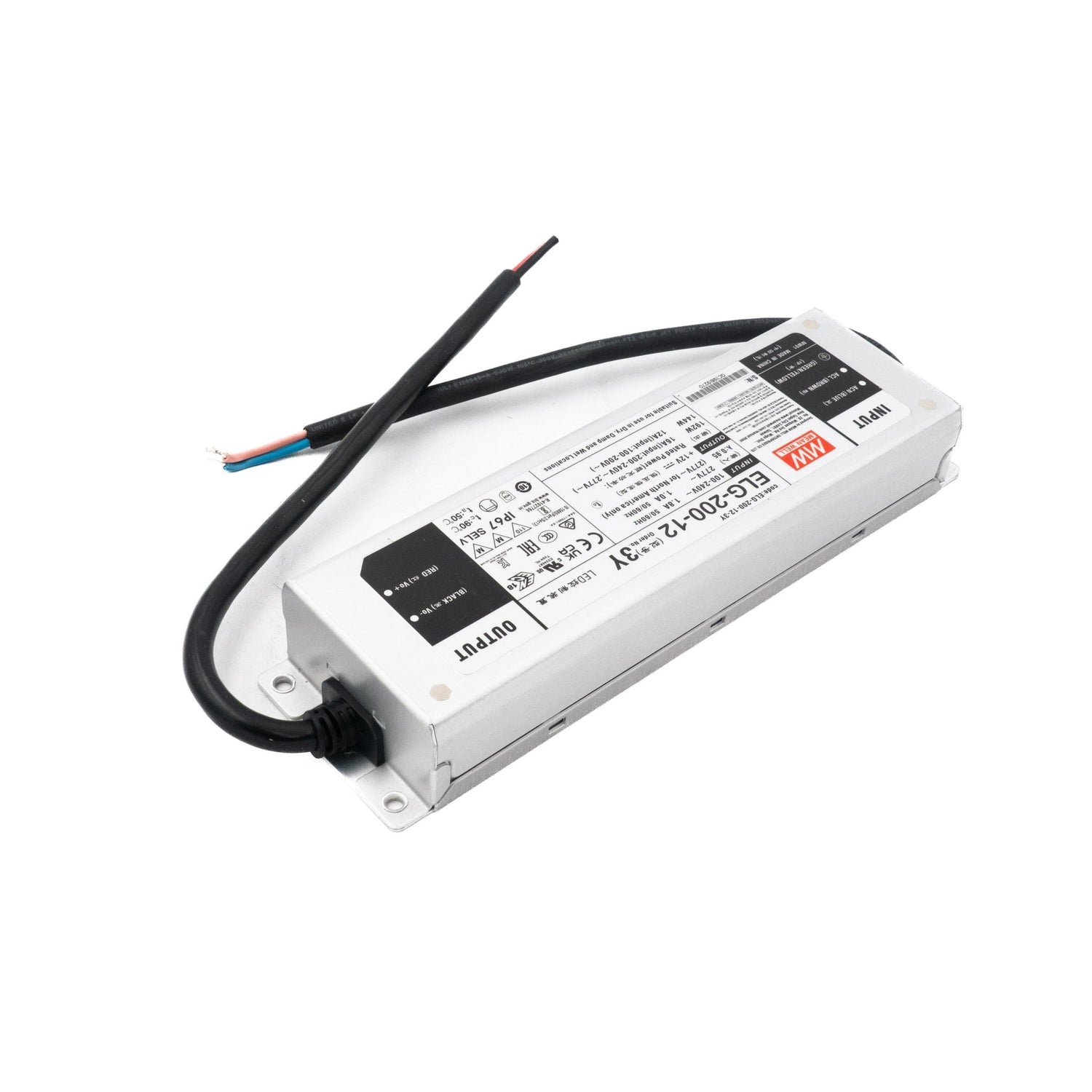

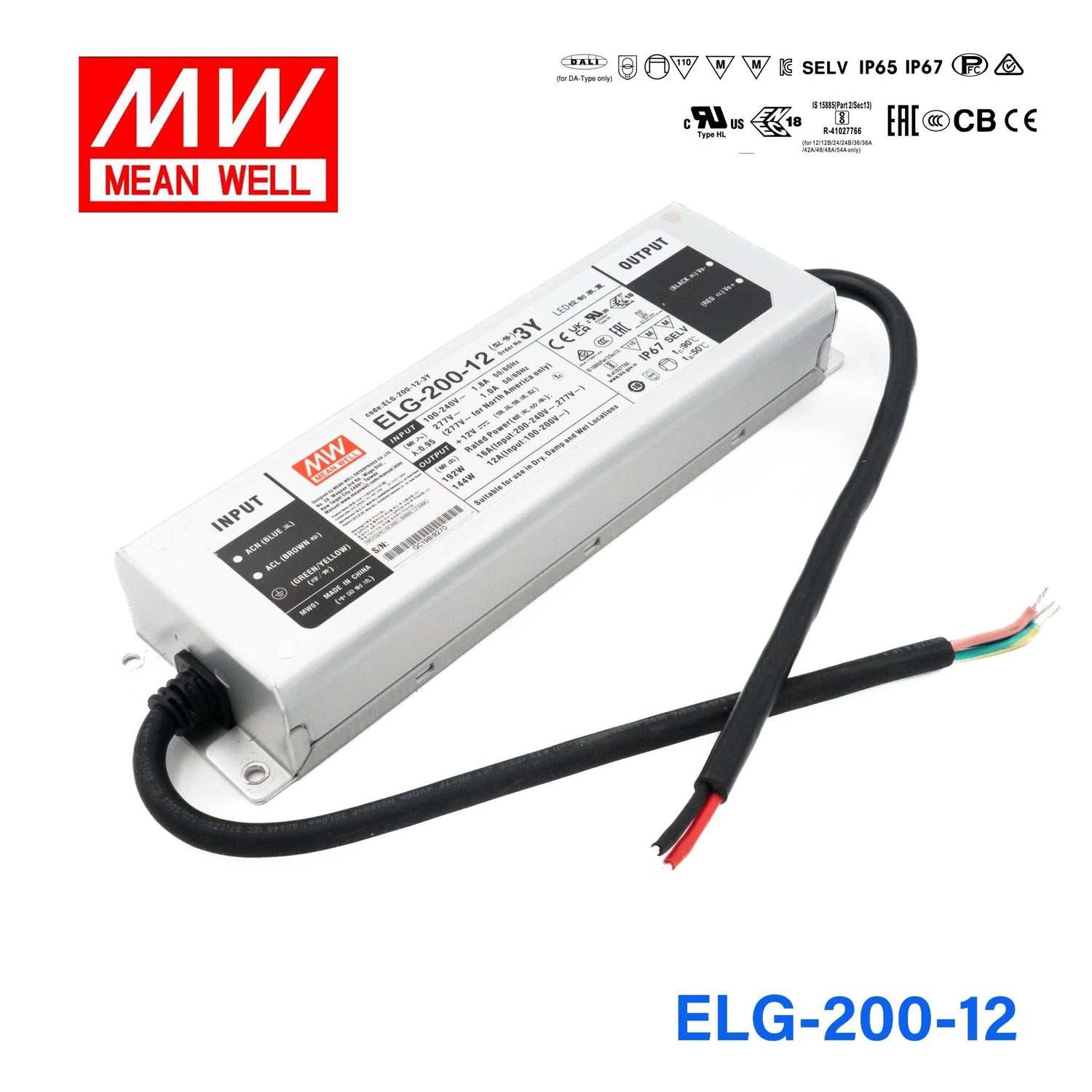

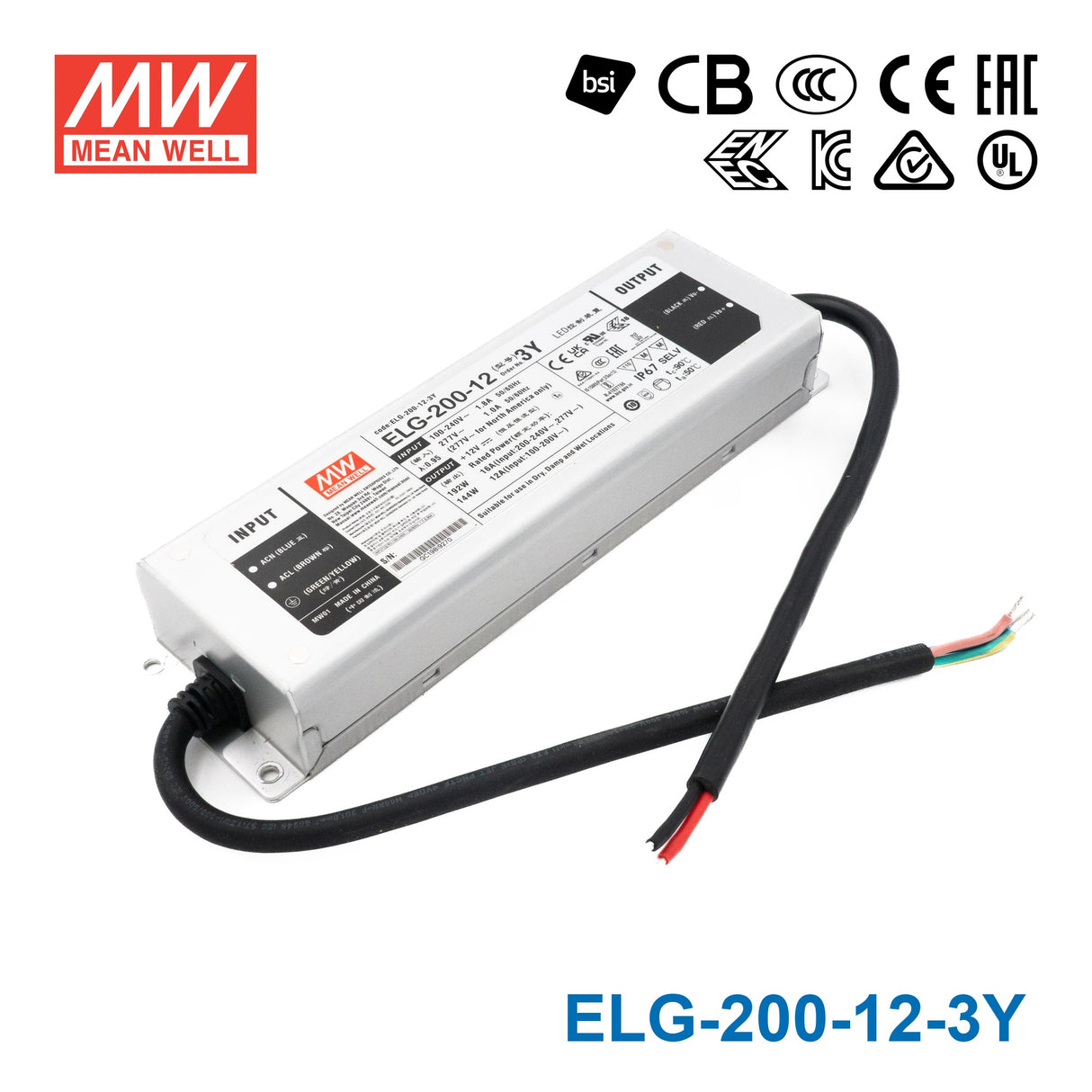

Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-12-3Y AC-DC Single output LED Driver Mix Mode (CV...
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 93% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 244x71x37.5 |
| Packing | 12pcs / 15.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-200-12-3Y be mounted in an outdoor wet location for 12V LED strip lighting?
Yes. The ELG-200-12-3Y is rated IP67, fully protecting it against dust and temporary water immersion. It can be installed inside outdoor sign cabinets, exterior luminaire housings, or underground enclosures exposed to rain without requiring additional weatherproofing.
Is the ELG-200-12-3Y a good choice for powering 12V LED strip in a large-scale interior commercial installation?
Yes. The 200W output at 12V and 16A current capacity supports substantial 12V LED strip runs in commercial interior environments such as retail shelving, hospitality cove lighting, or office accent lighting. The higher 200W rating compared to some siblings allows longer single-driver strip runs.
How many meters of 12V LED strip can the ELG-200-12-3Y drive?
The ELG-200-12-3Y provides 200W at 12V. For a 10 W/m strip, that supports up to 20 meters; for a 14.4 W/m strip, approximately 13.9 meters. Always check your strip's rated power per meter and apply a 20% safety derating for reliable long-term operation.
Can the ELG-200-12-3Y power 12V LED strips for outdoor LED signage or channel letters?
Yes. With IP67 protection and 200W at 12V, this driver handles the power demands of 12V outdoor LED channel letters or backlit sign cabinets in weather-exposed locations. Its 244.0 × 71.0 × 37.5 mm metal housing is compatible with standard sign raceway enclosures.
What certifications does the ELG-200-12-3Y hold, and is it approved for North American and European use?
The ELG-200-12-3Y carries BSMI, CB, CE, EAC, and UL certifications. The UL mark covers North America and the CE mark confirms compliance with EU safety directives, making it approved for use in both markets. The CB certification additionally supports recognition in many other international markets.
Is the ELG-200-12-3Y suitable for 12V LED strip in cold-storage or outdoor winter conditions?
Yes. The operating temperature range of -40°C to +90°C ensures reliable startup and sustained operation in freezer and cold-weather outdoor environments. The IP67 sealed metal enclosure withstands the condensation and moisture exposure typical of cold-storage applications.
