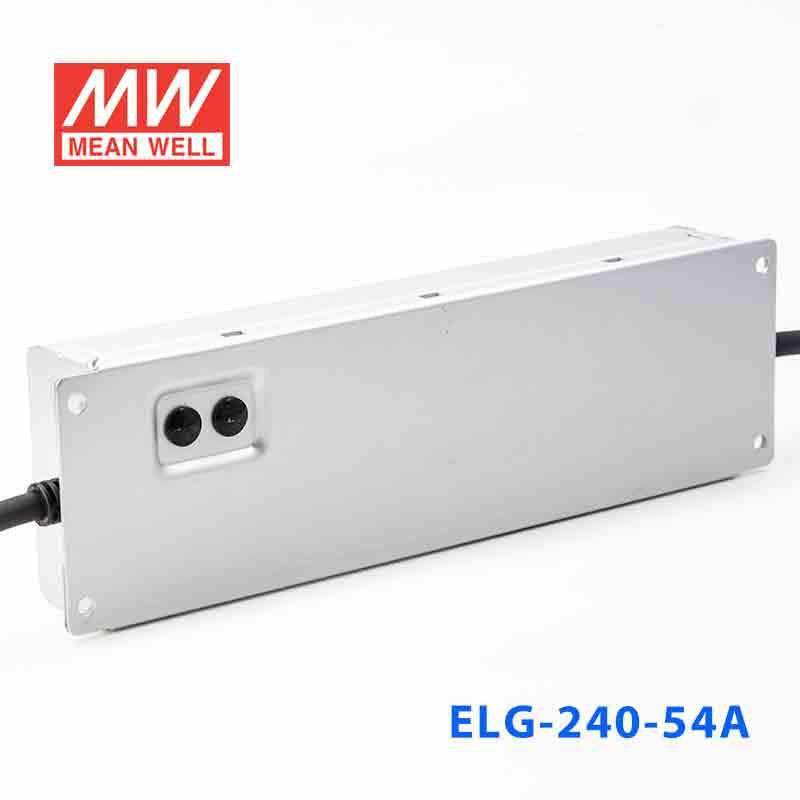

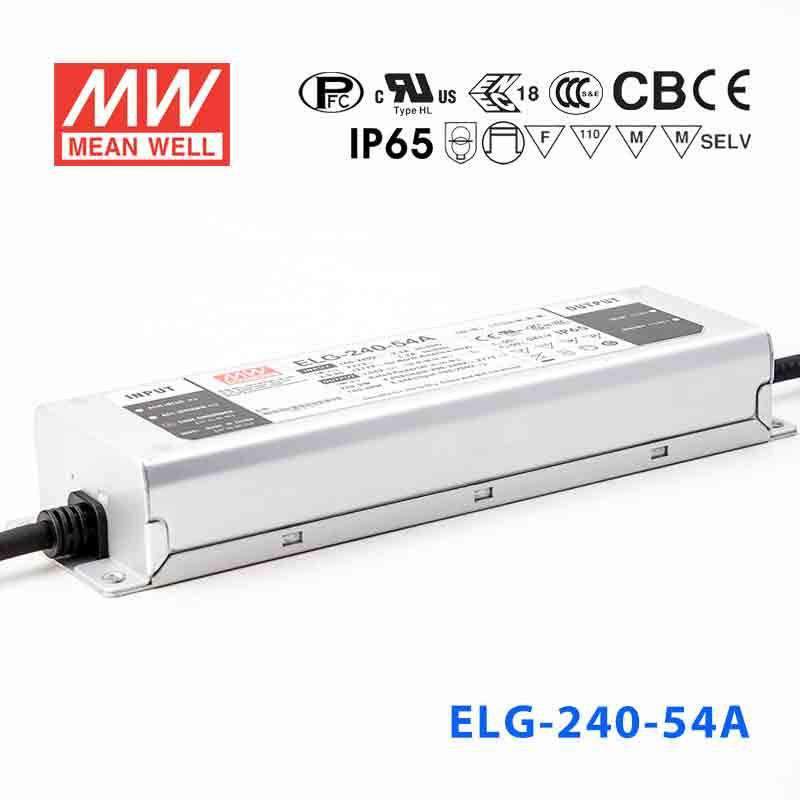

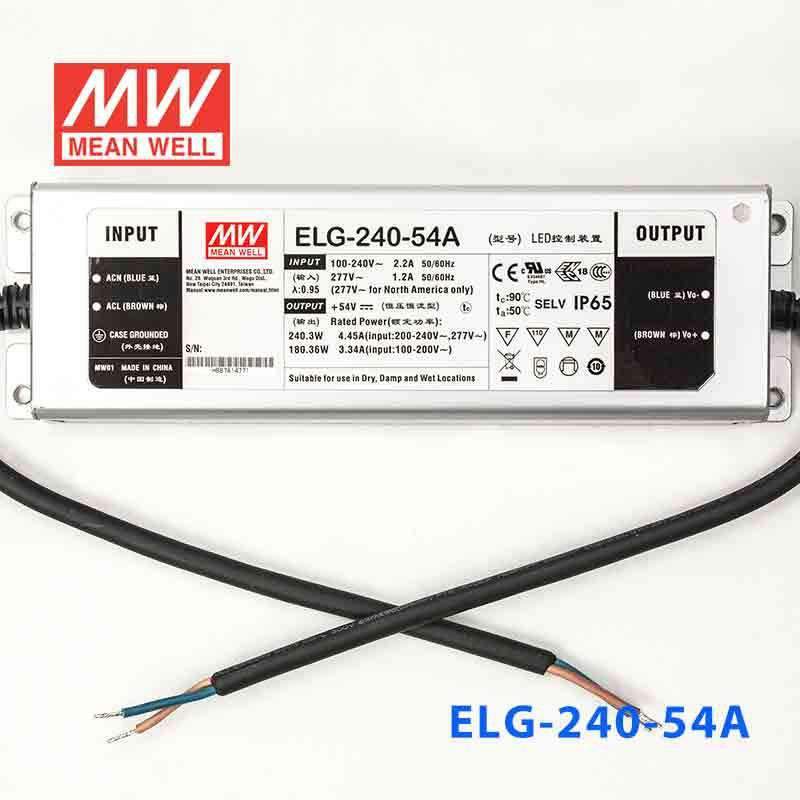

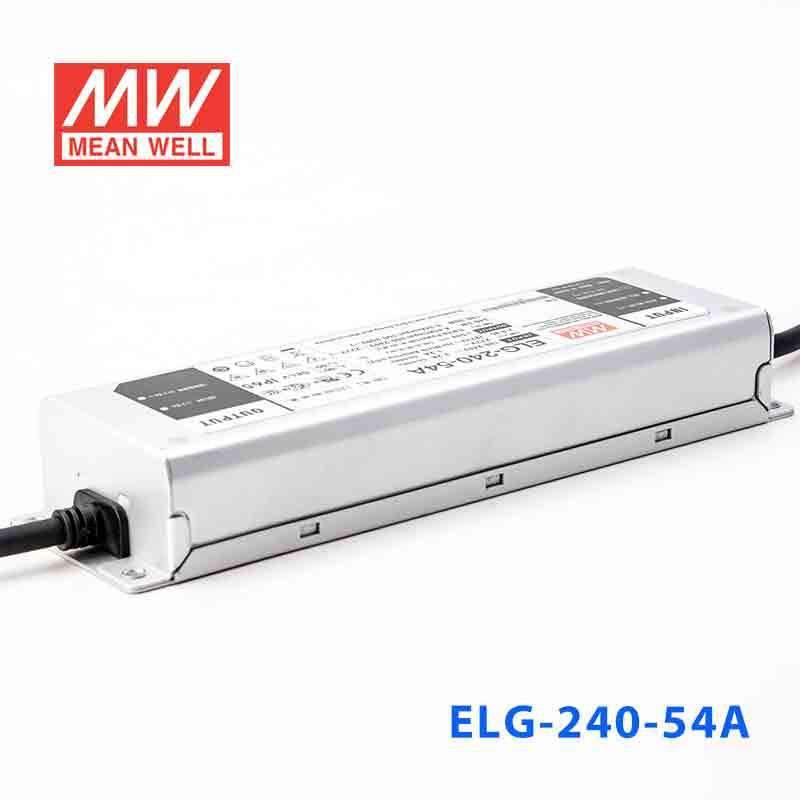

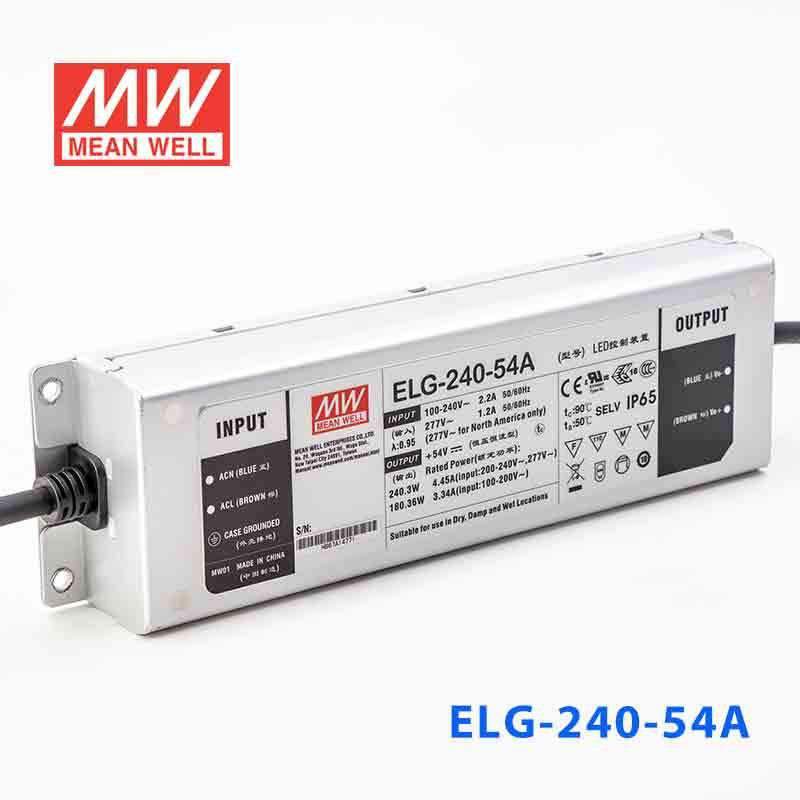

Mean Well ELG-240-54A Power Supply | 240W 54V - Adjustable

Q: What does the A suffix mean on the ELG-240-54A?

The A suffix indicates the output voltage and current are adjustable via a built-in potentiometer. This allows the installer to trim the output within the specified range without external dimming control equipment.

Q: Can the ELG-240-54A be used in outdoor signage where only moderate moisture protection is needed?

The ELG-240-54A carries an IP65 water-resistant rating, which means it is fully protected against dust and against low-pressure water jets from any direction. It is suitable for enclosed outdoor signage and covered exterior luminaires but is not rated for submersion.

Q: How many meters of 54V LED strip can the ELG-240-54A drive?

The ELG-240-54A provides 240.3W at 54V and 4.45A. At a strip power density of 20W per meter, that supports up to about 12 meters; at 15W per meter it is approximately 16 meters. Always check your strip's rated wattage per meter and keep total load within 240.3W.

Q: Is the ELG-240-54A suitable for LED cove lighting in a hospitality environment?

Yes. The adjustable output allows fine-tuning of brightness during commissioning, which is useful in hospitality environments where designers specify a precise light level. At 240.3W and 54V, it can drive a substantial LED cove installation from a single unit.

Q: Can the ELG-240-54A operate from 277V input used in North American commercial buildings?

Yes. The input range of 100–305VAC covers 277V, which is common in North American commercial and industrial branch circuits. This allows the ELG-240-54A to be used directly without a step-down transformer.

Q: What certifications does the ELG-240-54A hold?

The ELG-240-54A is certified to c-BSI, CB, CCC, CE, EAC, ENEC, KC, c-RCM, and UL standards, covering the UK, international safety, China, Europe, Eurasian Economic Union, European ENEC, South Korea, Australia/New Zealand, and North America.

Description

Features

100~305VAC wide input range

Built-in active PFC

Protections: Short circuit / Over voltage/Over temperature

No load power consumption <0.5W

High efficiency up to 93%

Suitable for LED lighting and street lighting applications

Cooling by free air convection

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 75 at 230VAC
DC adjustment range	±10% rated output voltage
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	500ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+80°C (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH)	244x71x37.5
Packing	12pcs / 15.2kg

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

240.3 Watt
Output Voltage

54 Volt
Rated Current

4.45 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

9.61 in
Width

2.8 in
Height

1.48 in
Weight

2.69 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What does the A suffix mean on the ELG-240-54A?

The A suffix indicates the output voltage and current are adjustable via a built-in potentiometer. This allows the installer to trim the output within the specified range without external dimming control equipment.

Can the ELG-240-54A be used in outdoor signage where only moderate moisture protection is needed?

The ELG-240-54A carries an IP65 water-resistant rating, which means it is fully protected against dust and against low-pressure water jets from any direction. It is suitable for enclosed outdoor signage and covered exterior luminaires but is not rated for submersion.

How many meters of 54V LED strip can the ELG-240-54A drive?

The ELG-240-54A provides 240.3W at 54V and 4.45A. At a strip power density of 20W per meter, that supports up to about 12 meters; at 15W per meter it is approximately 16 meters. Always check your strip's rated wattage per meter and keep total load within 240.3W.

Is the ELG-240-54A suitable for LED cove lighting in a hospitality environment?

Yes. The adjustable output allows fine-tuning of brightness during commissioning, which is useful in hospitality environments where designers specify a precise light level. At 240.3W and 54V, it can drive a substantial LED cove installation from a single unit.

Can the ELG-240-54A operate from 277V input used in North American commercial buildings?

Yes. The input range of 100–305VAC covers 277V, which is common in North American commercial and industrial branch circuits. This allows the ELG-240-54A to be used directly without a step-down transformer.

What certifications does the ELG-240-54A hold?
