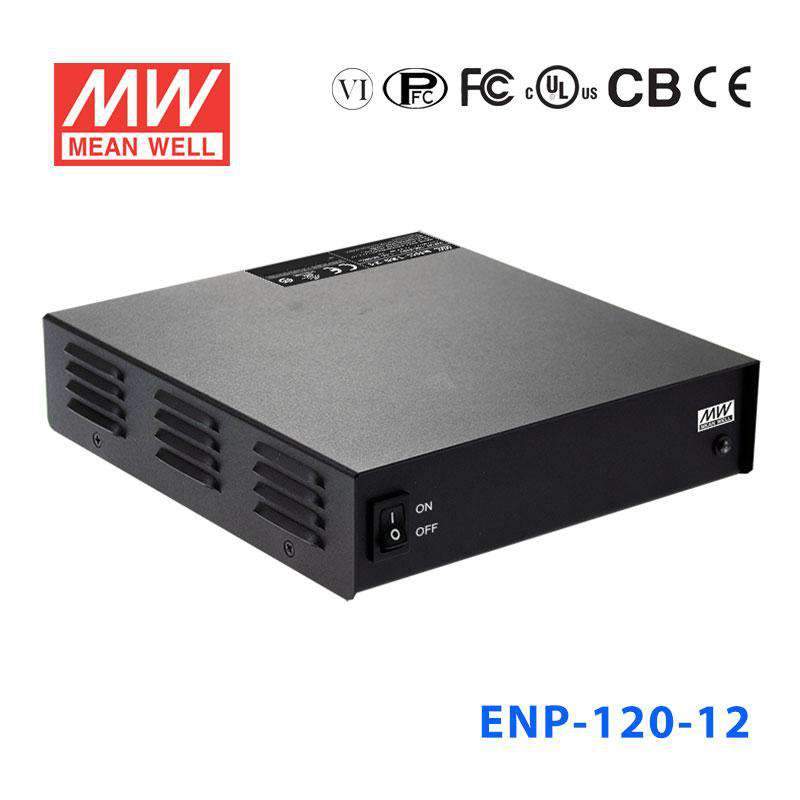

Mean Well ENP-120-12 Desktop Type Chargers 120W 13.8V 8.7A - Level VI Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ENP-120-12 Desktop Type Chargers 120W 13.8V 8.7A - Level ...
EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Key Features
- ✓✓Universal AC input/Full range
- ✓✓Built-in active PFC function
- ✓✓Energy efficiency Level VI
- ✓✓No load power consumption <0.15W
- ✓✓Comply with EISA 2007/DoE, NRCan, and EU Erp
- ✓✓125% peak load capability
- ✓✓Fanless design, cooling by free air convection
- ✓✓Protection: Short circuit/ Overload/ Over voltage/ Over temperature
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesENP Series
-
Power Rating120 Watt
-
Output Voltage13.8 Volt
-
Rated Current8.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.56 in
-
Width7.01 in
-
Height1.79 in
-
Weight2.16 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well ENP-120-12?
The ENP-120-12 is rated for 120W output at 13.8V DC and 8.7A. This makes it suitable for applications that need a regulated 13.8V desktop power supply with moderate current capacity.
What type of applications is the ENP-120-12 best suited for?
This model is designed as a desktop type AC/DC power supply or charger for equipment that requires a 13.8V DC output. It is generally a fit for industrial, commercial, and battery charging use cases where a fanless enclosed external supply is preferred.
Can the ENP-120-12 operate in demanding temperature conditions?
Yes. The specified working temperature range is -30°C to +70°C, which supports use in a wide range of operating environments. Its fanless design also helps reduce moving-part wear in dust-sensitive or maintenance-conscious settings.
What protections are built into the ENP-120-12?
The ENP-120-12 includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection is specified at 110% to 125% with constant current limiting and auto-recovery.
How energy efficient is the ENP-120-12?
This model meets Energy Efficiency Level VI and has no-load power consumption below 0.15W. It is also listed as complying with EISA 2007/DoE, NRCan, and EU ErP requirements.
What input range does the ENP-120-12 support?
The ENP-120-12 supports universal input from 90 to 264VAC, and it also accepts 127 to 370VDC. That wide input range makes it easier to use across regions and power systems without needing a different model for standard mains variations.
What certifications and standards does the ENP-120-12 meet?
The unit is specified to meet IEC62368-1 and UL62368-1 safety standards. For EMC, it is listed to EN55032 Class B and related EN61000 series standards.
