Over 15 years experience of providing support of MEAN WELL Power Supplies
Description
Description
Features
Universal AC input/Full range |
Built-in active PFC function |
Energy efficiency Level VI |
No load power consumption <0.15W |
Comply with EISA 2007/DoE, NRCan, and EU Erp |
125% peak load capability |
Fanless design, cooling by free air convection |
Protection: Short circuit/ Overload/ Over voltage/ Over temperature |
3 years warranty |
General Specification
AC input voltage range | 90~264VAC 127~370VDC |
AC inrush current (max.) | Cold start, 65A at 230VAC |
Overload protection | 110~125% Constant current limiting, auto-recovery |
Over-voltage protection | 112%~132% rated voltage |
Setup, rise, hold up time | 1000ms,100ms,20ms at full load |
Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -30~+70ºC |
Safety standards | IEC62368-1, UL62368-1 |
EMC standards |
EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11 |

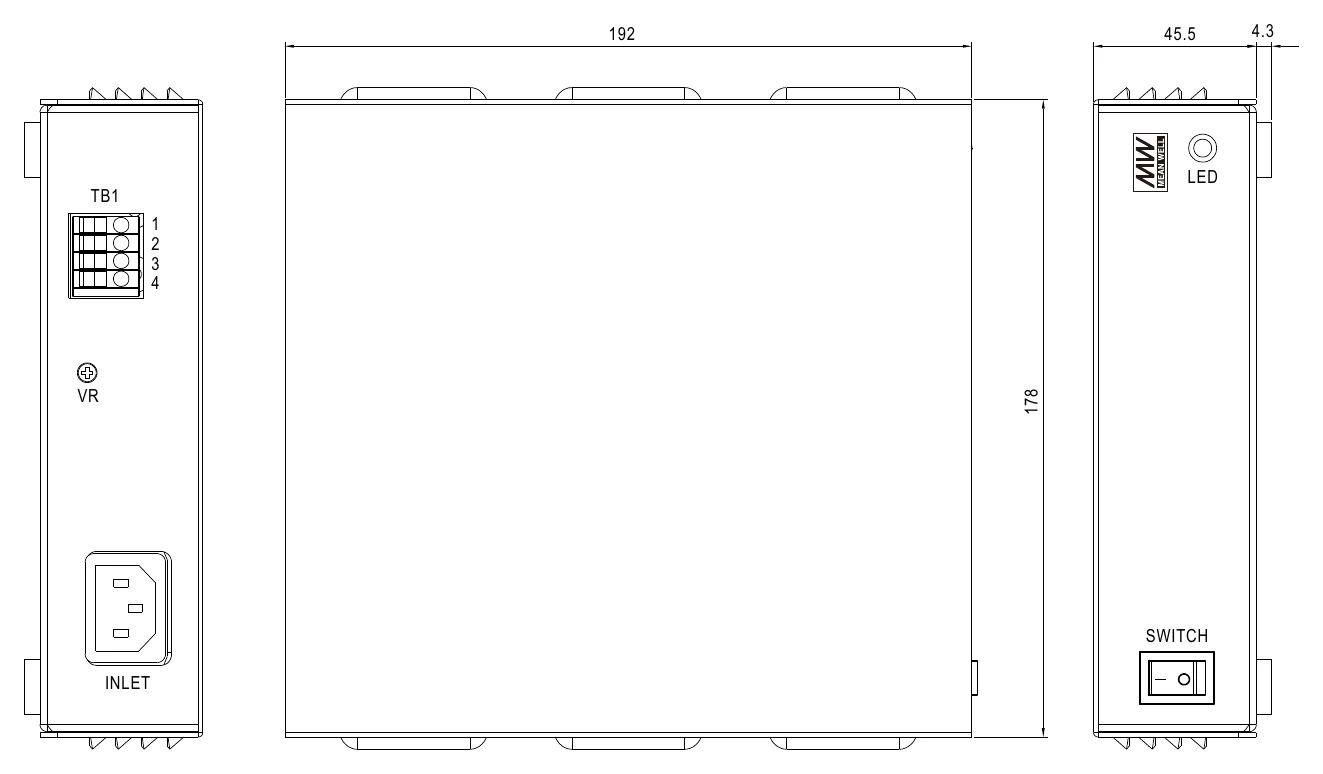

Dimension (LxWxH) (mm) | 192x178x45.5mm |
Packing | 10pcs/10.8Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesENP Series
-
Power Rating120 Watt
-
Output Voltage27.6 Volt
-
Rated Current4.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.56 in
-
Width7.01 in
-
Height1.79 in
-
Weight2.16 lb
File Downloads
File Downloads
::specification::
