Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

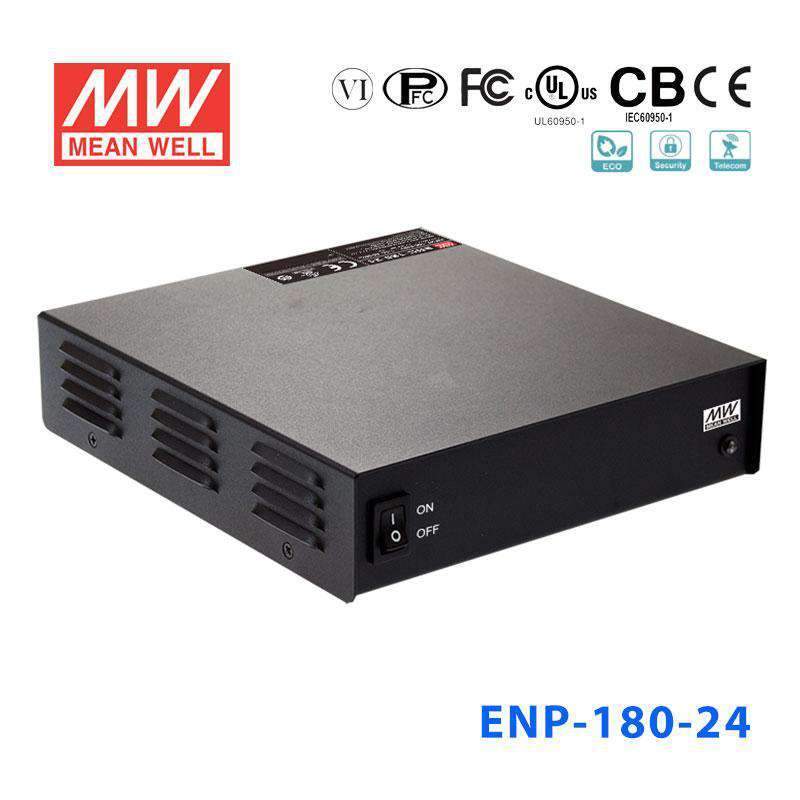

Mean Well ENP-180-24 Desktop Type Chargers 180W 27.6V 6.5A - Level VI Power Supply

Q: What are the main output specifications of the Mean Well ENP-180-24?

The ENP-180-24 is rated for 180W output with a nominal output of 27.6V DC and 6.5A. That makes it a higher-power desktop charger and power supply option for equipment that requires this voltage and current range.

Q: What kind of AC input range does the ENP-180-24 support?

This model accepts a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That wide range helps it fit commercial and industrial environments where input voltage flexibility matters.

Q: Is the ENP-180-24 designed for energy-efficient operation?

Yes. The ENP-180-24 is rated to Energy Efficiency Level VI and has no-load power consumption below 0.15W. It also complies with EISA 2007/DoE, NRCan, and EU ErP requirements listed for this model.

Q: Can this power supply handle demanding operating environments?

The ENP-180-24 has a specified working temperature range of -30°C to +70°C. It is also fanless and cooled by free air convection, which can be useful where low maintenance and quiet operation are preferred.

Q: What protection features are built into the ENP-180-24?

This model includes protection for short circuit, overload, over voltage, and over temperature. It also supports 125% peak load capability, and the overload behavior is specified as constant current limiting with auto-recovery after the peak condition is removed.

Q: What certifications and standards does the ENP-180-24 meet?

The ENP-180-24 is approved to IEC62368-1, UL62368-1, and EAC TP TC 004, and it meets BS EN/EN62368-1. Its EMC compliance includes EN55032 Class B and EN61000 series standards listed in the product specification.

Q: What is the physical size and warranty for the ENP-180-24?

The enclosure dimensions are 192 x 178 x 45.5 mm, and the unit weight is listed as 1.15 kg. Mean Well specifies a 3-year warranty for this model.

energy efficiency level VI, no load power consumption

SKU:

ENP-180-24

$72.69 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input/Full range

Built-in active PFC function

Energy efficiency Level VI

No load power consumption <0.15W

Comply with EISA 2007/DoE, NRCan, and EU Erp

125% peak load capability

Fanless design, cooling by free air convection

Protection: Short circuit/ Overload/ Over voltage/ Over temperature

3 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
Overload protection	Normally works within 110 ~ 125% rated output power for more than 3 seconds and switches to constant current limiting, with auto-recovery after the peak load condition is removed
Over-voltage protection	112%~131% rated voltage
Setup, rise, hold up time	1000ms,100ms,20ms at full load
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70ºC
Safety standards	IEC62368-1, UL62368-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1
EMC standards	EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) (mm)	192x178x45.5mm
Packing	10pcs/12.5Kg

Specifications

Brand

Mean Well
Series

ENP Series
Power Rating

180 Watt
Output Voltage

27.6 Volt
Rated Current

6.5 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,cUL,EAC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

7.56 in
Width

7.01 in
Height

1.79 in
Weight

2.54 lb

File Downloads

::specification::
