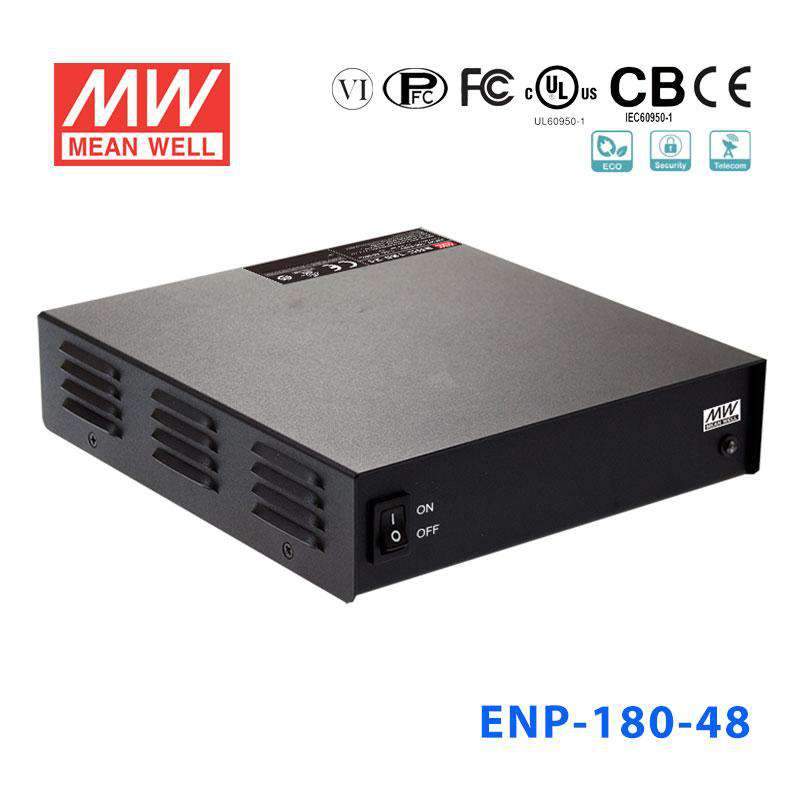

Mean Well ENP-180-48 Desktop Type Chargers 180W 55.2V 3.3A - Level VI Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ENP-180-48 Desktop Type Chargers 180W 55.2V 3.3A - Level ...
EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Key Features
- ✓✓Universal AC input/Full range
- ✓✓Built-in active PFC function
- ✓✓Energy efficiency Level VI
- ✓✓No load power consumption <0.15W
- ✓✓Comply with EISA 2007/DoE, NRCan, and EU Erp
- ✓✓125% peak load capability
- ✓✓Fanless design, cooling by free air convection
- ✓✓Protection: Short circuit/ Overload/ Over voltage/ Over temperature
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesENP Series
-
Power Rating180 Watt
-
Output Voltage55.2 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.56 in
-
Width7.01 in
-
Height1.79 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well ENP-180-48?
The ENP-180-48 is a 180W desktop power supply rated for 55.2V output at 3.3A. It is designed for applications that need a higher DC output voltage with a compact external form factor.
Is the ENP-180-48 energy efficient for commercial or OEM use?
Yes. This model meets Energy Efficiency Level VI and has no-load power consumption below 0.15W. It also complies with EISA 2007/DoE, NRCan, and EU ErP requirements, which is useful for regulated markets and energy-conscious equipment designs.
What protections are built into the ENP-180-48?
The ENP-180-48 includes short circuit, overload, over-voltage, and over-temperature protection. Its overload behavior supports 110% to 125% of rated output power for more than 3 seconds before shifting to constant-current limiting, with auto-recovery after the condition is removed.
Can the ENP-180-48 operate in demanding temperature conditions?
This model has a specified operating temperature range of -30°C to +70°C. Its fanless design uses free air convection for cooling, which can be beneficial in environments where low noise and reduced moving parts are preferred.
What types of equipment is the ENP-180-48 suitable for?
The ENP-180-48 is suited to equipment that requires a regulated 55.2V DC output from a desktop-style external power supply. B2B buyers commonly consider this format for industrial, commercial, and battery-charging-related applications where efficiency, protection features, and a Level VI external supply are important.
What input range and compliance standards does the ENP-180-48 support?
This unit accepts a universal input range of 90 to 264VAC or 127 to 370VDC and includes active PFC. It is approved to IEC62368-1, UL62368-1, and EAC TP TC 004, and meets BS EN/EN62368-1 along with listed EMC standards including EN55032 Class B.
What are the physical size and warranty for the ENP-180-48?
The enclosure measures 192 x 178 x 45.5 mm and the product weight is listed as 1.15 kg. Mean Well specifies a 3-year warranty for this model.
