Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

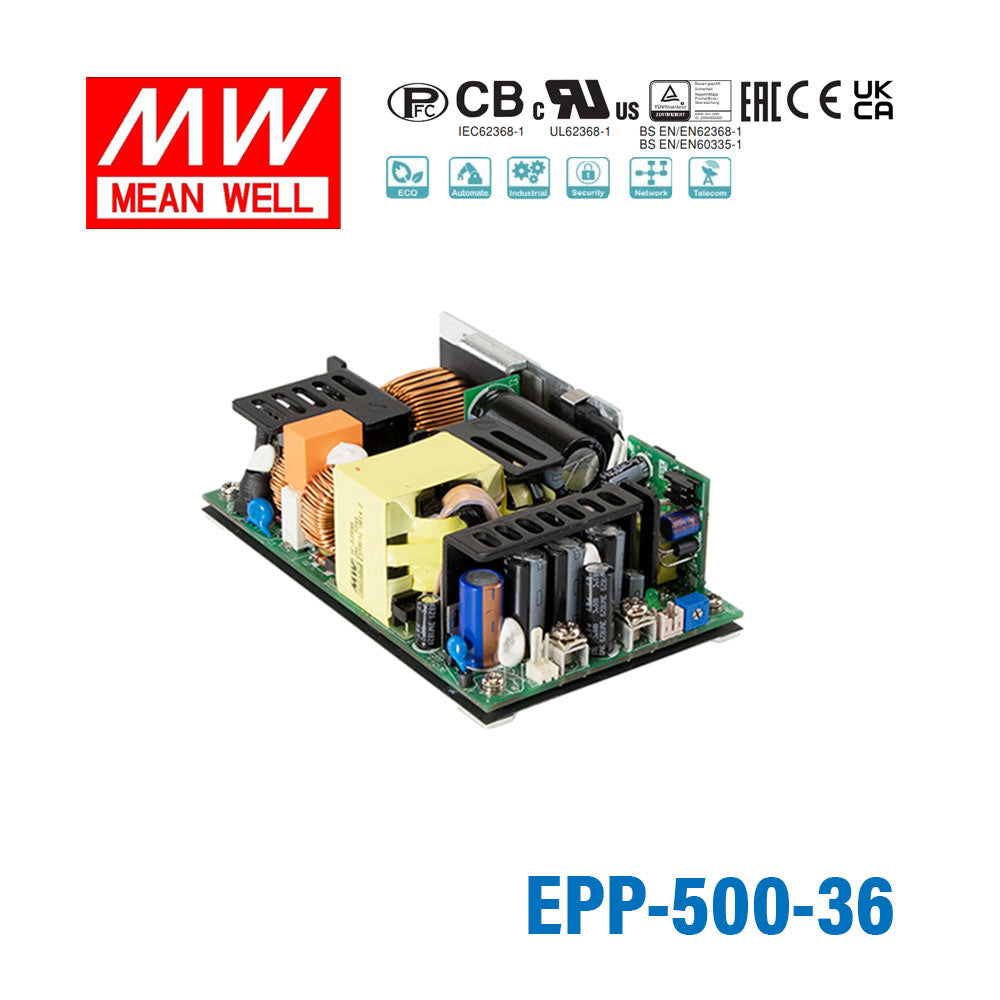

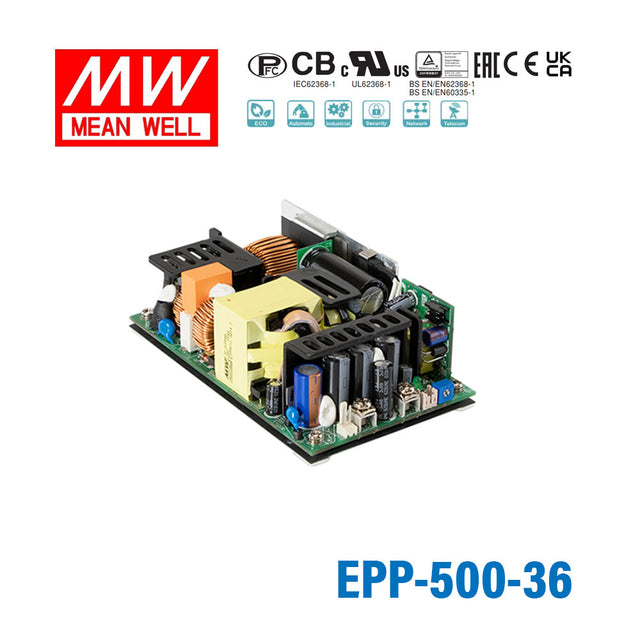

Mean Well EPP-500-36 Power Supply 320W 36V

Q: Can I use the EPP-500-36 for 36V industrial equipment?

Yes, this model is intended for constant 36V output applications. It can support 36V industrial or embedded loads up to 8.9A and 320.4W.

Q: Is the EPP-500-36 suitable for a compact OEM or automation build that needs 36V DC?

It can be a fit where the system requires 36V DC from an AC source and the power budget stays within 320.4W. The mechanical size is 127.0 x 76.2 x 41.0 mm with a weight of 0.46 kg.

Q: Can this power supply run multiple 36V devices in one control assembly?

It can, provided the total 36V demand stays at or below 8.9A and 320.4W. All connected equipment should be designed for constant 36V input.

Q: Is the EPP-500-36 rated for indoor-only use or for outdoor conditions too?

Its operating temperature range is -30C to +70C, so the thermal rating is broad. Because no IP rating is shown in the provided specs, it is better treated as a supply for protected indoor use or installation inside an enclosure.

Q: What is the difference between the EPP-500-36 and the other EPP-500 power supplies?

The EPP-500 series includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 36V version provides less current than the lower-voltage siblings but keeps the same approximate 320W output class.

5" x 3", high efficiency up to 93%, economical PFC, no load power consumption

SKU:

EPP-500-36

$97.19 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

5"x3" compact size

320W convection, 500W force air
550W peak power (3sec)

EMI for both Class I & Class II configuration

-30~+70℃ wide range operating temperature

No load power consumption<0.5W by PS ON control

High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense

Operating altitude up to 5000 meters (Note.5)

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	80 ~ 264VAC; 113 ~ 370VDC
AC inrush current	COLD START 40A/115VAC
Leakage current	<0.75mA / 240VAC
Overload protection	105 ~ 135% rated output power
Over-voltage protection	110%~130% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 10ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	127x76.2x41
Packing	30pcs / 14.8kg

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

320.4 Watt
Output Voltage

36 Volt
Rated Current

8.9 Ampere
Input Voltage

80V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

5 in
Width

3 in
Height

1.61 in
Weight

1.01 lb
