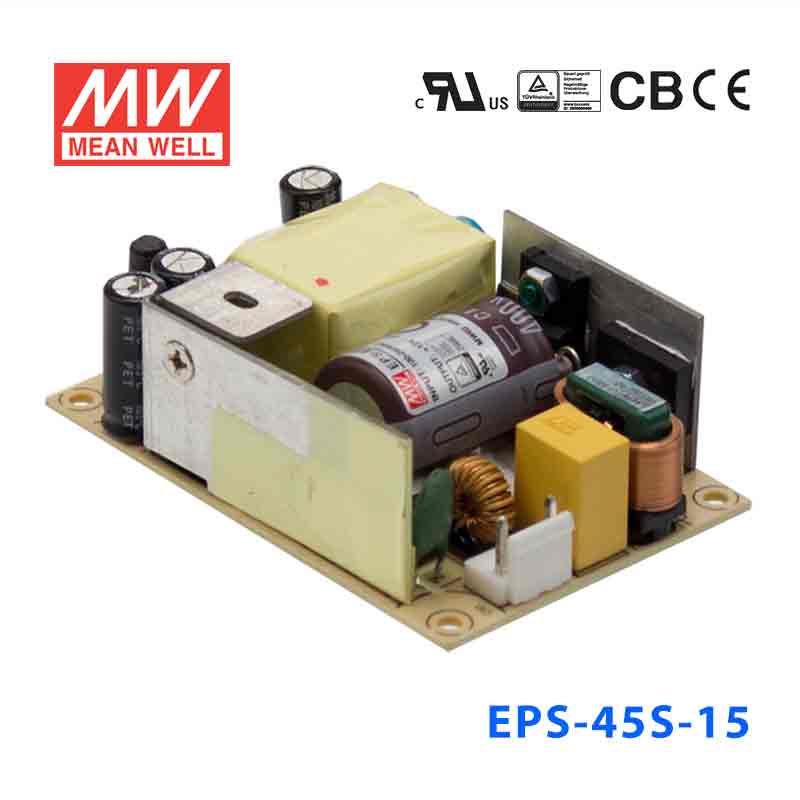

Mean Well EPS-45S-15 Power Supply 45W 15V
Description
Description
The EPS-45S is a 45W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-45S-15 for a 15V industrial controller or instrumentation module?
Yes, this is a constant voltage 15V supply rated for up to 3A and 45W. It fits industrial control, instrumentation, or embedded equipment designed for 15V DC within those ratings.
Is the EPS-45S-15 a fit for embedded electronics that need 15V DC from AC input?
It can be used for embedded systems that require a regulated 15V output and draw no more than 3A. The 80-264VAC input range supports use in equipment intended for broad AC input conditions.
Would this model work for a compact automation or test system with a 15V load?
Yes, provided the system needs constant 15V and its total load stays within 45W and 3A. Its 76.2 x 50.8 x 24.0 mm dimensions make it easier to place in compact internal layouts.
Can the EPS-45S-15 be used for 15V communication or signal-processing equipment?
It is suitable for communication, sensing, or signal-processing equipment that is specified for constant 15V input. The electrical limit is 3A with a maximum rated power of 45W.
Is the EPS-45S-15 intended for wet or exposed outdoor environments?
No IP rating is listed for this model, so the product information does not confirm protection against water or dust exposure. The operating temperature range is -30°C to +70°C, which addresses temperature capability but not environmental sealing.
How does the EPS-45S-15 compare with other 15V EPS power supplies?
The listed 15V EPS models are EPS-15-15 at 15W and 1A, EPS-25-15 at 25.5W and 1.7A, EPS-35-15 at 36W and 2.4A, EPS-45-15 at 45W and 3A, EPS-45-15-C at 45W and 3A, EPS-45S-15 at 45W and 3A, EPS-65-15 at 65.1W and 4.34A, EPS-65-15-C at 65.1W and 4.34A, EPS-65S-15 at 65.1W and 4.34A, and EPS-120-15 at 84W and 5.6A. The EPS-45S-15 is in the middle tier of the 15V range.
Other EPS-45S Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-45S-7.5 Power Supply 40W 7.5V | 40.5W | 7.5V | 5.4A | Indoor | $15.69 | View |
| Mean Well EPS-45S-5 Power Supply 40W 5V | 40W | 5V | 8A | Indoor | $15.69 | View |
| Mean Well EPS-45S-48 Power Supply 45W 48V | 45.1W | 48V | 0.94A | Indoor | $15.69 | View |
| Mean Well EPS-45S-3.3 Power Supply 26W 3.3V | 26.4W | 3.3V | 8A | Indoor | $15.69 | View |
| Mean Well EPS-45S-24 Power Supply 45W 24V | 45.6W | 24V | 1.9A | Indoor | $15.69 | View |
| Mean Well EPS-45S-12 Power Supply 45W 12V | 45.6W | 12V | 3.8A | Indoor | $15.69 | View |
