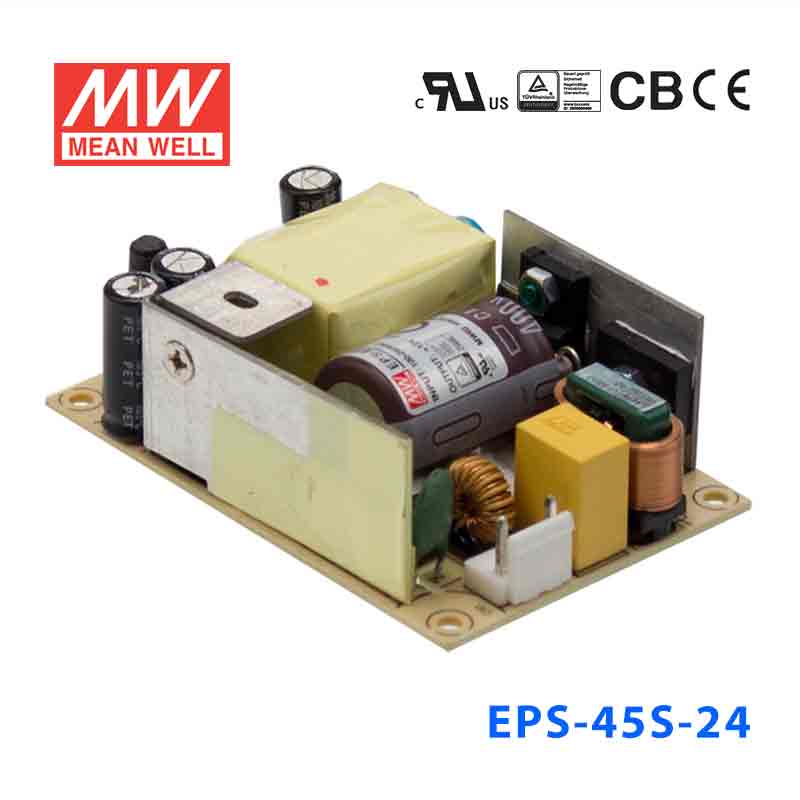

Mean Well EPS-45S-24 Power Supply 45W 24V 1.9A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-45S-24 Power Supply 45W 24V 1.9A
Overview
EPS-45S-24 is the 24V output model of this series: rated current 1.9A, rated power 45.6W, typical efficiency 90%.
EPS-45S is a 45W highly reliable green PCB type industrial power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. EPS-45S is able to be used for ClassⅡ(no FG) system design.
Features
- 3"×2" miniature size
- Universal AC input / Full range
- ClassⅡ(without FG) installations
- No load power consumption<0.1W
- High efficiency up to 91%
- For 1U applications
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- -30~70℃wide range of operating temperature
- Operating altitude up to 5000 meters
- LED indicator for power on
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 1.9A
- CURRENT RANGE
- 0 ~ 2.1A
- RATED POWER
- 45.6W
- PEAK LOAD(10sec.)Note.2
- 50.2W
- RIPPLE & NOISE (max.)Note.3
- 240mVp-p
- VOLTAGE ADJ.RANGE
- 22.8~27.6V
- VOLTAGE TOLERANCENote.4
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 30ms / 230VAC 12ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 80 ~ 264VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT (Typ.)
- 1.2A / 115VAC 1A / 230VAC
- INRUSH CURRENT (Typ.)
- COLD STAR 30A/115VAC 60A/230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA/264VAC
PROTECTION
- OVERLOAD
- 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28.4~32.4V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- OPERATING ALTITUDENote.7
- 5000 meters
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 8)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, CCC GB4943.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P: 3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032(CISPR32) Class B, BS EN/EN61000-3-2,3, GB9254.1 Class B,GB17625 Class A, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, Heavy industry Level , EAC TP TC 020
OTHERS
- MTBF
- 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 706.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 76.2*50.8*24mm or 3" * 2" *0.945" inch (L*W*H)
- PACKING
- 0.11Kg; 120pcs/14.2Kg/0.94CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. Touch current was measured from primary input to DC output.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8. The power supply is considered a component which will be installed into a final equipment. "All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness." The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the EPS-45S-24 for a 24V industrial sensor controller or automation module?
Yes, this model provides constant voltage output at 24V with up to 1.9A and 45.6W available. It is appropriate for industrial sensing, automation, or embedded equipment designed for 24V DC within those limits.
Is the EPS-45S-24 suitable for 24V embedded systems in compact OEM equipment?
It can be a fit for compact OEM equipment that needs a regulated 24V source and draws no more than 1.9A. The 76.2 x 50.8 x 24.0 mm size is useful where board space and enclosure depth are limited.
Would this 24V power supply work for industrial communications or control electronics?
Yes, if the electronics are designed for constant 24V input and stay within the 45.6W and 1.9A rating. The 80-264VAC input range also helps when the equipment is intended for multiple AC input standards.
Can the EPS-45S-24 be used in monitoring or data-acquisition equipment that runs on 24V?
It is suitable for monitoring, data-acquisition, or automation assemblies that require regulated 24V DC. The supported output is up to 1.9A, with total output power rated at 45.6W.
Is the EPS-45S-24 okay for outdoor cabinets or exposed locations?
No IP rating is listed, so the available product data does not establish outdoor or exposed-environment suitability. The operating temperature range is -30°C to +70°C, but that temperature rating does not replace an IP enclosure rating.
How does the EPS-45S-24 compare with other 24V models in the EPS lineup?
The EPS-45S spec sheet lists one 24V model, the EPS-45S-24 at 45.6W and 1.9A. The other versions are EPS-45S-3.3 at 26.4W, 3.3V, 8A; EPS-45S-5 at 40W, 5V, 8A; EPS-45S-7.5 at 40.5W, 7.5V, 5.4A; EPS-45S-12 at 45.6W, 12V, 3.8A; EPS-45S-15 at 45W, 15V, 3A; and EPS-45S-48 at 45.1W, 48V, 0.94A. The EPS-45S-24 shares the series' highest rated power of 45.6W with the EPS-45S-12.
