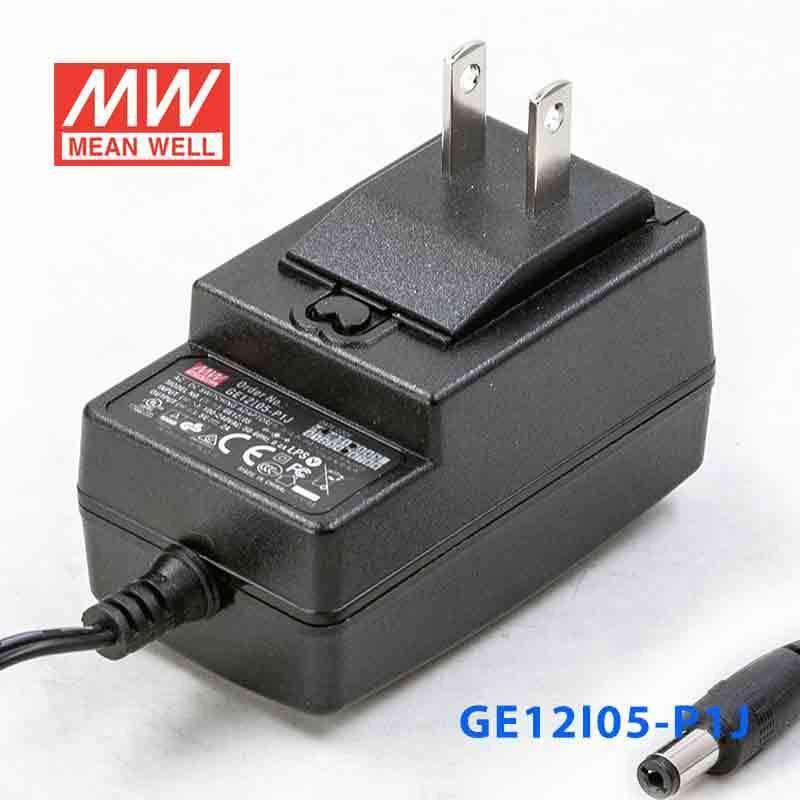

Mean Well GE12I05-P1J Power Supply 10W 5V

Q: Can I use the GE12I05-P1J for a 5V industrial controller or small automation module?

It is intended for constant voltage applications with a 5V output and up to 2A output current. That makes it a fit for 5V control electronics, embedded modules, or low-power automation devices that stay within the 10W rating.

Q: Is this 5V power supply suitable for USB-powered embedded or IT equipment?

This model provides a regulated 5V constant voltage output with a 10W maximum power rating. It can be considered for 5V embedded or IT hardware that requires up to 2A and accepts an external AC-DC supply.

Q: Can I use this adapter for a compact HMI, sensor hub, or edge device that runs on 5V?

It can support 5V equipment as long as the total load does not exceed 2A or 10W. The compact body size of 70.7 x 40.0 x 38.8 mm can also help where enclosure space is limited.

Q: Is the GE12I05-P1J suitable for outdoor or harsh-environment use?

The listed operating temperature is -10°C to +50°C, but no IP rating is provided in the product specs. Based on the published data, it is better matched to environments within -10°C to +50°C where no outdoor or washdown protection rating is required.

Q: How does the GE12I05-P1J compare with the other variants in this series?

The listed sibling variants are GE12I05-P1J-欧套, GE12I05-P1J-混套, GE12I05-P1J-澳套, GE12I05-P1J-美套, and GE12I05-P1J-英套. For this base model, the published specs are 10W, 5V, 2A, constant voltage, 90-264VAC input, and 70.7 x 40.0 x 38.8 mm dimensions.

SKU:

GE12I05-P1J

$10.83 USD ~~$13.54~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Interchangeable AC plugs (plug kit sold seperately)

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.3W

ErP step 2 compliant (Level V)

Meet EISA 2007 (Energy Independence and Security Act)

Class II power (without earth pin)

Fully enclosed plastic case

LED indicator for power on

Pass LPS

Approvals: UL / CUL / TUV / CCC / RCM / CB / FCC / CE

2 years warranty

General Specification

AC input voltage range	90~264VAC / 0.4A
AC inrush current (max.)	Cold start, 40A at 100VAC; 80A at 230VAC
Setup, rise, hold up time	4000ms, 100ms, 30ms at 230VAC input
Overload protection	Hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P:4242VDC, 1 minute
Working temperature	-10~+50°C (refer to output derating curve)
Safety standards	UL60950-1, CSA22.2, EN60950-1, GB4943, AS/NZS 60950.1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B, GB9254
Length of output cable	150cm of AWM2468, 20AWG
Dimension (LxWxH)	70.7x 40x 38.8 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

10 Watt
Output Voltage

5 Volt
Rated Current

2 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

2.78 in
Width

1.57 in
Height

1.53 in
Weight

0.21 lb
