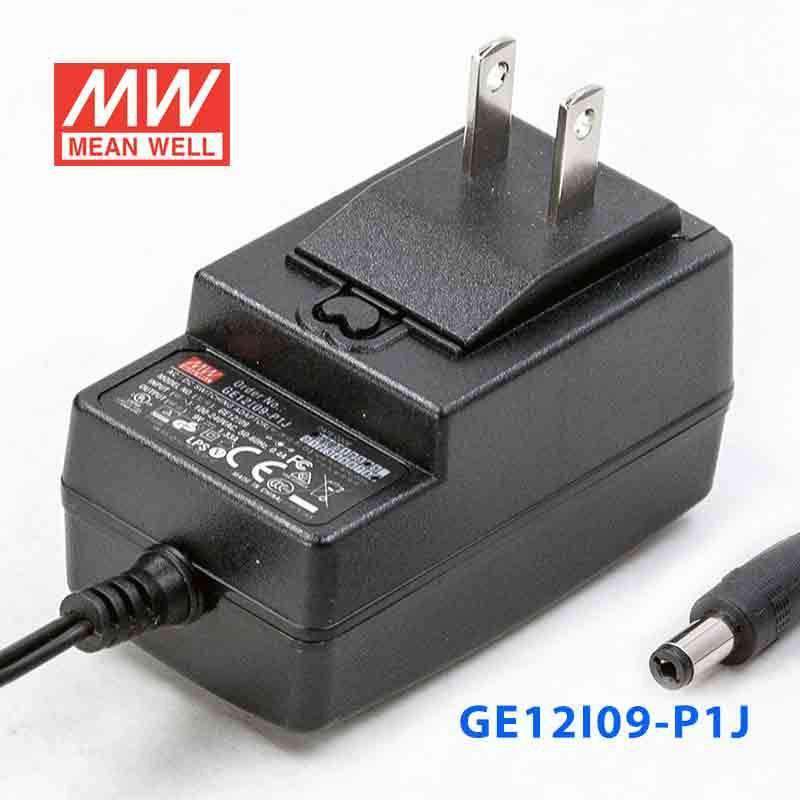

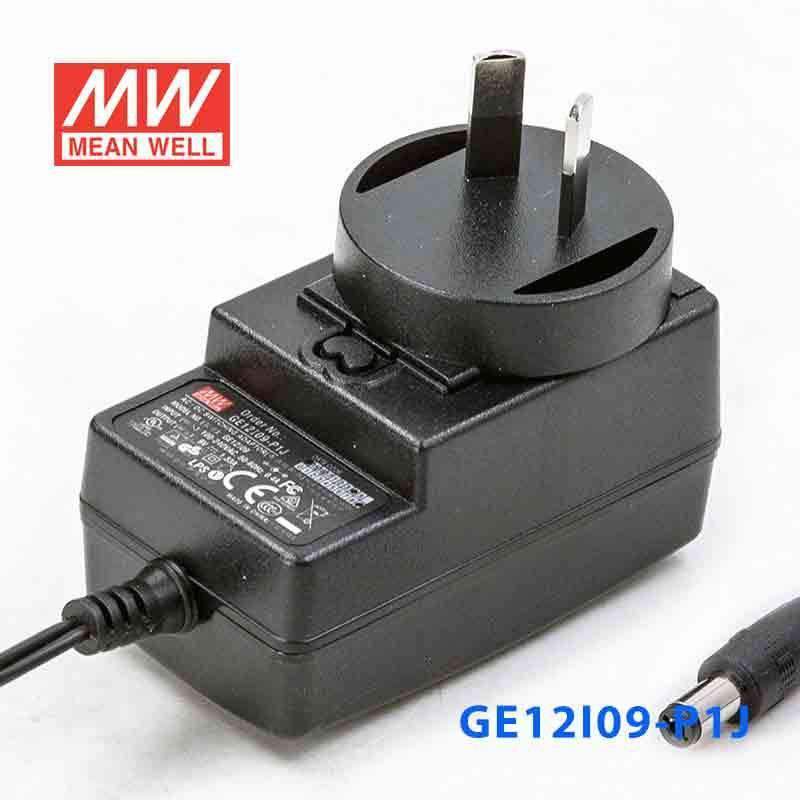

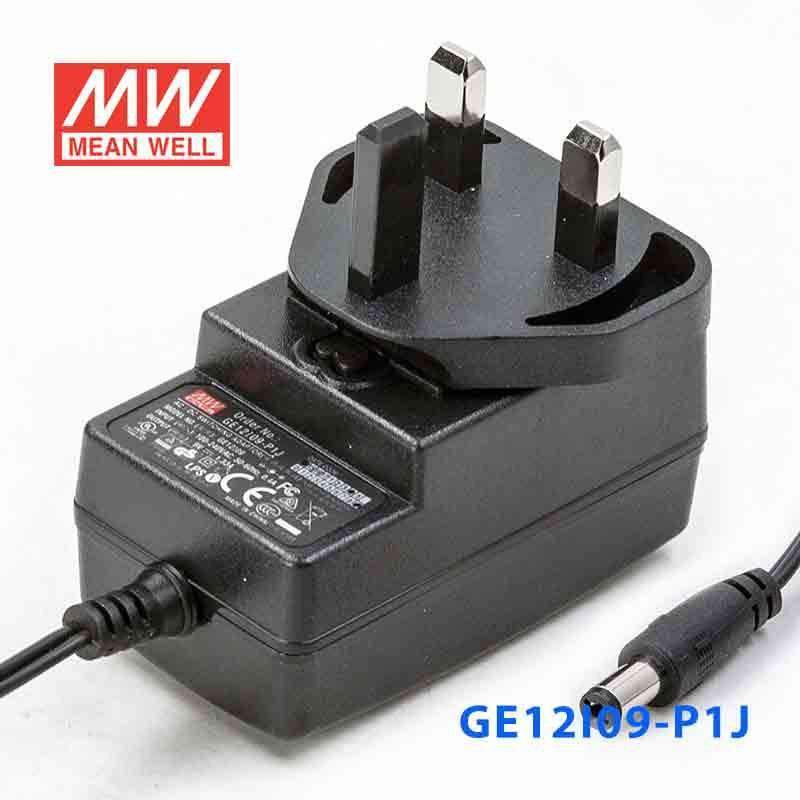

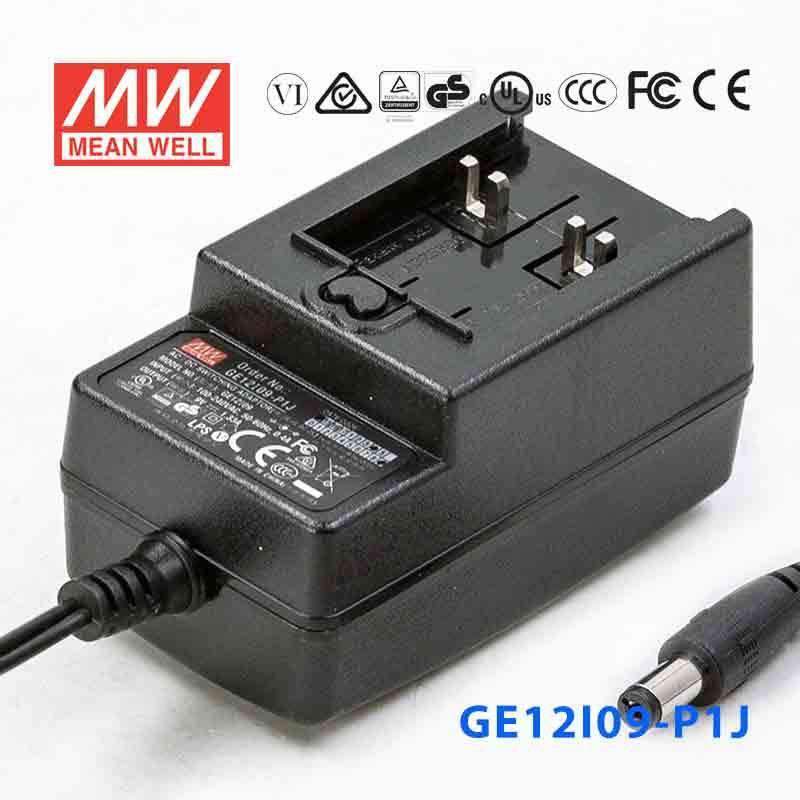

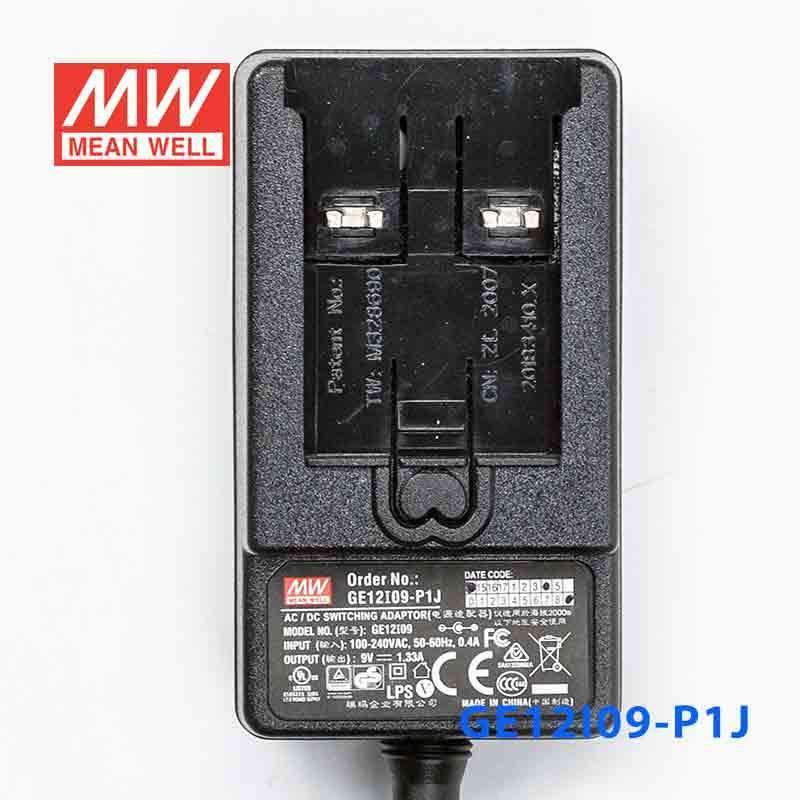

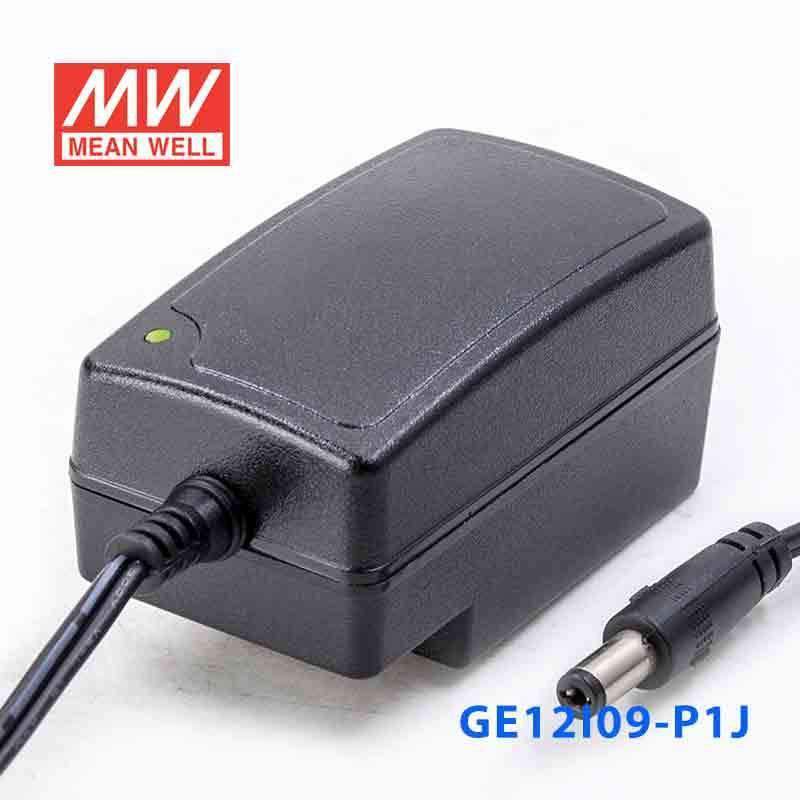

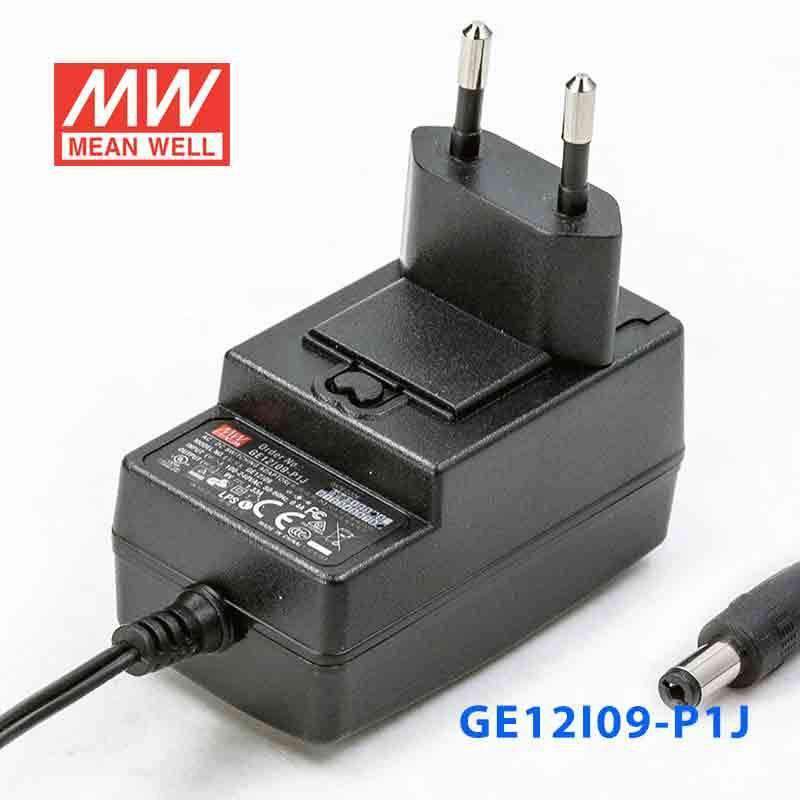

Mean Well GE12I09-P1J Power Supply 12W 9V
The GE12I09 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating12 Watt
-
Output Voltage9 Volt
-
Rated Current1.33 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length2.78 in
-
Width1.57 in
-
Height1.53 in
-
Weight0.21 lb
::specification::
Frequently Asked Questions
Can I use the GE12I09-P1J for a 9V network device, embedded system, or industrial peripheral?
It provides a constant voltage 9V output with up to 1.33A available current. That fits 9V electronics and peripherals that operate within the 12W maximum power rating.
Is this power supply suitable for 9V automation sensors, interfaces, or small control accessories?
It can be used where the load requires 9V constant voltage and does not exceed 1.33A. The 12W rating defines the upper limit for the connected 9V device.
Can the GE12I09-P1J power a compact 9V test, monitoring, or embedded device?
Yes, for equipment designed for a 9V DC input and a load at or below 1.33A. Its compact size of 70.7 x 40.0 x 38.8 mm may also help in space-constrained bench or cabinet layouts.
Is this 9V model rated for outdoor use or temperature extremes?
The specified operating temperature range is -10°C to +50°C. No IP rating is shown in the provided specs, so the published data supports use in environments within -10°C to +50°C where no outdoor ingress rating is required.
How does the GE12I09-P1J compare with the other versions in the same series?
The listed sibling variants are GE12I09-P1J-欧套, GE12I09-P1J-混套, GE12I09-P1J-澳套, GE12I09-P1J-美套, and GE12I09-P1J-英套. For this model, the published specs are 12W, 9V, 1.33A, constant voltage, 90-264VAC input, and 70.7 x 40.0 x 38.8 mm dimensions.
