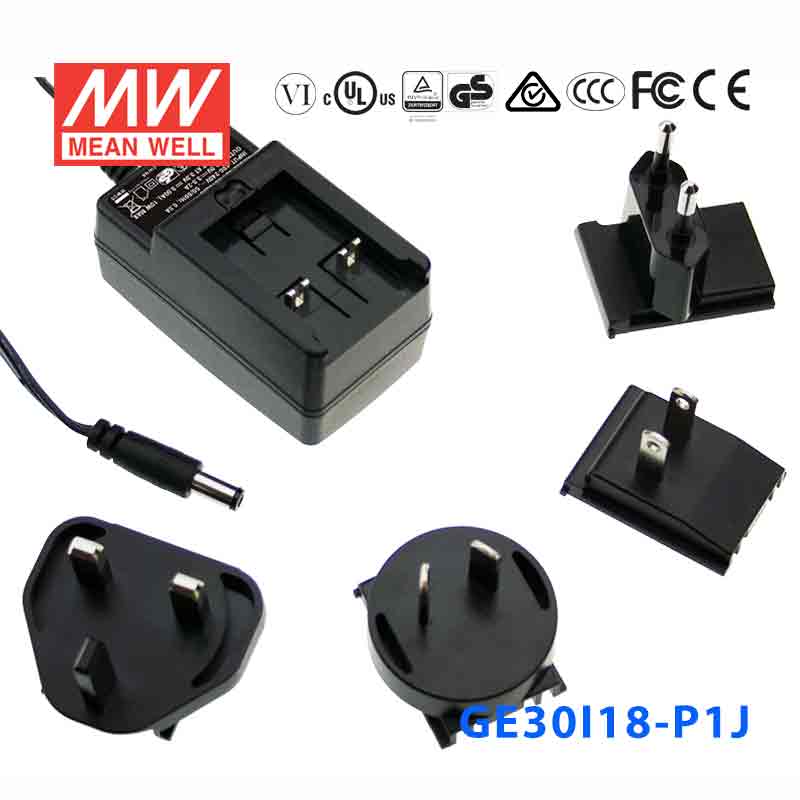

Mean Well GE30I18-P1J Power Supply 30W 18V
The GE30I18 is a 30W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating30 Watt
-
Output Voltage18 Volt
-
Rated Current1.66 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE30I18-P1J for an 18V industrial control or automation load?
Yes, if the load is designed for constant-voltage 18V DC and stays within 1.66A and 30W. It is suited to smaller 18V control or automation devices that do not need higher output current.
Is this 18V power supply suitable for an embedded system that specifies 18V input?
It can be suitable when the embedded system calls for 18V constant-voltage power. The output limit is 1.66A, with total available power of 30W.
Can this unit run an 18V monitoring, sensing, or instrumentation module?
It can support 18V modules as long as their total draw stays at or below 1.66A and 30W. Because this is a constant-voltage supply, it should be matched only to equipment rated for 18V DC input.
Would this work for a compact 18V automation accessory in a cabinet?
Yes, for compact 18V accessories that fit within the 30W output budget. The small housing size of 81.0 × 43.0 × 40.5 mm can also help where space is limited.
Is the GE30I18-P1J suitable for outdoor installations?
The operating temperature is listed as -10°C to +50°C, but no IP rating is provided. Based on the published specs, it should be treated as a protected indoor unit unless the final installation provides suitable environmental protection.
