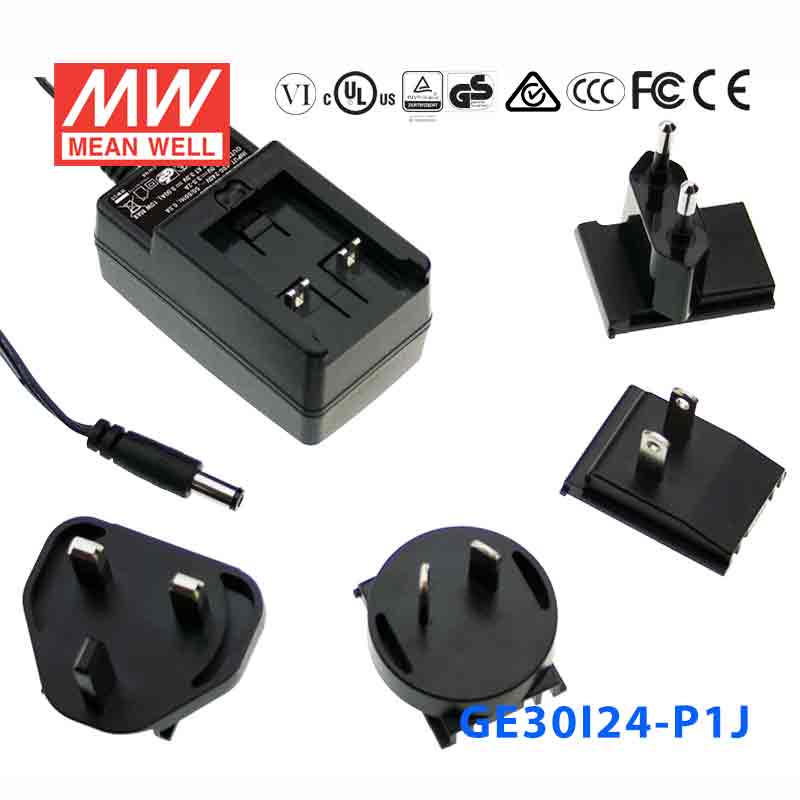

Mean Well GE30I24-P1J Power Supply 30W 24V
The GE30I24 is a 30W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length3.19 in
-
Width1.69 in
-
Height1.59 in
-
Weight0.3 lb
::specification::
Frequently Asked Questions
Can I use the GE30I24-P1J for a 24V PLC accessory or industrial control device?
Yes, if the equipment requires constant-voltage 24V DC and the load stays within 1.25A and 30W. That makes it a fit for lower-power 24V control accessories rather than larger 24V field loads.
Is this suitable for a 24V embedded computer, gateway, or communications device?
It can be used with 24V embedded or communications hardware that operates from constant-voltage DC input. The supply provides 24V at up to 1.25A, with a total output of 30W.
Can this power a 24V sensor interface or compact automation subsystem?
It can, provided the combined 24V load does not exceed 1.25A or 30W. Buyers should confirm the equipment requires 24V constant-voltage power, since this model is not for other output voltages.
Would this work for low-power 24V instrumentation or monitoring equipment?
Yes, for low-power 24V instrumentation that stays within the rated output. This model is intended for 24V applications where 30W is enough and a compact 81.0 × 43.0 × 40.5 mm package is useful.
Can I use this 24V power supply in unprotected outdoor conditions?
The specified operating range is -10°C to +50°C, but the product data does not list an IP rating. Without a stated ingress rating, it should not be assumed to be suitable for direct exposure to weather.
