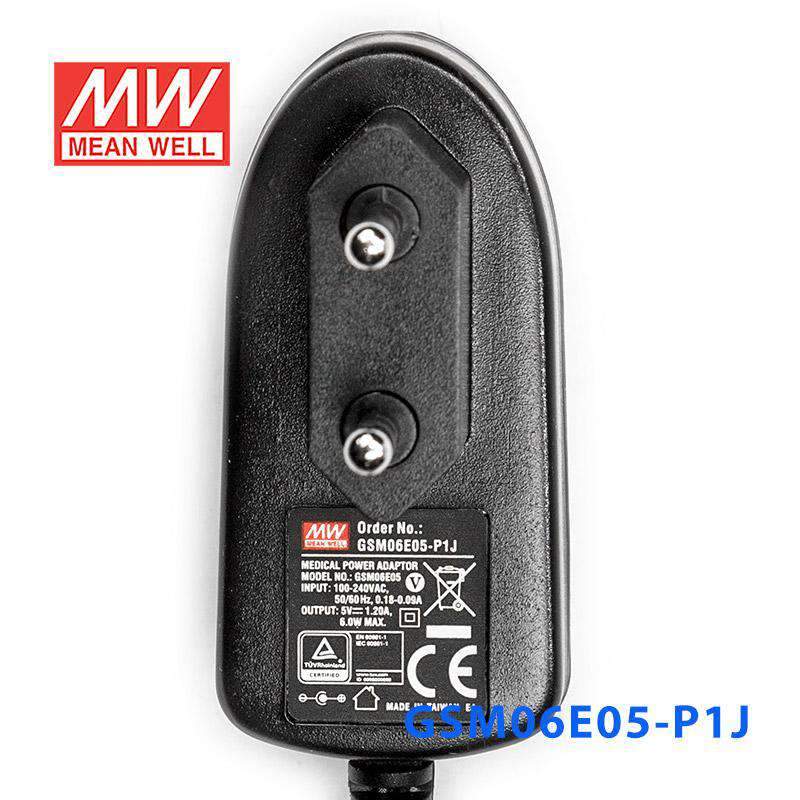

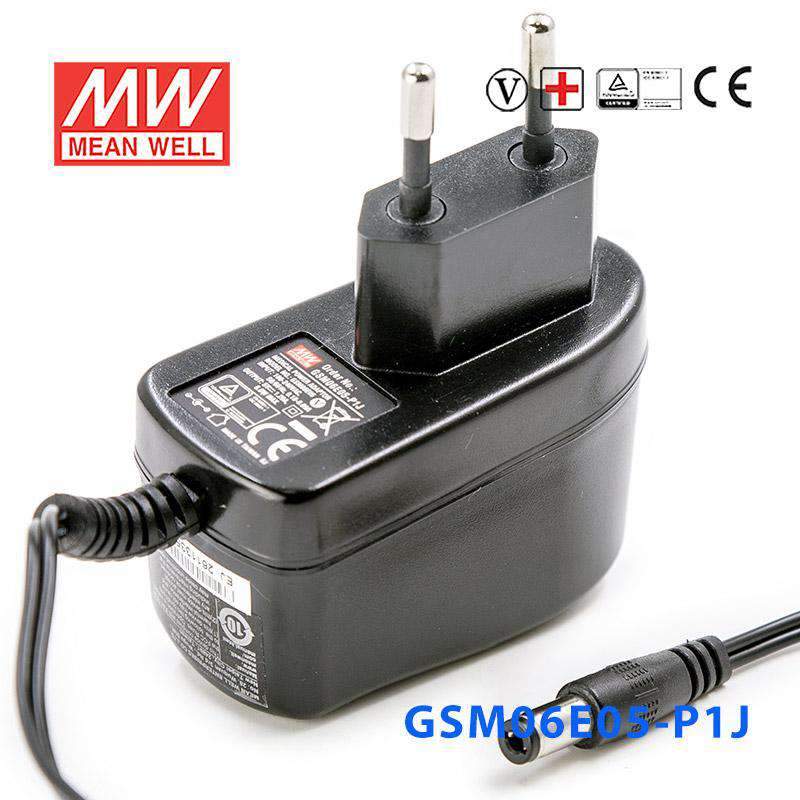

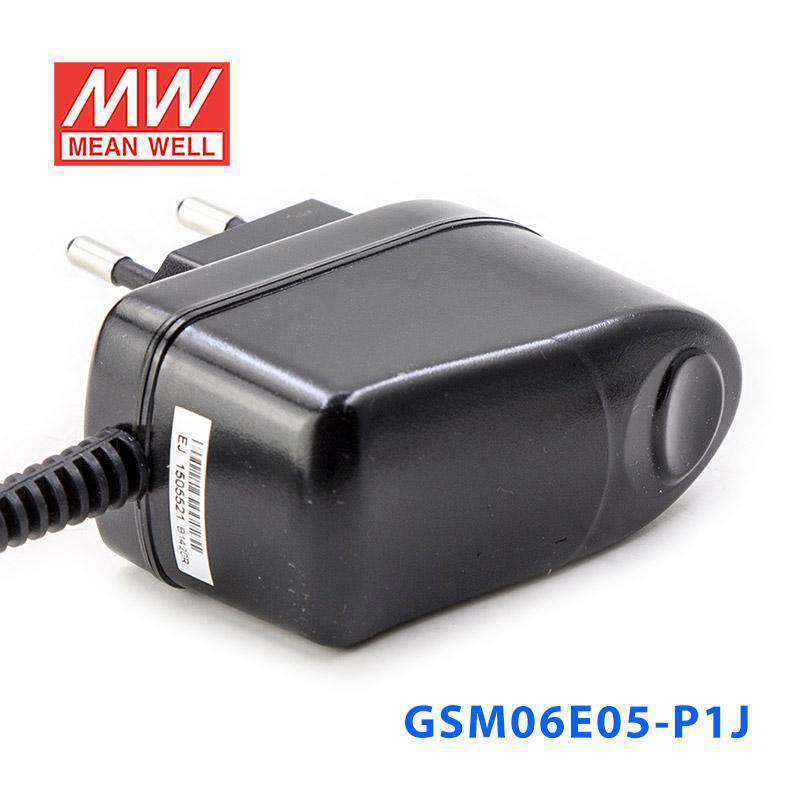

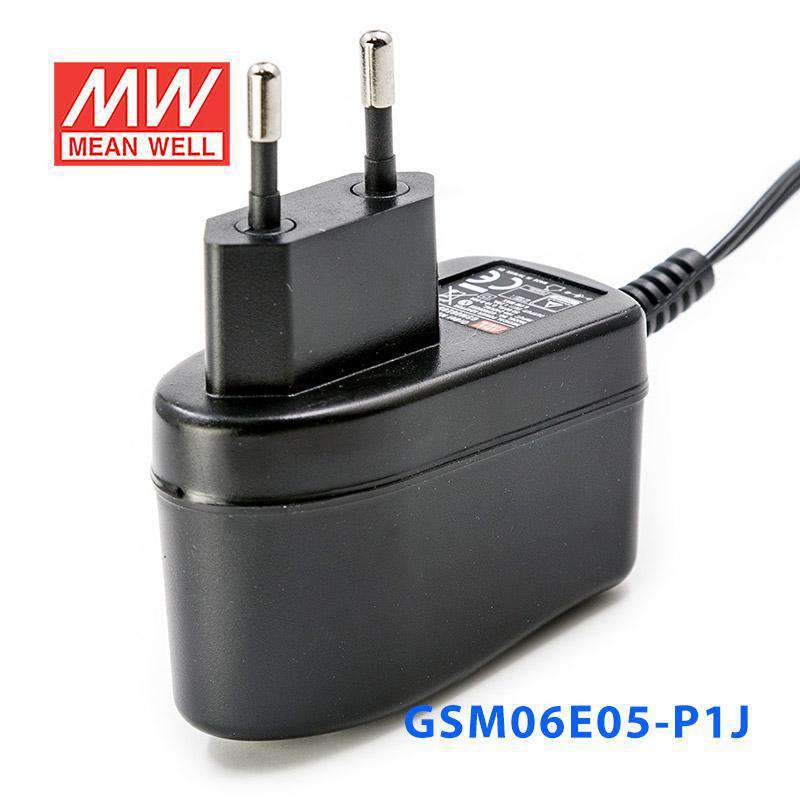

Mean Well GSM06E05-P1J Power Supply 06W 5V 1.2A
Overview
GSM06E05-P1J is the 5V output model of this series: rated current 1.2A, rated power 6W, typical efficiency 68%.
GSM06E is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06E is compliant with EU ErP. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06E is approved with the international medical safety certificates.
Features
- 2 pole EURO plug , Class Ⅱ power unit
- Medical safety approved (2 x MOPP) according to BS EN/EN60601-1
- Extremely low leakage current
- No load power consumption< 0.3W
- Energy efficiency Level Ⅴ
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM06E05
- DC VOLTAGENote.2
- 5V
- RATED CURRENT
- 1.2A
- CURRENT RANGE
- 0 ~ 1.2A
- RATED POWER
- 6W
- RIPPLE & NOISE (max.)Note.3
- 50mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±0.5%
- LOAD REGULATIONNote.6
- ±5.0%
- SETUP, RISE, HOLD UP TIME
- 1000ms, 50ms, 12ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 68%
- AC CURRENT
- 0.18A / 100VAC
- INRUSH CURRENT (max.)
- Cold start 15A/ 115VAC 30A / 230VAC
- LEAKAGE CURRENT(max.)
- Touch current < 50μA/264VAC
PROTECTION
- OVERLOAD
- >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 110 ~ 140% rated output power Protection type : Clamp by zener diode
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +50℃(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.04% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
- ISOLATION LEVEL
- Pimary - Secondary: 2 x MOPP
- WITHSTAND VOLTAGE
- I/P-O/P:5656VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11) Class B Radiated emission BS EN/EN55011 (CISPR11) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 500Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 32*66*42.5mm (L*W*H)
- PACKING
- 100g ; 90pcs / 10Kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes7
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 0% to 100% rated load.
- 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
Downloads
Datasheet1
Certificates3
Test reports1
FAQ
What are the main output specifications of the Mean Well GSM06E05-P1J?
This model is a 6W AC/DC medical adaptor with a regulated 5V DC output and a rated current of 1.2A. It uses the P1J DC plug size of 2.1mm x 5.5mm x 11mm with center positive polarity. The unit is designed for universal input from 85 to 264VAC.
Is the GSM06E05-P1J suitable for medical equipment applications?
Yes. The GSM06E05-P1J is medical safety approved to EN60601-1 and EN60601-1-11, with 2 x MOPP isolation between primary and secondary. It also features low leakage current below 50uA, which is important for medical and patient-care environments.
What kind of plug and input type does this power supply use?
This version uses a 2-pole EURO plug and accepts 85 to 264VAC input (120 to 370VDC is also listed). It is intended for regions and equipment setups that accept this plug style. Other plug and cable types are available on customer request.
What protection features are built into the GSM06E05-P1J?
The adaptor includes overload and over voltage protection. Overload protection acts above 105% of rated output power in hiccup mode with auto-recovery, helping protect both the power supply and the connected load. Over voltage protection is a zener diode clamp.
What operating environment is this adaptor rated for?
The GSM06E05-P1J is rated for operation from 0 to +50 degrees C, subject to the manufacturer's derating curve, at 20% to 90% RH non-condensing. Typical efficiency for this 5V model is 68%. For compliance-sensitive use, it meets listed EMC standards including EN60601-1-2.
Why would a buyer choose this model over a standard general-purpose 5V adaptor?
This model stands out because it combines a regulated 5V 1.2A output with medical approvals, 2 x MOPP isolation, and very low leakage current. It is a stronger fit when compliance, safety, and equipment-grade reliability matter more than using a basic consumer adaptor. Its MTBF of 500K hours minimum (MIL-HDBK-217F, 25°C) also supports long-term B2B purchasing requirements.
