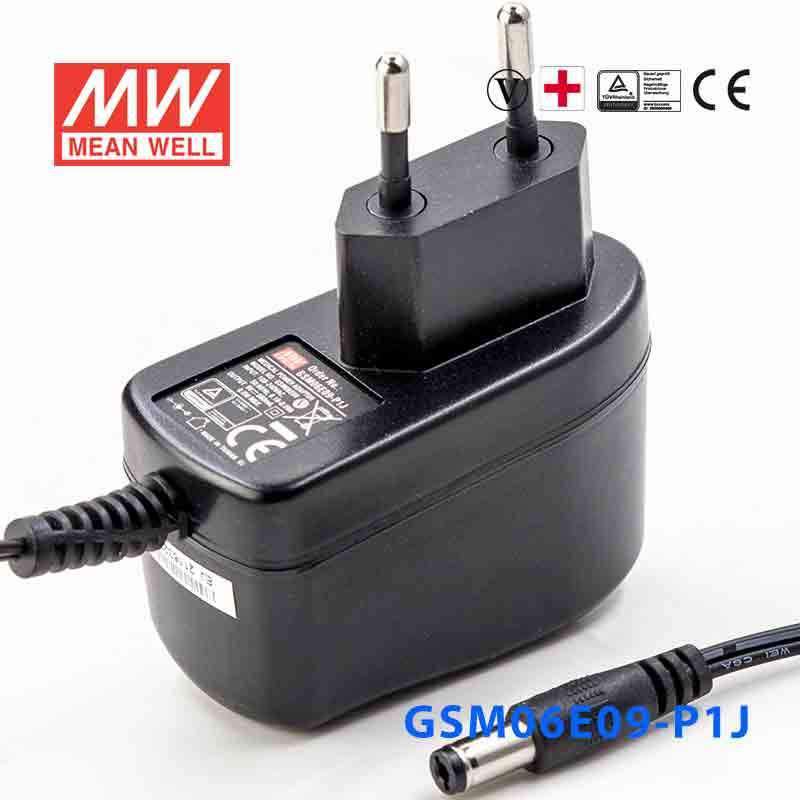

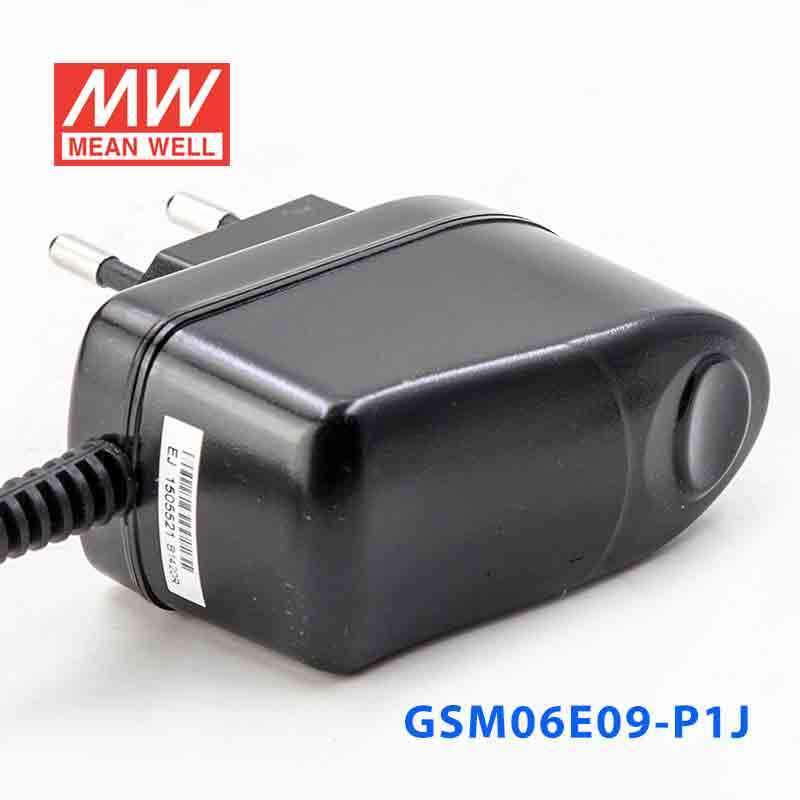

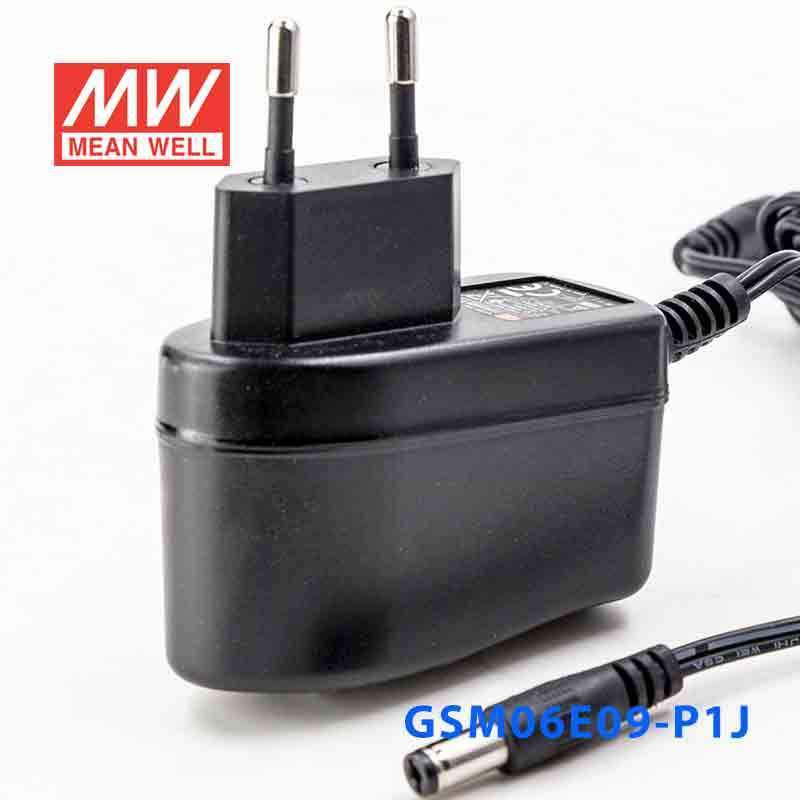

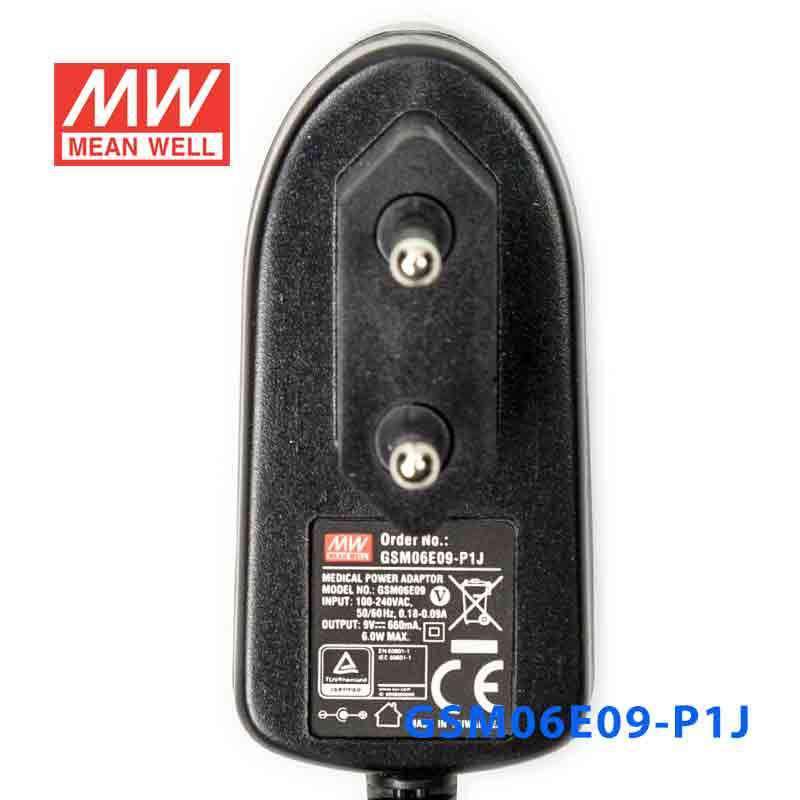

Mean Well GSM06E09-P1J Power Supply 06W 9V

SKU:
GSM06E09-P1J

Model
$14.48 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
2 pole EURO plug
Medical safety approved (2 x MOPP between primary to secondary)
Low leakage current <50uA
No load power consumption < 0.3W
High efficiency up to 82%
Class II power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Energy efficiency Level V
Optional lock type DC plug
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Overload protection >105% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 5656VAC
Working temperature 0~+50°C (refer to output derating curve )
Safety standards TUV EN60601-1,EN60601-1-11 approved
EMC standards EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2
Length of output cable 122cm of UL2468, 22AWG for 5~9V ; 183cm of UL2468, 24AWG for 12~24V
Dimension (LxWxH) 32x 66x 42.5 mm
Standard DC plug P1J: 2.1øx5.5øx11mm / C+, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    6 Watt
  • Output Voltage
    9 Volt
  • Rated Current
    0.66 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EAC,TUV
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    0°C~50°C
  • Warranty
    3 Year
  • Length
    2.6 in
  • Width
    1.67 in
  • Height
    1.26 in
  • Weight
    0.22 lb

File Downloads

::specification::

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GSM06E09-P1J for a 9V industrial sensor or transmitter?

It can fit a low-power industrial sensor or transmitter that requires constant 9V DC and draws no more than 0.66A. This model is rated for 6W total output, so the connected load needs to stay within that limit. The wide 85-264VAC input also helps when the AC source varies across sites.

Is this 9V power supply suitable for embedded control boards?

Yes, it can suit embedded boards or controller accessories that need constant 9V DC at up to 0.66A. Its 6W rating makes it a better fit for low-power electronics rather than larger loads. Buyers should match both the 9V output and the current draw before using it.

Can I use this adapter for small automation interface modules that run on 9V?

It is appropriate for small automation interface modules that require constant 9V DC and stay at or below 0.66A. With 6W available, it is intended for light-duty power needs rather than higher-consumption control hardware. The 85-264VAC input range supports use in a wide range of AC power environments.

Will the GSM06E09-P1J work for low-power IT or communications accessories that need 9V?

It can work for low-power IT or communications accessories if the device needs constant 9V DC and does not exceed 0.66A. The maximum output is 6W, so it is best suited to compact peripherals and control accessories. It is not sized for heavier 9V equipment with higher current demand.

Is the GSM06E09-P1J suitable for outdoor or harsh-environment use?

The listed specs show an operating temperature of 0°C to +50°C, but no IP rating is provided. That means it is better treated as a power supply for indoor or otherwise protected environments rather than exposed outdoor use. If the application involves moisture, dust, or washdown conditions, the absence of an IP rating is an important limitation.

Other GSM06 Models

2 other models
ModelPower Voltage Current IP RatingPrice
Mean Well GSM06U24-P1J Power Supply 06W 24V 6W 24V 0.25A Indoor$14.48 View
Mean Well GSM06E15-P1J Power Supply 06W 15V 6W 15V 0.4A Indoor$14.48 View
