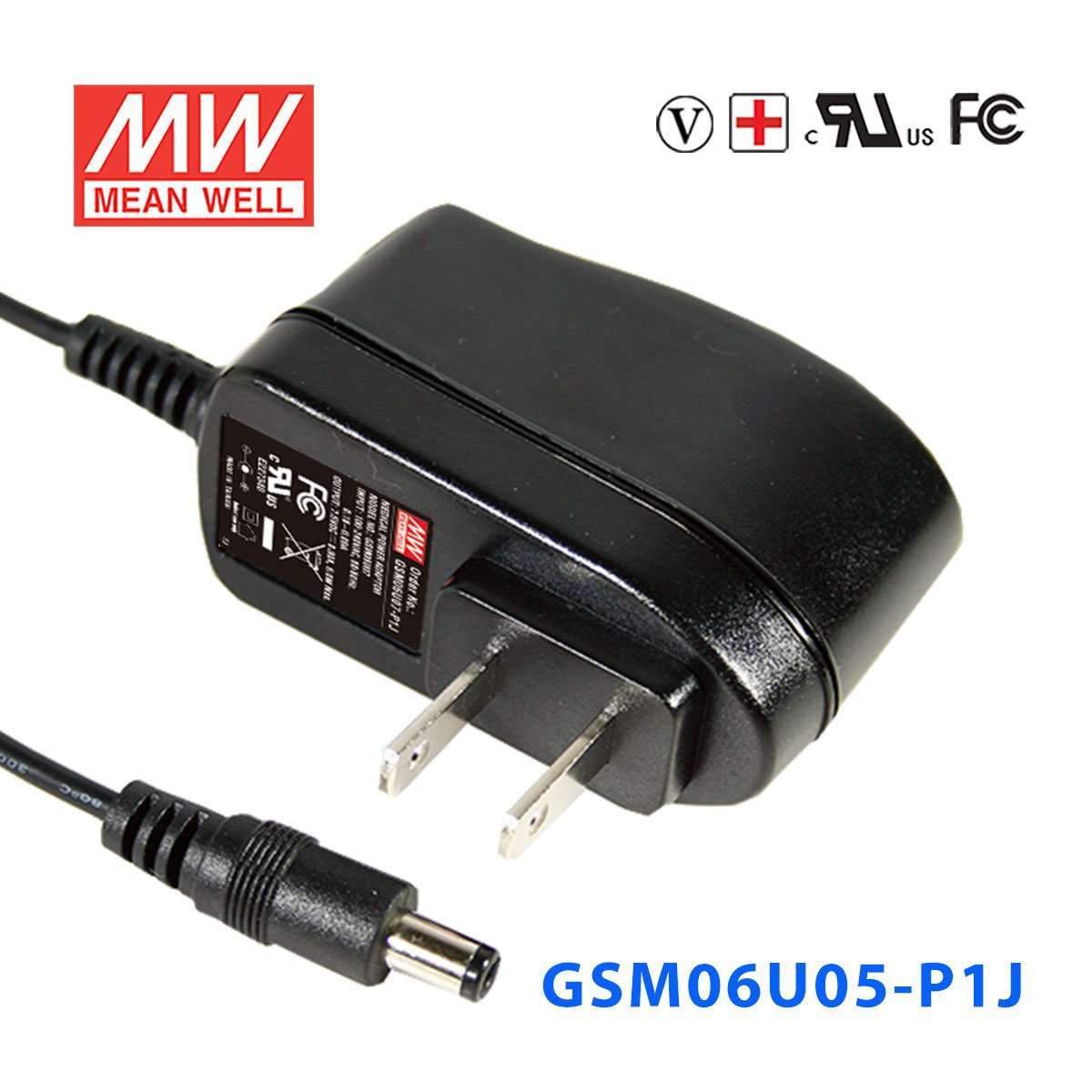

Mean Well GSM06U05-P1J Power Supply 06W 5V
Description
Description
Features
| Universal AC input / Full range |
| 2 pole USA AC plug |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.3W |
| High efficiency up to 82% |
| Class II power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| Energy efficiency Level V |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | Cold start, 30A at 230VAC |
| Overload protection | >105% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 5656VAC |
| Working temperature | 0~+40°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1-11 approved |
| EMC standards | FCC part 15 class B, FCC part 18 |
| Length of output cable | 122cm of UL2468, 22AWG for 5~9V ; 183cm of UL2468, 24AWG for 12~24V |
| Dimension (LxWxH) | 32x 66x 42.5 mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current1.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM06U05-P1J to power a 5V embedded controller or development board?
Yes, this model is intended for constant voltage output at 5V. It can support 5V embedded or controller loads that stay within 6W total and draw no more than 1.2A.
Is this 5V power supply suitable for a small industrial sensor interface or USB-powered control device?
It can be a fit for 5V industrial or IT devices that require a regulated 5V constant voltage supply. The load needs to remain at or below 1.2A and within the unit's 6W rating.
Can I use this for a low-power automation gateway or compact 5V communications device?
This supply is appropriate for compact automation or communications hardware that runs on 5V constant voltage. Capacity is limited to 6W maximum output, so the connected device must not exceed 1.2A.
Will this work for a small 5V single-board computer used in monitoring or control?
It can work when the single-board computer requires 5V constant voltage and its power demand stays within 6W. The available output current is 1.2A, so it is best suited to lower-power 5V systems.
Is the GSM06U05-P1J suitable for outdoor or harsh-location use?
The listed specs show an operating temperature range of 0°C to +50°C, which helps define its environmental limit. No IP rating is provided in the supplied specs, so this model is better matched to indoor or otherwise protected locations.
